Cylindrical grinder STUDER S20 Favorit

Cylindrical grinder STUDER S 20 Favorit

TECHNICAL CHARACTERISTICS:

Year of manufacturing: 1997

Centre distance: 400 [mm]

Height of centers: 100 [mm]

Stroke Z axis: 420 [mm]

Working feed Z axis: 100 - 3500 [mm/min]

Orientation of table: 0 - 30 [°]

Grinding spindle motor power: 3 [kW]

Max. diameter grinding wheel: 350 [mm]

Max. grinding wheel width: 30 [mm]

Grinding wheel bore: 127 [mm]

Workpiece spindle nose: W20

Workpiece spindle min. speed: 30 [rpm]

Workpiece spindle max. speed: 1200 [rpm]

Max. part weight in part holder headstock between centres: 20 [Kg]

Workpiece swiveling range: 0 [°] / +90 [°]

Workpiece spindle power: 0.5 [kW]

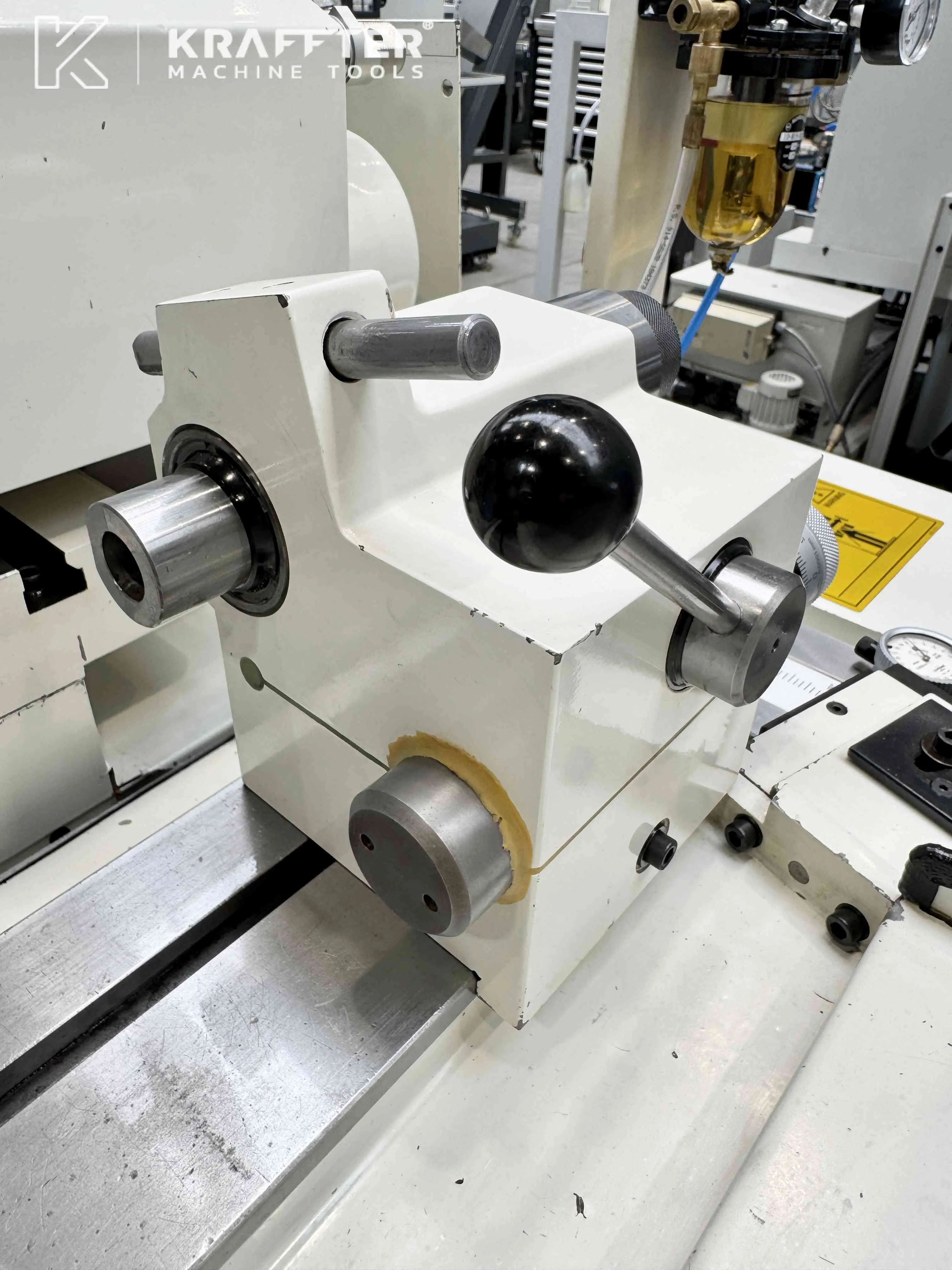

Type of attachment tailstock: MT2

Tailstock quill stroke: 20 [mm]

Supply voltage: 400 [V]

Total power required: 8 [kVA]

Machine dimensions: 2350 x 1480 [mm]

Weight: 1600 [Kg]

INCLUDED EQUIPMENT:

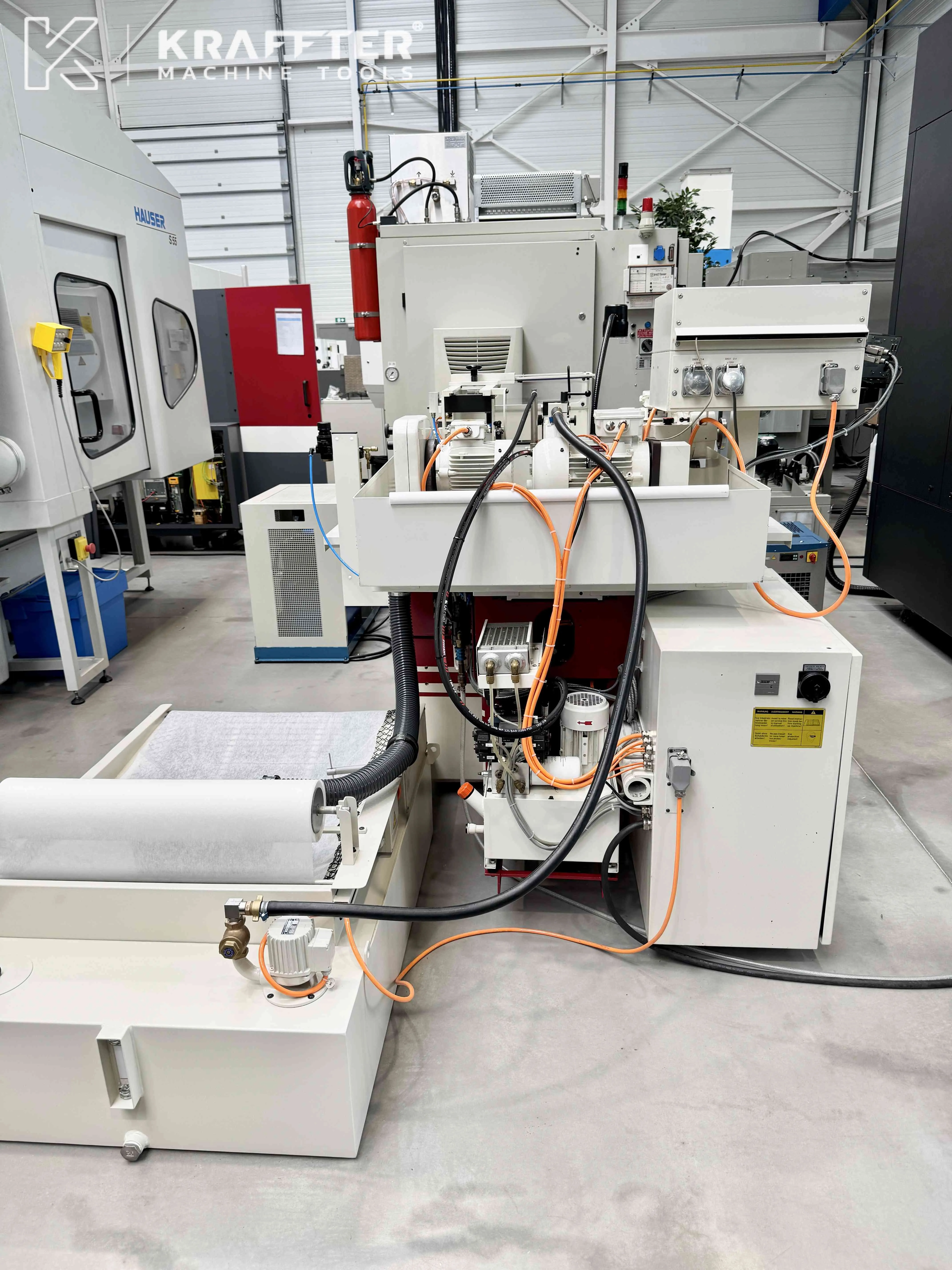

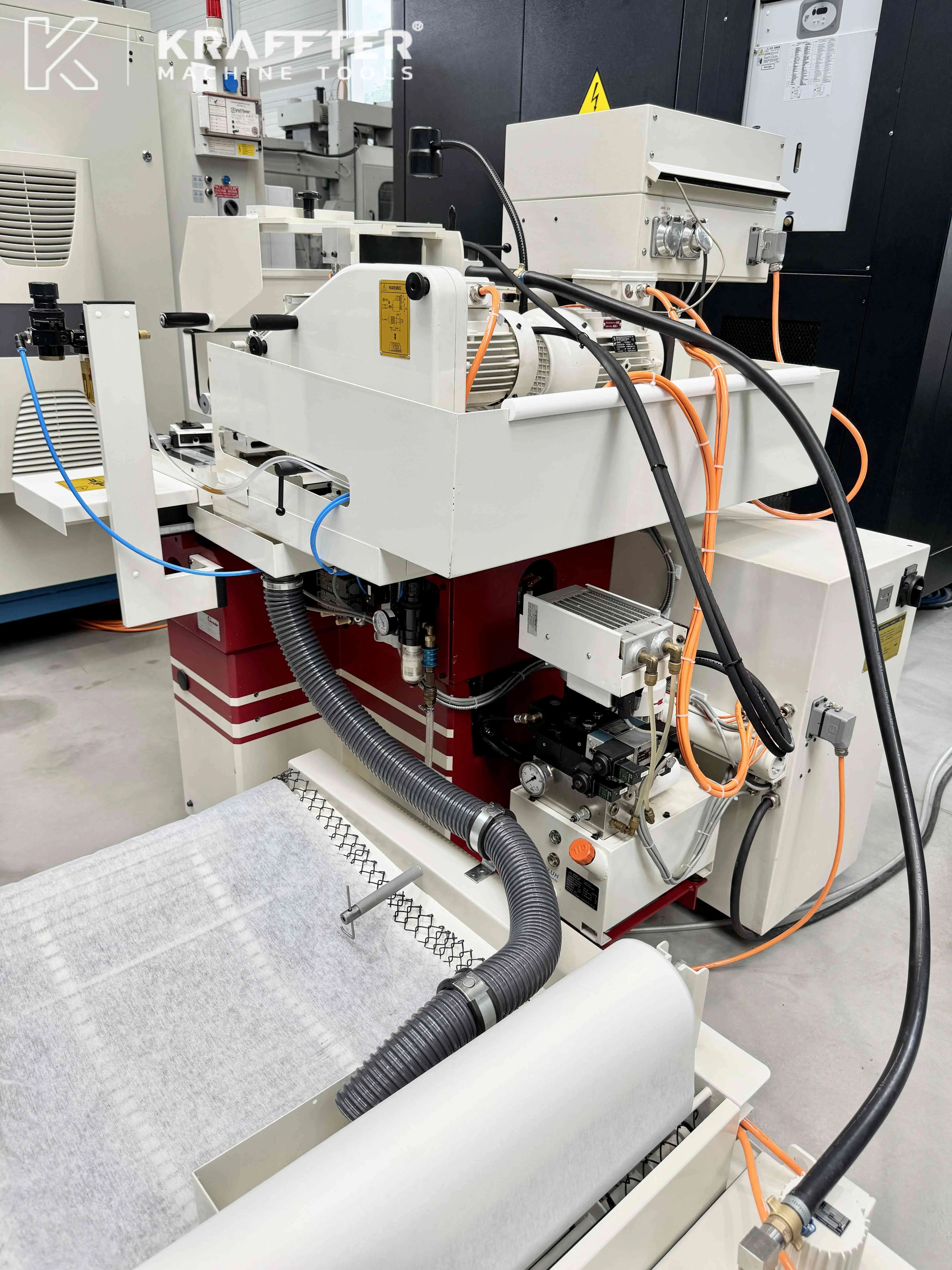

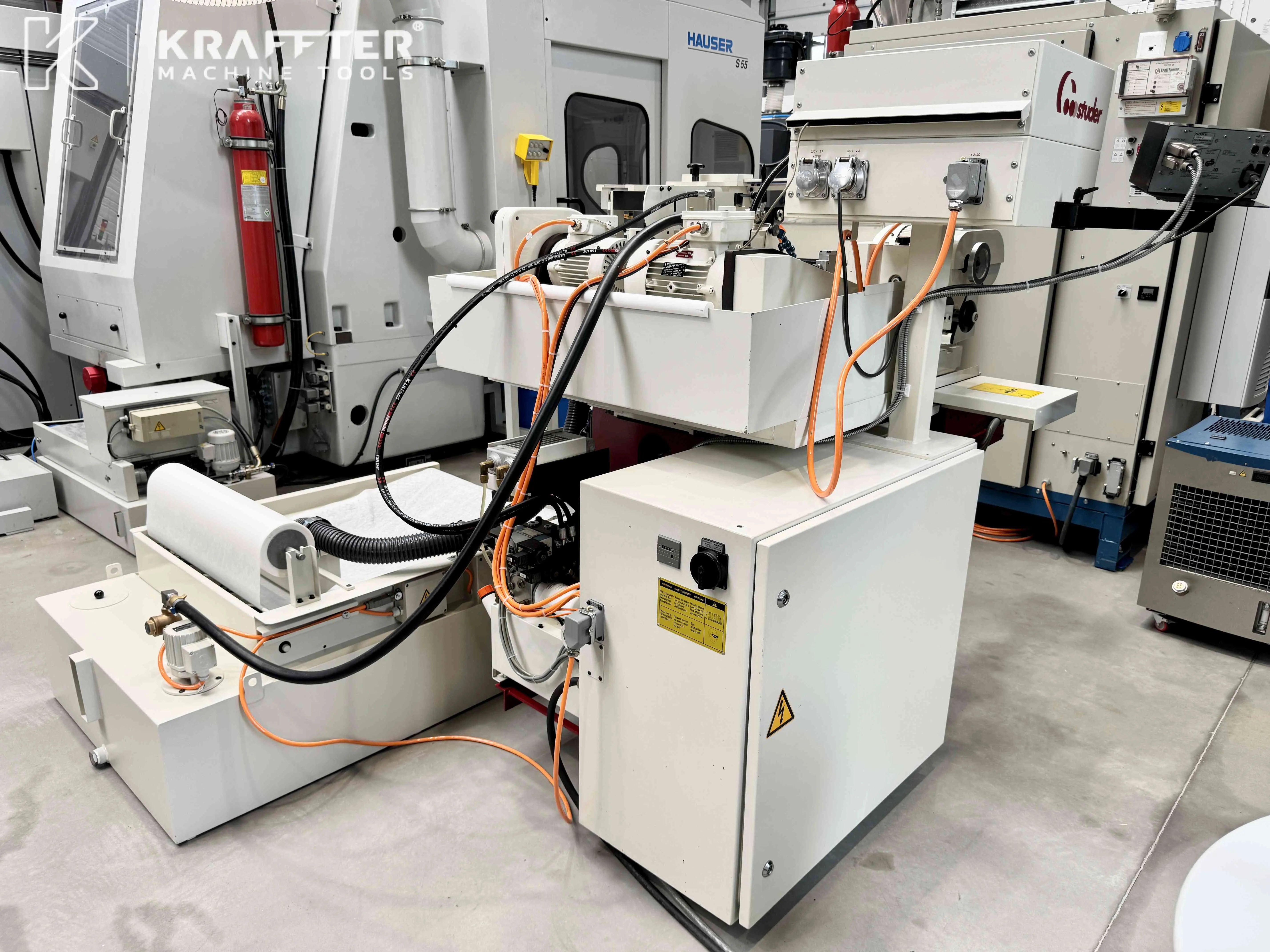

x1 paper tape filtration device

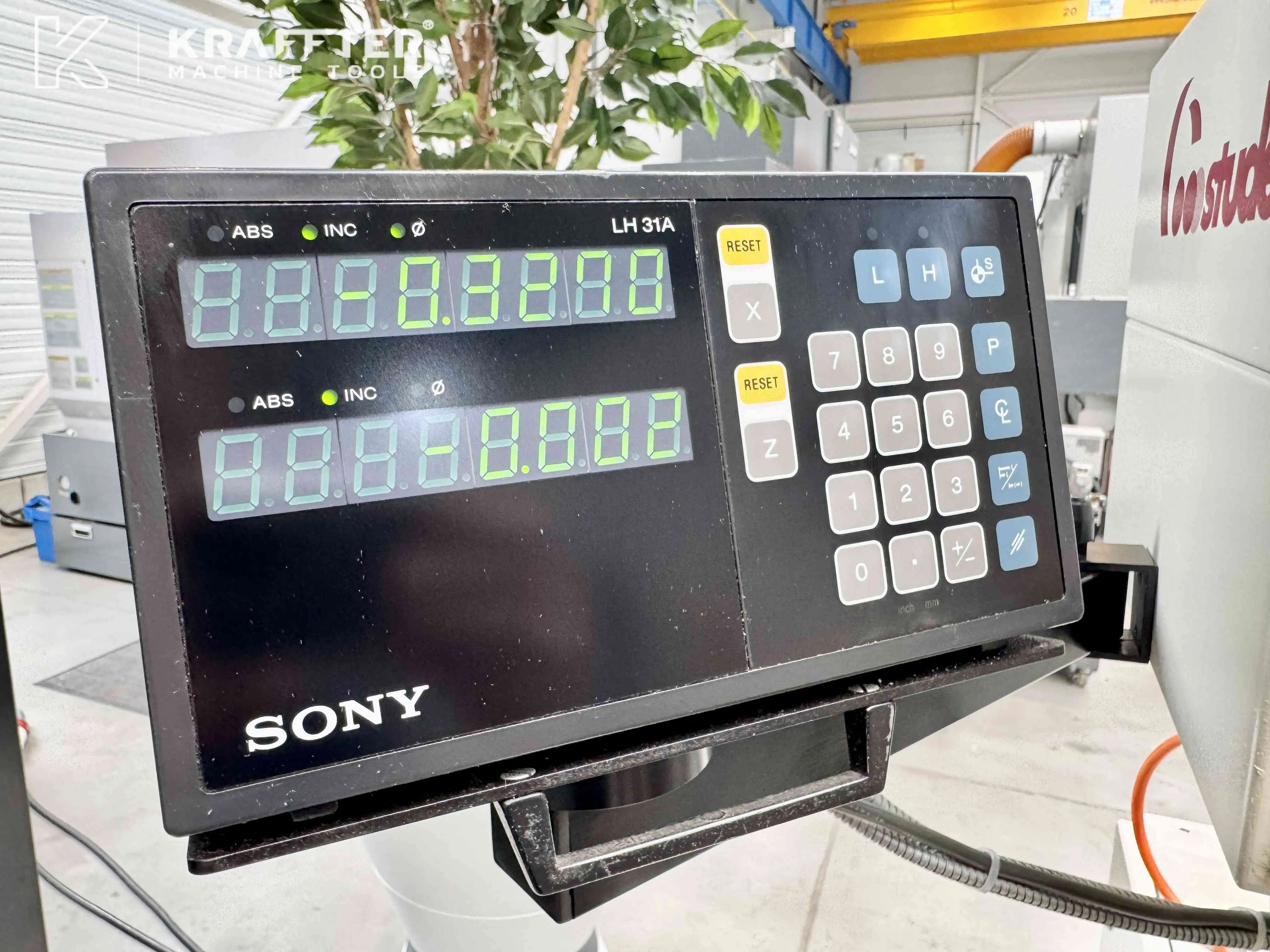

x1 SONY LH 31A 2 axis digital read out

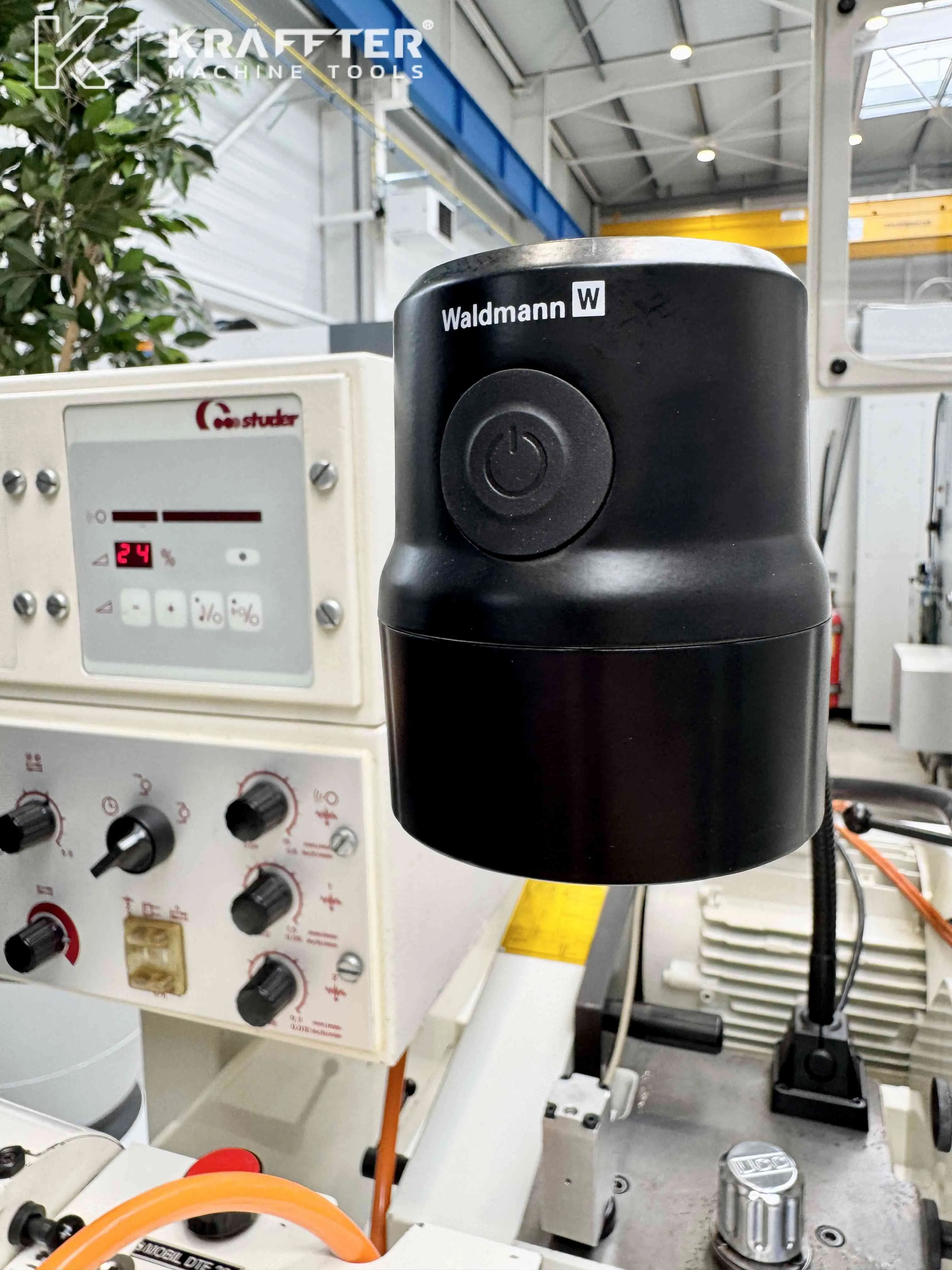

x1 WALDMANN LED lamp

x1 internal grinding spindle type: 82060B / Speeds: 11,900 up to 28,400 [rpm]

x1 SENSITRON contact indicator

x1 grinding wheel balancing device

x1 grinding wheel balancing arbor

x1 three-jaw chuck FN Ø100 [mm] MT3

x1 magnetic chuck Ø160 [mm] MT3

x1 table-mounted wheel dresser

x37 W20 collets

x2 half-centres

x2 full centres

x1 blunt centre

x1 pulley Ø105 [mm] for internal grinding spindle

x2 external grinding wheel flanges

x1 TYROLIT 494271 grinding wheel for external grinding operations

Various internal grinding wheels

x4 driving carriers

Various miscellaneous

Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.
