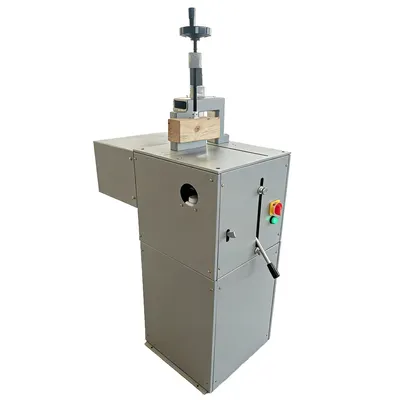

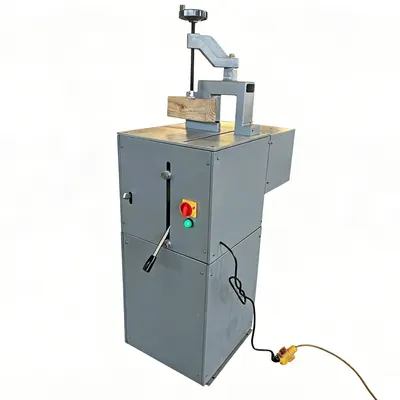

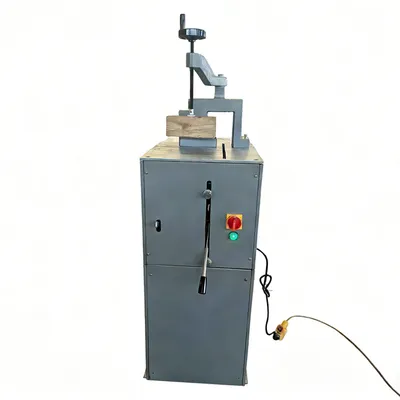

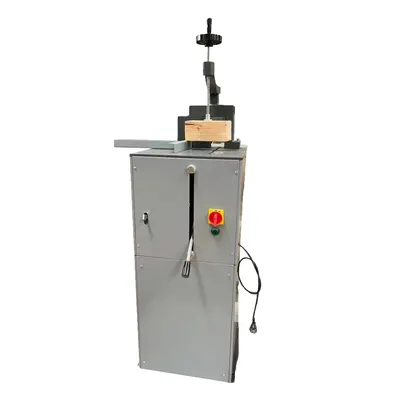

Aluminium Circular Saws

mit 3 Sägeblättern

mit Spähnecontainer

mit Sprüheinrichtung pneumatisch

mit Anschlagstange Rechts -links

gereinigt

das Untergestell ist leicht abnehmbar

die Säge kann auch auf einen Tisch gestellt werden

Preis netto 420,16+ Steuer = 500€brutto

Versand in der Umgebung von Presseck oder Fürth möglich

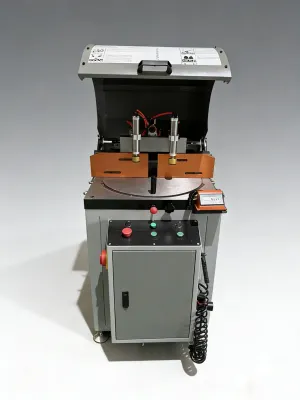

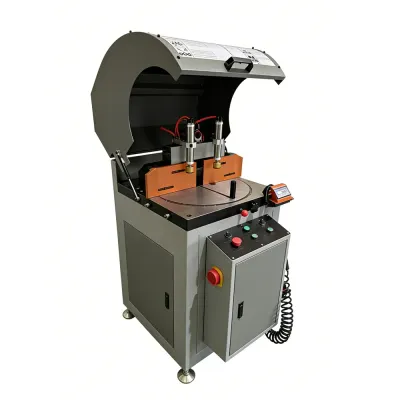

420 mm Single-Head Cutting Saw for Aluminum Profile Processing

The 420 mm arbitrary-angle single-head cutting saw is designed for high-precision cutting of aluminum profiles, non-ferrous metals, and certain plastic materials.

Its compact structure and user-friendly operation make it ideal for applications in window and door manufacturing, mechanical processing, and various industrial production environments.

The machine supports arbitrary angle cutting from 0° to 45°, allowing flexible processing for different production requirements.

Main Components

• Push Buttons: Schneider Electric (France)
• AC Contactor: Schneider Electric (France)
• Relay: Delixi (Zhejiang, China)
• Motor: Jinsheng (Guangdong, China)
• Power Supply: Meanwell (Taiwan)
• Cylinder: Huatong (Shandong, China)

Technical Specifications

• Power Supply: 380 V / 50 Hz
• Total Power: 2.2 kW
• Spindle Speed: 2800 rpm
• Working Pressure: 0.5 – 0.6 MPa
• Saw Blade Size: Ø420 mm, bore 25.4 mm

Cutting Capacity (45°):

• 110 mm (H) × 65 mm (W)
• 90 mm (H) × 90 mm (W)

Cutting Capacity (90°):

• 110 mm (H) × 90 mm (W)
• 90 mm (H) × 120 mm (W)
• Machine Dimensions: 600 × 670 × 1280 mm
• Weight: 190 kg

Product Features

• High-Precision Cutting
• Equipped with a high-quality blade and spindle system to ensure smooth and accurate cutting.
• Premium Components
• Key electrical components are sourced from well-known international and domestic brands for stable operation.
• Flexible Angle Adjustment
• Supports arbitrary cutting angles from 0° to 45° for versatile processing.
• Safe and Reliable
• Equipped with multiple safety protection mechanisms.
• Compact Structure
• Space-saving design, easy installation, and convenient maintenance.

Applications

• Aluminum window and door manufacturing
• Curtain wall fabrication
• Mechanical manufacturing
• Cutting of non-ferrous metal and plastic profiles
• Profile processing factories

Standard Accessories

• 1 × Saw blade
• Dedicated pneumatic cylinder
• Complete electrical control system
• User manual and certificates

-------------------------------------------------

420任意角度单头切割锯专为高精度切割铝型材、有色金属及特定塑料材料而设计。该机器结构紧凑且作友好，非常适合窗户和门制造、机械加工及其他工业应用。它支持从0°到45°的任意角度切割，满足多样化的生产需求。

主要组成部分

• 纽扣：施耐德 / 法国
• 交流接触器：施耐德 / 法国
• 接力：德利西 / 浙江
• 动力：金生 / 广东
• 电力开关：Meanwell / 台湾
• 汽缸：华通/山东

技术规格

• 电源：380V / 50Hz
• 总功率：2.2千瓦
• 主轴转速：2800转/分钟
• 工作压力：0.5 – 0.6 MPa
• 锯片尺寸：直径420毫米，孔径25.4毫米
• 切割范围（45°）：高110毫米×宽65毫米;高度 90毫米 × 宽度 90毫米
• 切割范围（90°）：高度110毫米×宽90毫米;高度：90毫米×宽：120毫米
• 整体尺寸：600毫米×670毫米×1280毫米
• 体重：190公斤

产品特点

• 高精度切割：配备高品质刀片和主轴系统，确保切割平顺精准。
• 优质零部件：关键电气零件采购自知名国际及国内品牌，确保稳定运行。
• 灵活角度调节：支持任意角度切割，范围从0°到45°，满足多种加工需求。
• 安全可靠：多种安全保护装置确保安全。
• 紧凑结构：体积小，便于安装和维护。

应用领域

• 铝制窗户和幕墙加工
• 机械制造
• 有色金属和塑料型材切割
• 各类型材加工厂

标准配件

• 一套锯片
• 专用气缸
• 完整的电气控制系统
• 用户手册与证书

TMS 400 Circular Saw for Aluminum Cutting

Product OverviewThe TMS 400 is a robust, precision-engineered circular saw designed specifically for cutting aluminum. It also handles copper, brass, acrylic, composites, PVC, and other ferrous materials with ease. Featuring dual miter cutting capability (0° to 45°), this machine combines reliability and simplicity for easy maintenance and long-lasting performance.

Technical Data

• 1Ph Electric Motor: 1.45–2.0 kW
• Voltage / Frequency: 1Ph 230V/50Hz, 220V/60Hz
• Blade Disc Diameter: 400 mm
• Blade Shaft Revolution: 3000 rpm
• Weight: 90 kg (105 kg with pedestal)

Cutting Capacity

Angle Circular (mm) Square (mm) Rectangular (mm)

0° 135 125 × 125 220 × 65

45° 130 115 × 115 170 × 60

Technical Features

• Cast-iron vice and cutting head for high stability and vibration-free cutting
• Motor guard for enhanced safety
• Parallel cutting device
• Quick-lock vice for fast and secure clamping
• Rigorous mechanical tolerance, electrical installation, and performance tests ensure top quality

Standard Equipment

• Instruction manual
• Set of service spanners
• Steel plate pedestal (included)

Optional Equipment

• Carbide blade disc, 400 mm

Applications

Perfect for metalworking shops, fabrication workshops, and manufacturers requiring precise and efficient cutting of aluminum and other non-ferrous or ferrous materials.
