Industrial machines & components > Metalworking machinery > EDM machines
Karlsbad-Ittersbach, Deutschland

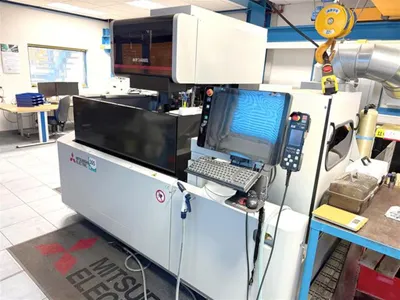

Maschinentyp: Drahterodiermaschine
Fabrikat: MITSUBISHI

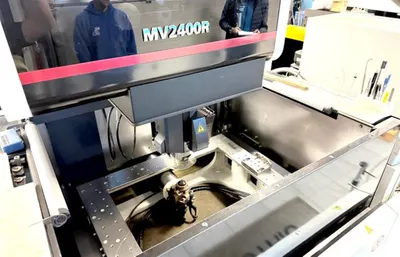

Typ: MV 2400R
Baujahr: 2017
Steuerungsart: CNC
Steuerung: D-CUBES
Ursprungsland: Japan
Lieferzeit: sofort
Frachtbasis: ab Ausstellungshalle, frei verladen
Zusätzliche Informationen:
Technische Details:
Verfahrweg - x: 600 mm
Verfahrweg - y: 400 mm
Verfahrweg - z: 310 mm
Max. Werkstückgröße LxBxH: 1.050 x 800 x 295 mm
Max. Werkstückgewicht: 1.500 kg
Tischgröße: 840 x 640 mm
U-Achse: +/- 75 mm
V-Achse: +/- 75 mm
Konischschneiden: 15° / 260 mm
Eilgang: 1,3 m/min
Drahtdurchmesser: 0,1 - 0,3 mm
Drahtvorschub: max. 23 m/min
Maschinengewicht ca.: 3,5 t
Raumbedarf ca.: 2,7 x 3,1 x 2,2 m
Poststraße 117, 73054 Eislingen/Fils, Deutschland

Year of manufacture: 2011
Net weight: 1,520 kg
Condition: Used
Machine type: EDM machine
Control type: CNC
Location: Northern Germany
Country of origin: Germany
Delivery time: Immediate
Shipping terms: EXW (Incoterms 2010) free loaded truck
Table size: 800 × 500 mm
Workpiece height: 370 mm
Workpiece weight: 800 kg
X-axis travel: 580 mm
Y-axis travel: 400 mm
W-axis travel: 340 mm
Servo-controlled Z-EDM axis: 0.01 - 420 mm
Automatic guide changer stations: 2
Electrode changer stations: 30
Machine dimensions (L×W×H): 2.2 × 2.4 × 2.2 m
Power connection: 4 kVA
