CNC Machining Centre HAAS UMC-750SS (CNC Machining Center)

AB-2512-463
Le Jasmin, Saint-Genix-les-Villages, France
Contact Person for this Ads:
Kévin LECRONT
Languages
Request Price
Key Features:
ManufactureHAAS
ModelUMC-750SS
Quantity1
Reference number90145
Condition
Used - Good
Ad Statistics:
Created12/22/2025
Last updated12/22/2025
Detailed view4
Contact Person for this Ads:
Kévin LECRONT
Languages

Le Jasmin, Saint-Genix-les-Villages, France

User Information
Registered Since10/6/2025
Number of Online Ads21
Last Sign in12/23/2025

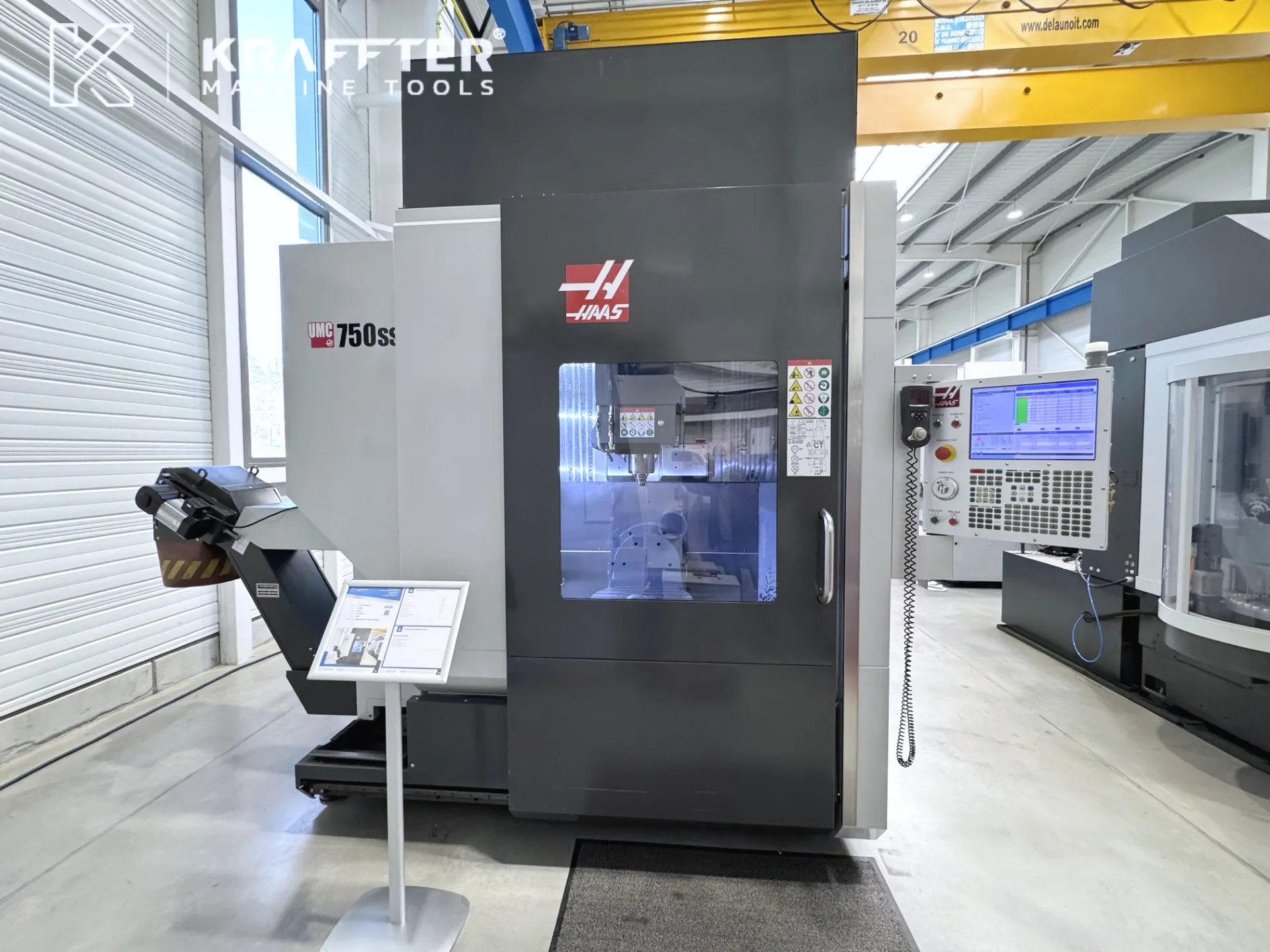

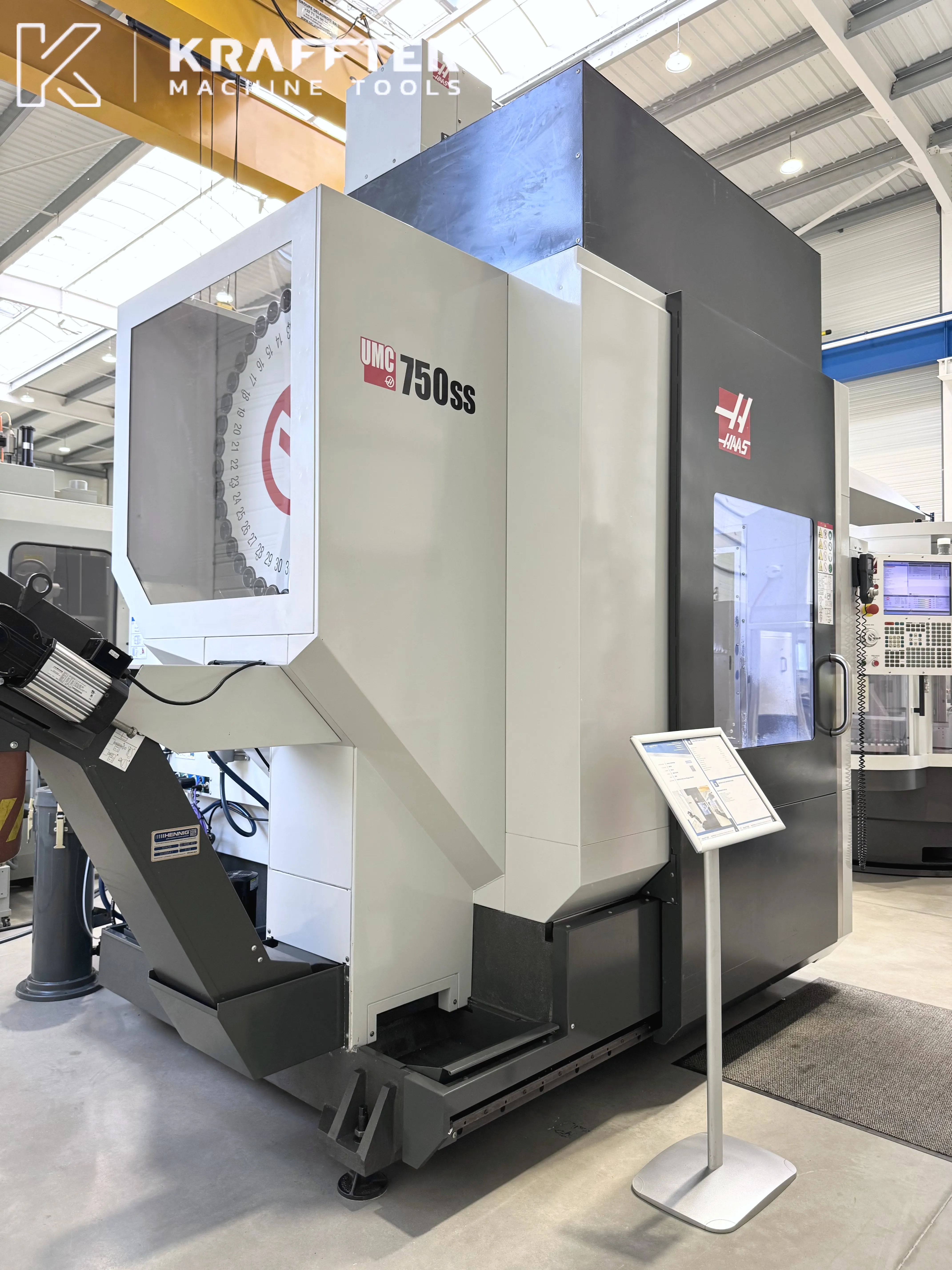

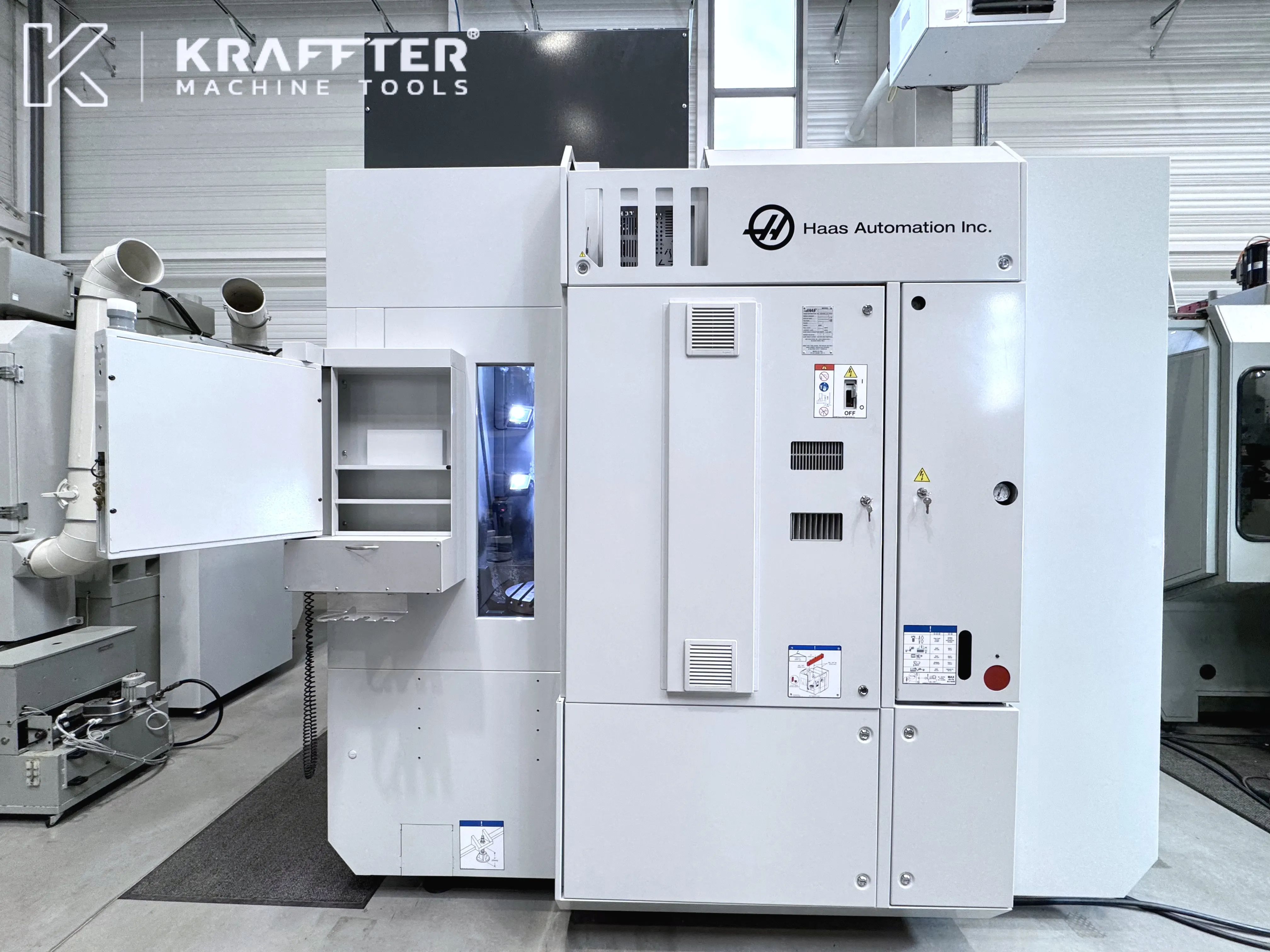

CNC Machining Centre HAAS UMC-750SS







TECHNICAL CHARACTERISTICS:



Year of manufacturing: 2019

Number of simultaneous axes: 5

Stroke X axis: 762 [mm]

Stroke Y axis: 508 [mm]

Stroke Z axis: 508 [mm]

Angular C axis stroke: 360 [°]

Table dimensions : Ø630 x 500 [mm]

Max. load on table: 300 [Kg]

B axis swivelling stroke: +110 [°] / 350 [°]

Spindle type: CT 40

Max. spindle speed: 15000 [rpm]

Spindle power: 22.4 [kW]

Tool changer magazin number of stations: 40

Lubrication tank capacity: 284 [l]

Number of running hours: 5277 [h]

Weight: 8500 [Kg]




EQUIPMENT INCLUDED:

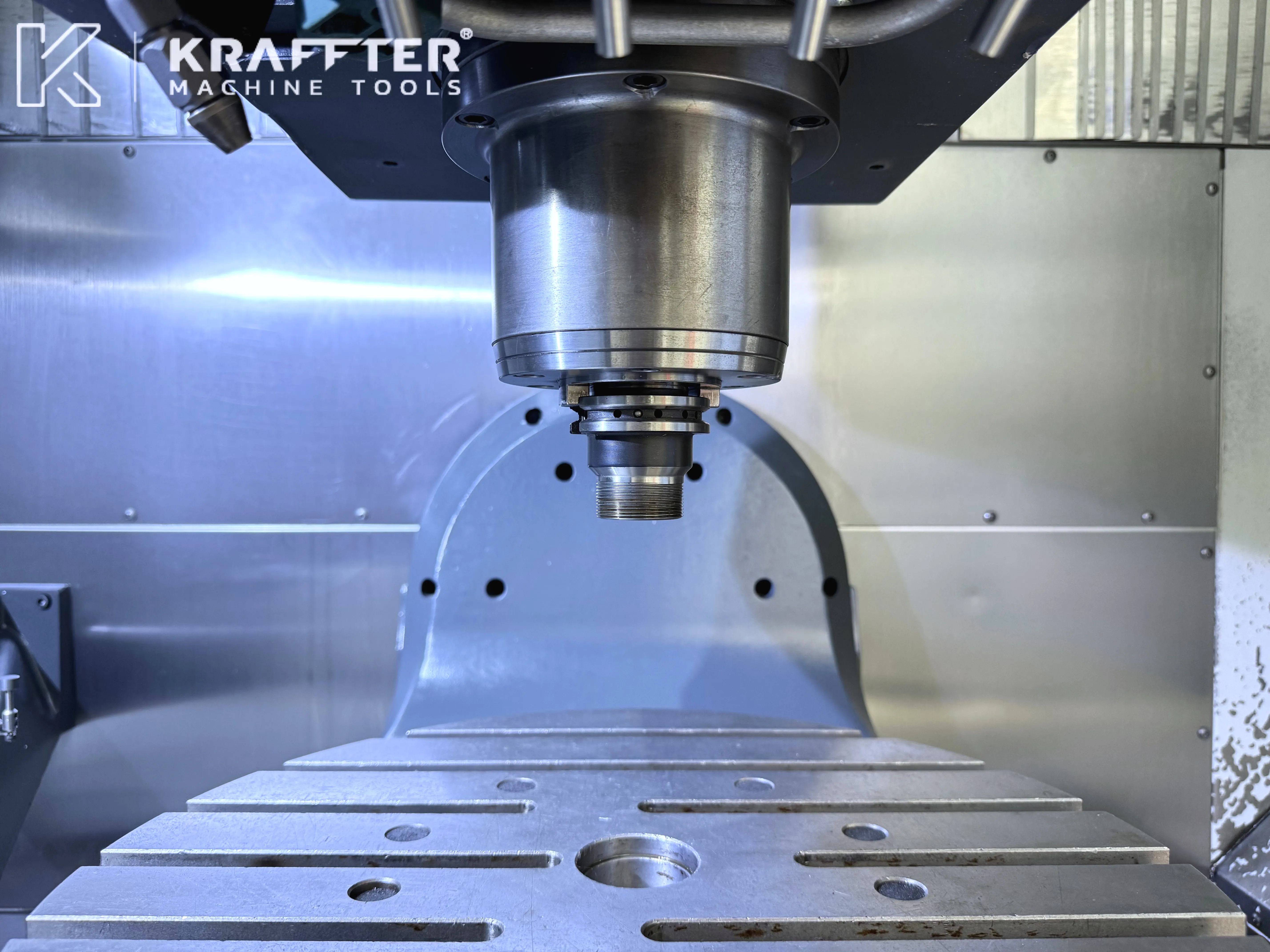

x1 spindle 15000 [rpm]

x1 through-spindle coolant

x1 high-pressure coolant pump 21 bar

x1 auxiliary coolant filter

x1 RENISHAW wireless workpiece probe

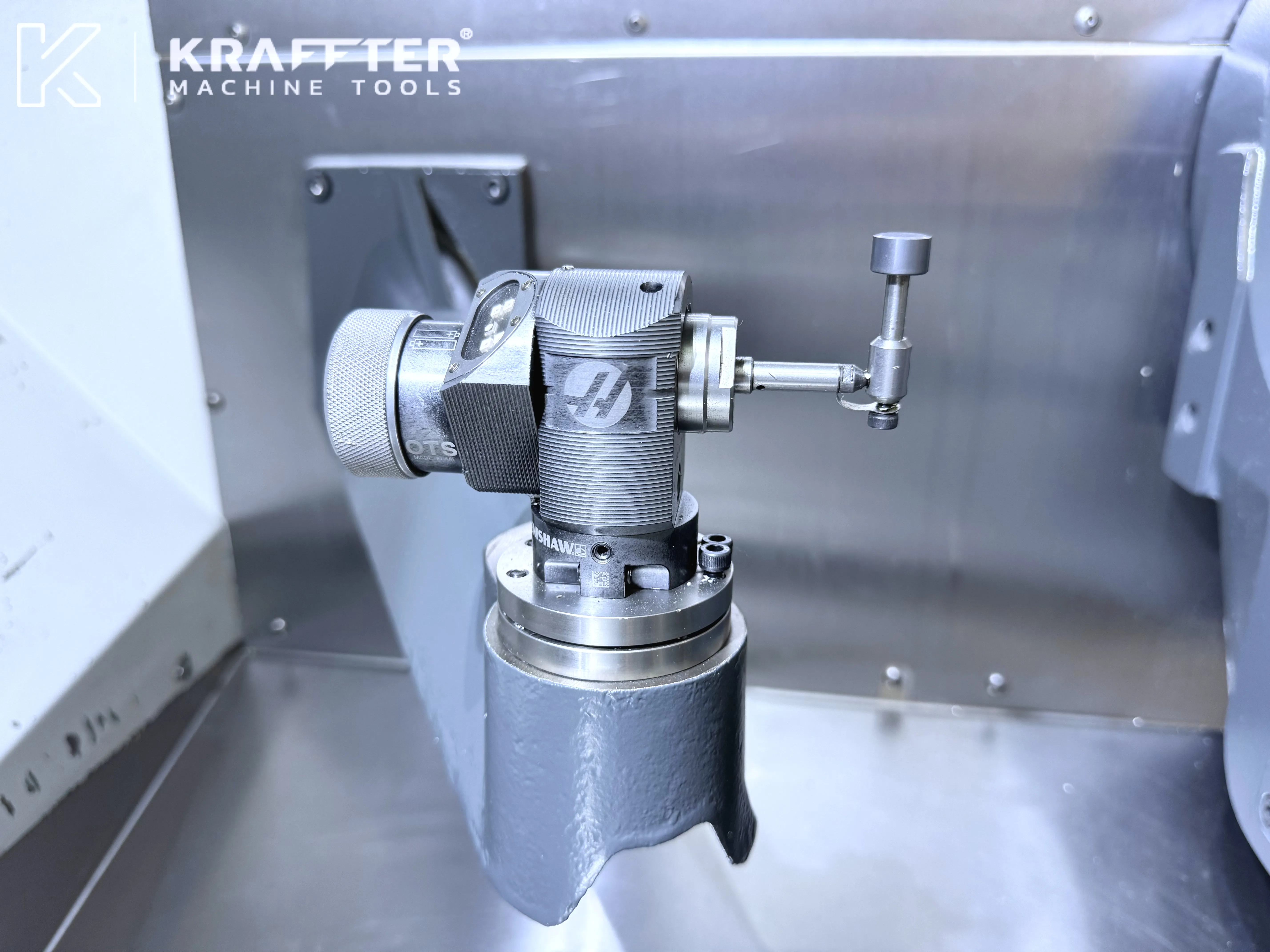

x1 calibration sphere

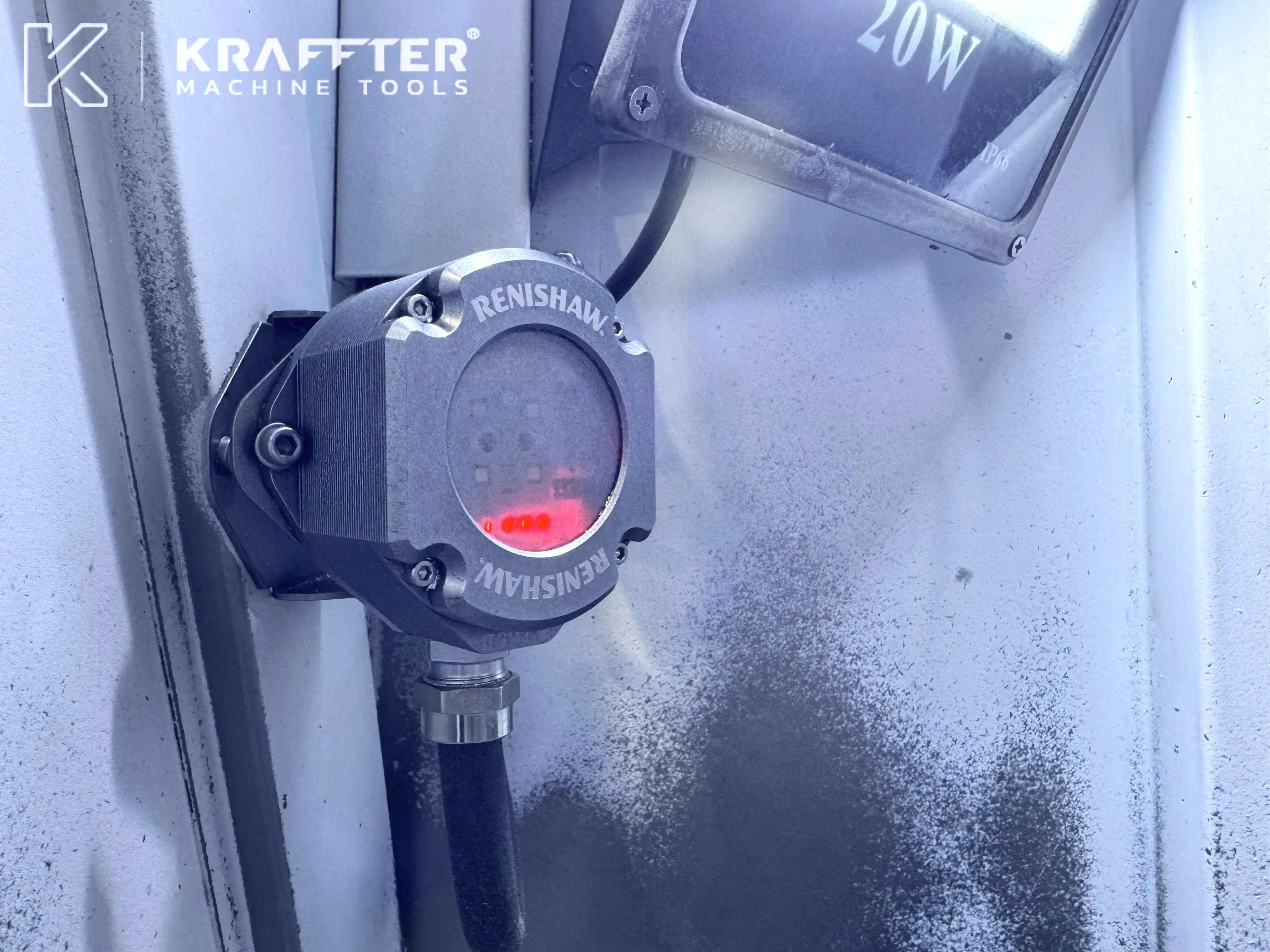

x1 RENISHAW tool probe

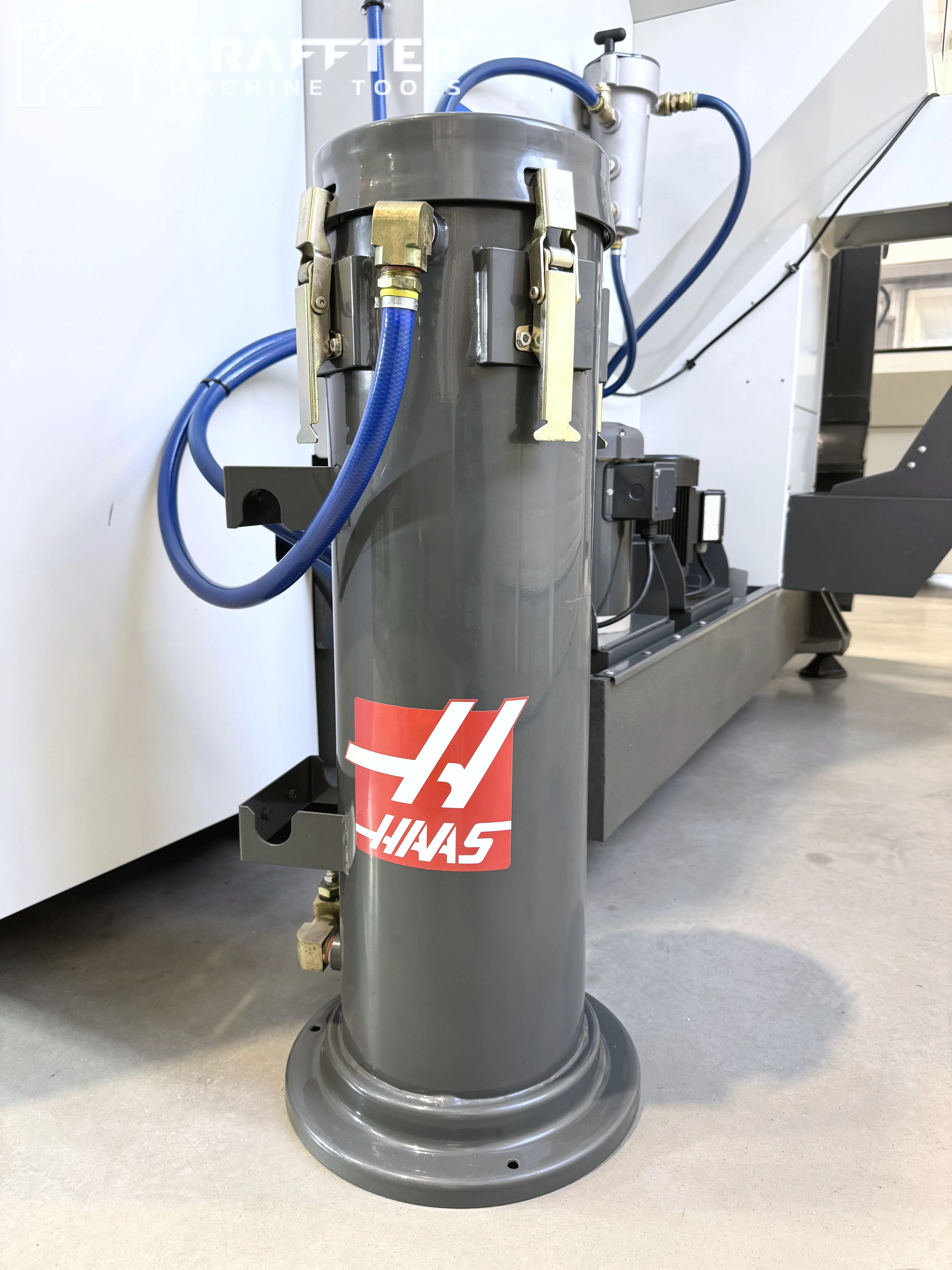

x1 HAAS oil mist extractor

x1 HAAS remote handwheel

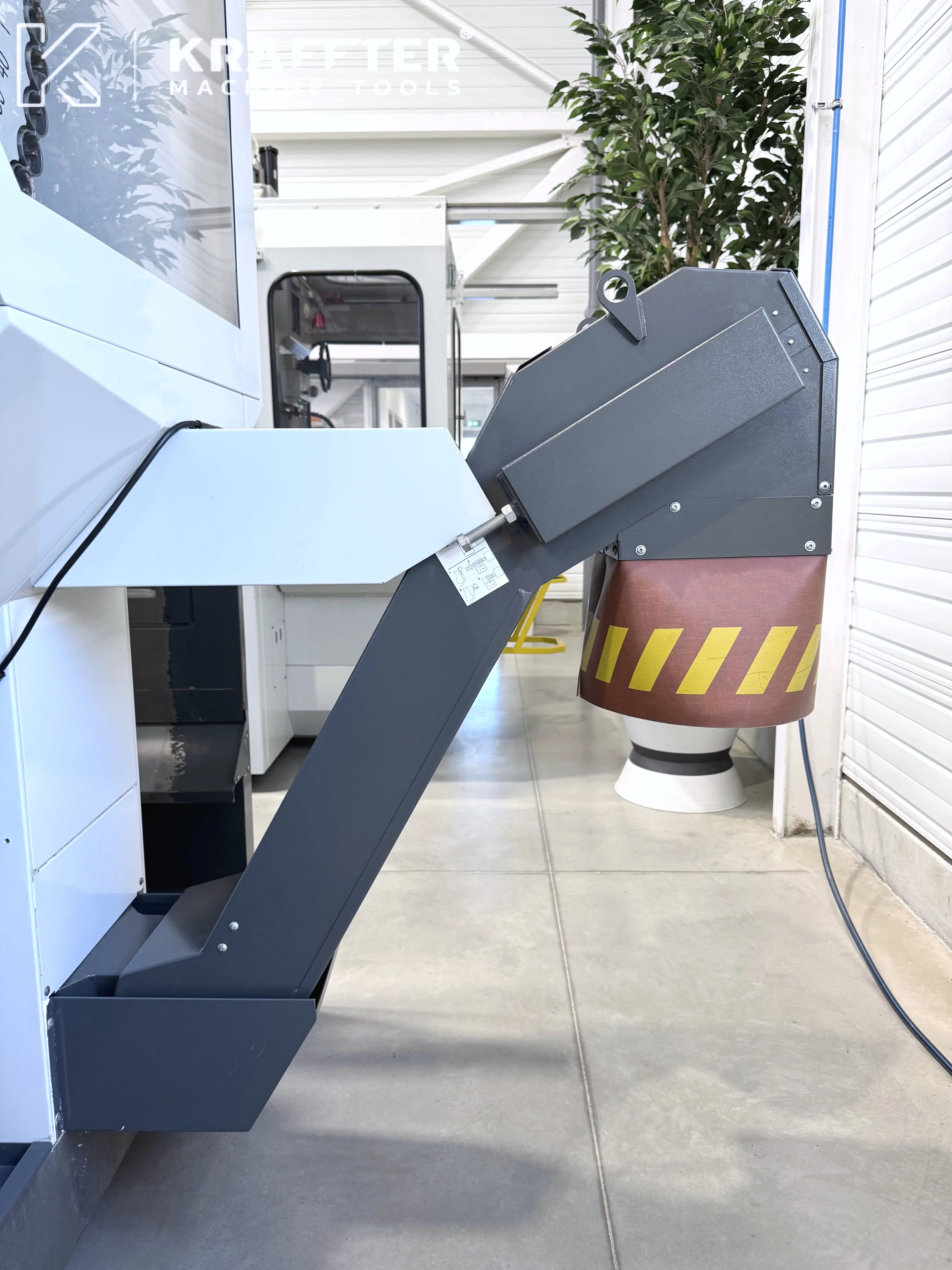

x1 HENNIG chip conveyor, type 101435




Machine visible under power in our premises by appointment.


Price on request, loading on truck included.


Possibility of shipping Worldwide.


The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.









machine similar to Mikron, Hermle, DMG Mori, Mazak, Hedelius, AXA, Chiron, Matec, Reiden, Lagun, Haas, Alzmetall, as well as milling, drilling and tapping machines, and CNC grinding machines
