CNC machining center CHIRON FZ08 KS Magnum High Speed Plus (HSP)

AB-2512-461
Le Jasmin, Saint-Genix-les-Villages, France
Contact Person for this Ads:
Kévin LECRONT
Languages
Request Price
Key Features:
ManufactureCHIRON
ModelFZ 08K S Magnum High Speed Plus
Quantity1
Reference number90066
Condition
Used - Good
Ad Statistics:
Created12/18/2025
Last updated12/18/2025
Detailed view427
Contact Person for this Ads:
Kévin LECRONT
Languages

Le Jasmin, Saint-Genix-les-Villages, France

User Information
Registered Since10/6/2025
Number of Online Ads21
Last Sign in12/23/2025

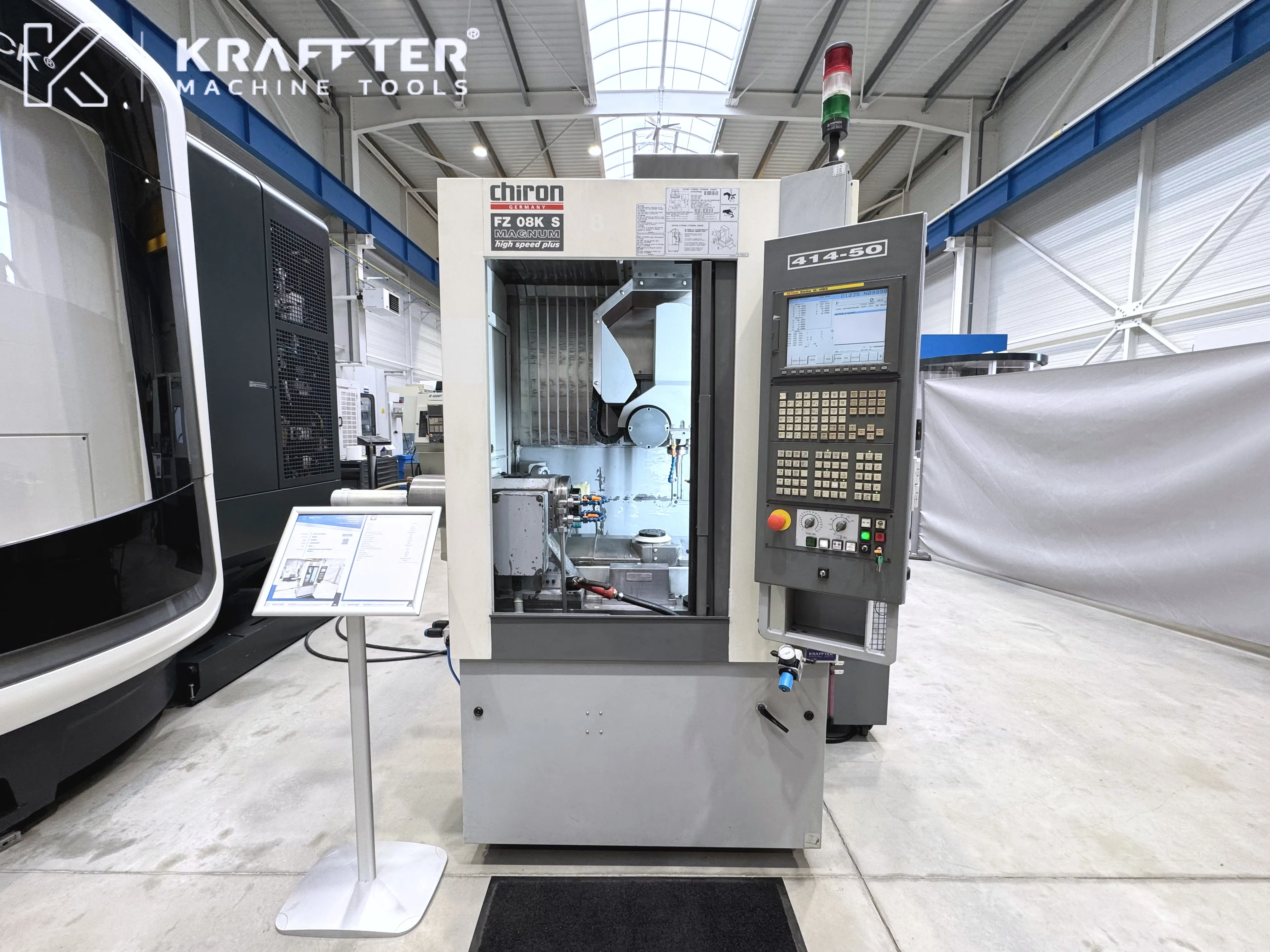

CNC machining center CHIRON FZ08 KS Magnum High Speed Plus (HSP)




TECHNICAL CHARACTERISTICS:


Year of manufacturing: 2006

CNC control : FANUC 18i-MB5

Number of axes : 7

Stroke X axis : 450 [mm]

Stroke Y axis : 270 [mm]

Stroke Z axis : 310 [mm]

Traversing feeds X, Y and Z axes : 75000 [mm/min]

Max. bar diameter in turning spindle : 32 [mm]

Main spindle max. speed : 8000 [rpm]

Main spindle max. power : 12 [kW]

Angular A axis stroke : 360 [°]

A axis indexing precision : 0.001 [°]

B axis swivelling stroke : -20° / +115 [°]

B axis indexing precision : 0.001 [°]

Spindle type : HSK40

Max. spindle speed : 30000 [rpm]

Tool changer magazin number of stations : 40

Part turnaround by robot (6th side machining) : Yes

RS232 Interface : Yes

Total power required : 17 [kVA]

Supply voltage : 400 [V]

Number of running hours : 9911 [h]

Dimensions : 1500 x 2600 x 2300 [mm]

Weight : 3400 [Kg]




EQUIPMENT INCLUDED:

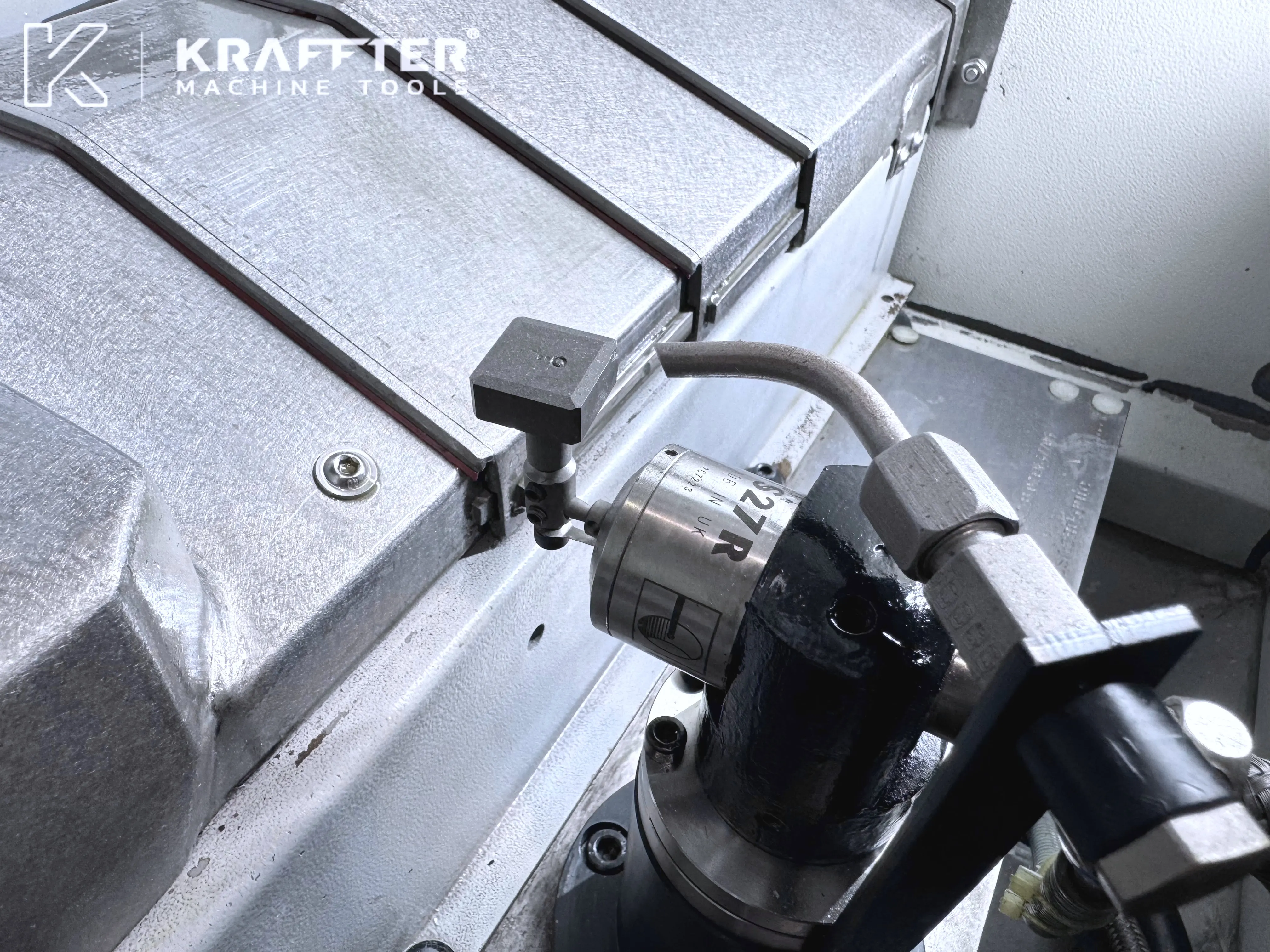

x1 RENISHAW TS27R tool probe

x1 spindle cooling unit

x1 parts catcher

x1 coolant tank

x1 unit for 6th face machining (gripping system not included)

x29 tool holders type HSK40 BIG KAISER

x10 collets type F37 SCHAUBLIN

x1 washing gun

x1 3-color status light

x1 maintenance manual

x1 electrical diagrams manual

x1 operator's manual

x1 programming manual




Price on request, loading on truck included.


Possibility of shipping Worldwide.


The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed
