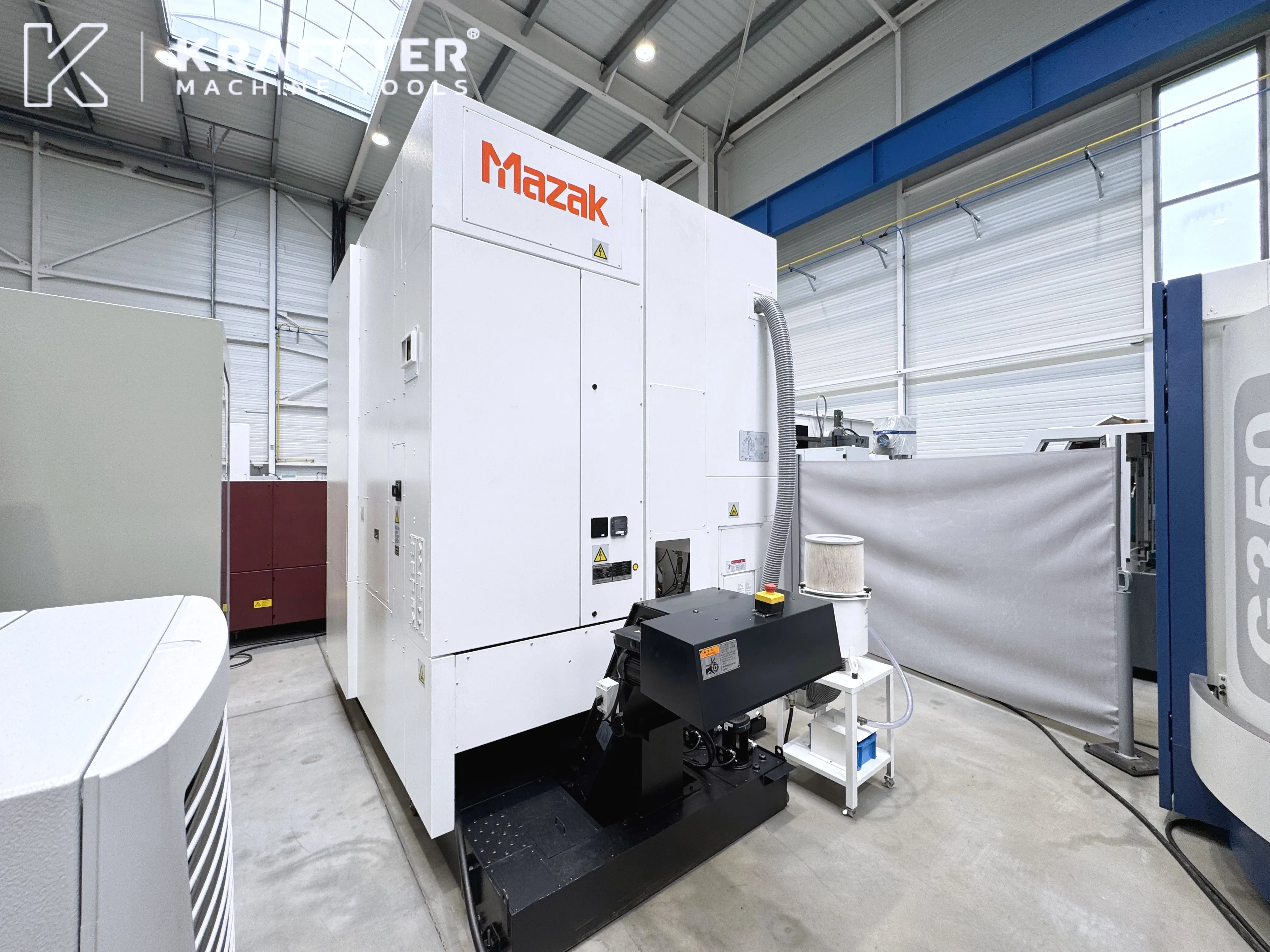

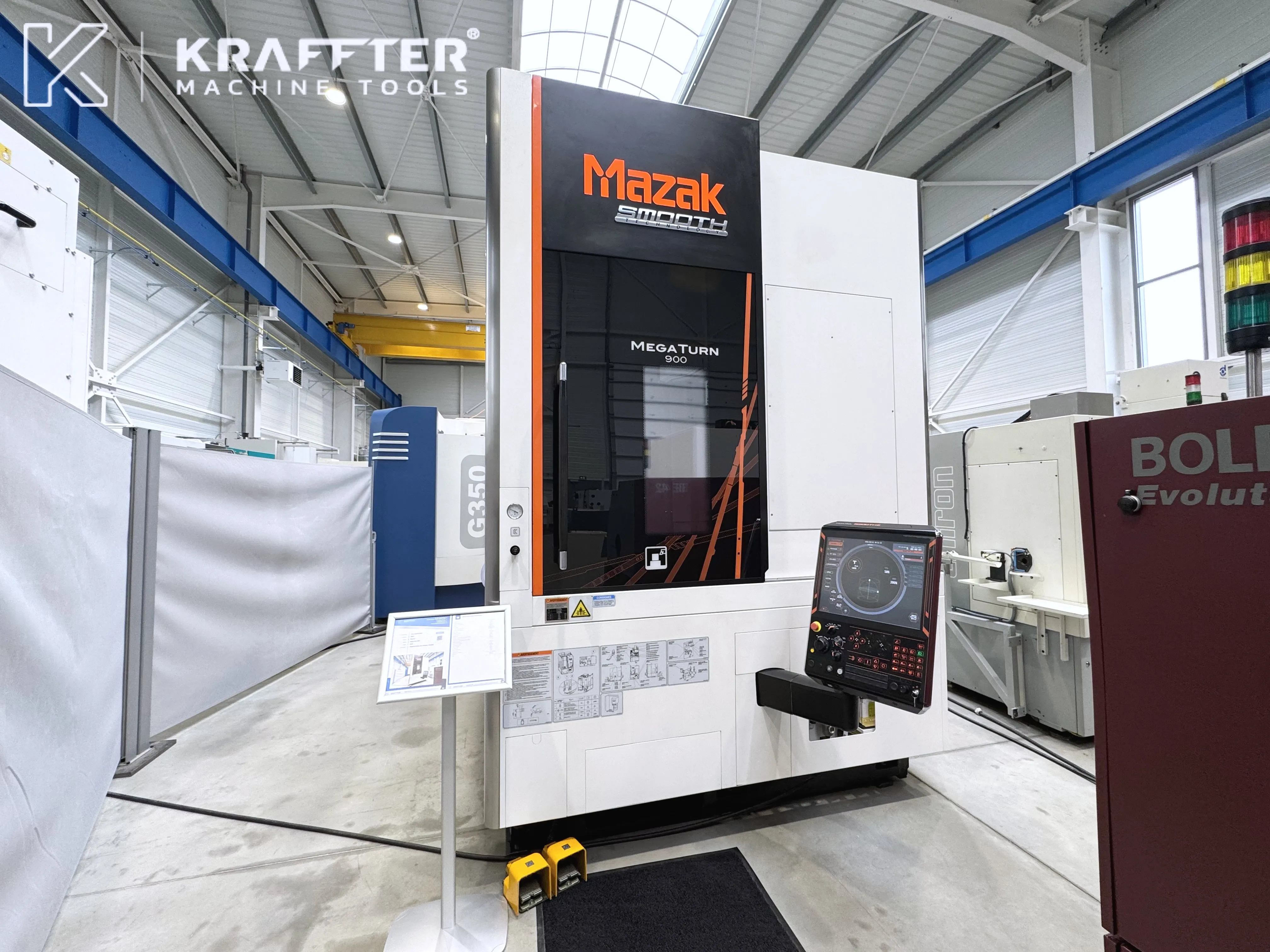

CNC Vertical Lathe MAZAK Mega Turn 900







TECHNICAL CHARACTERISTICS:



Year of manufacturing: 2018

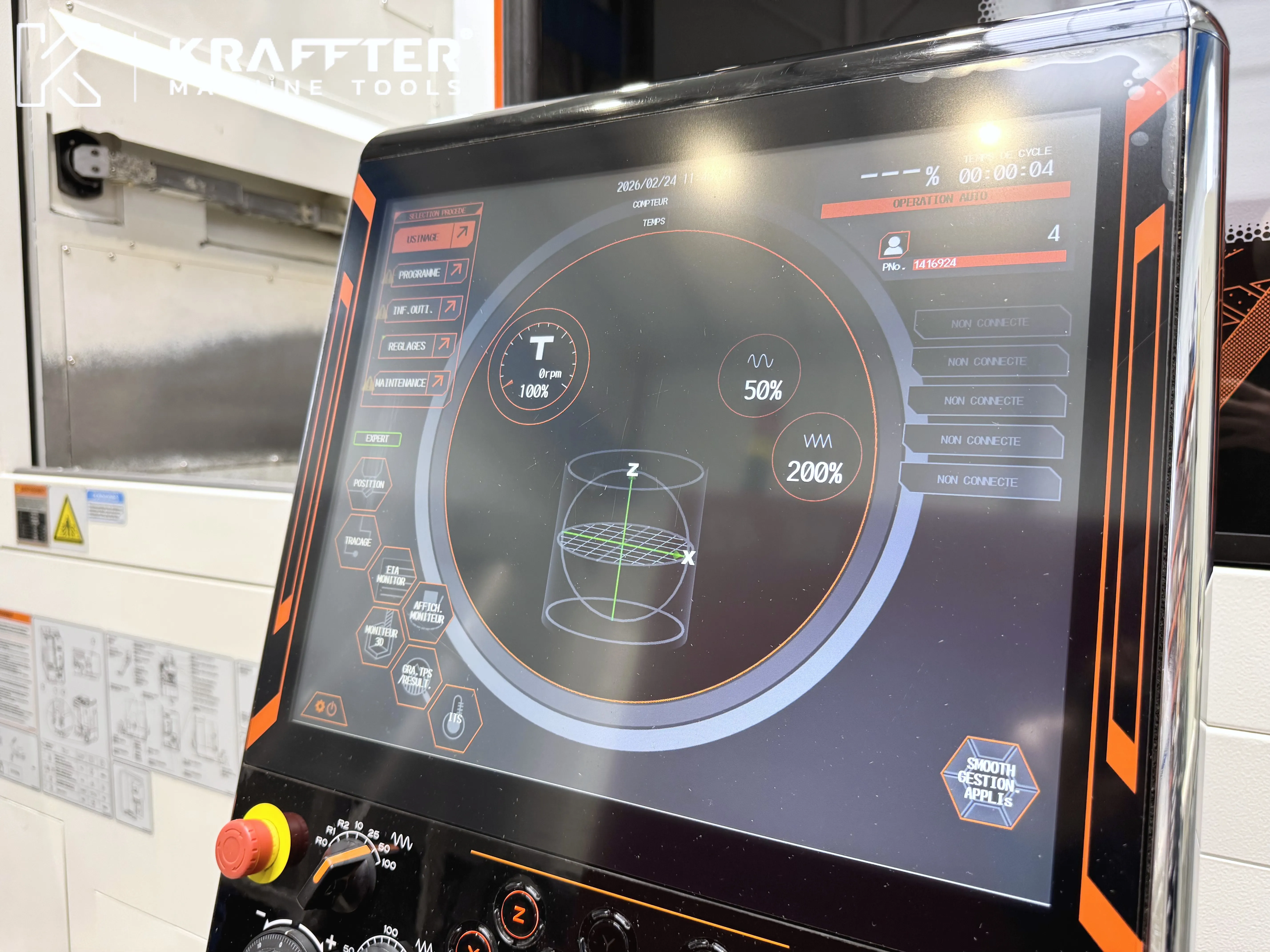

CNC control: MAZATROL SmoothG

Max. turning diameter: 920 [mm]

Max. cutting diameter: 1000 [mm]

Stroke X axis: 470 [mm]

Stroke Z axis: 876 [mm]

Rapid traverse rate X axis: 24000 [mm/min]

Rapid traverse rate Y axis: 24000 [mm/min]

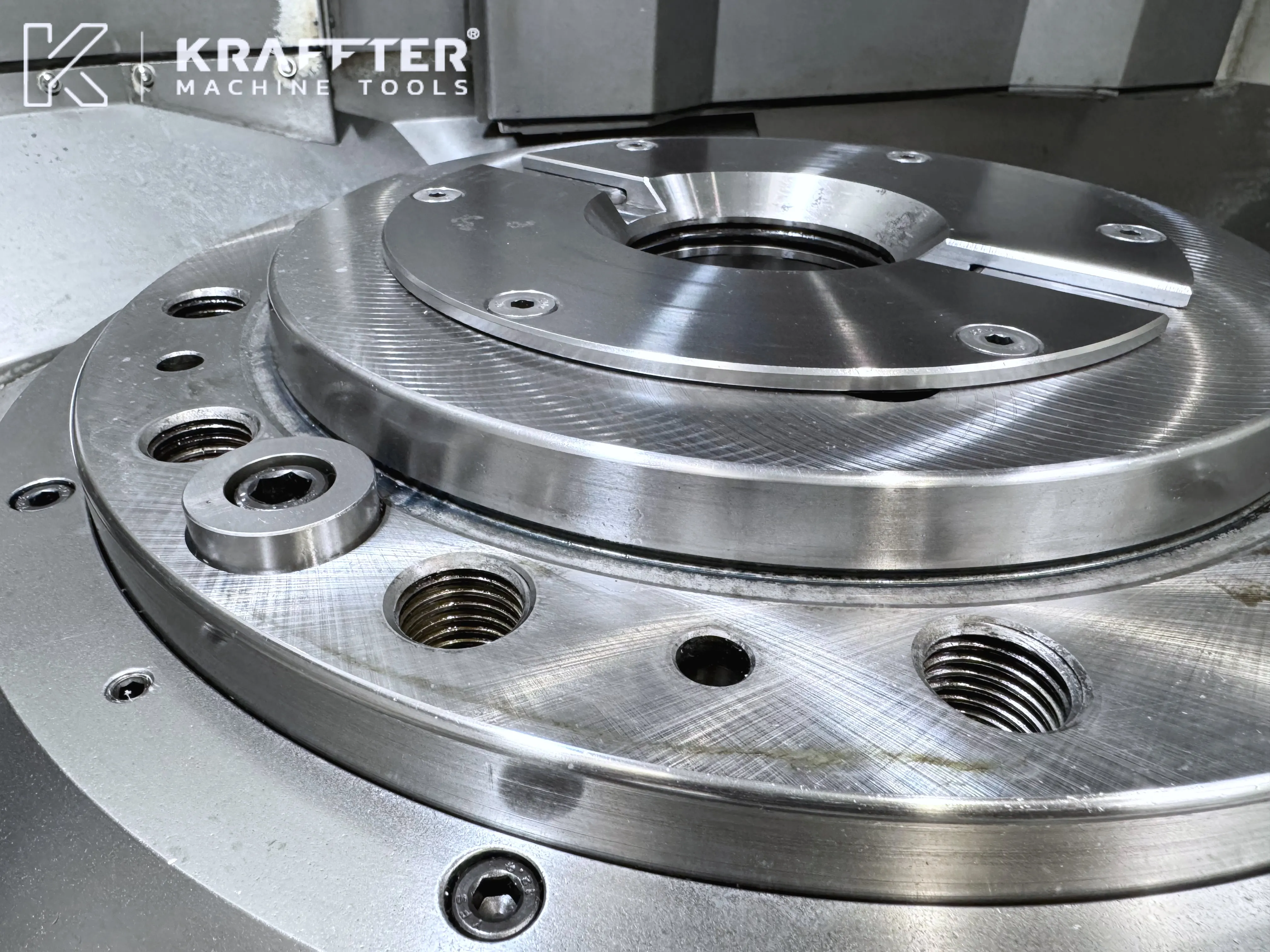

Spindle nose: A2-15

Max. spindle speed: 1250 [rpm]

Spindle power: 30 [kW]

Spindle torque: 3655 [Nm]

Max. distance from spindle face to turret face: 1030 [mm]

Max. workpiece weight: 3000 [Kg]

Min. distance from spindle face to turret face: 154 [mm]

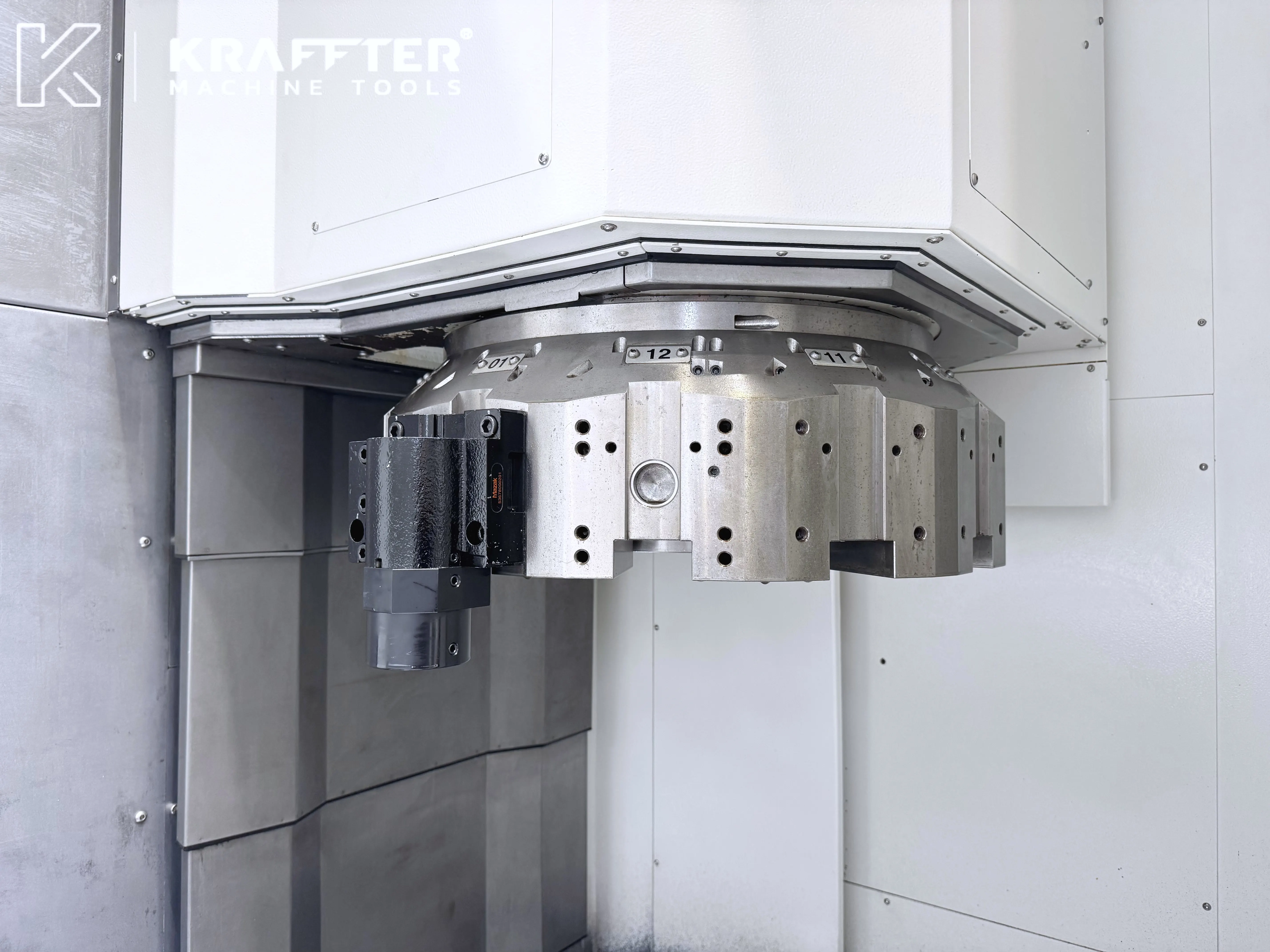

Number of tool stations: 12

Turret indexing time: 0.4 [s/pos]

Lubrication tank capacity: 516 [l]

Total power required: 58.9 [kVA]

Rated current: 109 [A]

Supply voltage: 400 [V]

Working hours: 2472 [h]

Number of cutting hours: 2297 [h]

Dimensions: 2375 × 4558 × 3659 [mm]

Weight: 13000 [Kg]





INCLUDED EQUIPMENT:

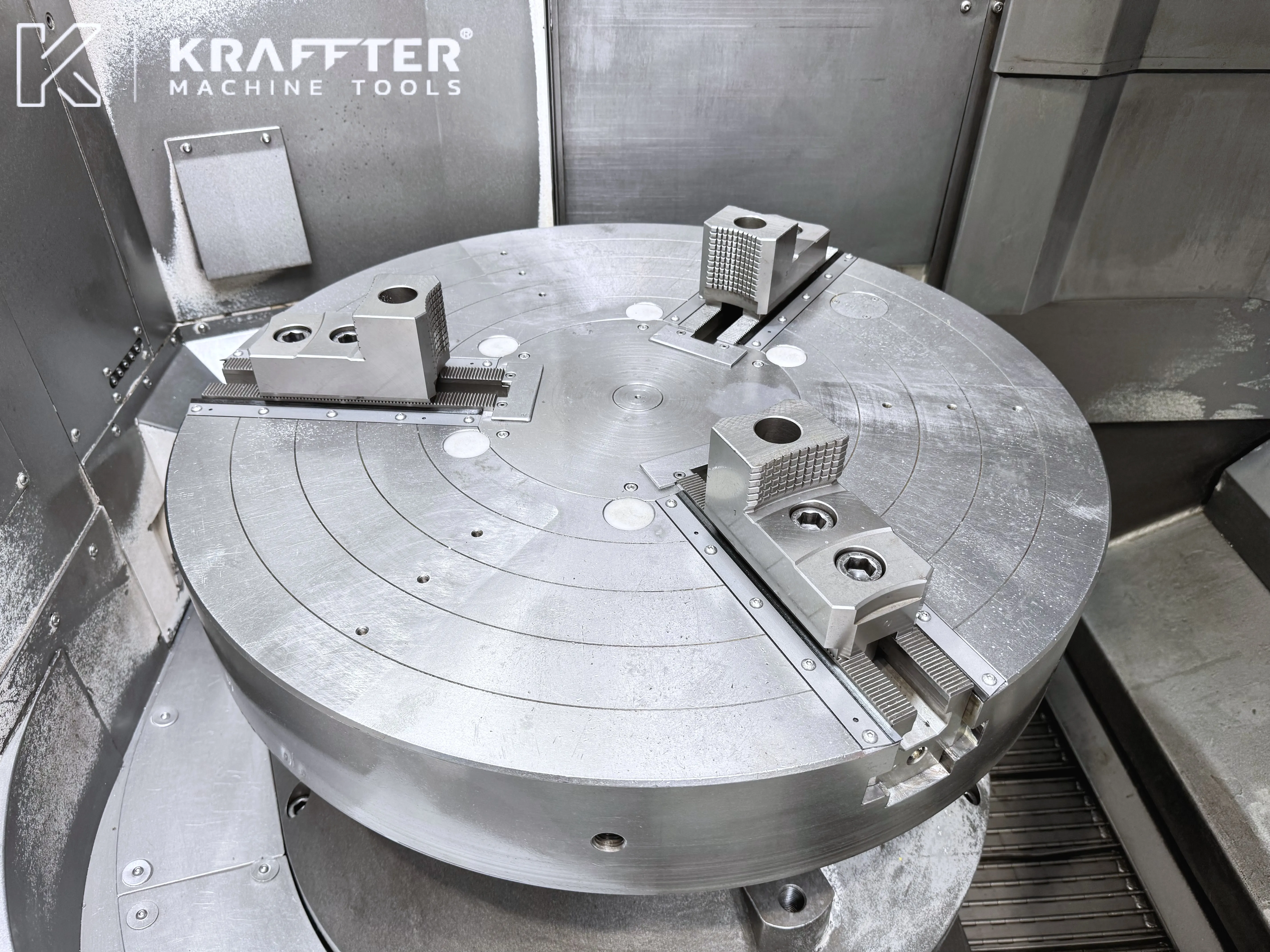

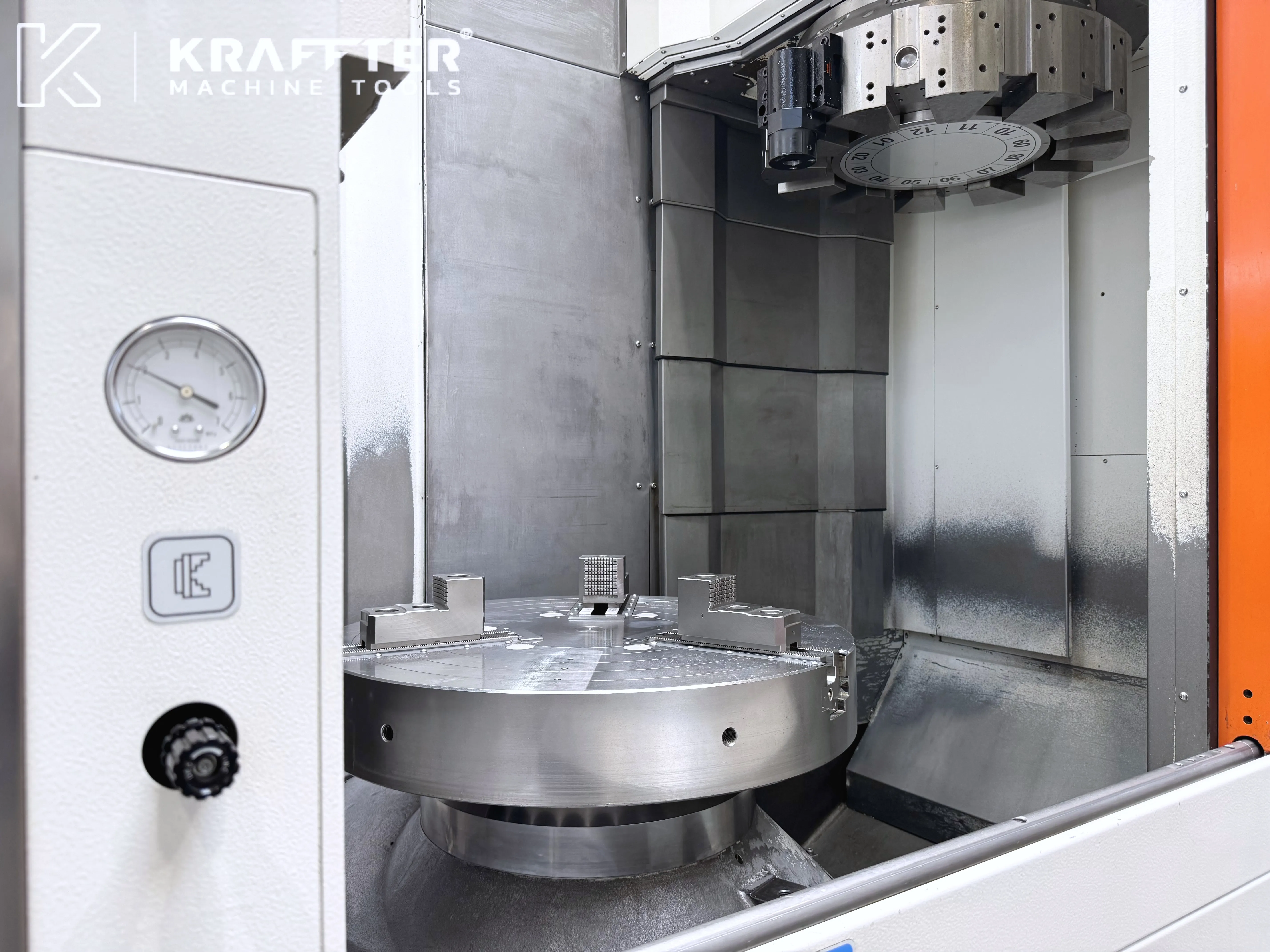

x1 Ø800 mm chuck, KITAGAWA type NV-32C1515

x1 set of hard jaws

x2 sets of soft jaws

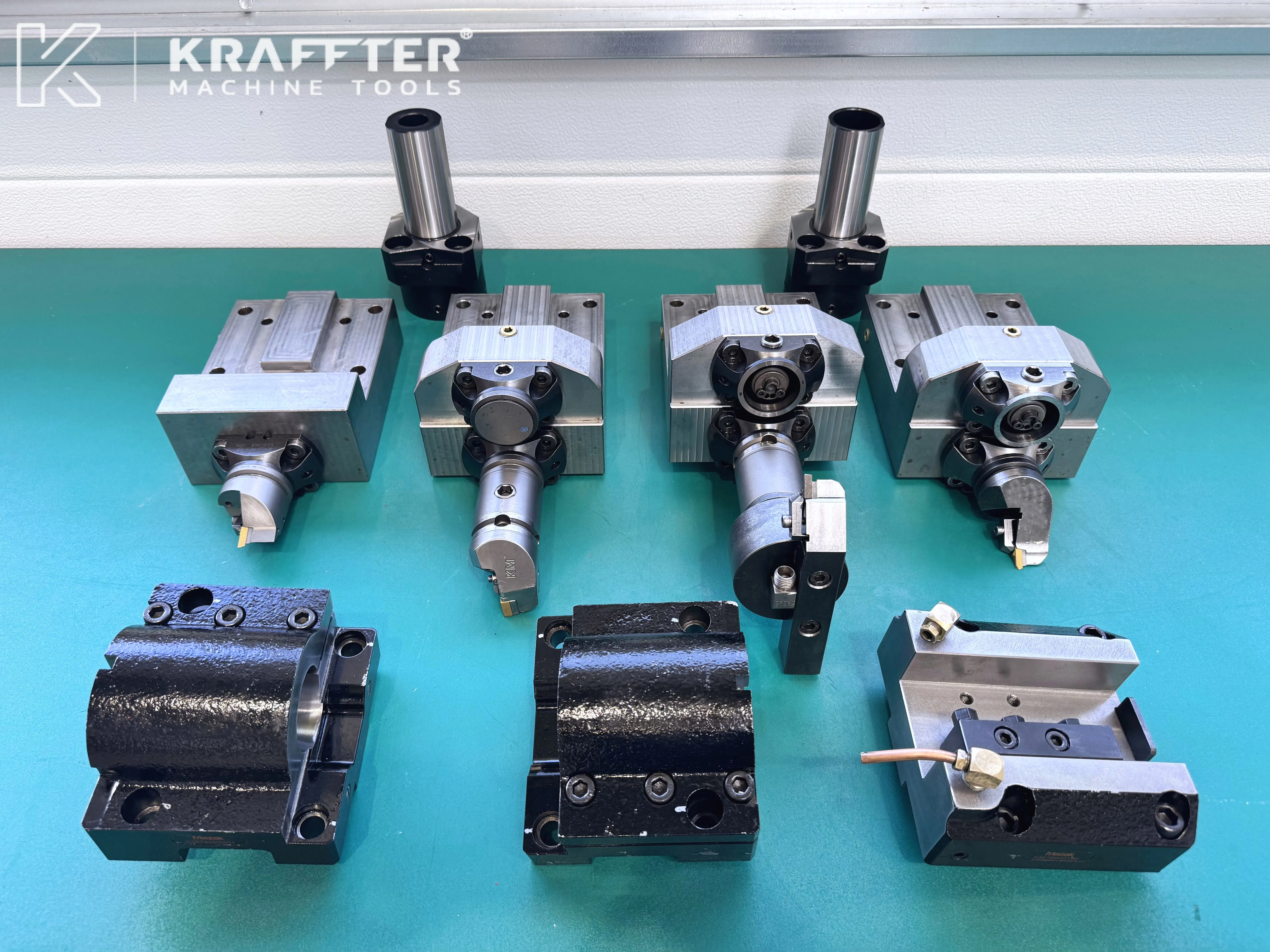

x10 tool holders (chair type)

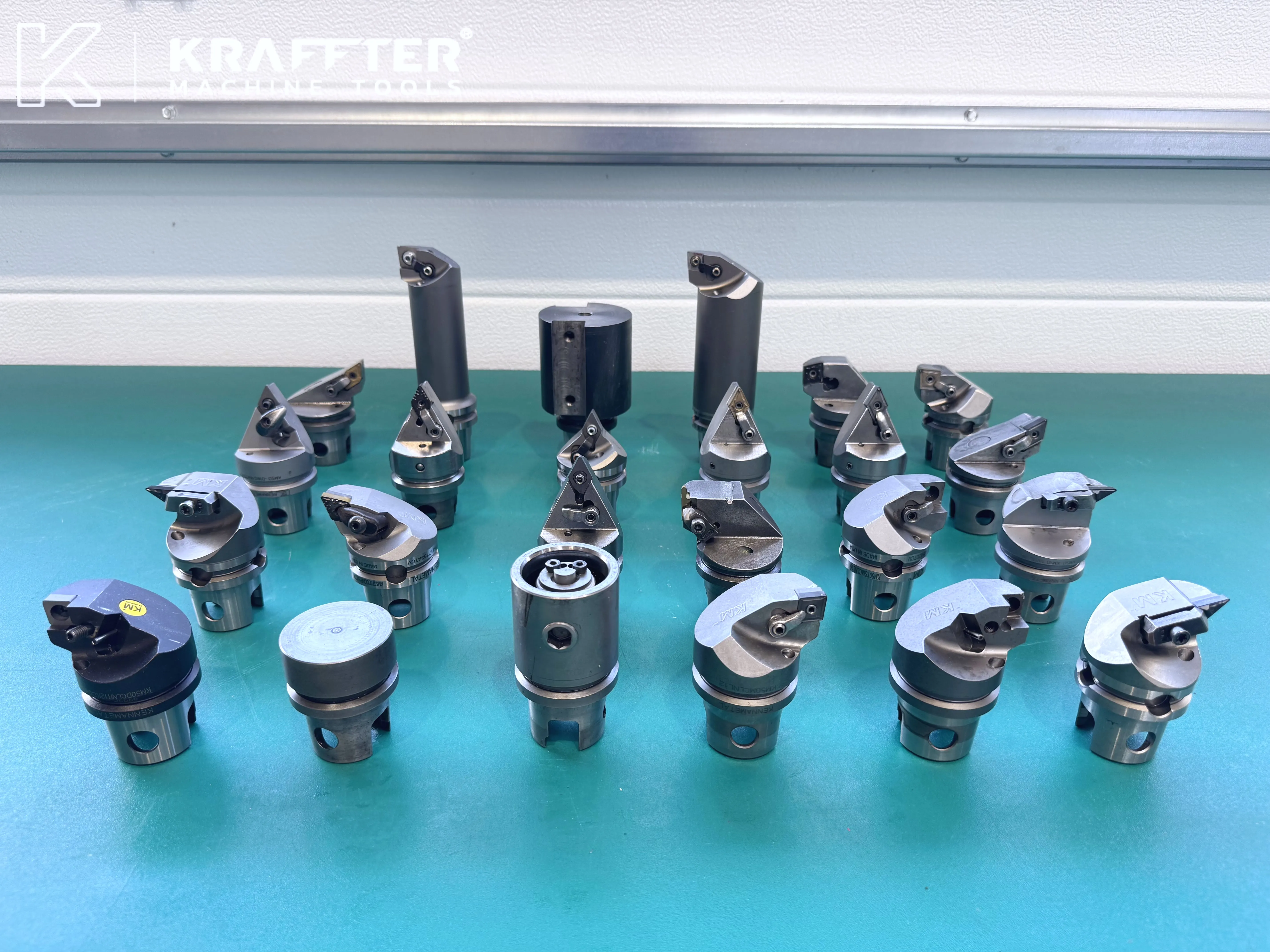

x24 KENNAMETAL type KM50 tool holders

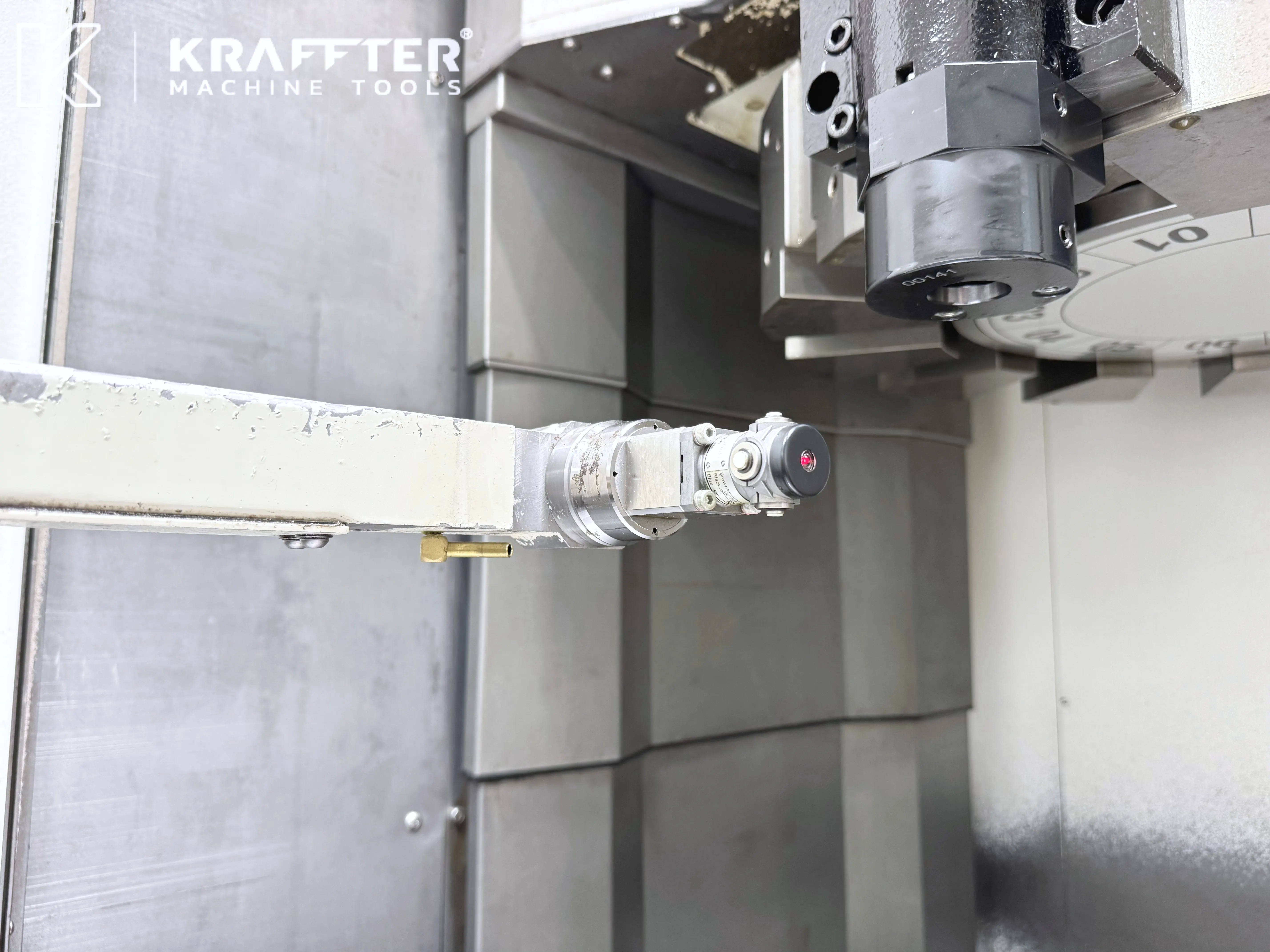

x1 retractable tool probe arm

x1 double pedal unit for chuck clamping

x1 coolant tank

x1 chip conveyor

x1 LOSMA type Galileo GP500 mist extractor

x1 set of 4 lifting brackets

x1 set of axis locking brackets (for machine transport)

x1 MAZAK toolbox containing various service wrenches

Various programming manuals







Machine visible under power in our premises by appointment.


Price on request, loading on truck included.


Possibility of shipping Worldwide.


The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.
