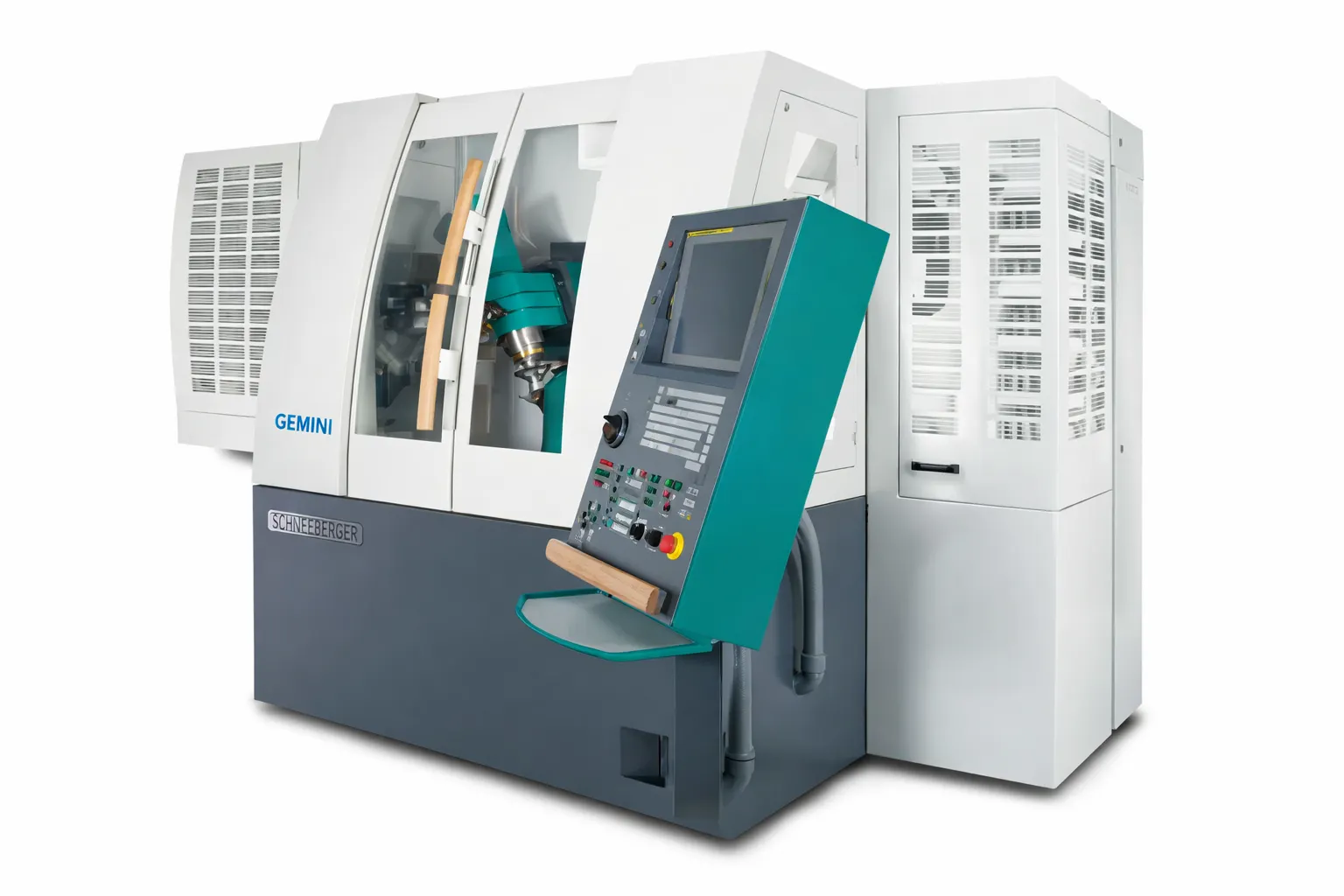

CNC Tool grinding machine SCHNEEBERGER Gemini DMR







TECHNICAL CHARACTERISTICS:



Year of manufacturing: 2014

CNC control: FANUC 31i B5

Software installed: Quinto Qg1

Colour touchscreen: Yes

Number of axes: 5

Stroke X axis: 380 [mm]

Max. Stroke speed X axis: 20000 [mm/min]

Resolution X axis: 0.0001 [mm]

Stroke Y axis: 300 [mm]

Max. Stroke speed Y axis: 5000 [mm/min]

Resolution Y axis: 0.0001 [mm]

Stroke Z axis: 280 [mm]

Max. Stroke speed Z axis: 20000 [mm/min]

Resolution Z axis: 0.0001 [mm]

Table length: 500 [mm]

Table width: 330 [mm]

Grinding spindle attachment: HSK-50

Max. grinding wheel speed: 10000 [rpm]

Grinding spindle motor power: 15 [kW]

Max. diameter grinding wheel: 250 [mm]

Weight: 8100 [Kg]





INCLUDED EQUIPMENT:


x1 grinding wheel changer with 8 positions

x1 FANUC 6-axis robot, type LR Mate 200iC 5L

x3 HEIDENHAIN linear glass scales on all X, Y, and Z axes






Machine visible under power in our premises by appointment.


Price on request, loading on truck included.


Possibility of shipping Worldwide.


The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.












Machine for sharpening tools such as milling cutters, taps, and drills.

Machine comparable to brands such as Blohm, Elb, Ewag, Favretto, Fenix, GER, Jones & Shipman, Jung, Karstens, NUMAFFUT, Okamoto, Okuma, Saacke, SMP, Studer, Vollmer, and Walter.

Also consider cylindrical or surface grinding machines, lathes, machining centers, and milling machines.
