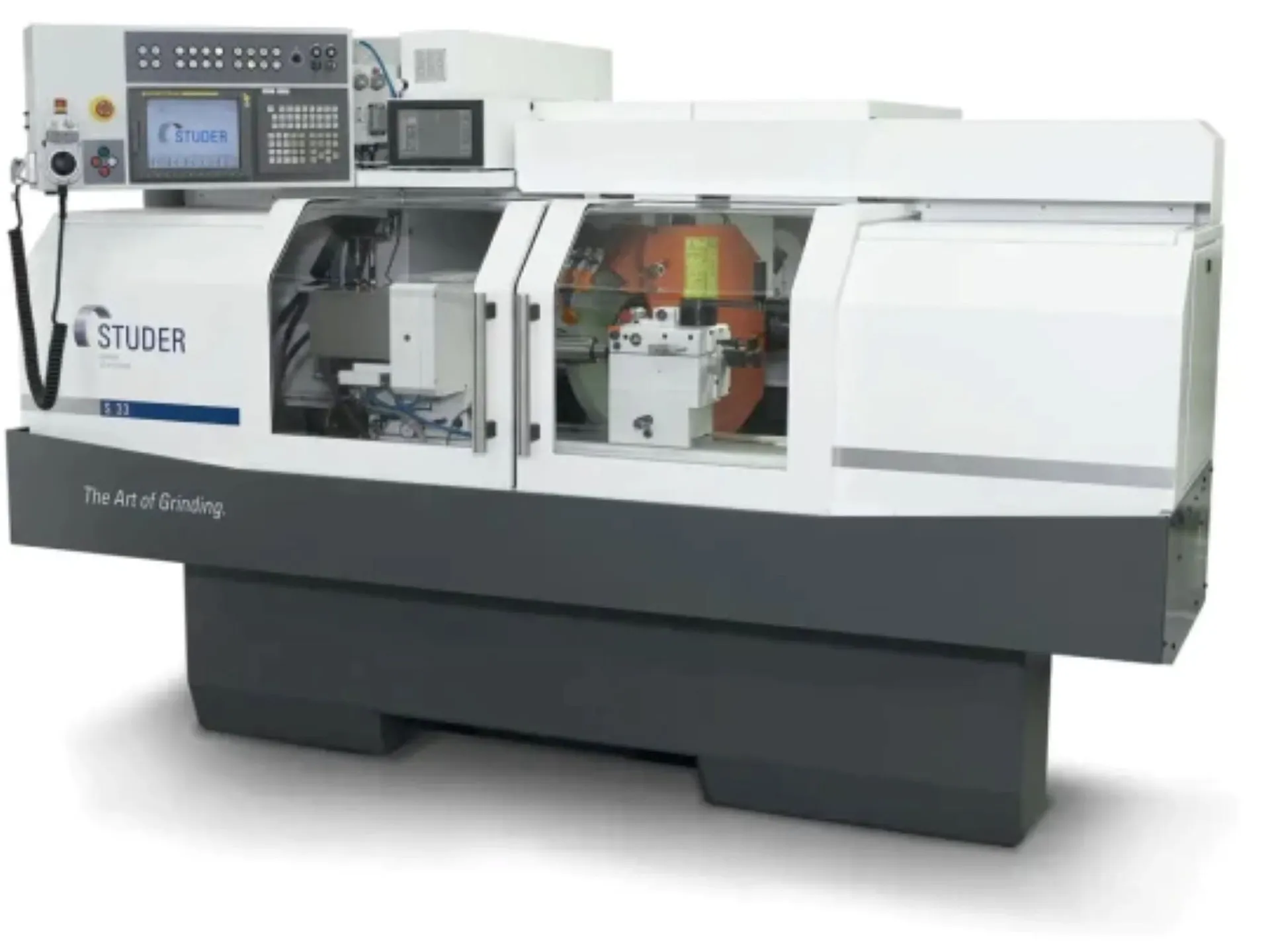

CNC Cylindrical grinder STUDER S33







TECHNICAL CHARACTERISTICS:



Year of manufacturing: 2008

CNC control: FANUC 21i-TB

Software installed: StuderGrind

Centre distance: 650 [mm]

Height of centers: 175

Stroke X axis: 285 [mm]

Min. Stroke speed X axis: 0.001 [mm/min]

Max. Stroke speed X axis: 5000 [mm/min]

Resolution X axis: 0.0001 [mm]

Stroke Z axis: 800 [mm]

Min. Stroke speed Z axis: 0.001 [mm/min]

Max. Stroke speed Z axis: 10000 [mm/min]

Resolution Z axis: 0.0001 [mm]

B axis swivelling stroke: -15 [°] / +195 [°]

B axis indexing precision: Hirth 1 [°]

Workpiece spindle nose: MT5

Workpiece spindle min. speed: 1 [rpm]

Workpiece spindle max. speed: 1500 [rpm]

Max. part weight in part holder headstock between centres: 80 [Kg]

Type of attachment tailstock: MT3

Tailstock quill stroke: 35 [mm]

Tailstock quill diameter: 50 [mm]

Tailstock fine adjustment: +/- 40 [mm]

Supply voltage: 400 [V]

Total power required: 20 [kVA]

Weight: 4000 [Kg]




INCLUDED EQUIPMENT:


x1 internal grinding spindle type 102560B – speed: 60,000 [rpm]

x1 hydraulic swiveling dressing attachment

x1 fixed dressing unit mounted on the table

x1 rotating wheel dressing unit (electrical)

x1 3-jaw chuck Ø170 [mm] - MT5

x1 4-jaw chuck Ø170 [mm] - MT5

x1 magnetic chuck Ø170 [mm] - MT5

x1 2-point steady rest

x1 pneumatic tailstock lift

x1 pneumatic upper-table lift

x1 longitudinal slide with rotary table - swiveling up to 8.5 [°]

x1 automatic B-axis turret wheelhead – Hirth gearing 1 [°]

x1 C-axis for thread and form grinding

x1 workpiece probe MOVOMATIC C25

x1 contact control device DITTEL SENSITRON 6

x1 semi-automatic wheel balancing device MPM type BMT100M

x1 paper filtration unit ARO TECHNOLOGIES type 5491.246A01

x1 mist extraction unit AIR-FRESH SERVICE type FMN-V12

x1 foot pedal

x1 electrical cabinet air conditioner

x4 external grinding wheel flanges

x1 set of lifting equipment

x1 axis bracket (for transportation of the machine)

x1 set of operating manuals (French, English, and German)


More information upon request.
