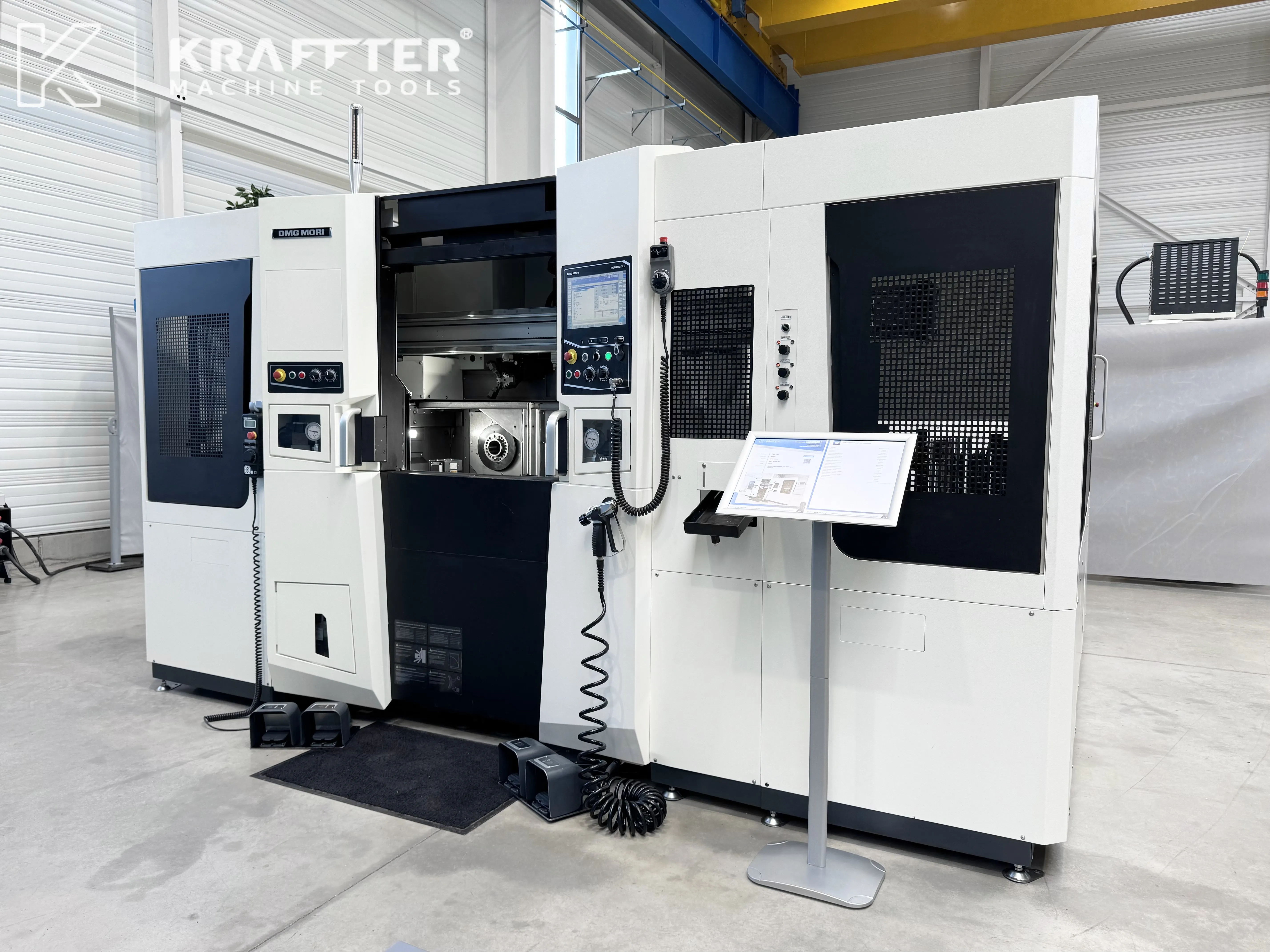

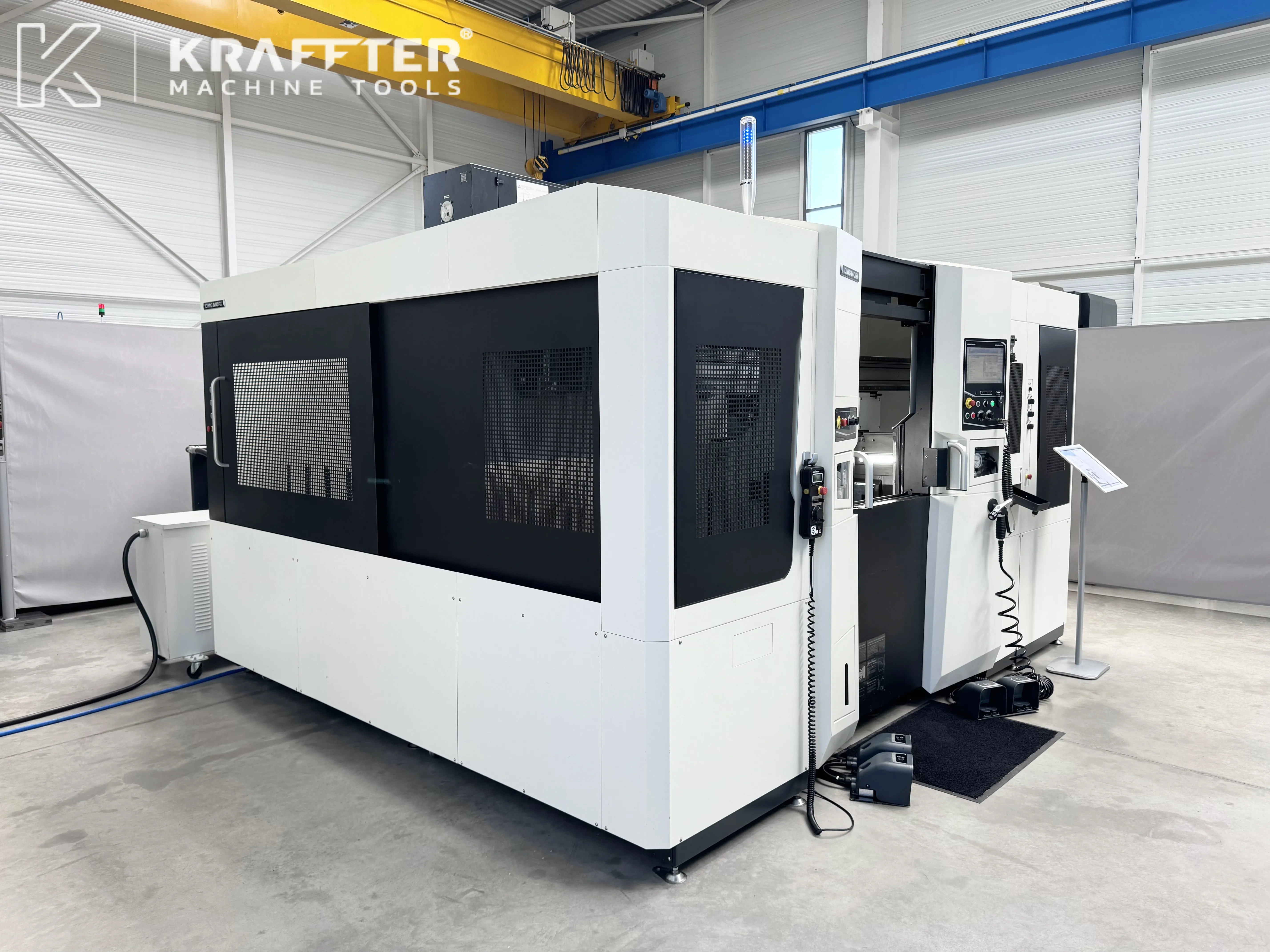

CNC Lathe DMG MORI NRX2000 MC
TECHNICAL CHARACTERISTICS:
Year of manufacturing: 2017

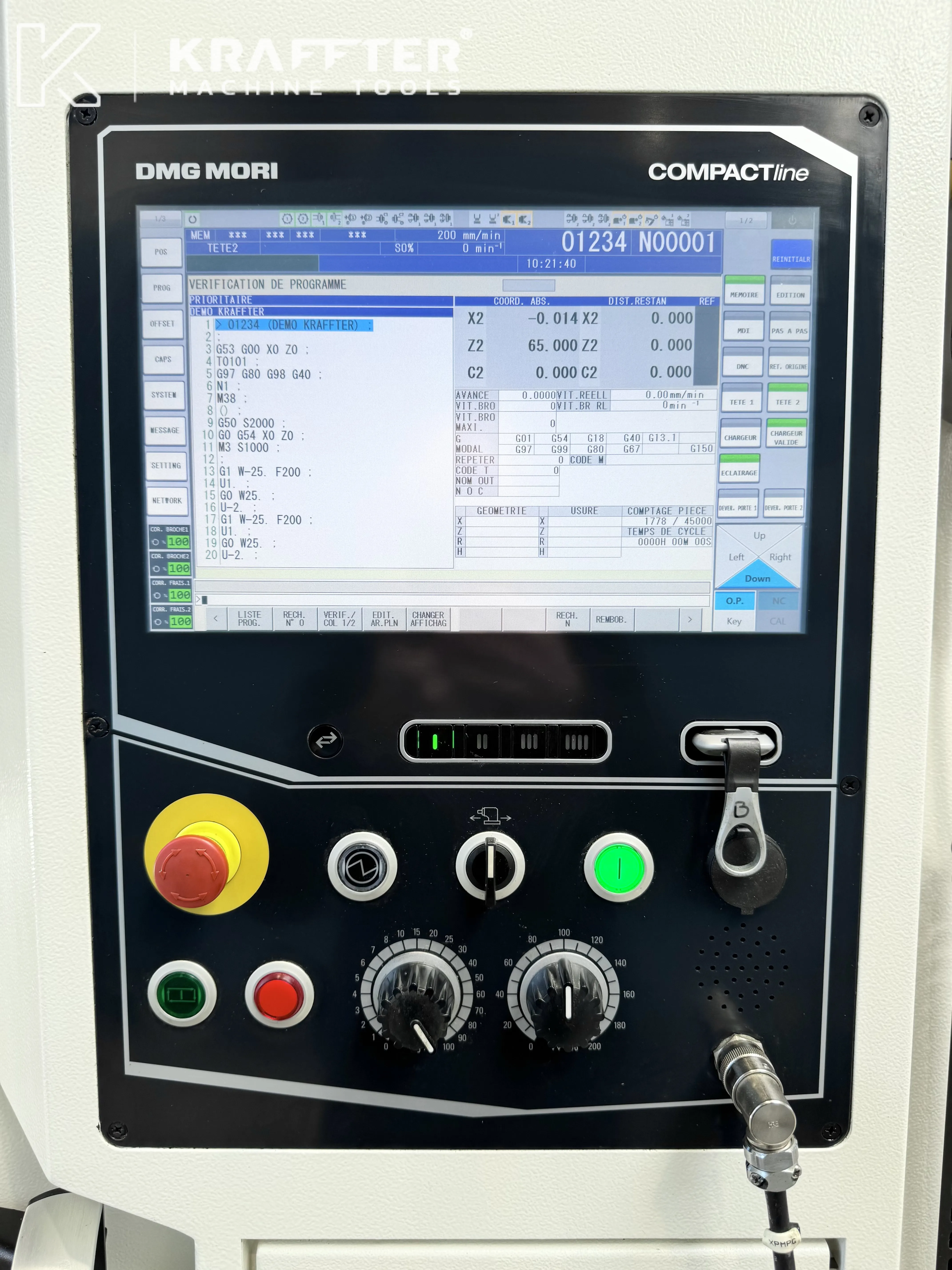

CNC control: MITSUBISHI M730UM
Max. turning diameter: 150 [mm]
Stroke X axis: 100 [mm]
Stroke Z axis: 220 [mm]
Rapid traverse rate X1 axis: 30000 [mm/min]
Rapid traverse rate X2 axis: 30000 [mm/min]
Rapid traverse rate Z1 axis: 30000 [mm/min]
Rapid traverse rate Z2 axis: 30000 [mm/min]

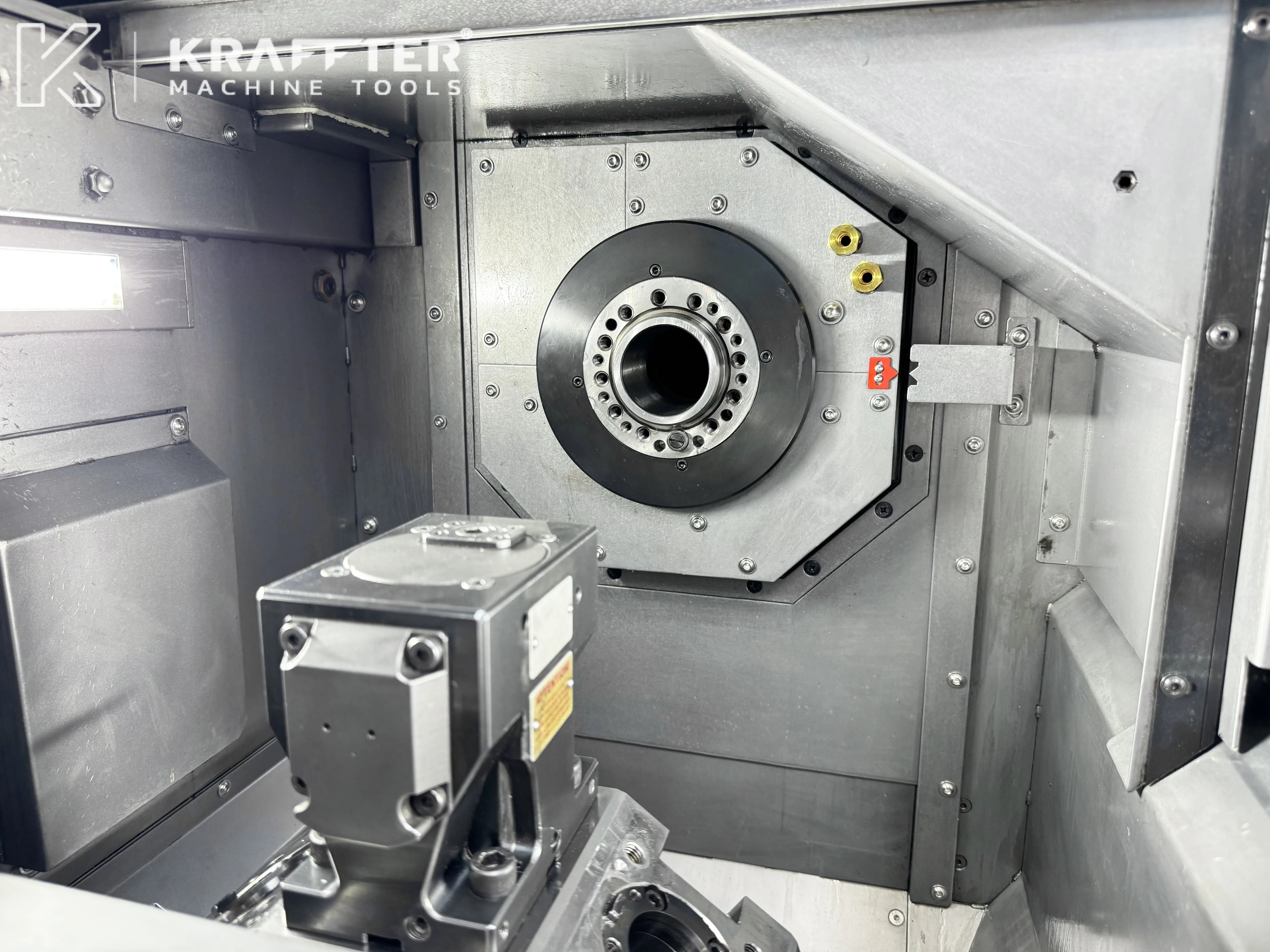

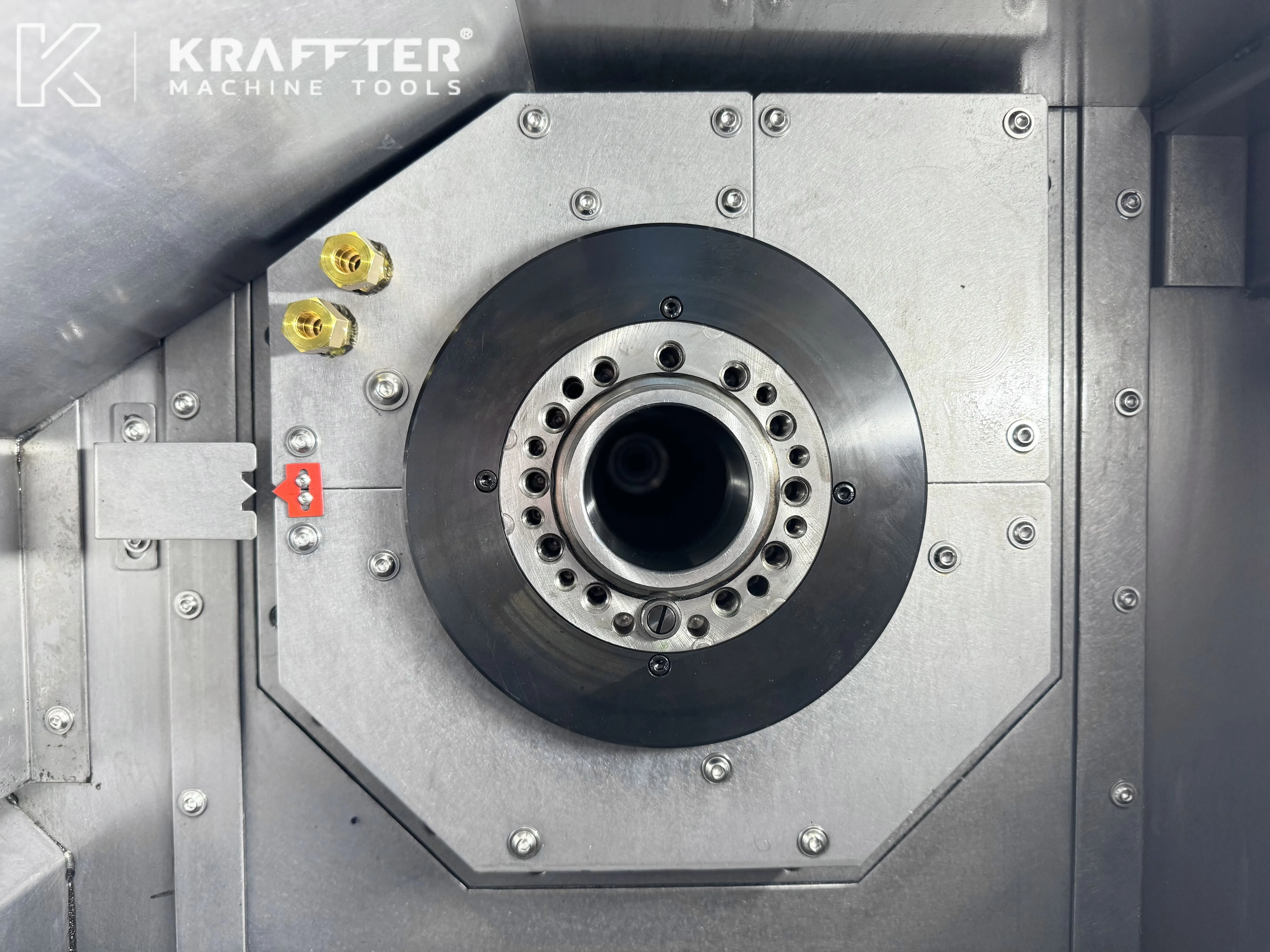

Spindle nose: JIS A2-5
Max. machining length spindle 1: 100 [mm]
Max. machining length spindle 2: 100 [mm]
Max. spindle speed - Spindle 1: 6000 [rpm]
Max. spindle speed - Spindle 2: 6000 [rpm]
Live tools power - Turret 1: 1.5 [kW]
Live tools power - Turret 2: 1.2 [kW]
Number of tool stations - Turret 1: 10
Max. speed driven tools - Turret 1: 10000 [rpm]
Number of tool stations - Turret 2: 10
Max. speed driven tools - Turret 2: 10000 [rpm]
Total power required: 38 [kVA]
Supply voltage: 400 [V]
Working hours: 12270 [h]
Weight: 5700 [Kg]
INCLUDED EQUIPMENT:

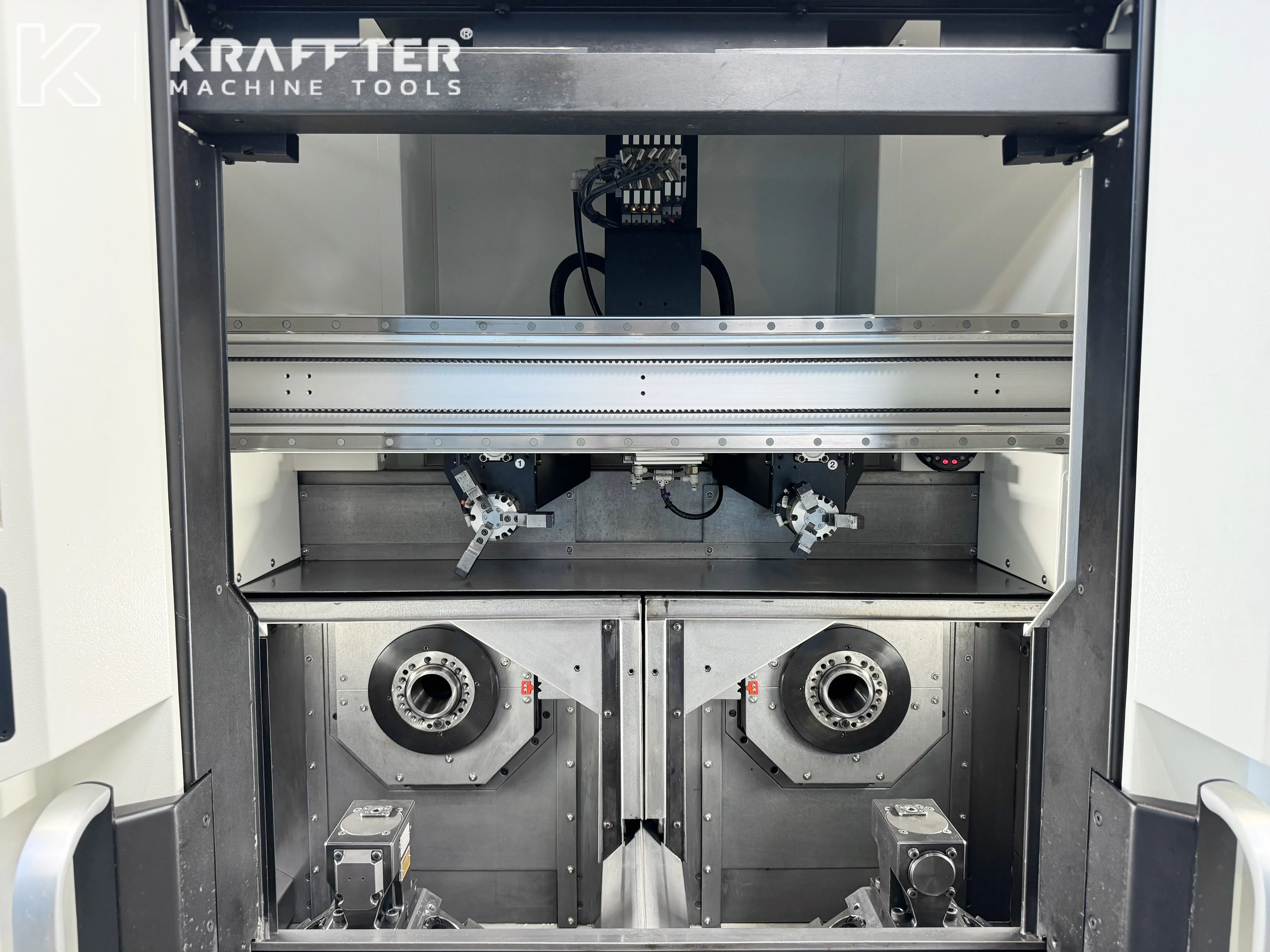

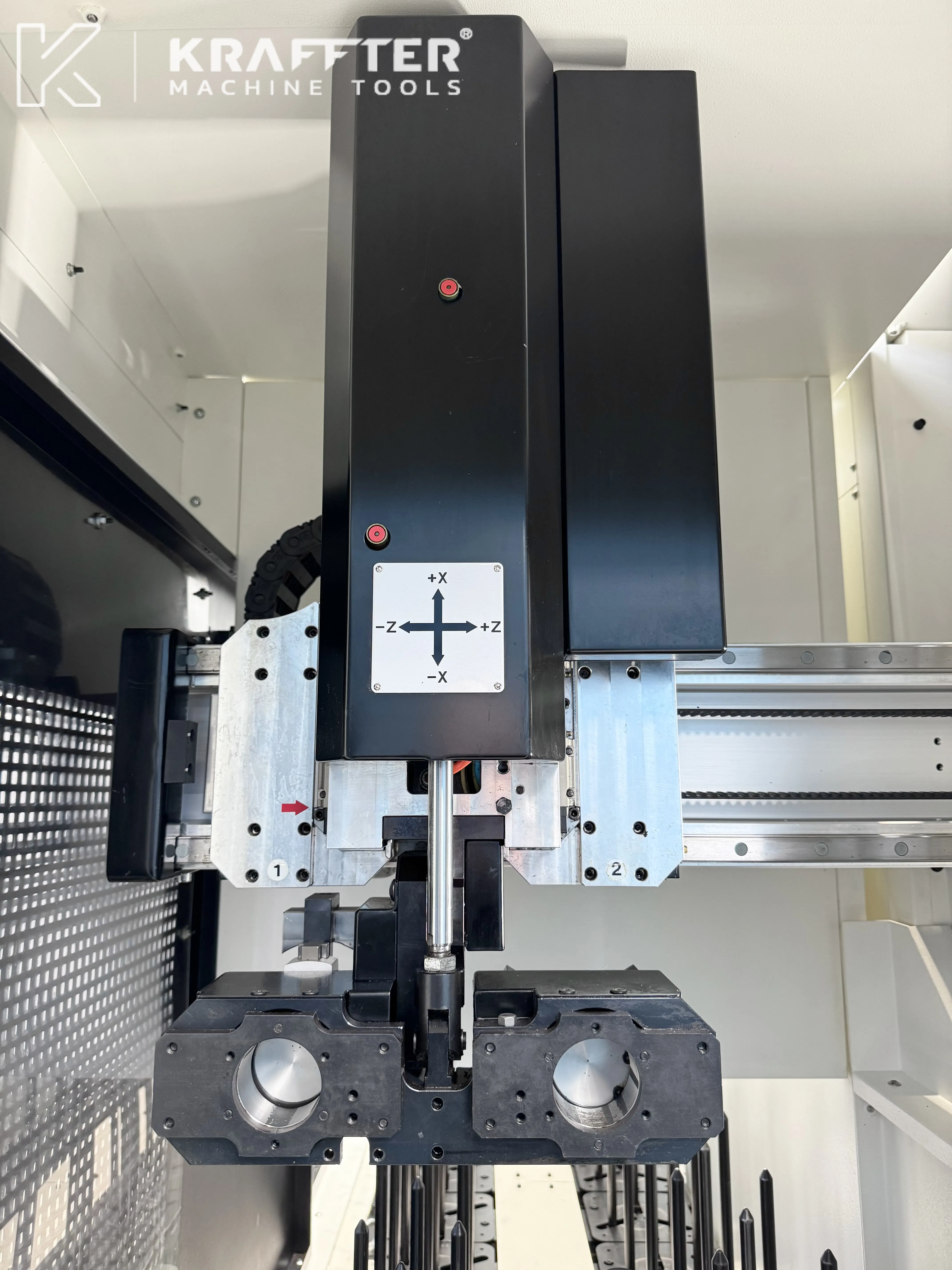

x1 gantry loader

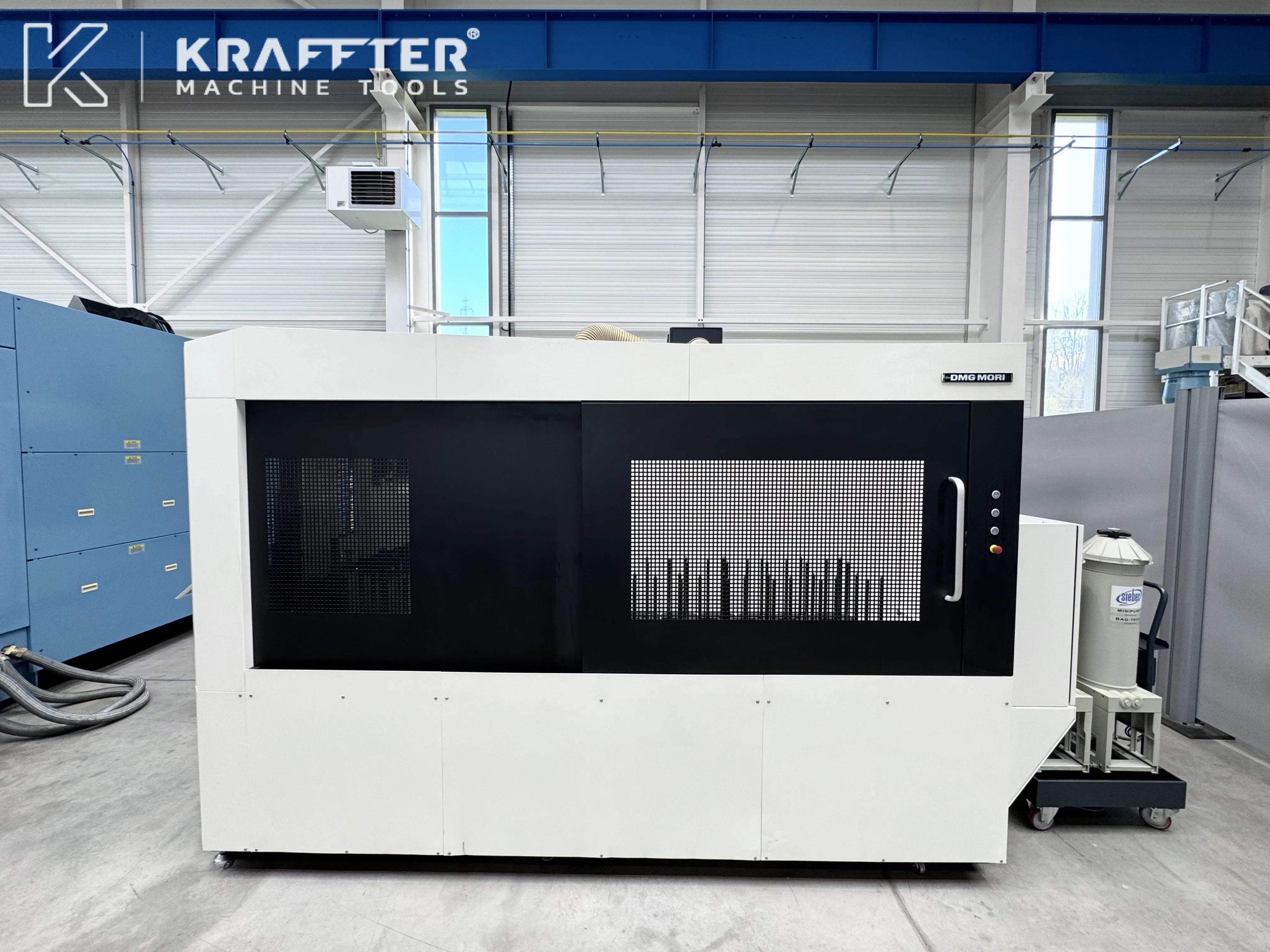

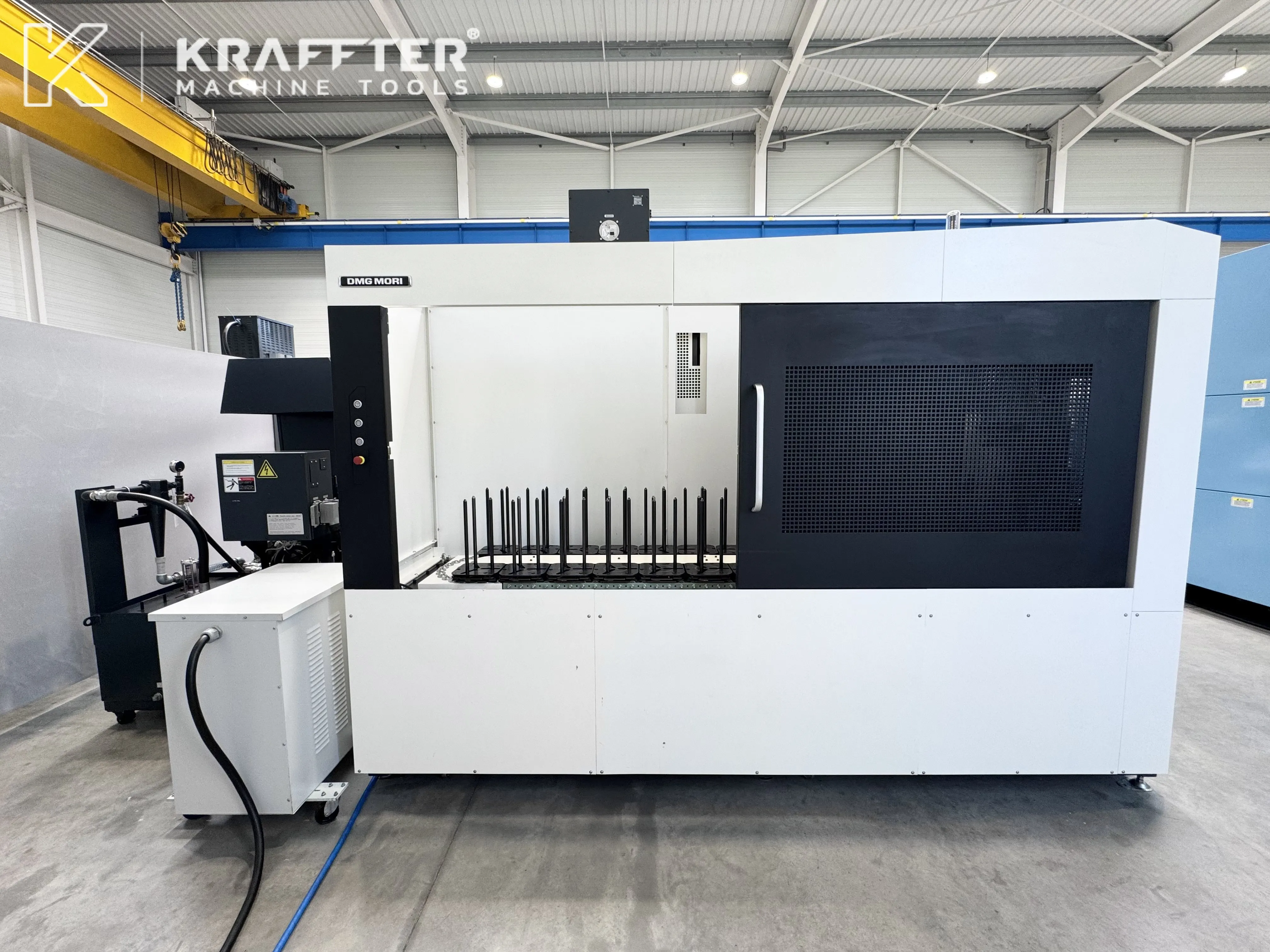

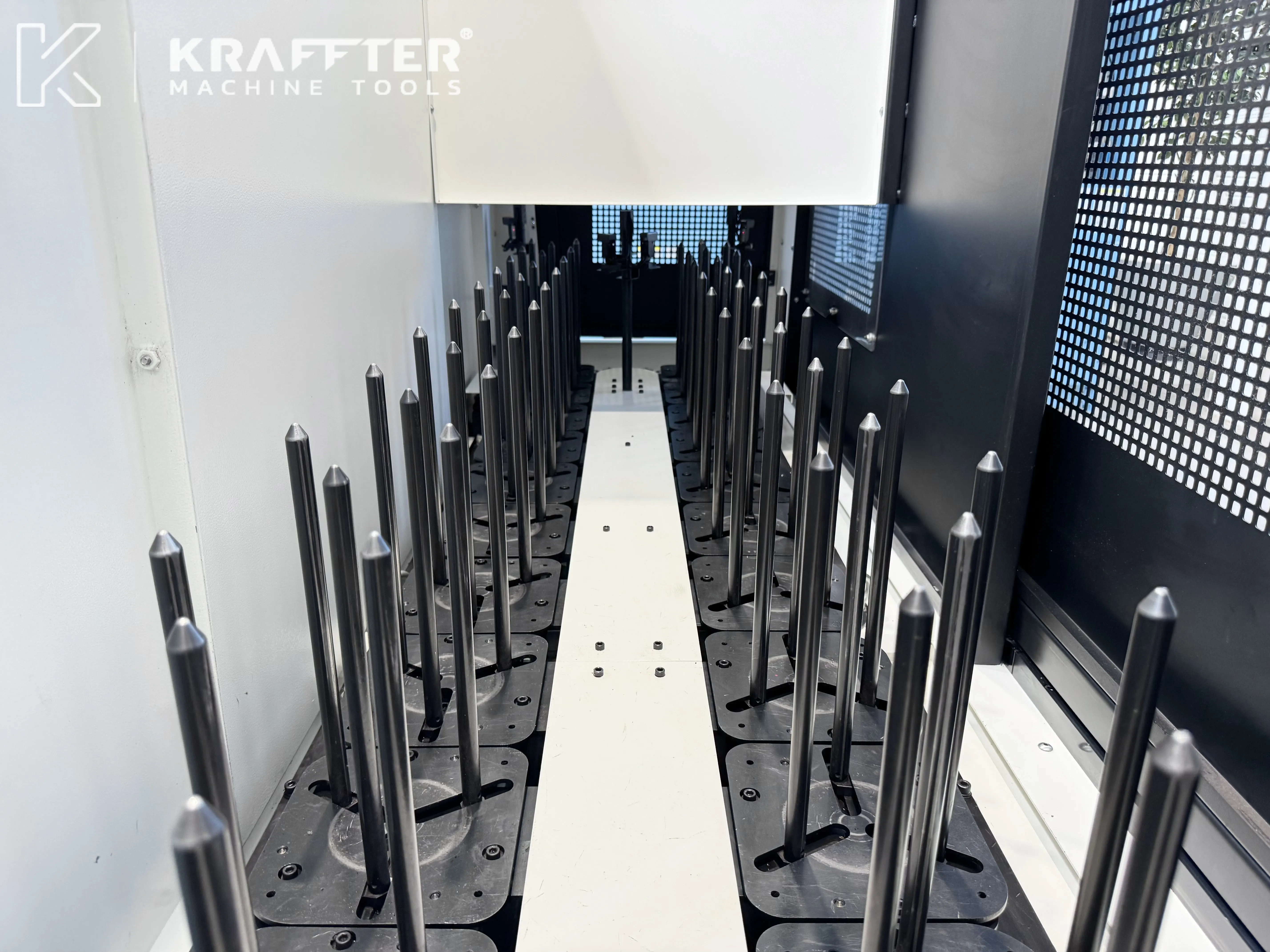

x2 workstockers (left + right) for raw materials and finished workpieces
x1 RENISHAW workpiece touch probe, type RLP40 (NEW)
x1 drill bit breakage detection sensor (for turret N°1)
x19 static tool holders
x4 axial driven tool holders
x2 KITAGAWA collet chucks, type KLAMP DKF65
x2 three-jaw chucks
x1 status indicator lamp
x1 coolant gun
x2 remote electronic handwheels (Jogwheels)
x1 oil mist extraction unit

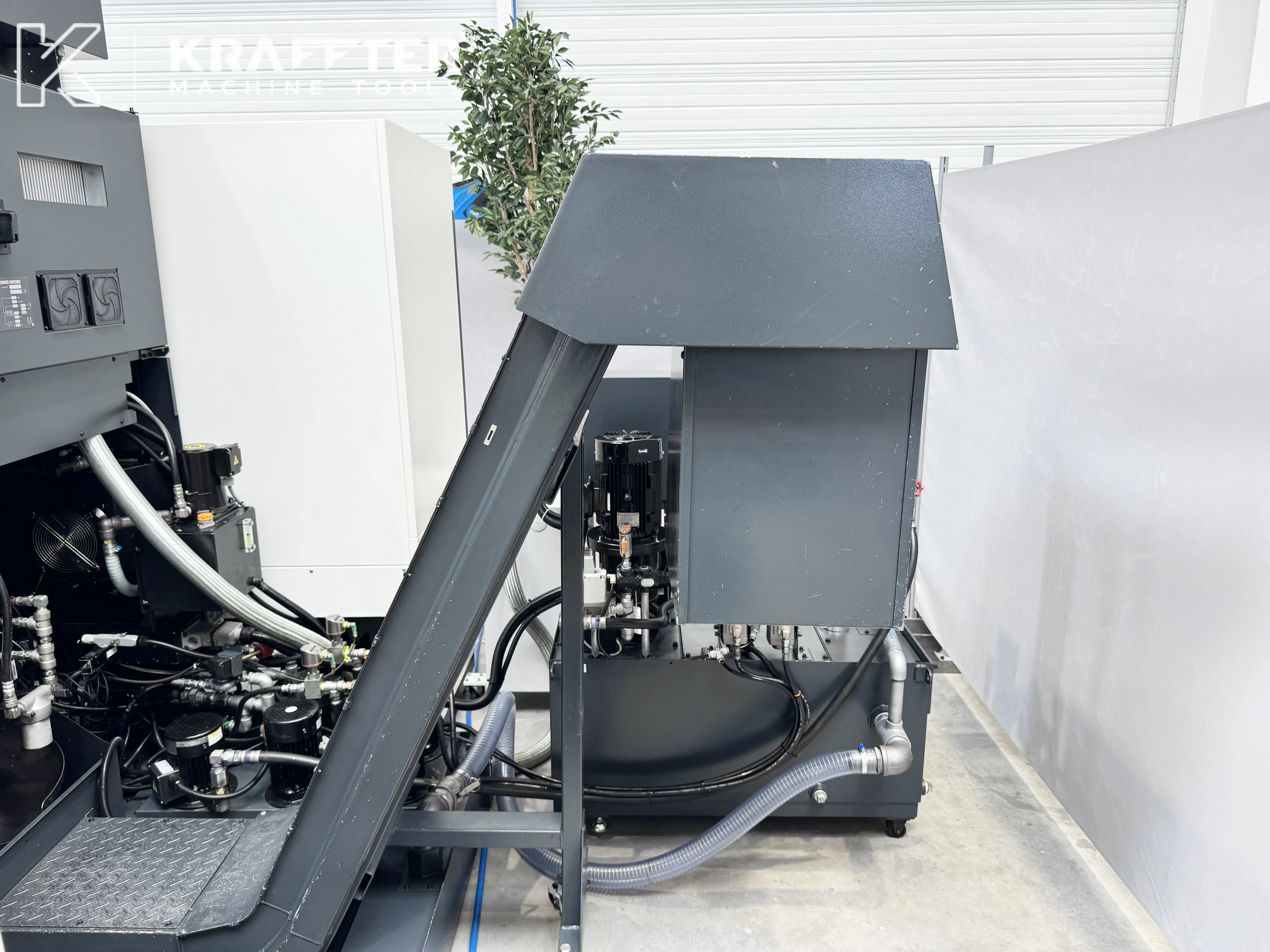

x1 chip conveyor
x1 high-pressure coolant unit, 35 [bar]

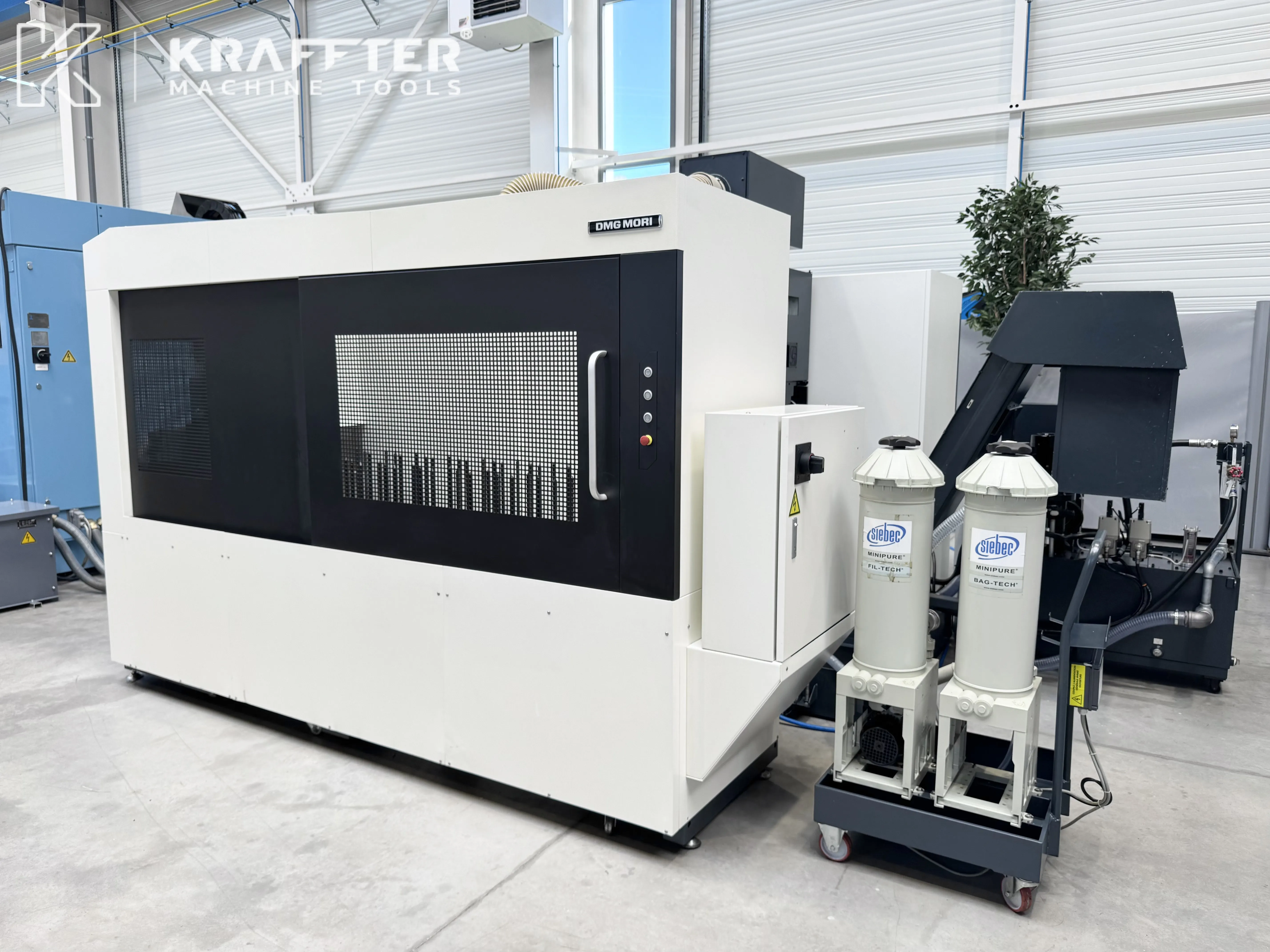

x1 SIEBEC cutting fluid filtration unit type MP52D-AP18

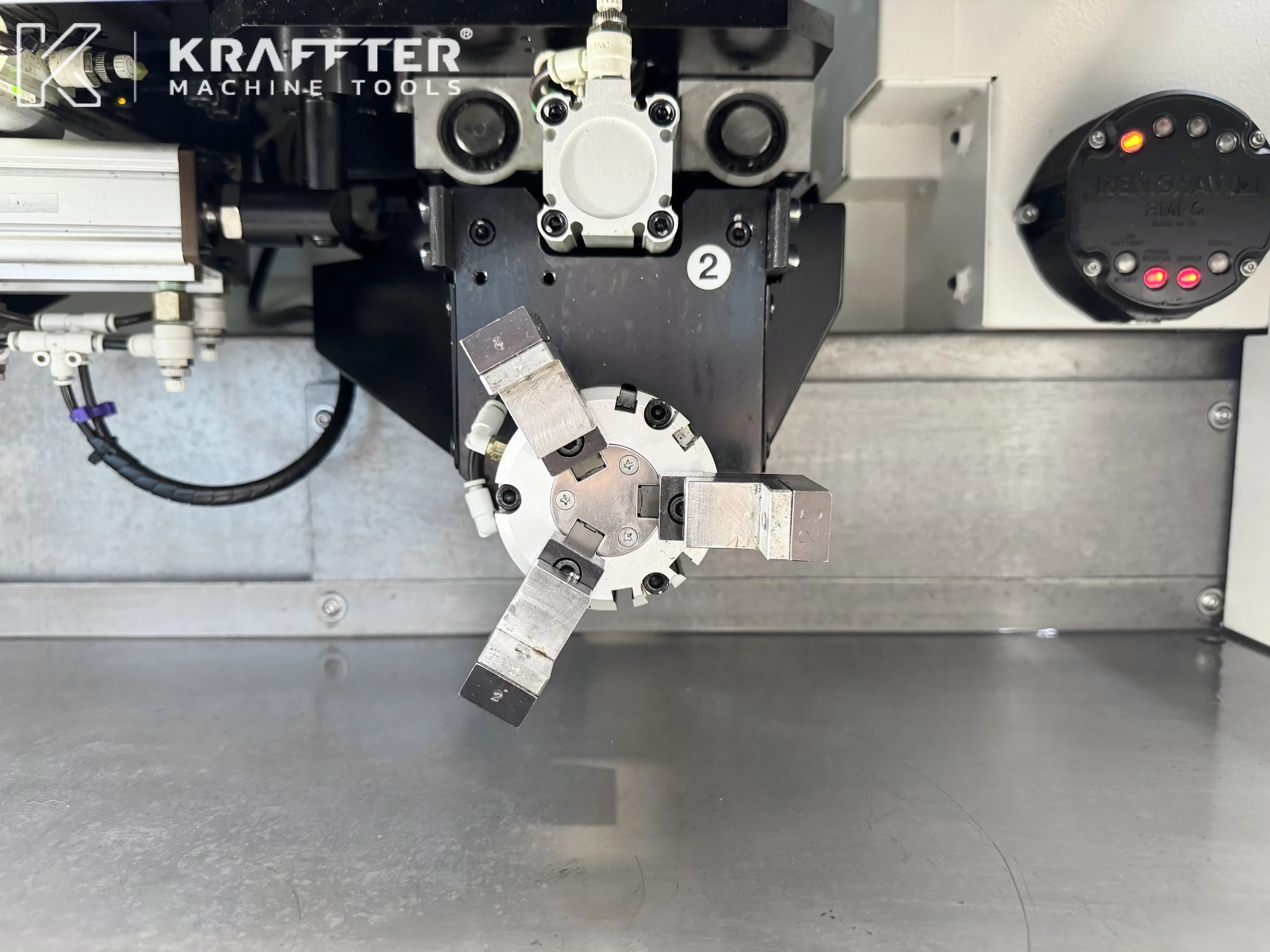

x1 set of grippers for the gantry loader
x1 set of axle clamping brackets for machine transport
x1 complete set of manuals (users manual, programming manual, electrical diagrams, gantry loader manual...)
Machine visible under power in our premises by appointment.
Price on request, loading on truck included.
Possibility of shipping Worldwide.
