AB-2605-71
Le Jasmin, Saint-Genix-les-Villages, France

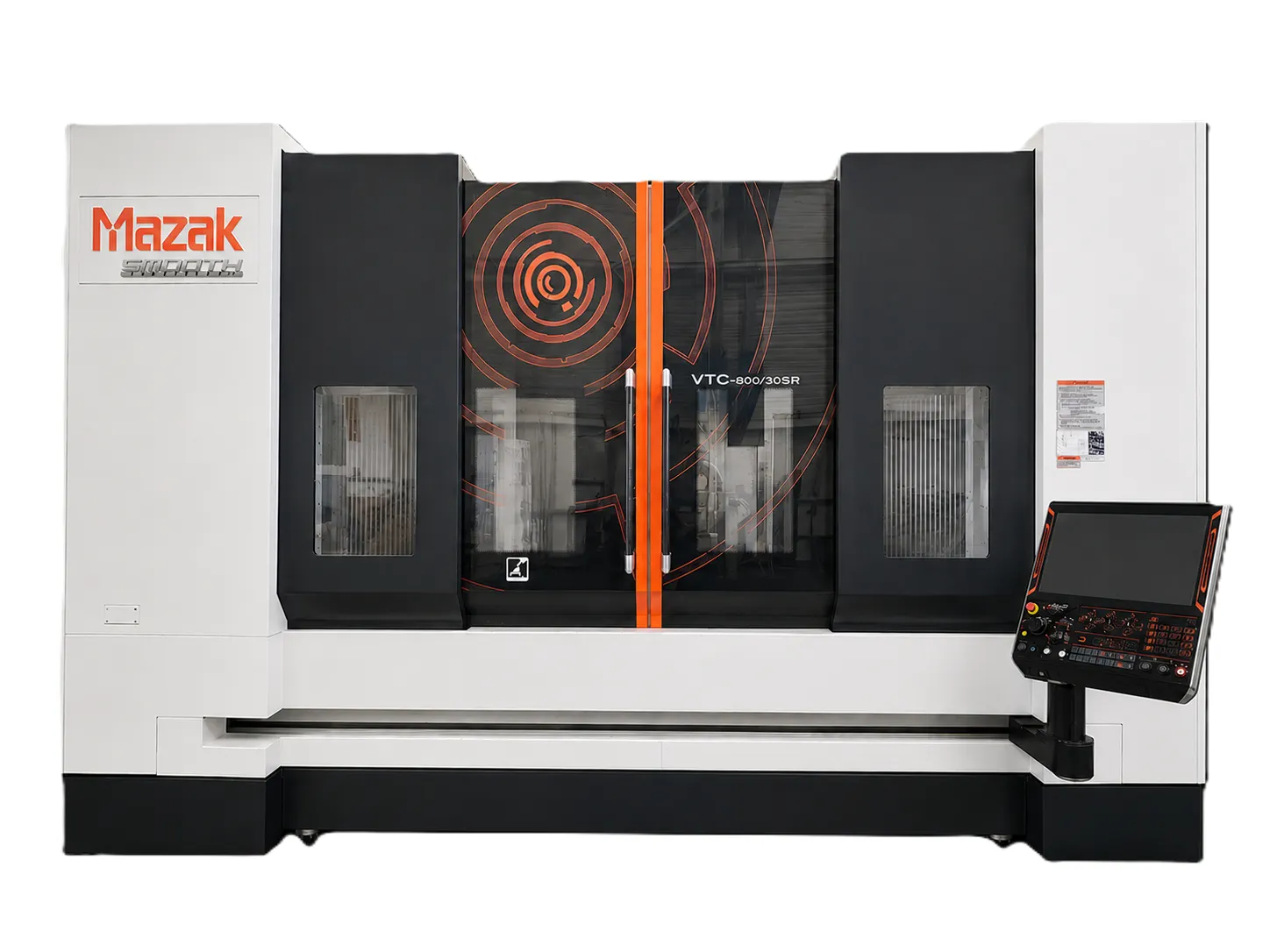

CNC Machining centre MAZAK VTC 800 30SR
TECHNICAL CHARACTERISTICS:
Year of manufacturing: 2019
CNC control: MAZATROL Smooth
Number of simultaneous axes: 5
Stroke X axis: 3000 [mm]
Stroke Y axis: 800 [mm]
Stroke Z axis: 720 [mm]
Feed rate on X, Y and Z axes: 50000 [mm/min]
Traversing feeds X, Y and Z axes: 50000 [mm/min]
Min. distance spindle nose / table: 140 [mm]
Max. distance spindle nose / table: 860 [mm]
Table length: 3500 [mm]
Table width: 820 [mm]
Max. load on table: 2500 [Kg]
B axis swivelling stroke: +110 [°] / -110 [°] [°]
Table surface: Ø 500 [mm]
Stroke C axis: table revolution 360 [°]
Spindle type: CAT No.40
Max. spindle speed: 18000 [rpm]
Spindle power: 35 [kW]
Tool changer magazin number of stations: 48
Max. tool lenght: 350 [mm]
Max. weight of single tool: 8 [Kg]
Max. tool diameter: 80 - 130 [mm]
Number of hours under power : 8770 [h]
Spindle running hours : 2354 [h]
Machine dimensions: 5250 x 4300 x 3419 [mm]
Weight: 16800 [Kg]
INCLUDED EQUIPMENT:
x1 MAZAK type DS50C-R1-Z5th-axis NC rotary table Ø500 [mm] – 360,000 positions
x1 electronic handwheel
x1 spindle chiller
x1 high-pressure coolant pump 15 [bar]
x1 chip conveyor
More information upon request.
