Used CNC Machining Center DECKEL MAHO DMU 160P duoBLOCK - KRAFFTER Machine Tools

AB-2606-86
Le Jasmin, Saint-Genix-les-Villages, France
Contact Person for this Ads:
Kévin LECRONT
Languages
Request Price
Key Features:
ManufactureDECKEL MAHO
ModelDMU 160 P duoBLOCK
Quantity1
Reference number90192
Condition
Used - Good
Ad Statistics:
Created6/23/2026
Last updated6/23/2026
Detailed view4
Contact Person for this Ads:
Kévin LECRONT
Languages

Le Jasmin, Saint-Genix-les-Villages, France

User Information
Registered Since10/6/2025
Number of Online Ads16
Last Sign in6/23/2026

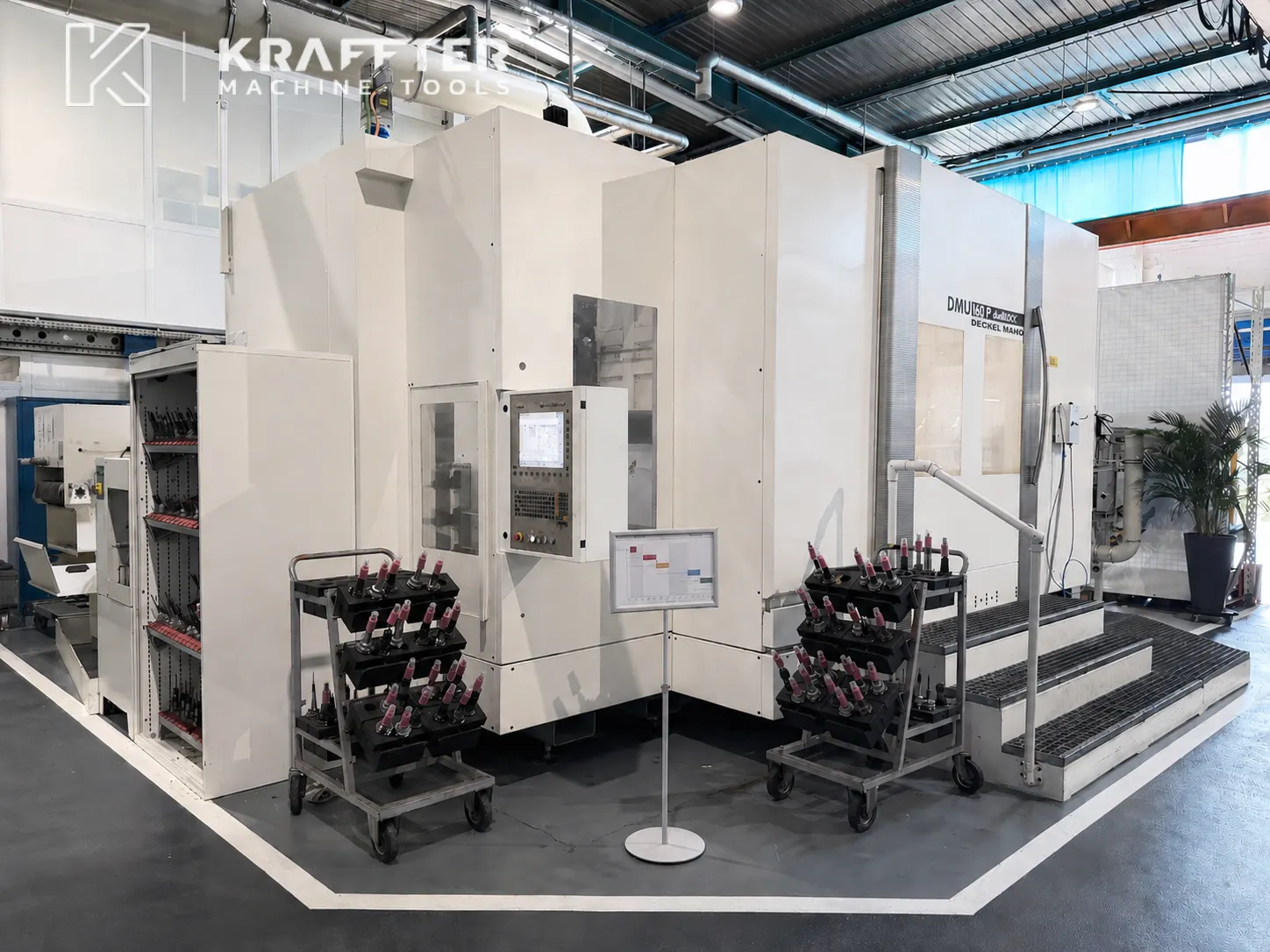

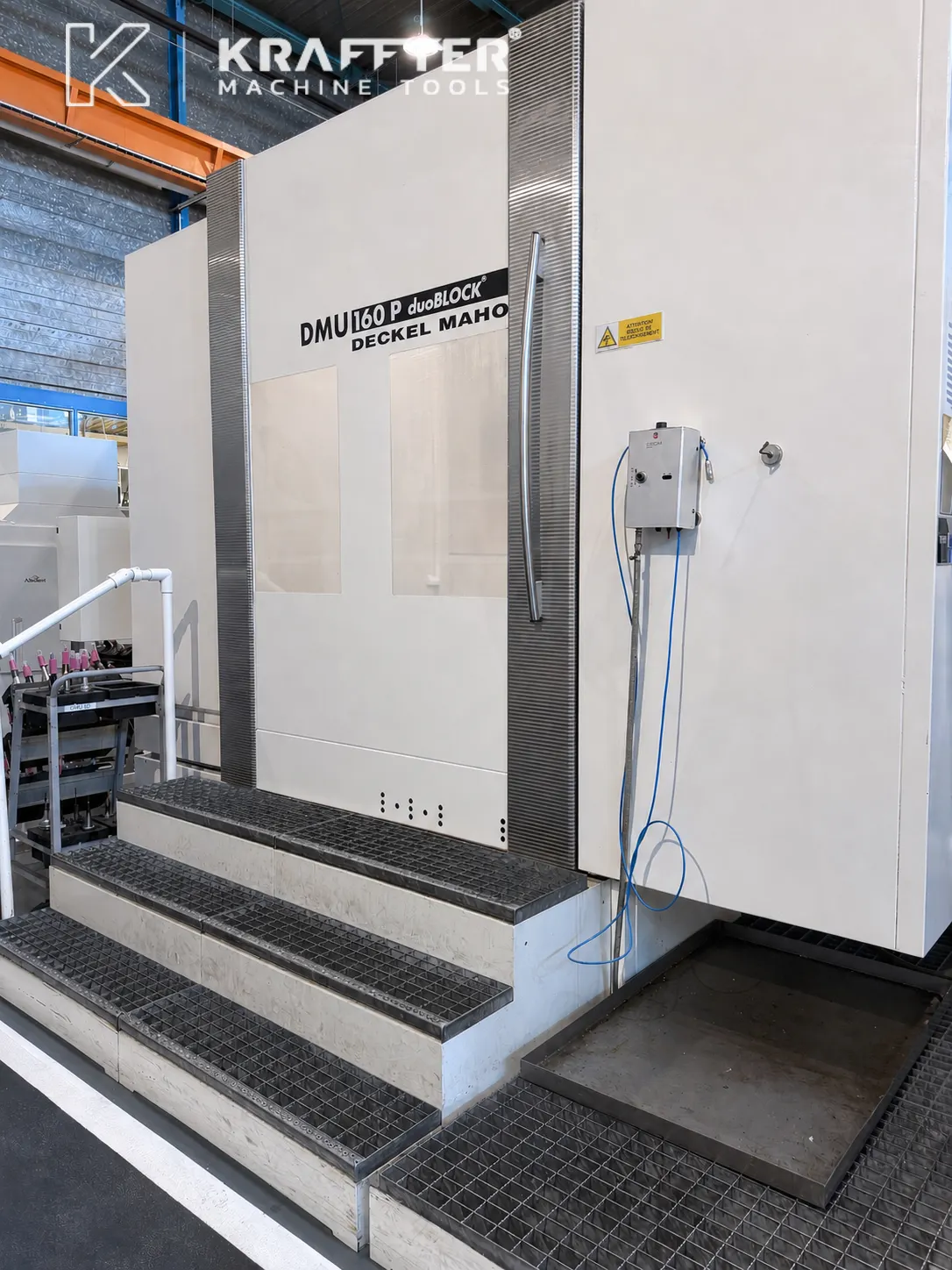

CNC Machining centre DECKEL MAHO DMU 160 P duoBLOCK




TECHNICAL CHARACTERISTICS:


Year of manufacturing: 2008

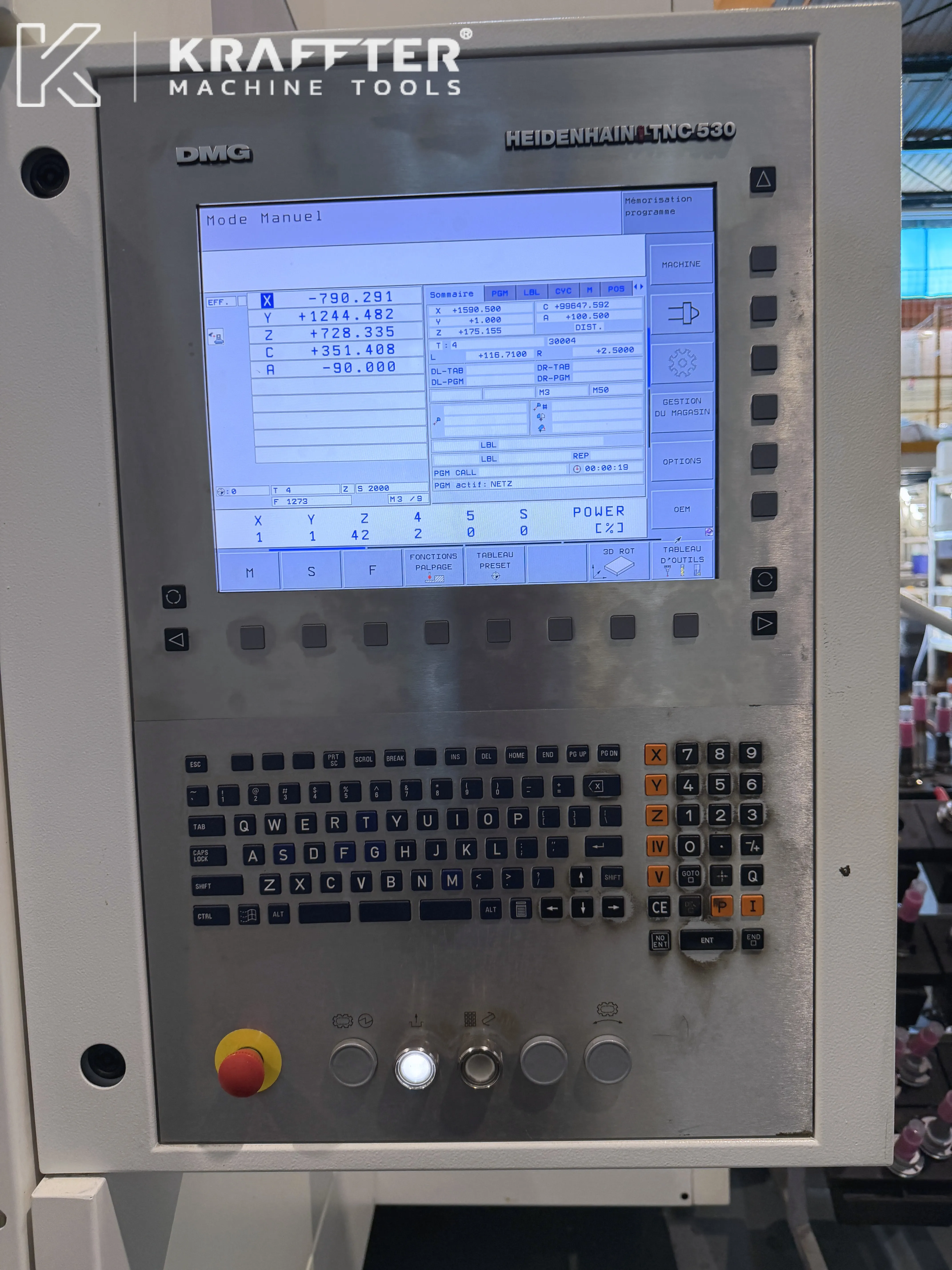

CNC control: HEIDENHAIN TNC 530

Number of simultaneous axes: 5

Stroke X axis: 1600 [mm]

Stroke Y axis: 1250 [mm]

Stroke Z axis: 1000 [mm]

Feed rate on X, Y and Z axes: 15000 [mm/min]

Traversing feeds X, Y and Z axes: 60000 [mm/min]

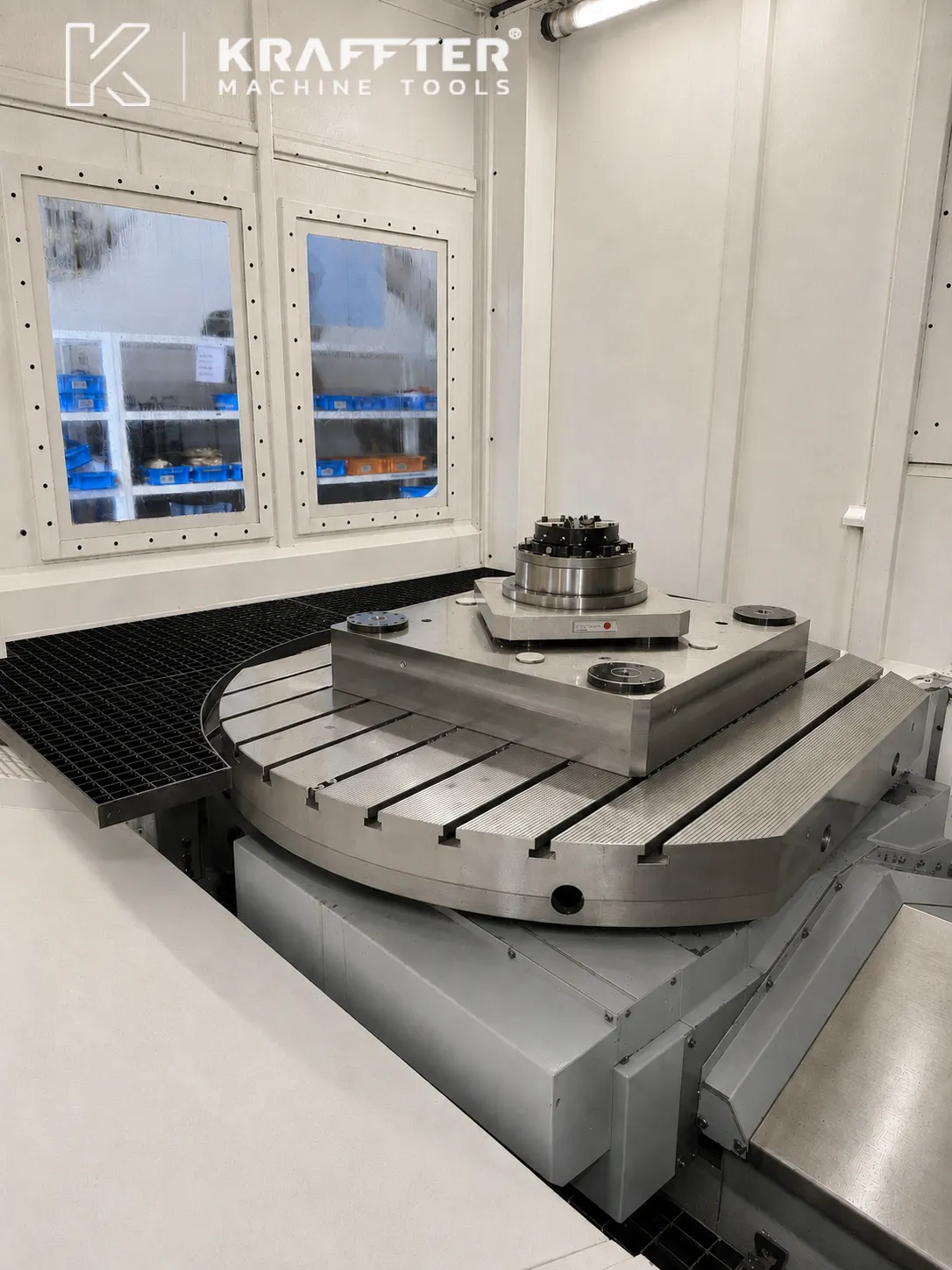

Table dimensions: Ø1500 x 1250 [mm]

Max. load on table: 4000 [Kg]

Spindle type: SK 40 (DIN 69871)

Min. spindle speed: 20 [rpm]

Max. spindle speed: 12000 [rpm]

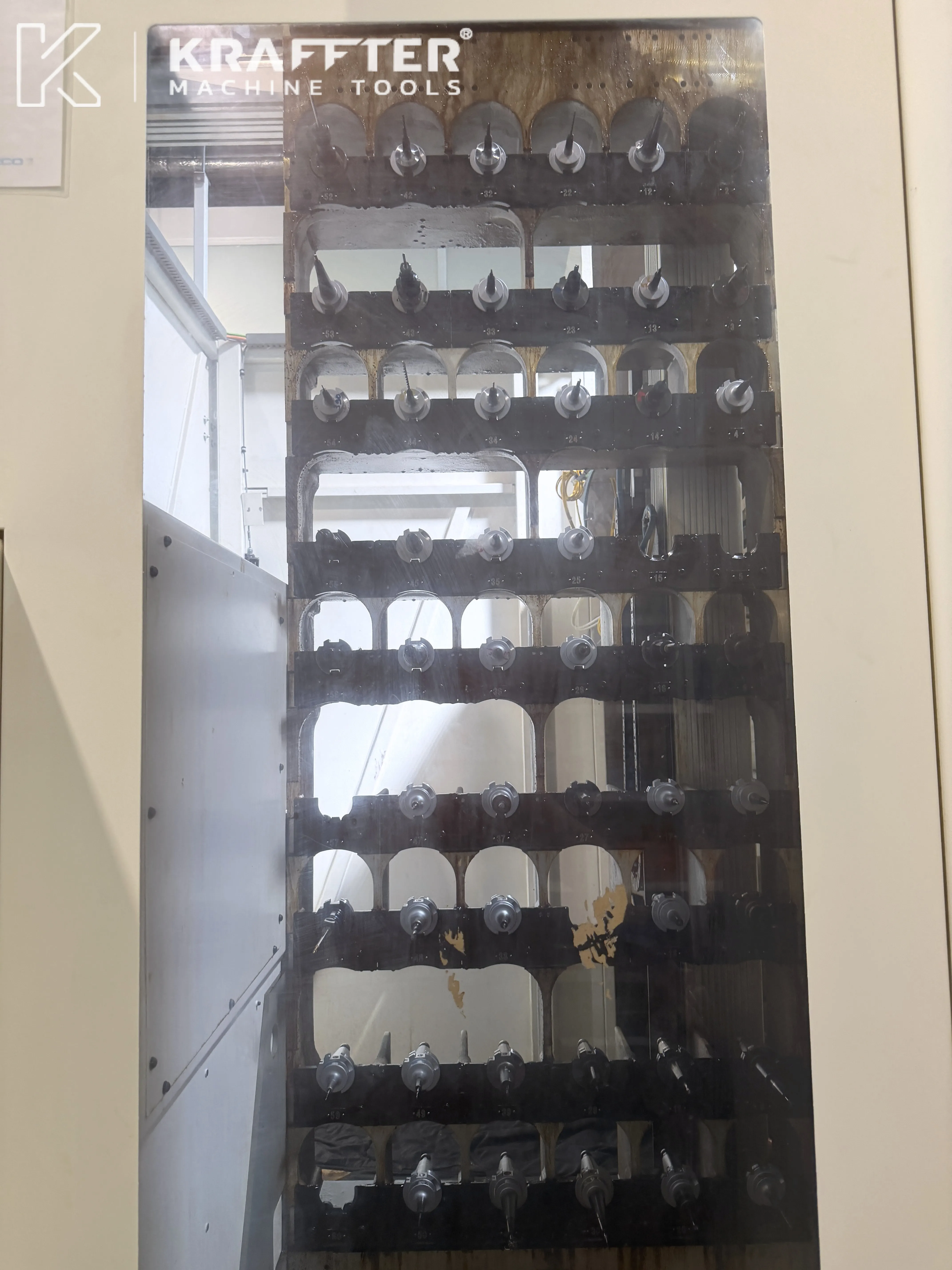

Tool changer magazin number of stations: 60

Machine weight: 35000 [Kg]



INCLUDED EQUIPMENT:


1 × HEIDENHAIN part probe

1 × laser measuring system for tool setting and tool monitoring

3 × HEIDENHAIN linear glas scales on the X, Y and Z axes

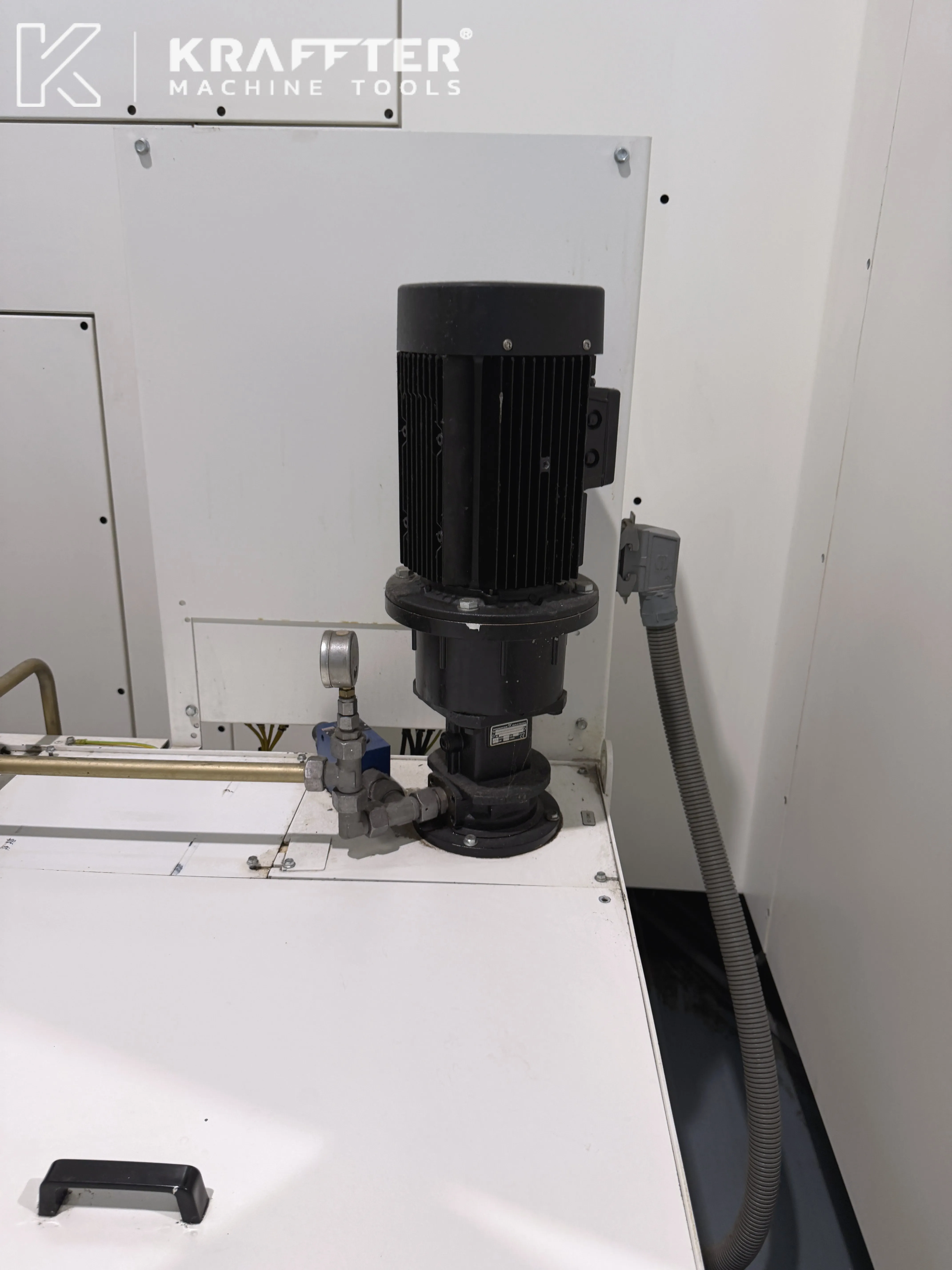

1 × through-spindle coolant system

1 × chip conveyor

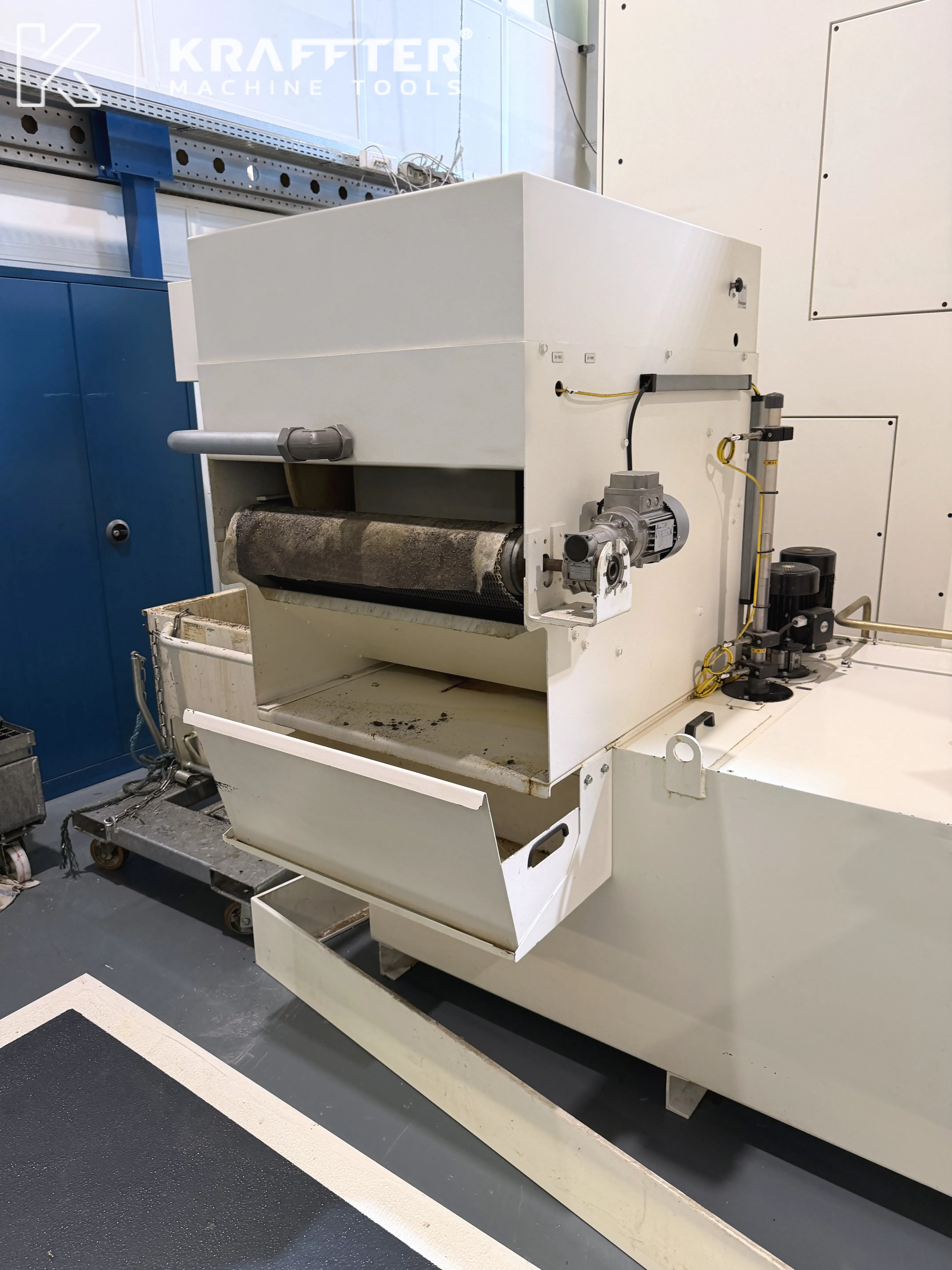

1 × paper-band filtration unit (paper filter system)


More information upon request.
