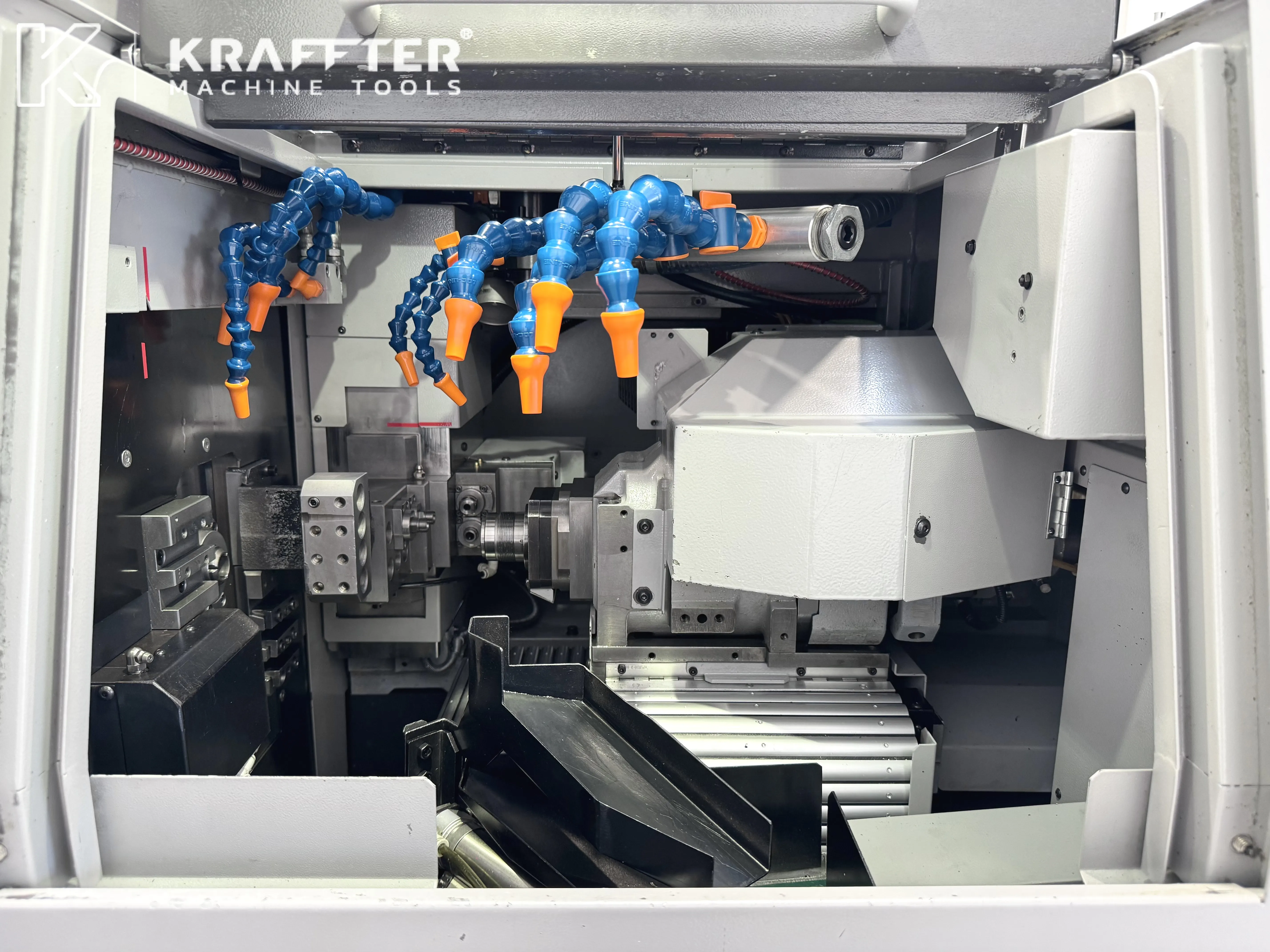

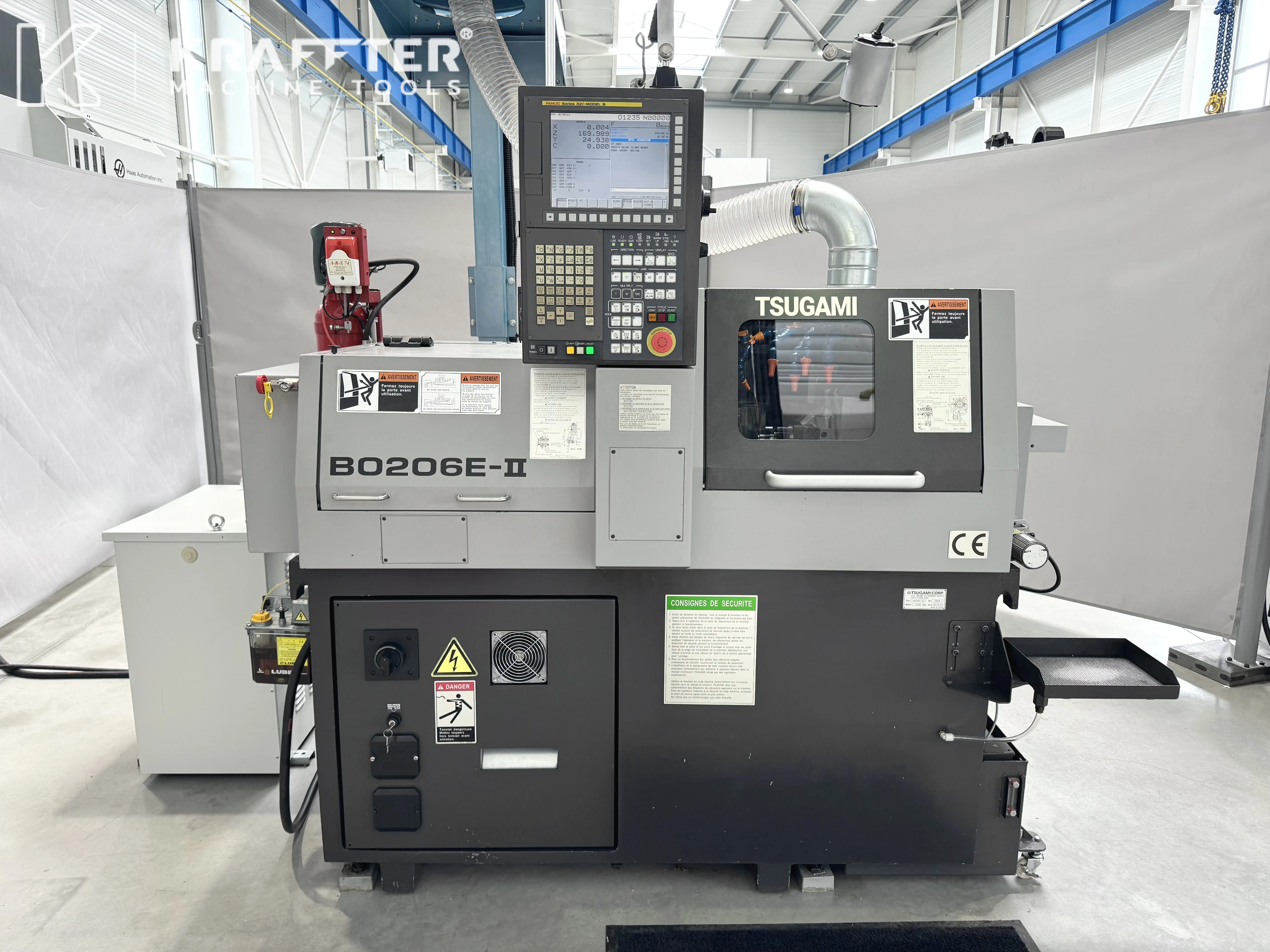

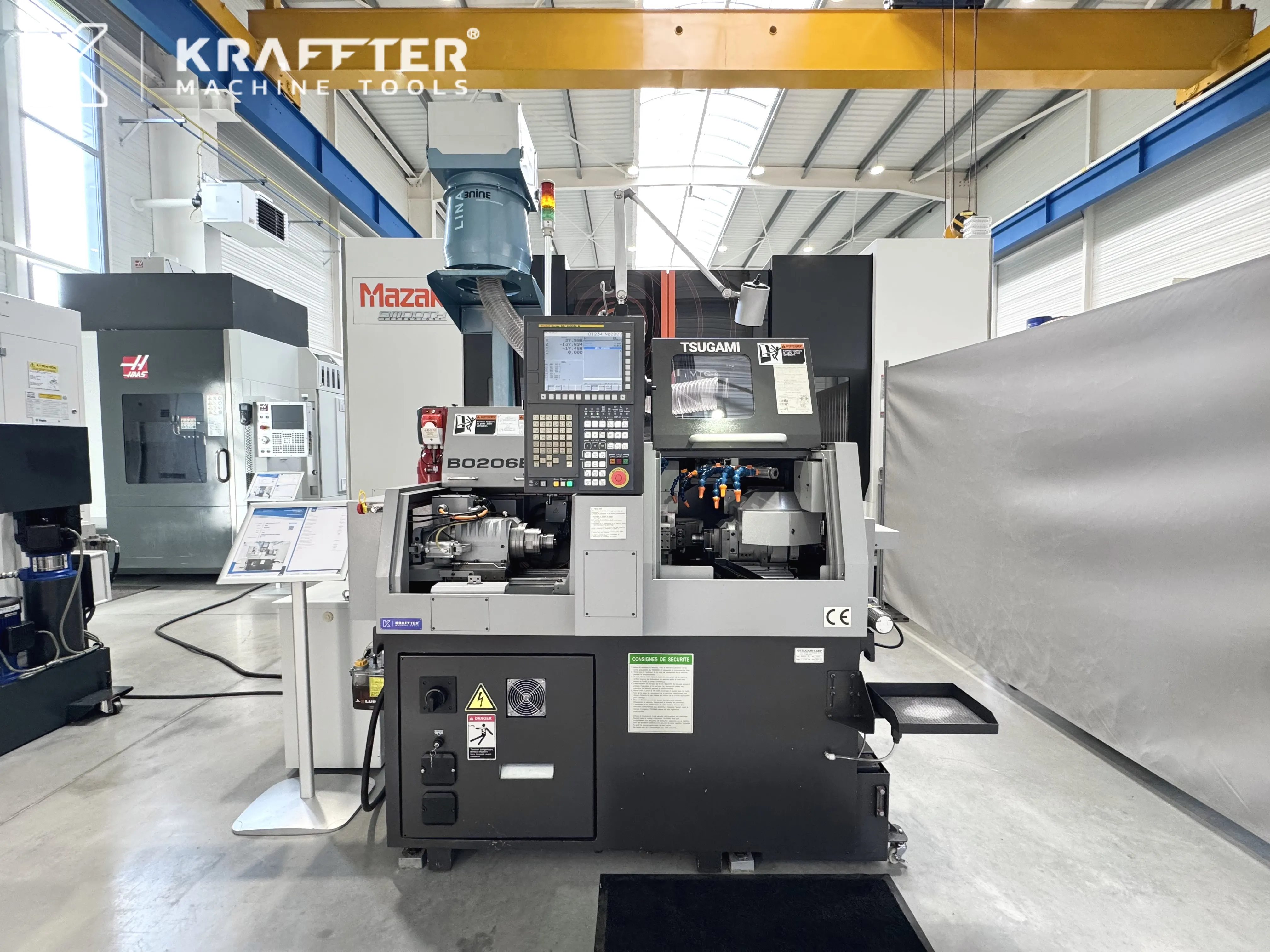

Swiss-type CNC Lathe TSUGAMI B0206E-II







TECHNICAL CHARACTERISTICS:



Year of manufacturing: 2014

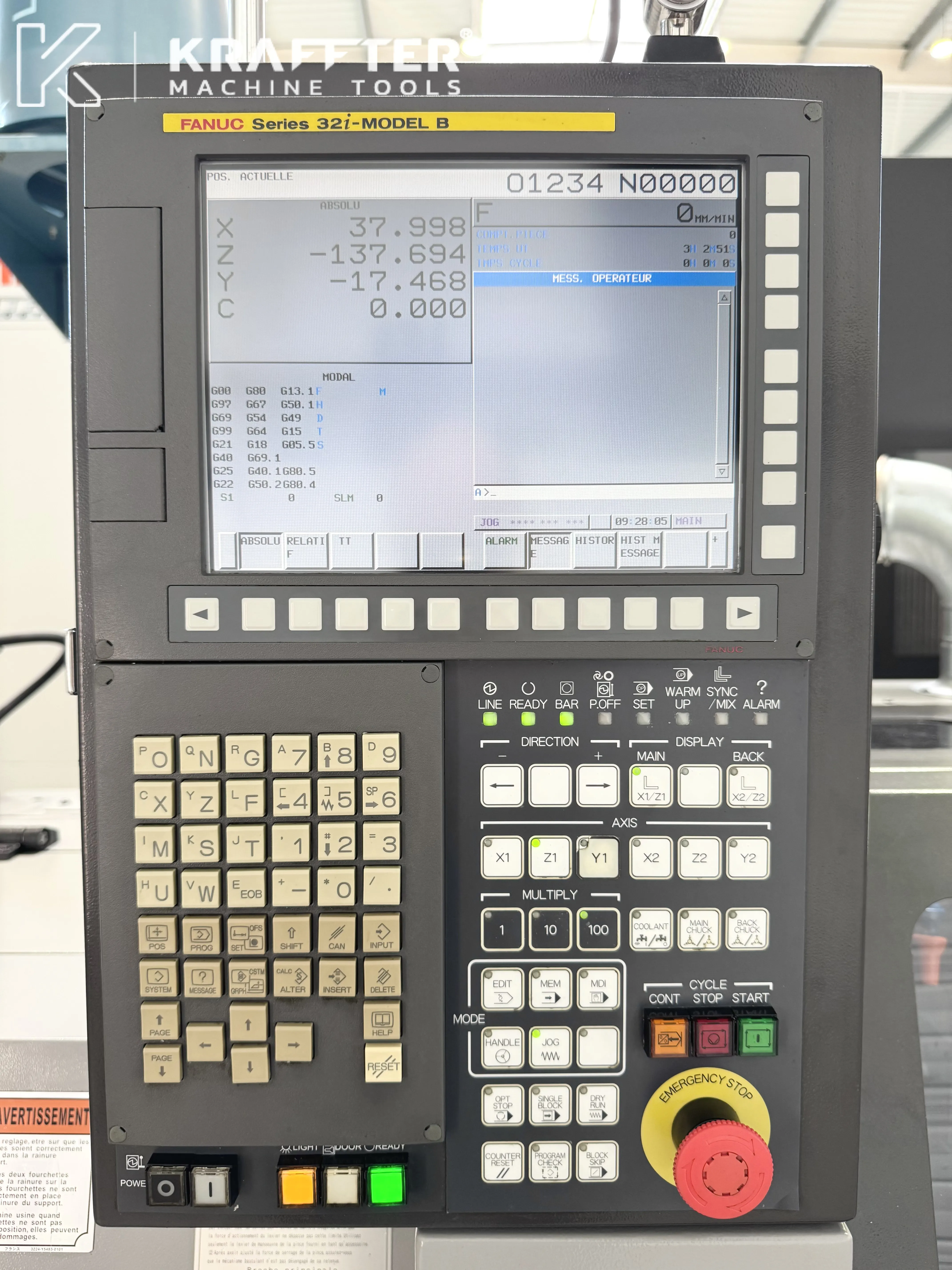

CNC control: FANUC series 32i-B

Number of axes: 6

Rapid traverse rate X1 axis: 24000 [mm/min]

Rapid traverse rate X2 axis: 24000 [mm/min]

Rapid traverse rate Z1 axis: 32000 [mm/min]

Rapid traverse rate Z2 axis: 32000 [mm/min]

Rapid traverse rate Y1 axis: 15000 [mm/min]

Rapid traverse rate Y2 axis:15000 [mm/min]

Max. bar diameter: 20 [mm]

Min. spindle speed: 200 [rpm]

Max. spindle speed: 10000 [rpm]

Increment C-axis: 0.001 [°]

Spindle power: 3.7 [kW]

Min. counter spindle spindle speed: 200 [rpm]

Max. counter spindle speed: 12000 [rpm]

Counter spindle increment C-axis: 0.001 [°]

Counter spindle power: 2.2 [kW]

Number of positions end attachment: 8

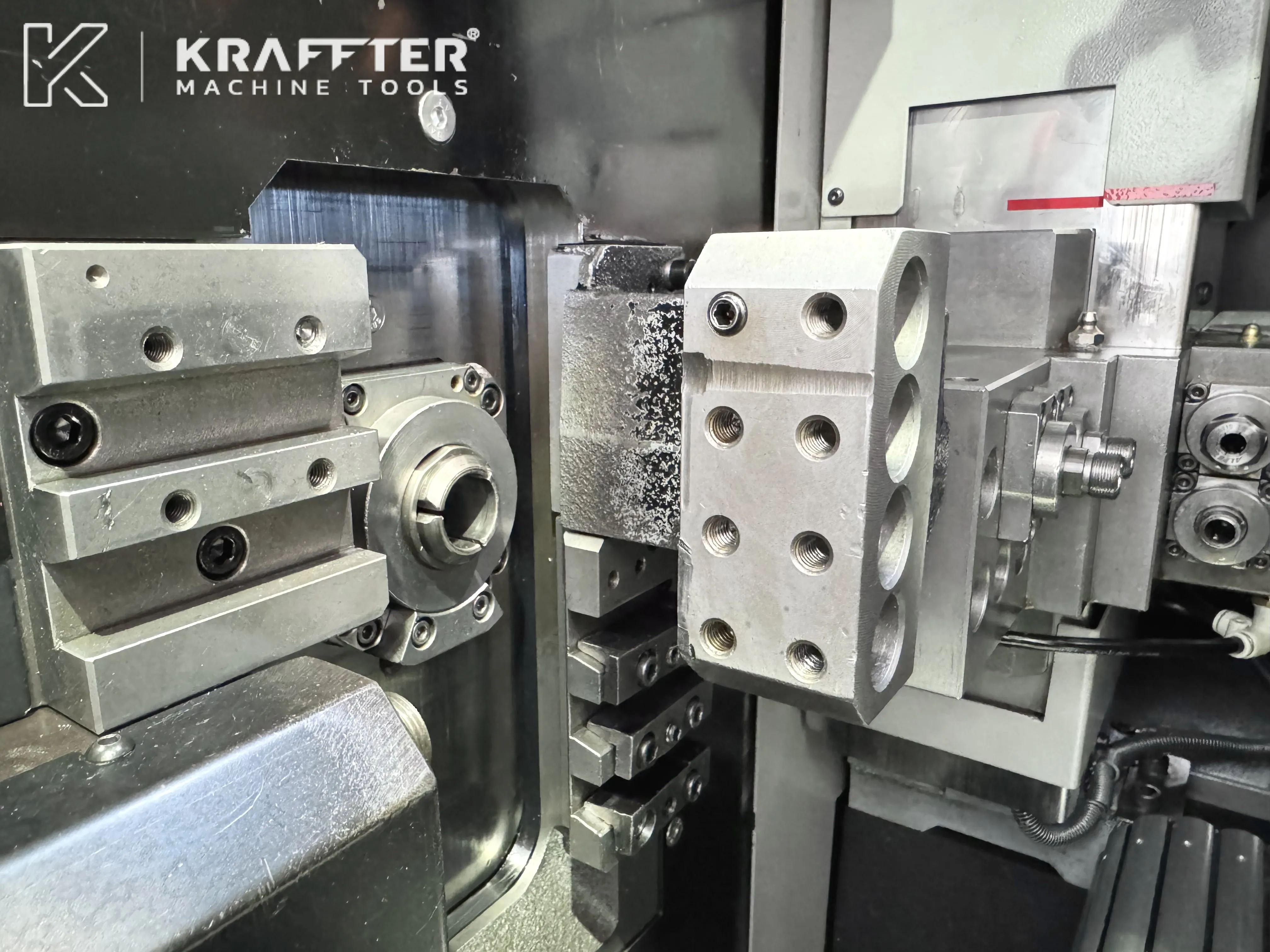

Number of positions guide bush holder 1: 5

Number of motorized positions guide bush holder 1: 3

Live tools speed guide bush holder 1: 8000 [rpm]

Number of positions secondary operation: 8

Number of motorized positions secondary operation: 4

Live tools speed secondary operation: 8000 [rpm]

Max. tool holder cross-section: 12 x 12 [mm]

Working hours: 9132 [h]

Weight: 1750 [Kg]





INCLUDED EQUIPMENT:

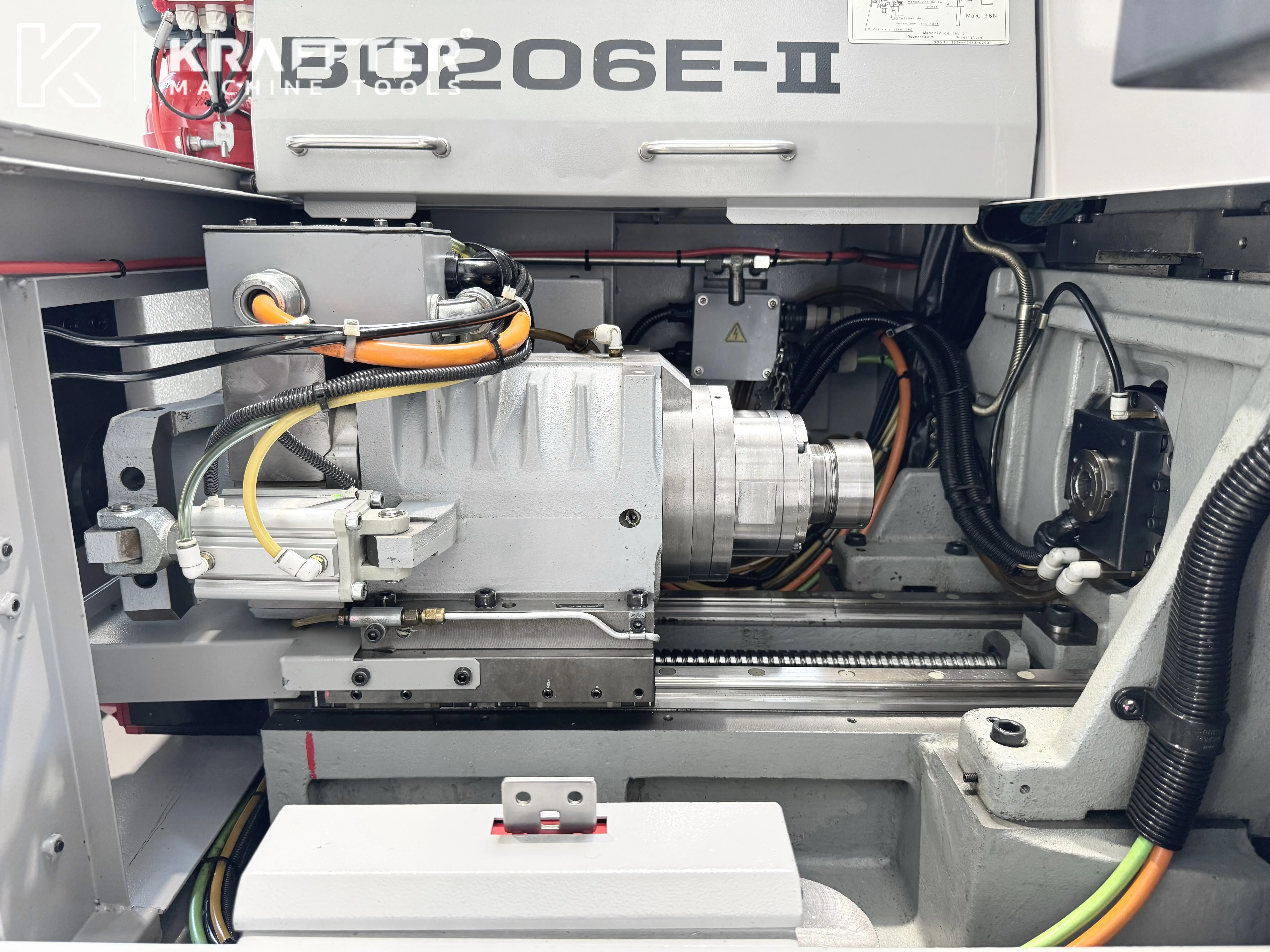

x1 sliding headstock (direct drive)

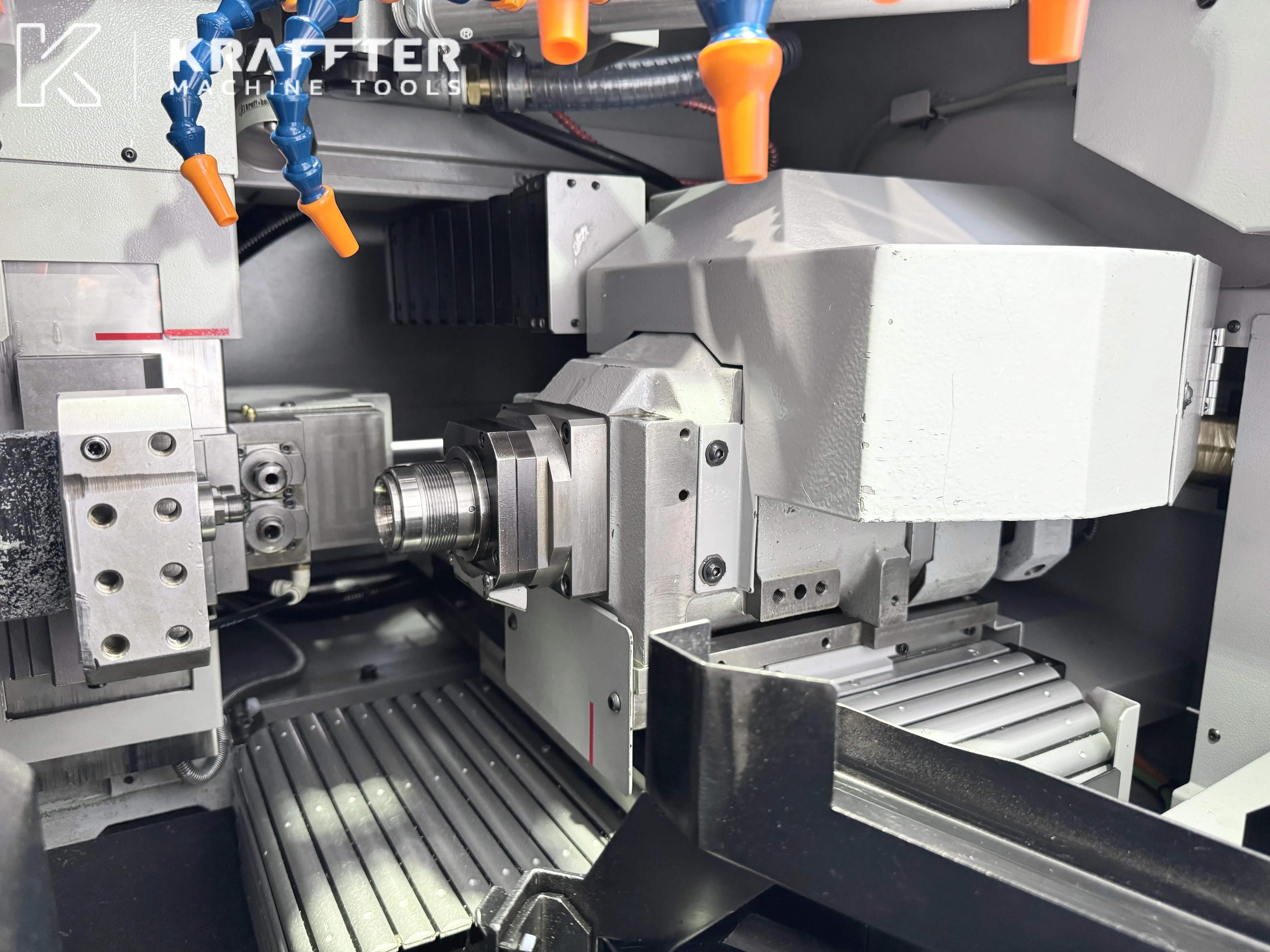

x1 counter spindle (direct drive)

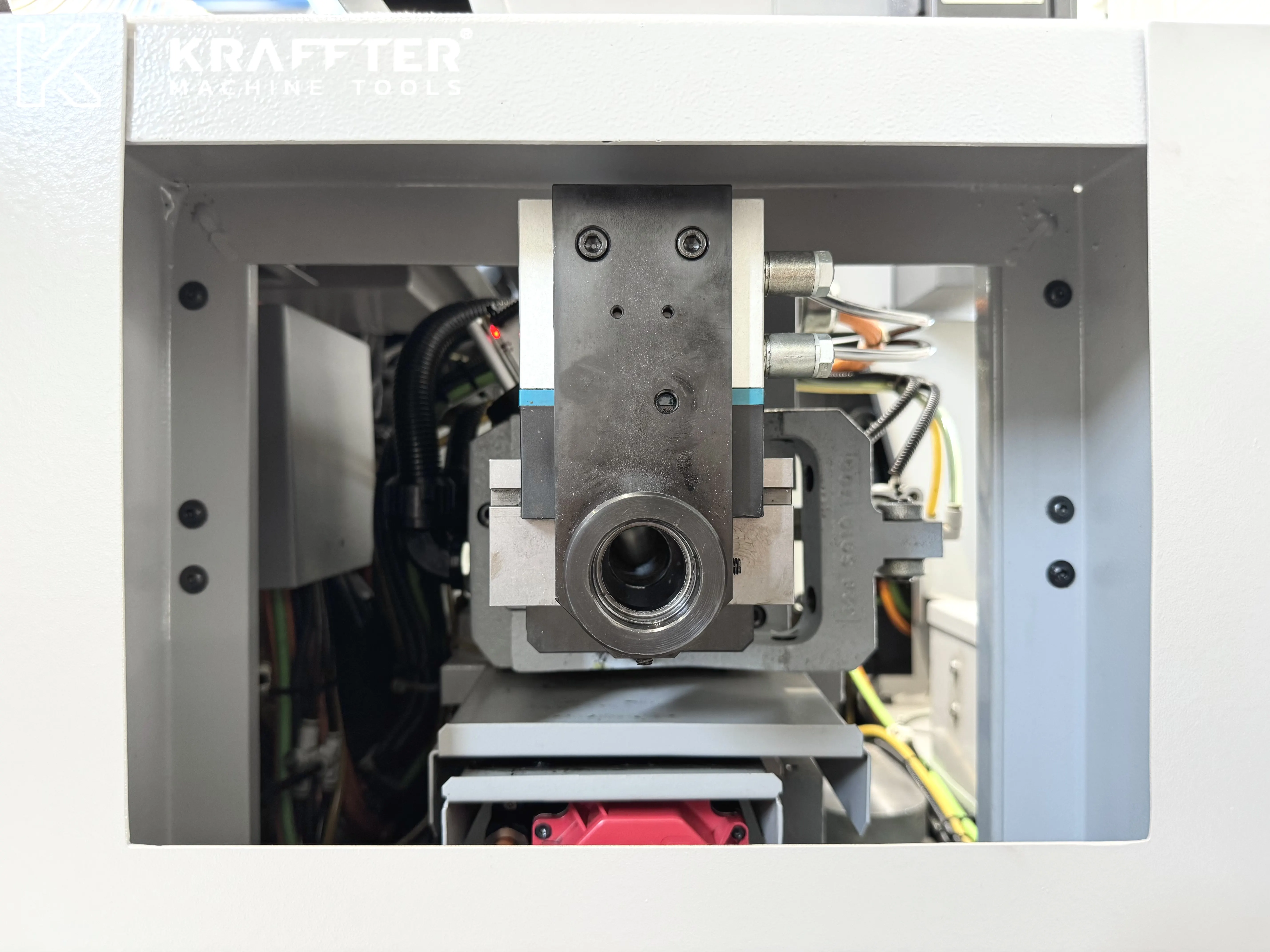

x1 rotary guide bush (direct drive)

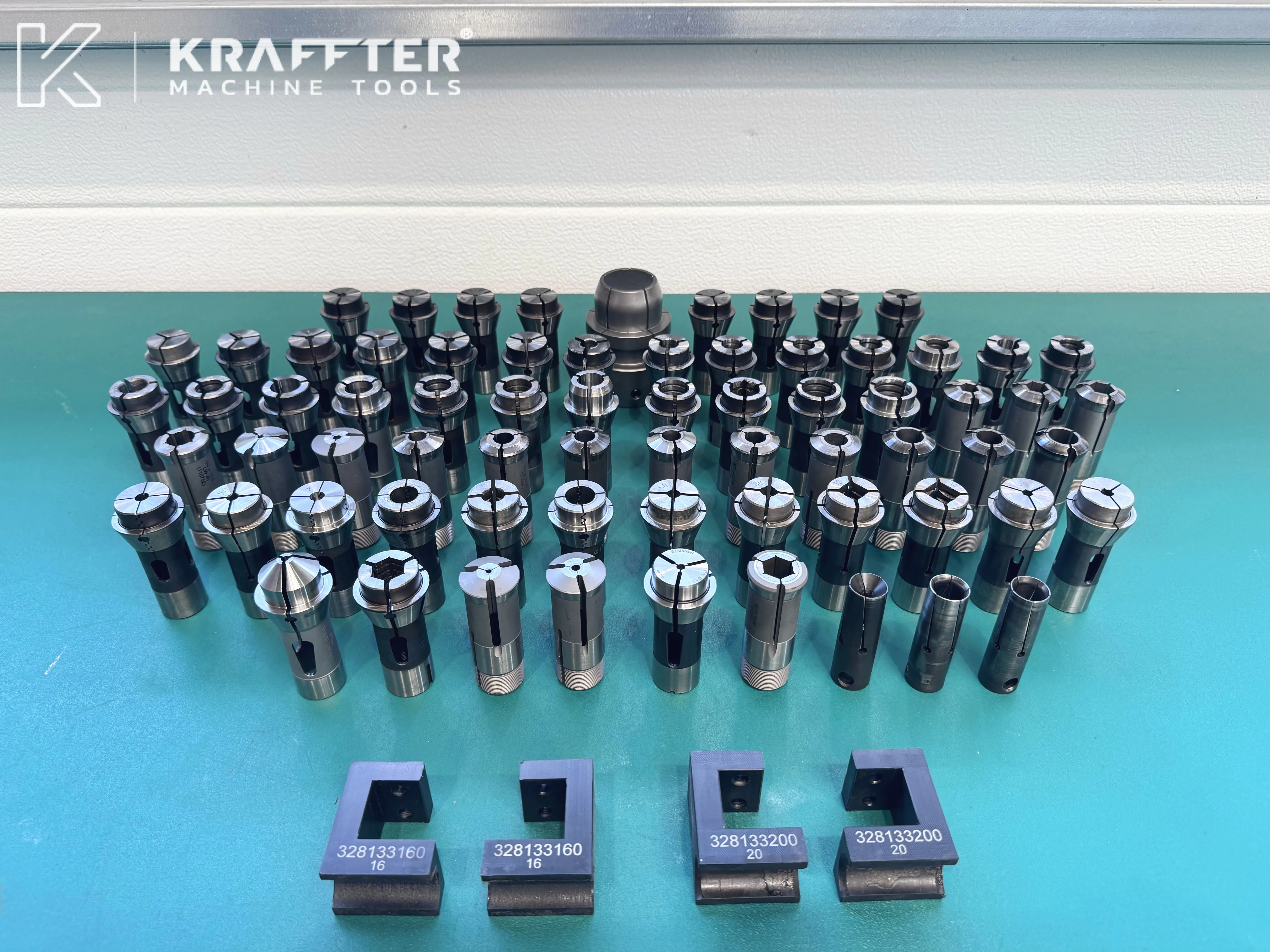

x108 collets

x7 live tool holders

x1 parts catcher

x1 parts conveyor belt

x1 parts ejection device

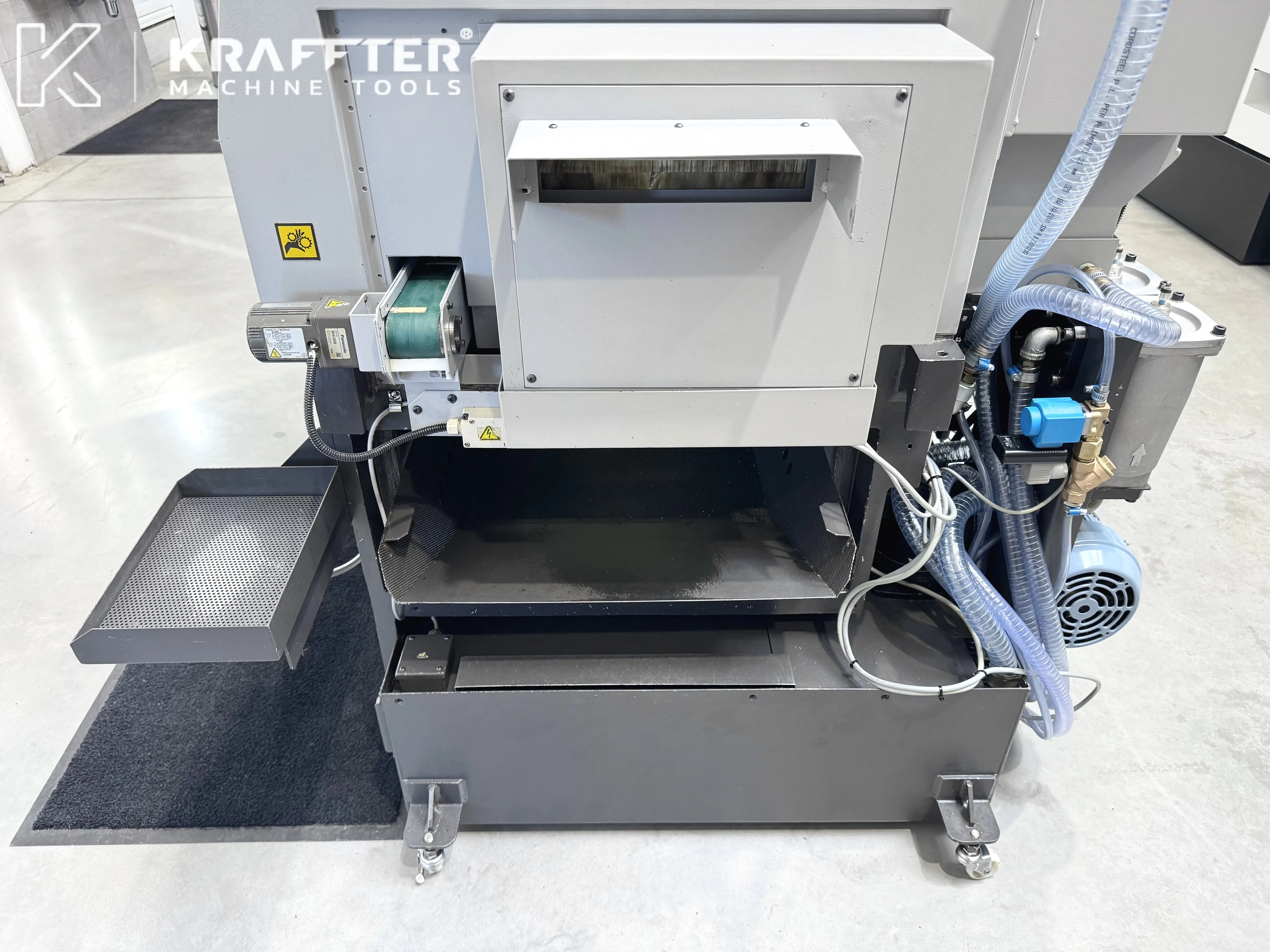

x1 chip conveyor

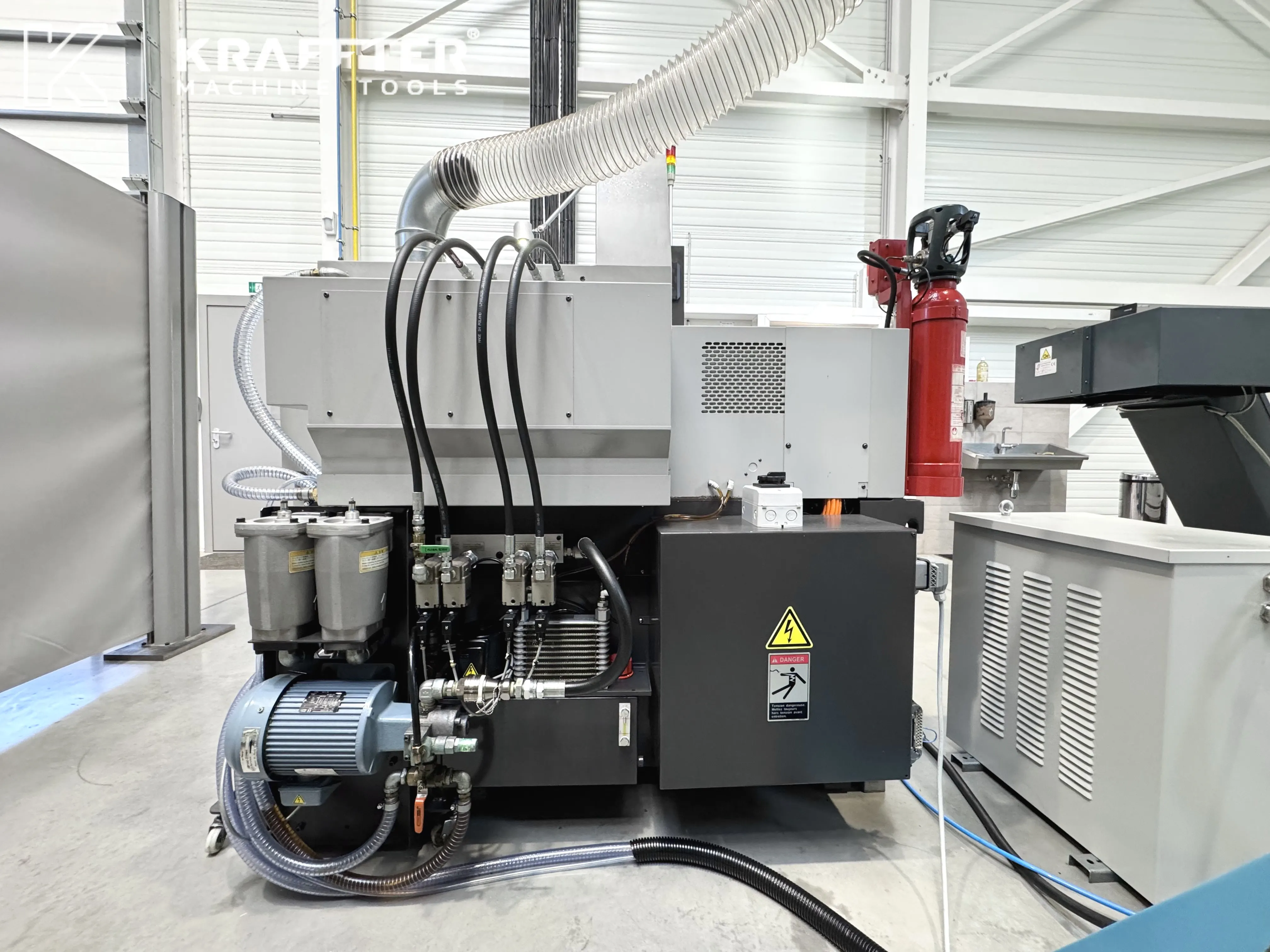

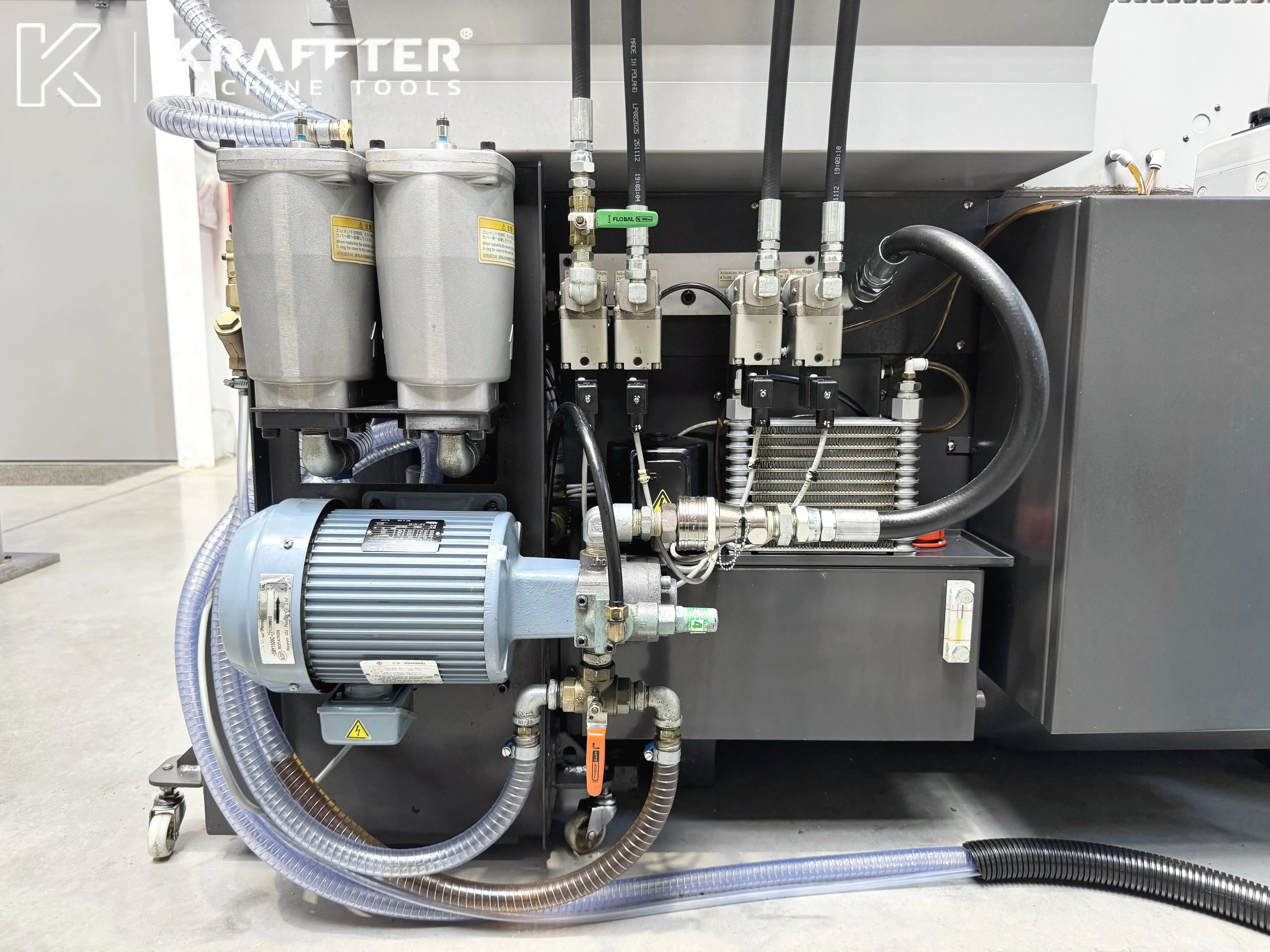

x1 coolant tank

x1 oil mist extraction unit, 3nine LINA type

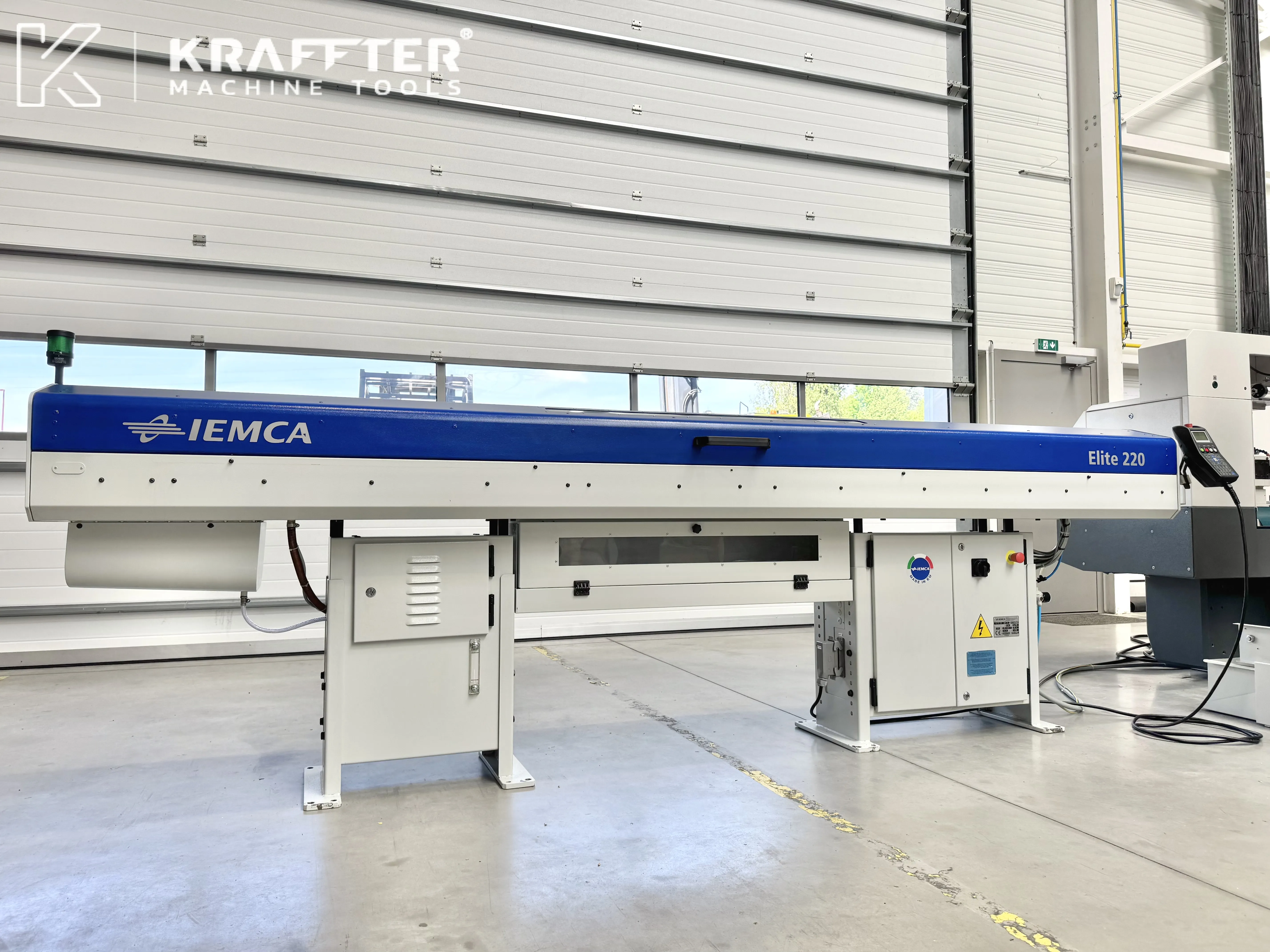

x1 IEMCA ELITE 220 E / 32 XL bar feeder

x1 set of accessories for IEMCA ELITE 220 E / 32 XL bar feeder

x1 fire protection system - to be inspected by the buyer through a certified organization

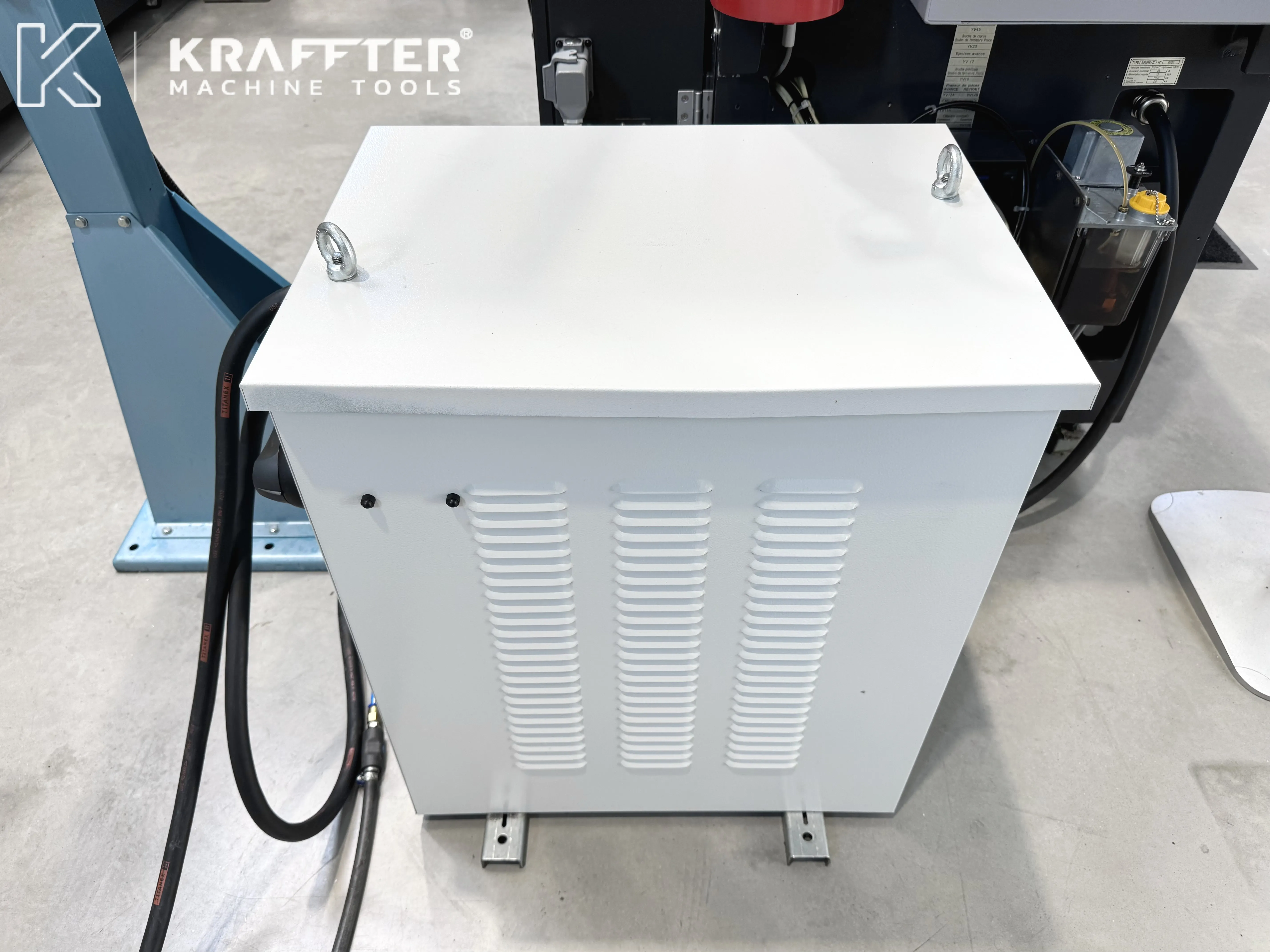

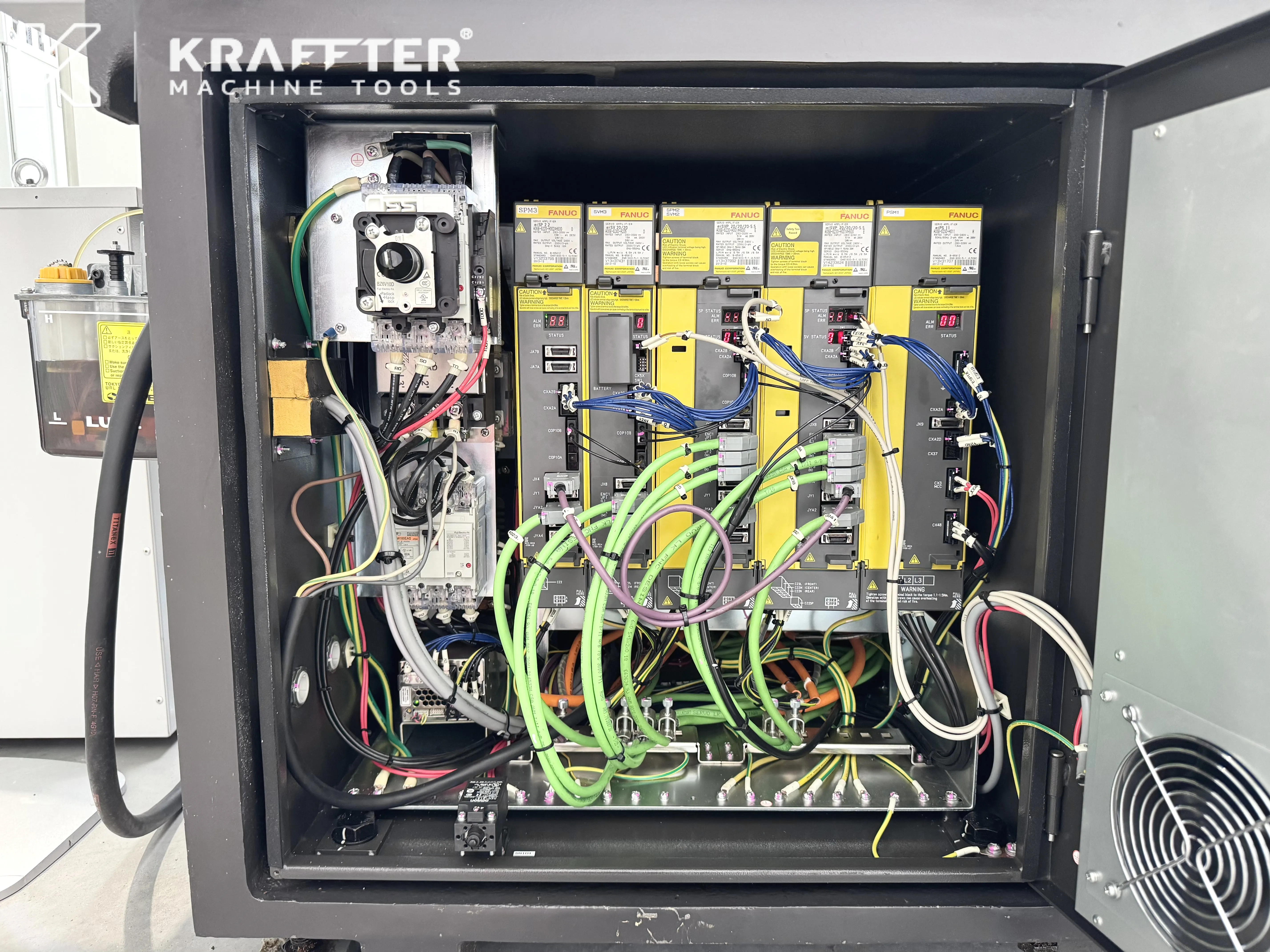

x1 electrical transformer

x1 3-color status light

x1 set of IEMCA manuals

x1 set of FANUC manuals







Machine visible under power in our premises by appointment.


Price on request, loading on truck included.


Possibility of shipping Worldwide.


The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.
