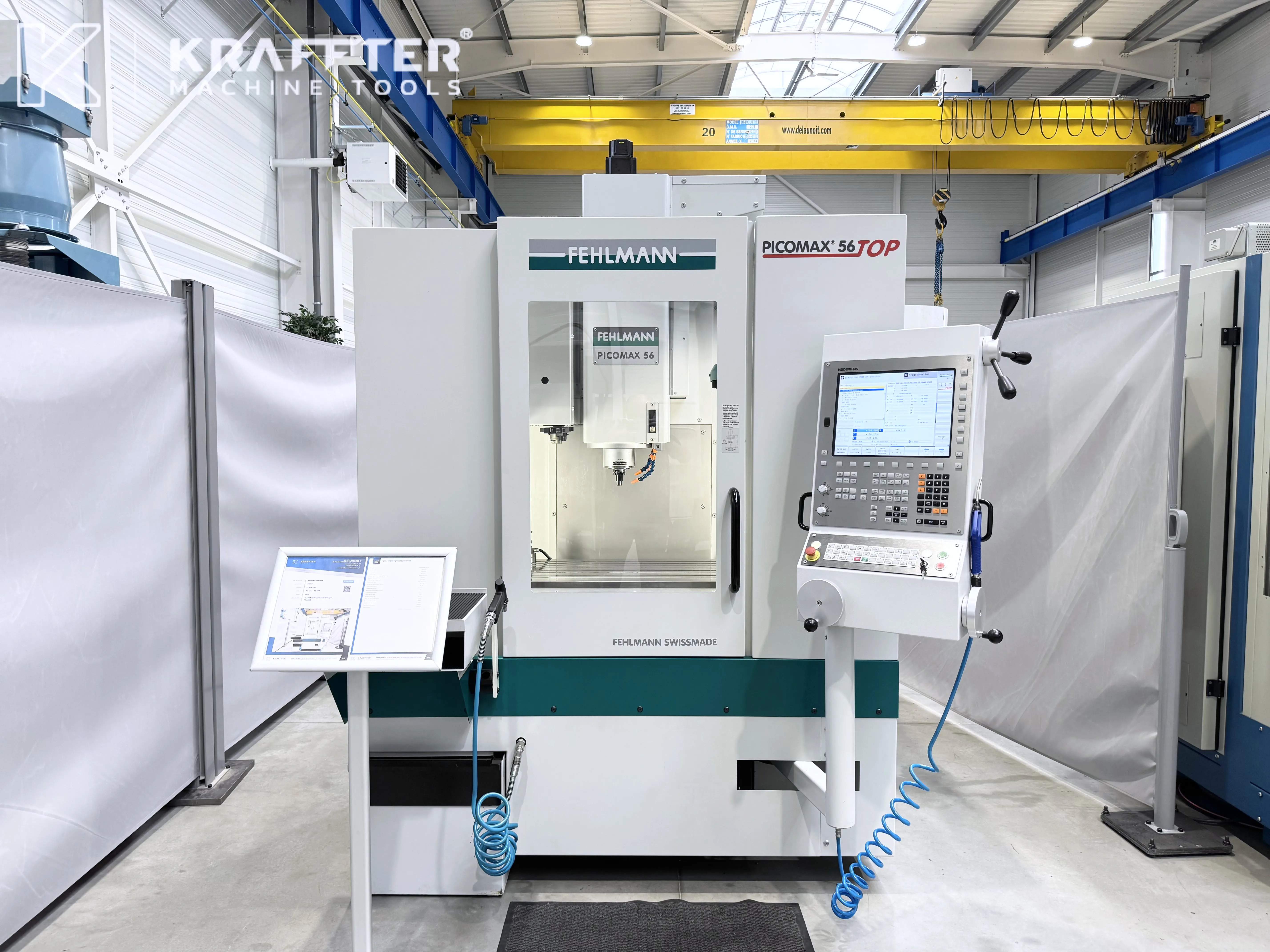

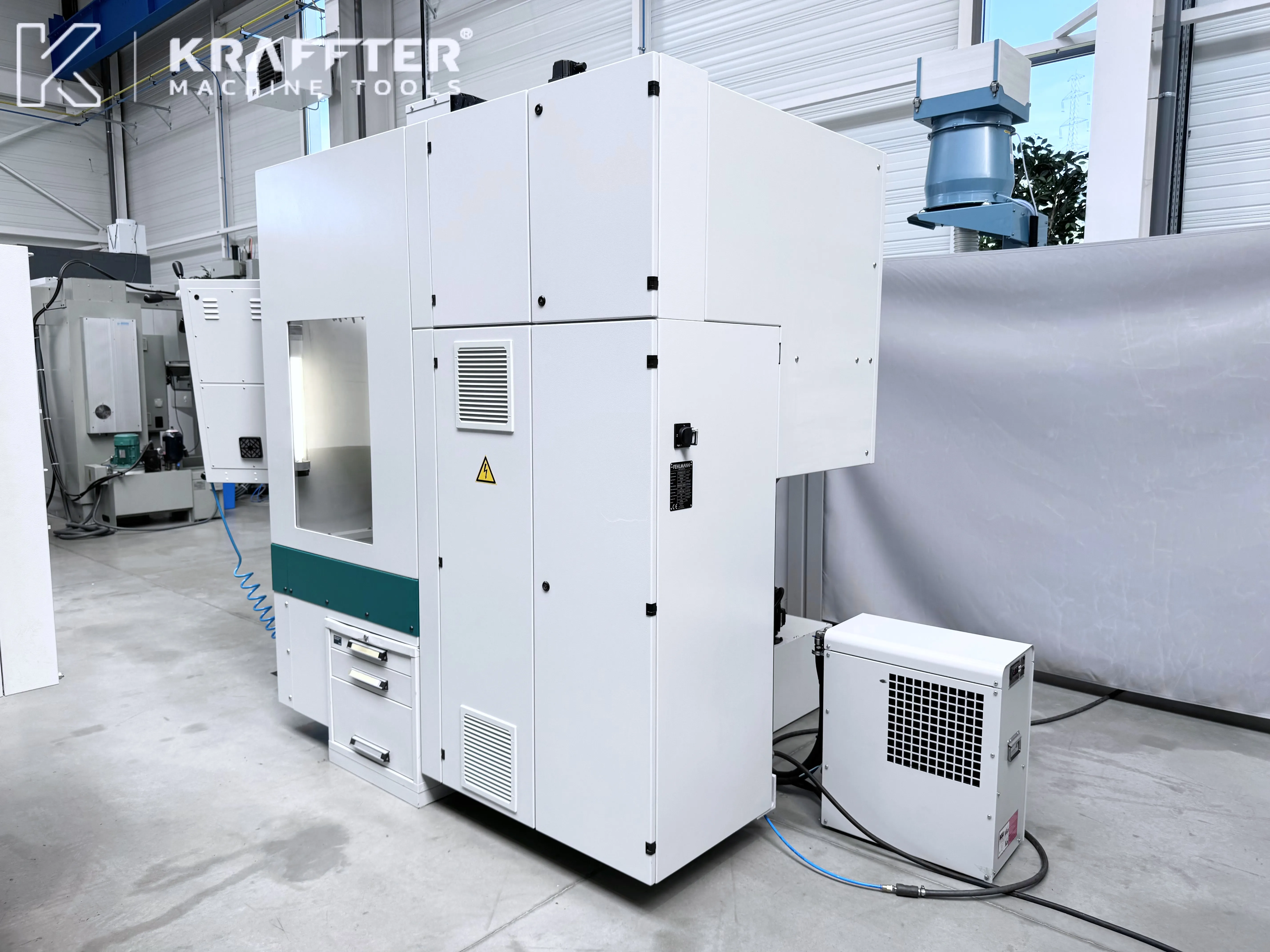

CNC Machining center FEHLMANN Picomax 56 TOP
TECHNICAL CHARACTERISTICS:
Year of manufacturing: 2015

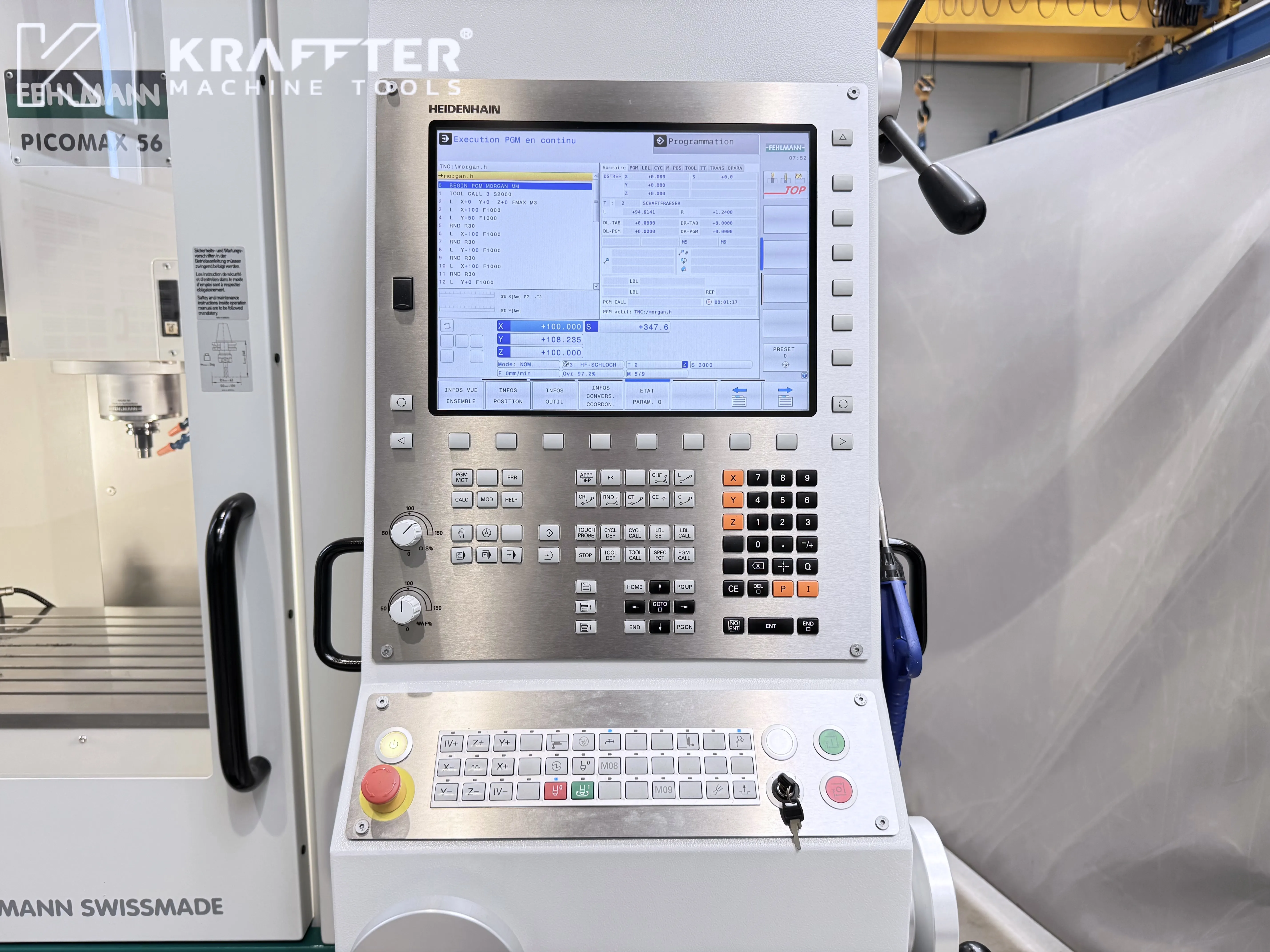

CNC control: HEIDENHAIN TNC 620
Stroke X axis: 500 [mm]
Stroke Y axis: 400 [mm]
Stroke Z axis: 400 [mm]
Feed rate on X, Y and Z axes: 20000 [mm/min]
Min. distance spindle nose / table: 120 [mm]
Max. distance spindle nose / table: 520 [mm]

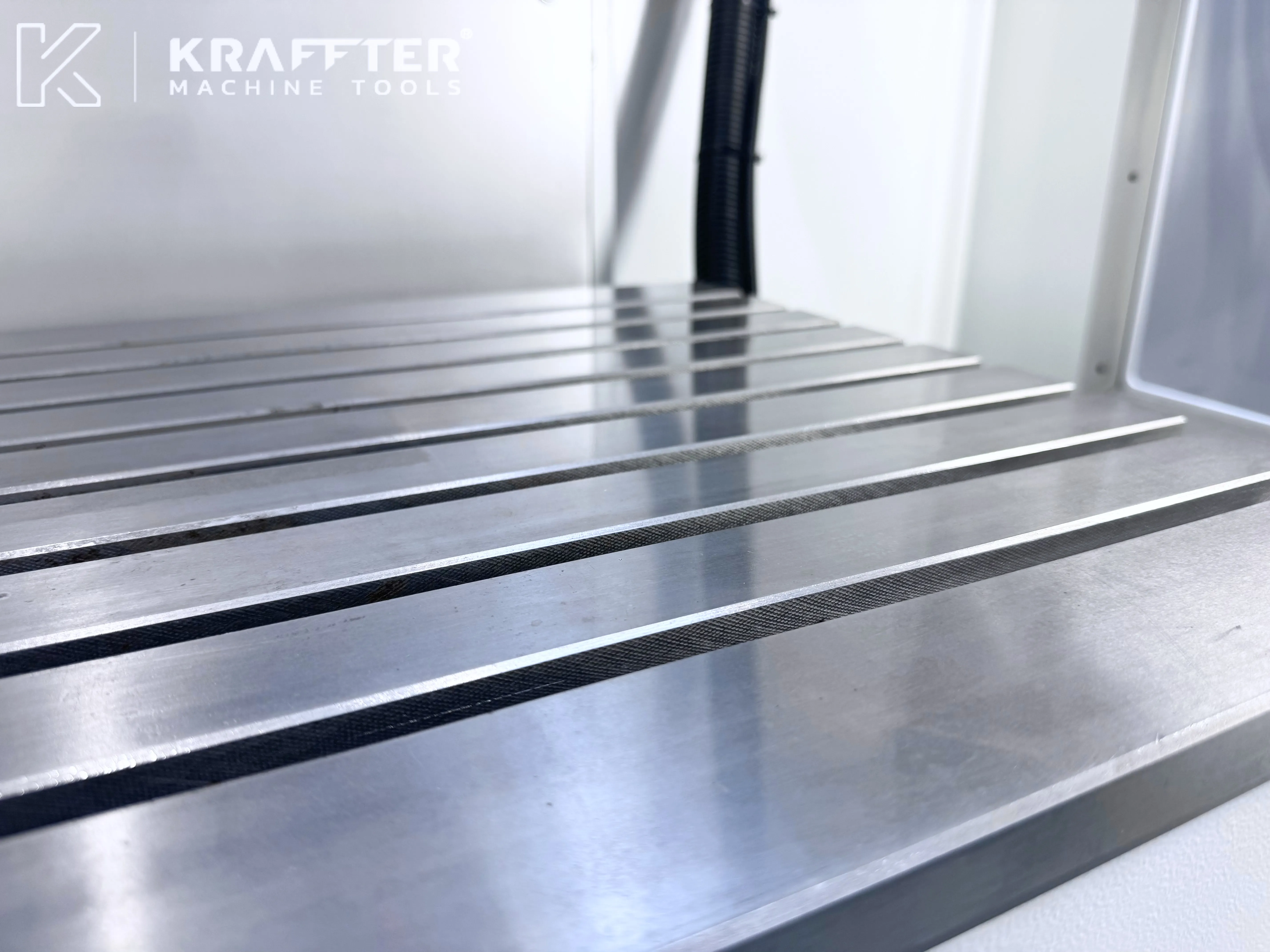

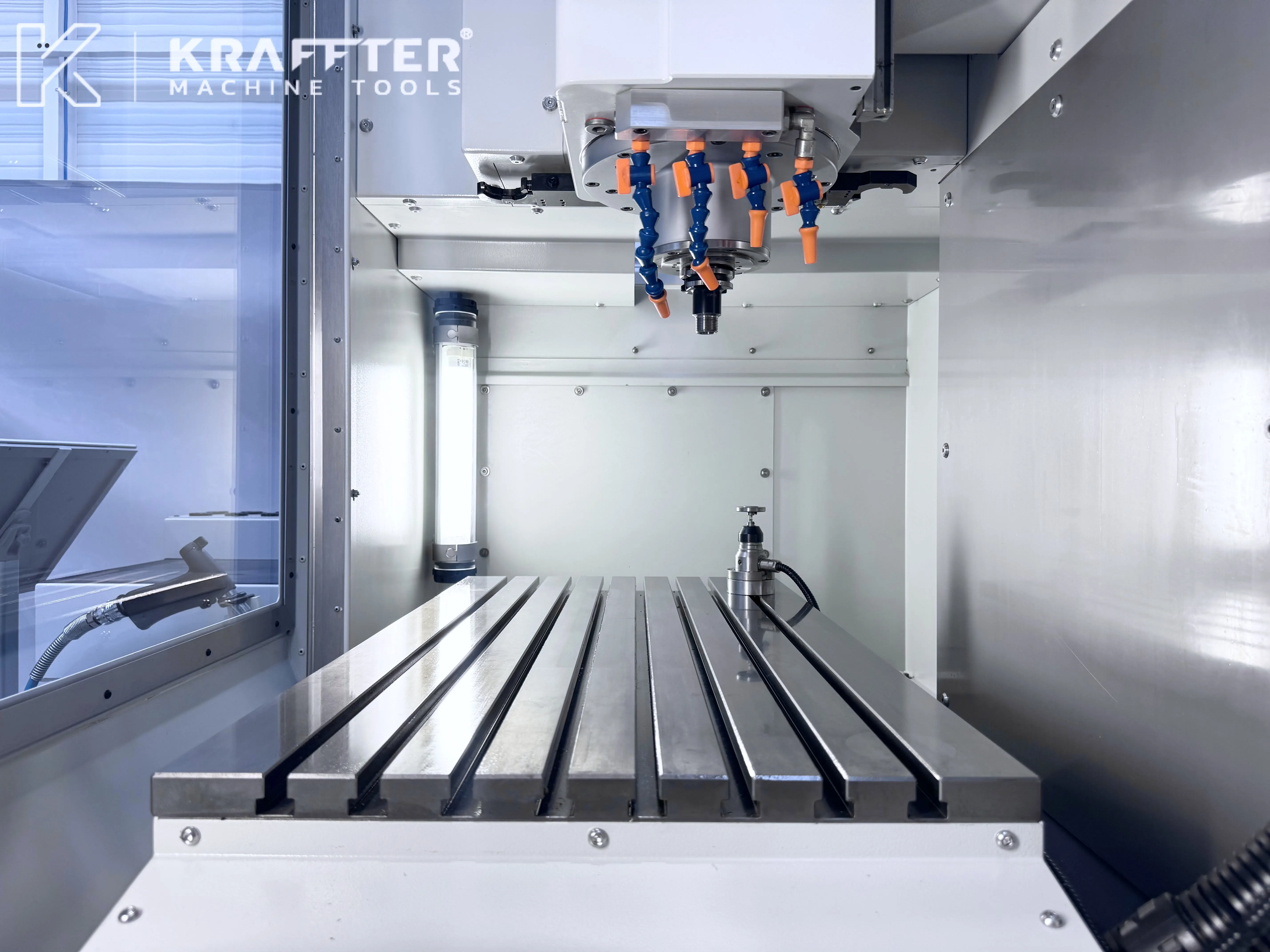

Table dimensions: 908 x 480 [mm]
Max. load on table: 250 [Kg]

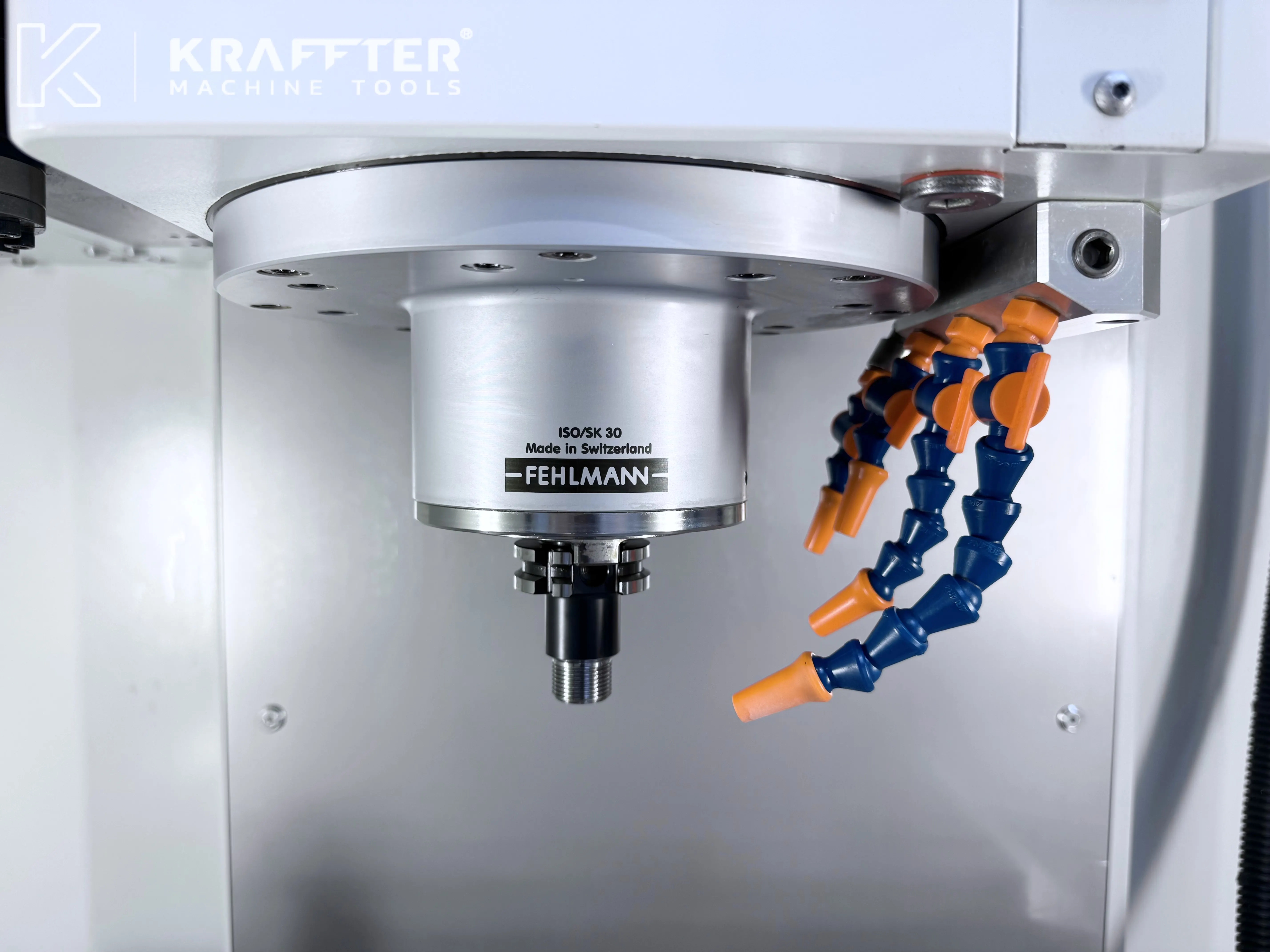

Spindle type: ISO 30
Max. spindle speed: 12000 [rpm]

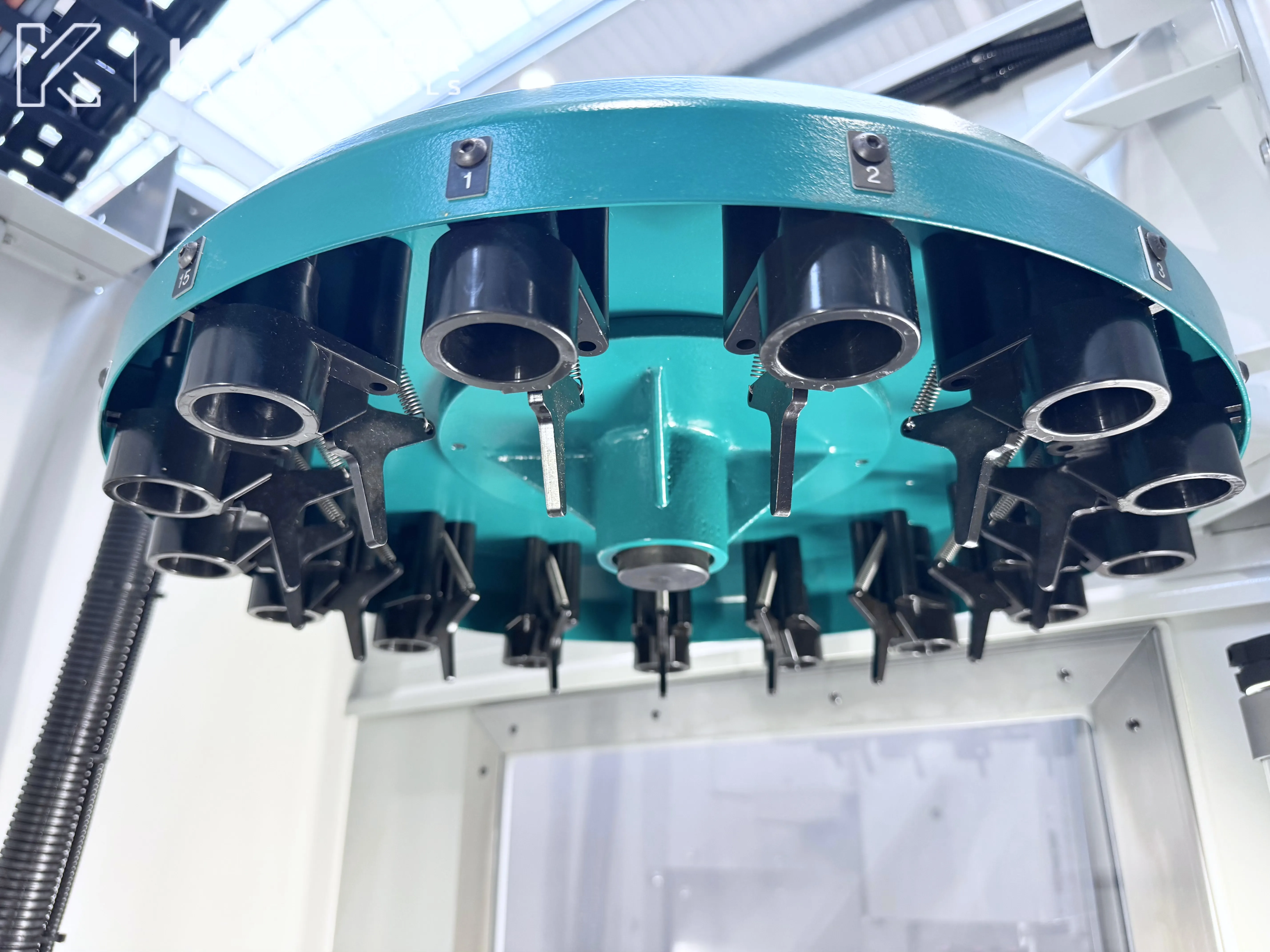

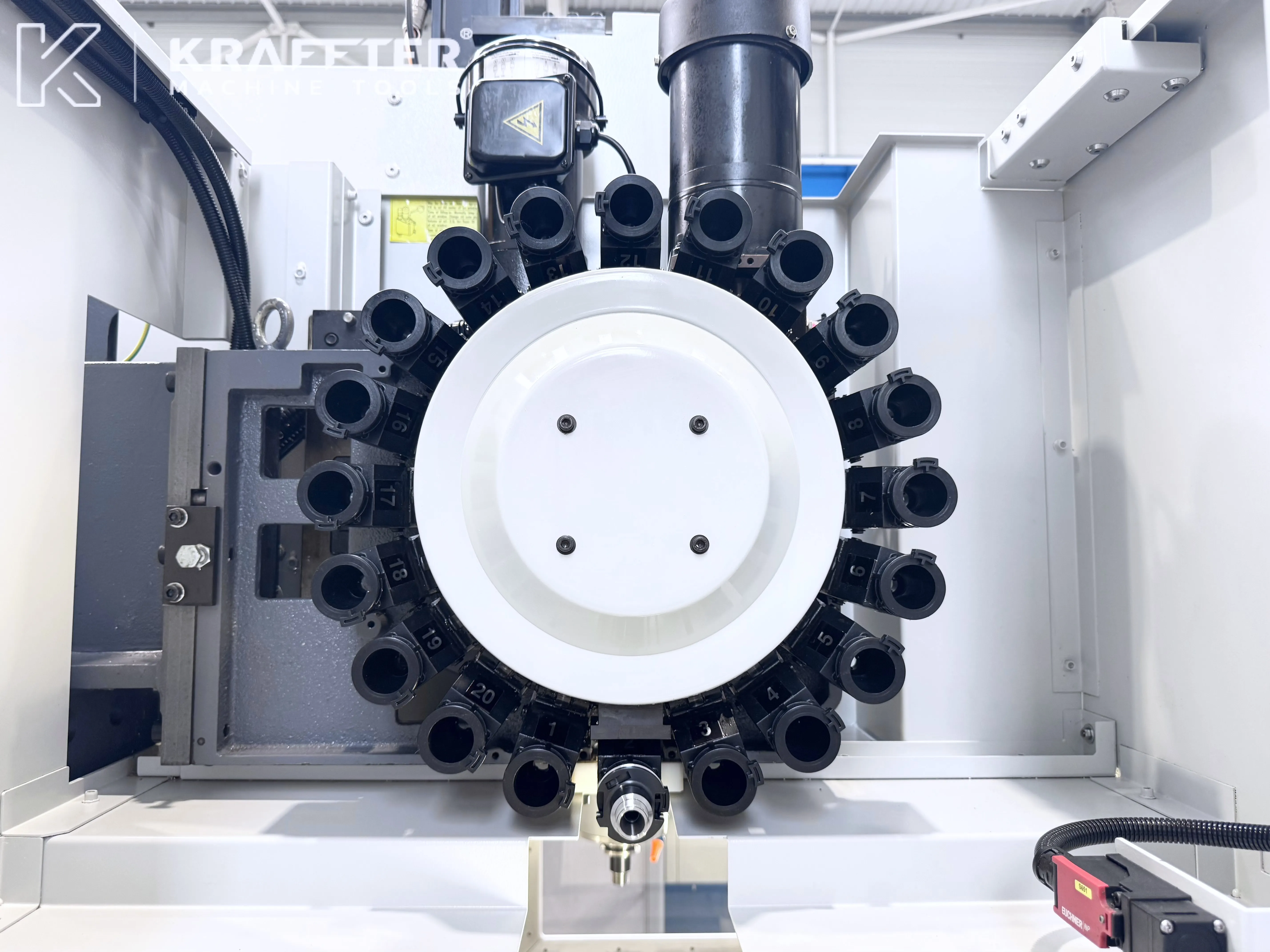

Tool changer magazin number of stations: 20
Max. tool lenght: 240 [mm]
Max. weight of single tool: 3 [Kg]
Max. tool diameter: 130 [mm]
Tool change time: 3 [sec]
Chip to chip time: 8 [sec]
Number of cutting hours: 1463 [h]
Rated current: 25 [A]
Supply voltage: 400 [V]
Machine weight: 3250 [Kg]
INCLUDED EQUIPMENT:
HEIDENHAIN linear glass scales on the X, Y, and Z axes
x1 FRIBOSA Switzerland precision vise

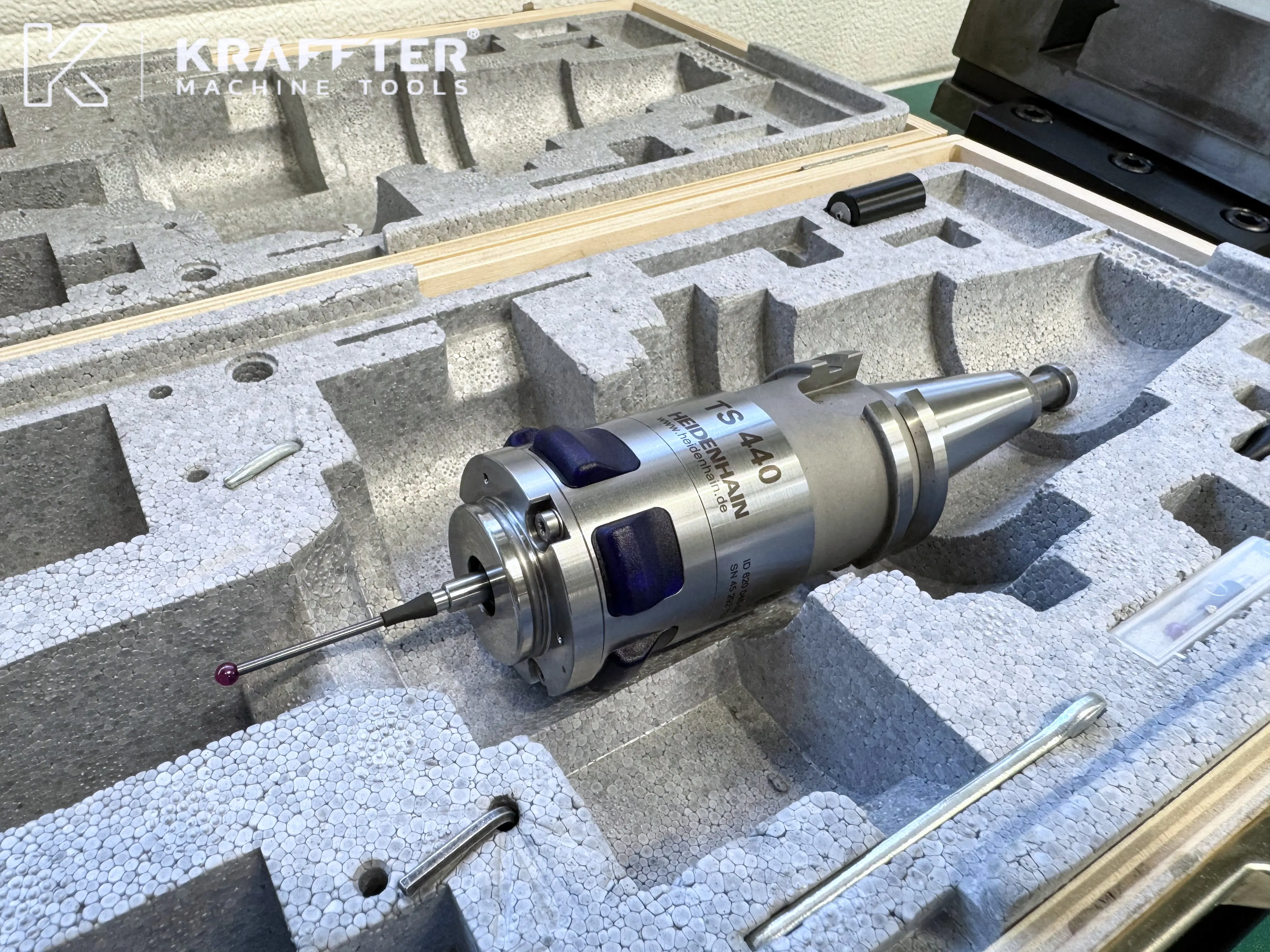

x1 RENISHAW TS 440 part probe

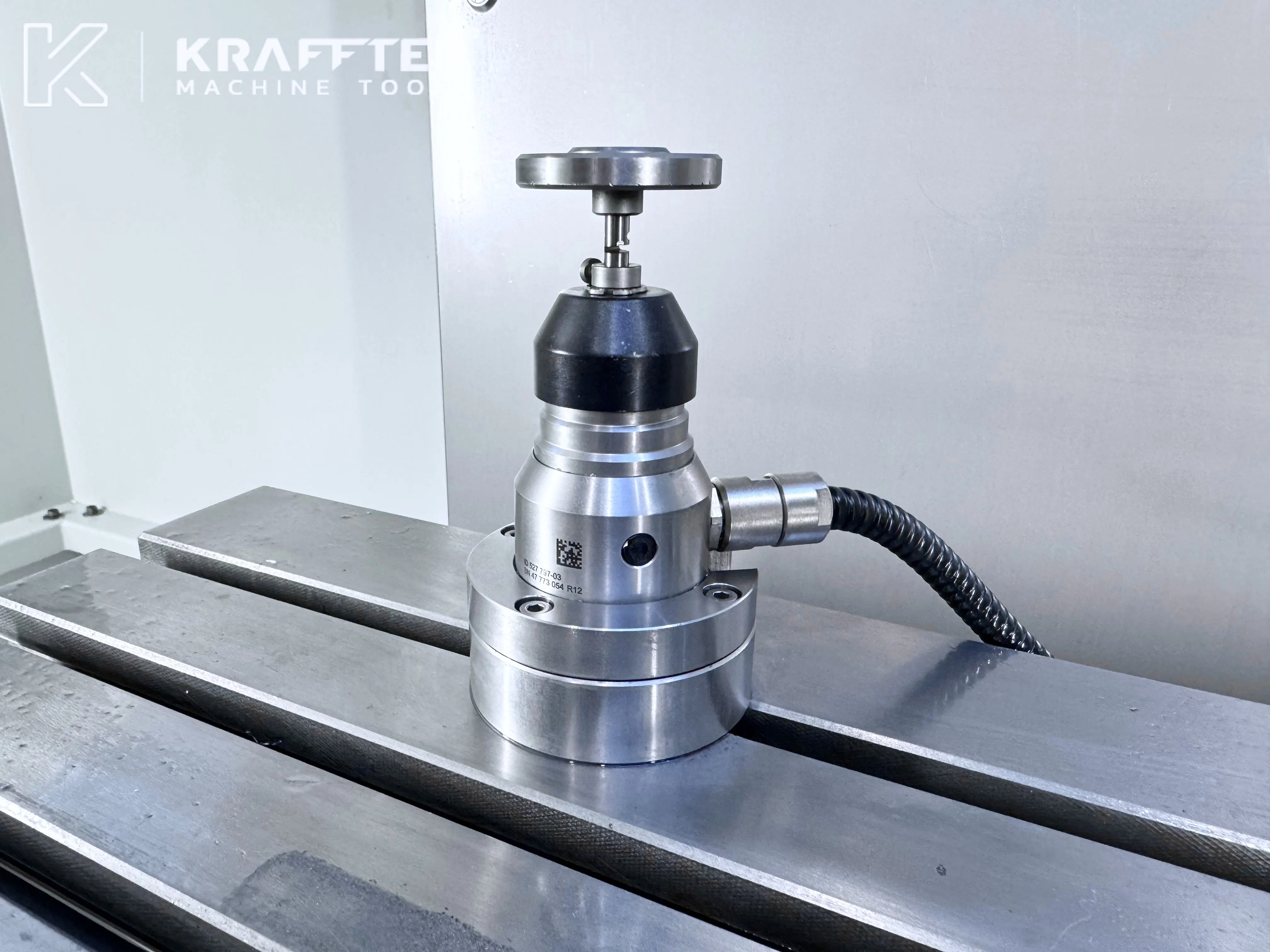

x1 RENISHAW TT 140 tool probe
x3 ISO30 tool holders
x1 FEHLMANN GPRPLUS50 toolsetter

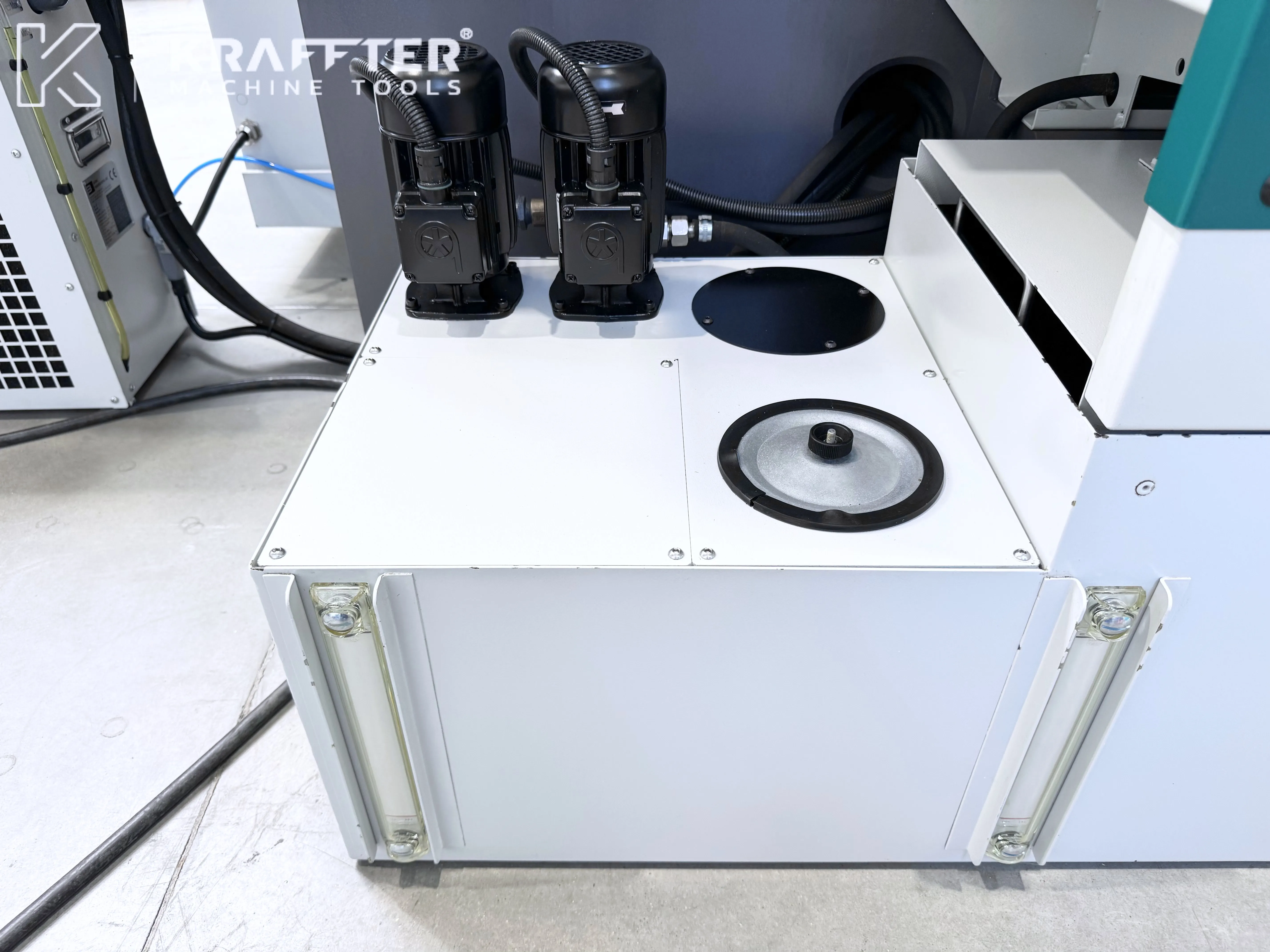

x1 coolant tank with pumps

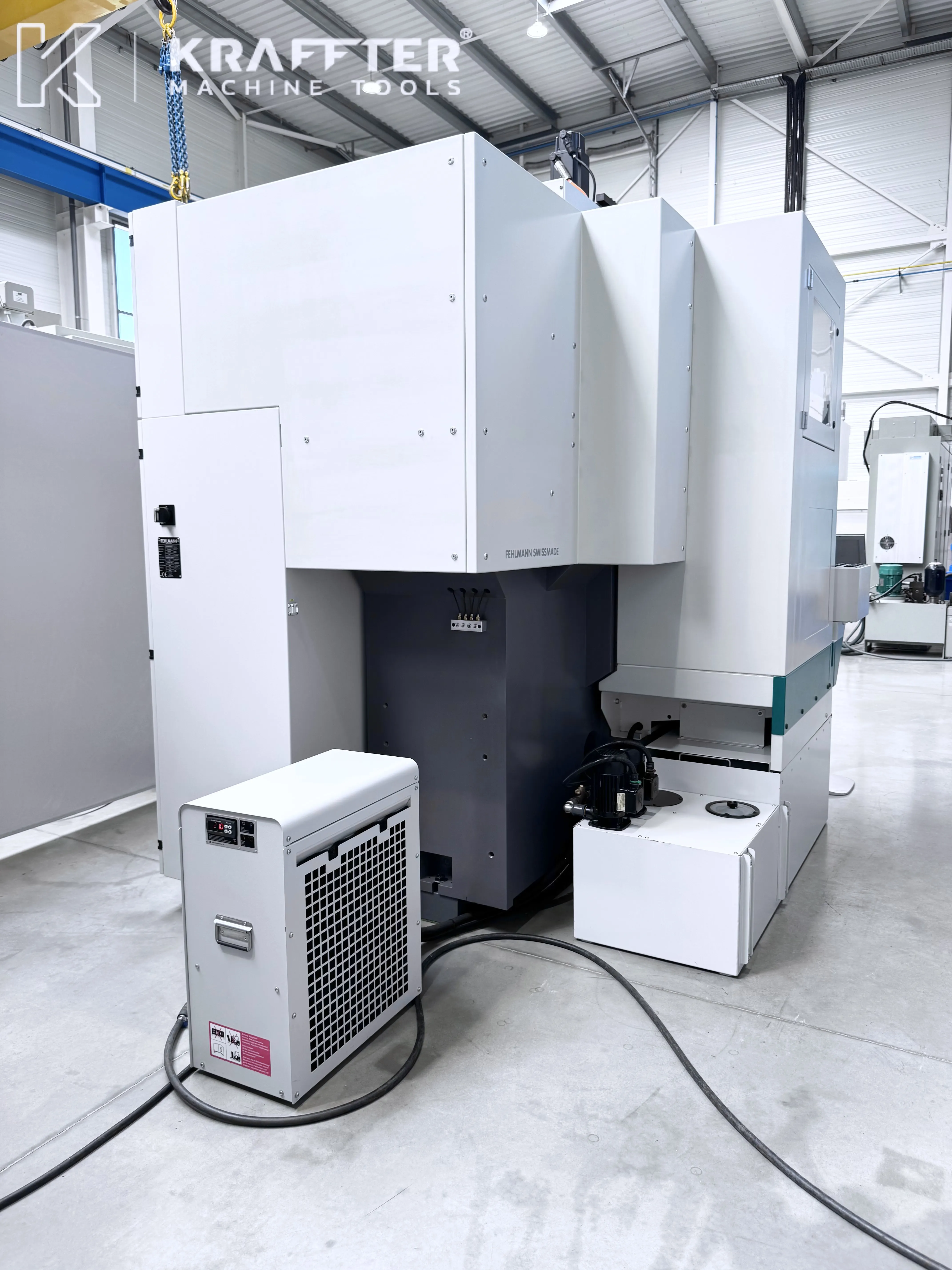

x1 spindle chiller
Various tightening wrenches
Axis locking brackets for machine transport
Technical and operating manuals
Machine visible under power in our premises by appointment.
Price on request, loading on truck included.
Possibility of shipping Worldwide.
