CNC Machining center WILLEMIN MACODEL W 508-MT - Kraffter Machine Tools

AB-2604-82
Le Jasmin, Saint-Genix-les-Villages, France
Contact Person for this Ads:
Kévin LECRONT
Languages
Request Price
Key Features:
ManufactureWILLEMIN MACODEL
ModelW508-MT
Quantity1
Reference number90188
Condition
Used - Good
Ad Statistics:
Created4/30/2026
Last updated4/30/2026
Impressions3
Detailed view719
Contact Person for this Ads:
Kévin LECRONT
Languages

Le Jasmin, Saint-Genix-les-Villages, France

User Information
Registered Since10/6/2025
Number of Online Ads15
Last Sign in5/5/2026

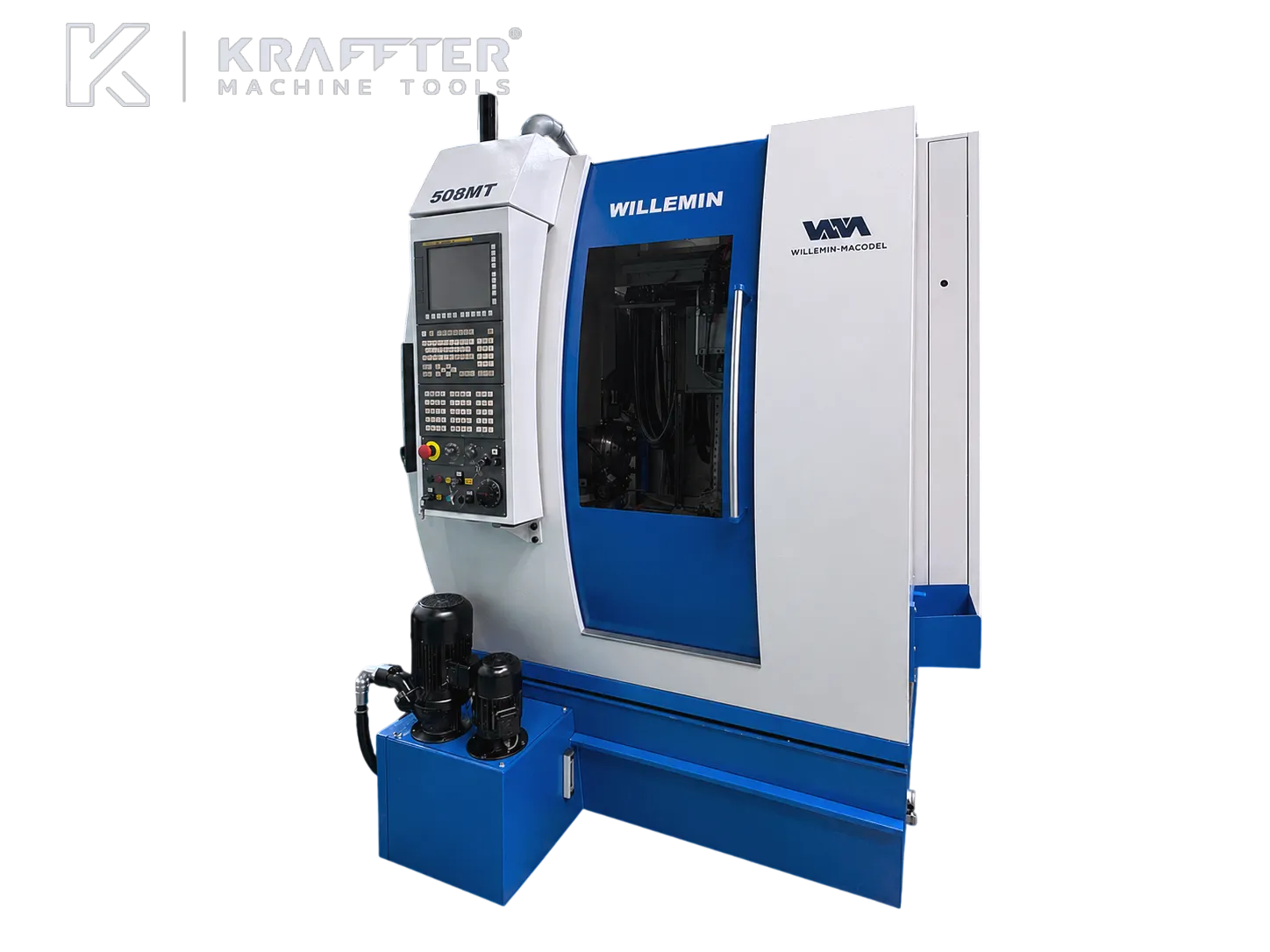

CNC machining centre WILLEMIN 508MT




TECHNICAL CHARACTERISTICS:


Year of manufacturing: 2016

CNC control: FANUC series 31i-B5

Number of simultaneous axes: 5

Stroke X axis: 450 [mm]

Stroke Y axis: 200 [mm]

Stroke Z axis: 425 [mm]

Traversing feeds X, Y and Z axes: 40000 [mm/min]

Axes acceleration: 10 [m/s²]

Max. bar diameter in turning spindle: 42 [mm]

Main spindle max. speed: 6000 [rpm]

Main spindle max. power: 7.5 [kW]

Angular A axis stroke: 360 [°]

Resolution A axis: 0.001 [°]

Drive A axis: Torque-motor

Spindle taper A axis: A4

B axis swivelling stroke: -15 [°] / +100 [°]

Resolution B axis: 0.001 [°]

Drive B axis: Torque-motor

Spindle type: HSK-E40

Max. spindle speed: 42000 [rpm]

Tool changer magazin number of stations: 72

Max. tool lenght: 150 [mm]

Max. tool diameter: 80 [mm]

Tool change time: 1 [sec]

Chip to chip time: 3 [sec]

Lubrication tank capacity: 150 [l]

Collant pump flow rate: 60 [l/min]

Rated current: 50 [A]

Total power required: 35 [kVA]

Supply voltage: 400 [V]

Working hours: 9701 [h]

Machine weight: 3300 [Kg]


More information upon request.
