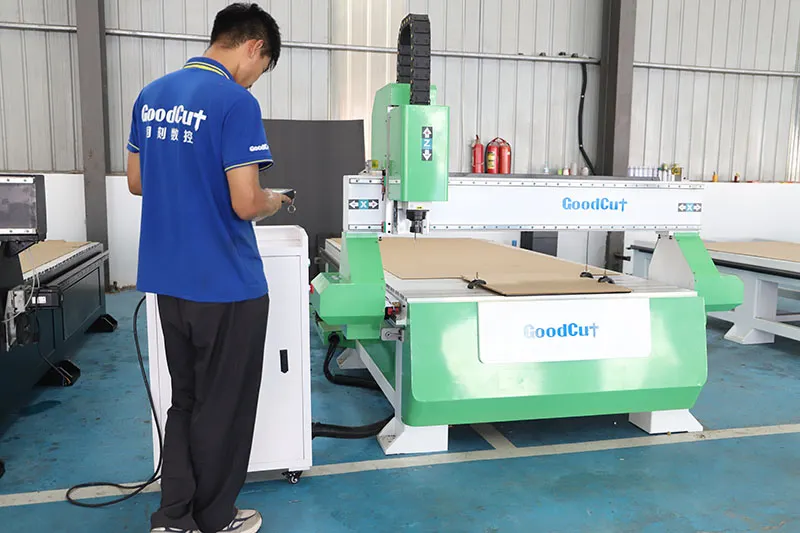

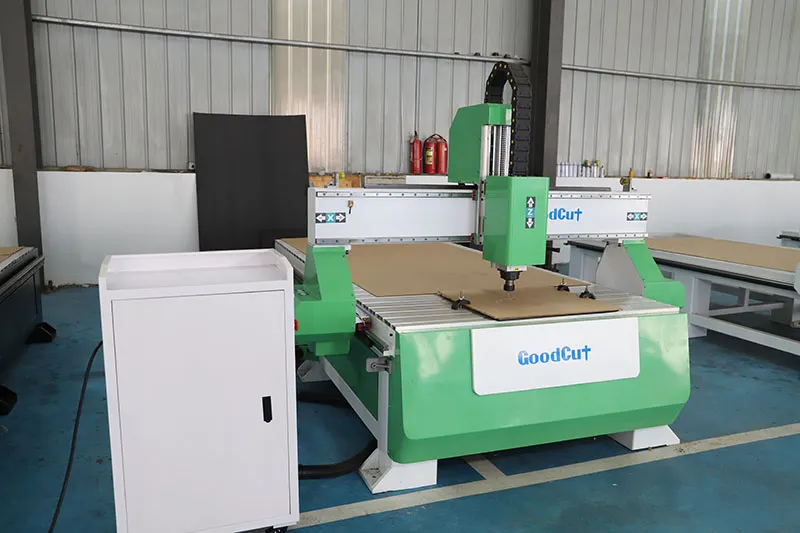

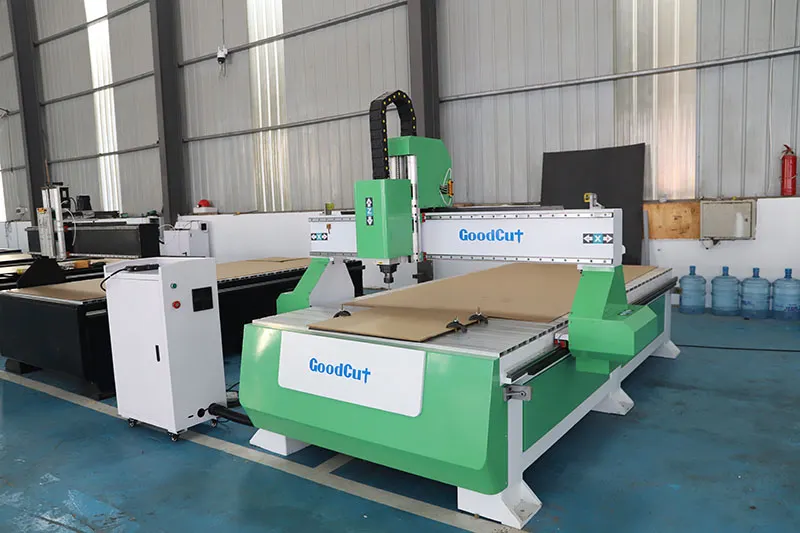

GC1325 GC1425 GC1525 1.4*2.5M 1.5*2.5M CNC Router Machinery for Woodworking with Customized Specifictions
AB-2605-36
RVV6+V8 Jinan, 山東省中國
402 Jinxing Longsheng Building, High-tech district, Jinan City, Shandong Province, China
Parameter:
Parameters
Standard Specifications
X,Y,Z Working Area
1.3*2.5m, 1.4*2.5m, 1.5*2.5m etc
Spindle Power
3.2kw water cooling spindle
X,Y,Z Traveling Positioning Accuracy
±0.01/2000mm
Table
T.slot table
X,Y,Z Rail and Transmission
Taiwan TBI Ball Screw and gear rack
Max. Rapid Travel Rate
50000mm/min
Max. Working Speed
30000mm/min
Spindle Speed
24000RPM
Drive Motors
stepper motor and drivers or servo motor and drivers
Working Voltage
AC380V/3PH/50Hz or 220V
Command Language
G Code
Operating System
Nc studio or DSP/Mach3/Syntec
Software Compatibility
Option:Type3, Ucancam, Artcam, solidworks,etc.
Running Environment
Temperature: 0℃~45℃
Relative Humidity: 30%~75%
Parameters
Standard Specifications
Oil system
Handel
Frame structure
Welding structure
Feature:
*Welded structure by thick profiled steel,stabilized under high temperature,ensures minimum distortion,excellent rigidity and powerful strength.
*Double motors and drivers of Y axis ensure steady movement.
*Rack transmission ensures fast speed and high accuracy.
*Imported linear square guide rail ensures high accuracy and maximum work hard.
*Optimized mechanical and electrical design with well-selected brand parts minimizes braekdown rate.
*High power spindle,working vigorously with low noise,guarantees long time massprocessing.
*Function of continuous working at stop point by power failure.
Application:It is suitable for carving and making of wooden material. Machines can sculpt all kinds of patterns.
1) Mould: wood,wax, wood, gypsum,foams,wax.
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3) The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
