Used CNC Turn Mill Center OKUMA Multus B400 - Kraffter Machine Tools
AB-2603-4
Le Jasmin, Saint-Genix-les-Villages, France

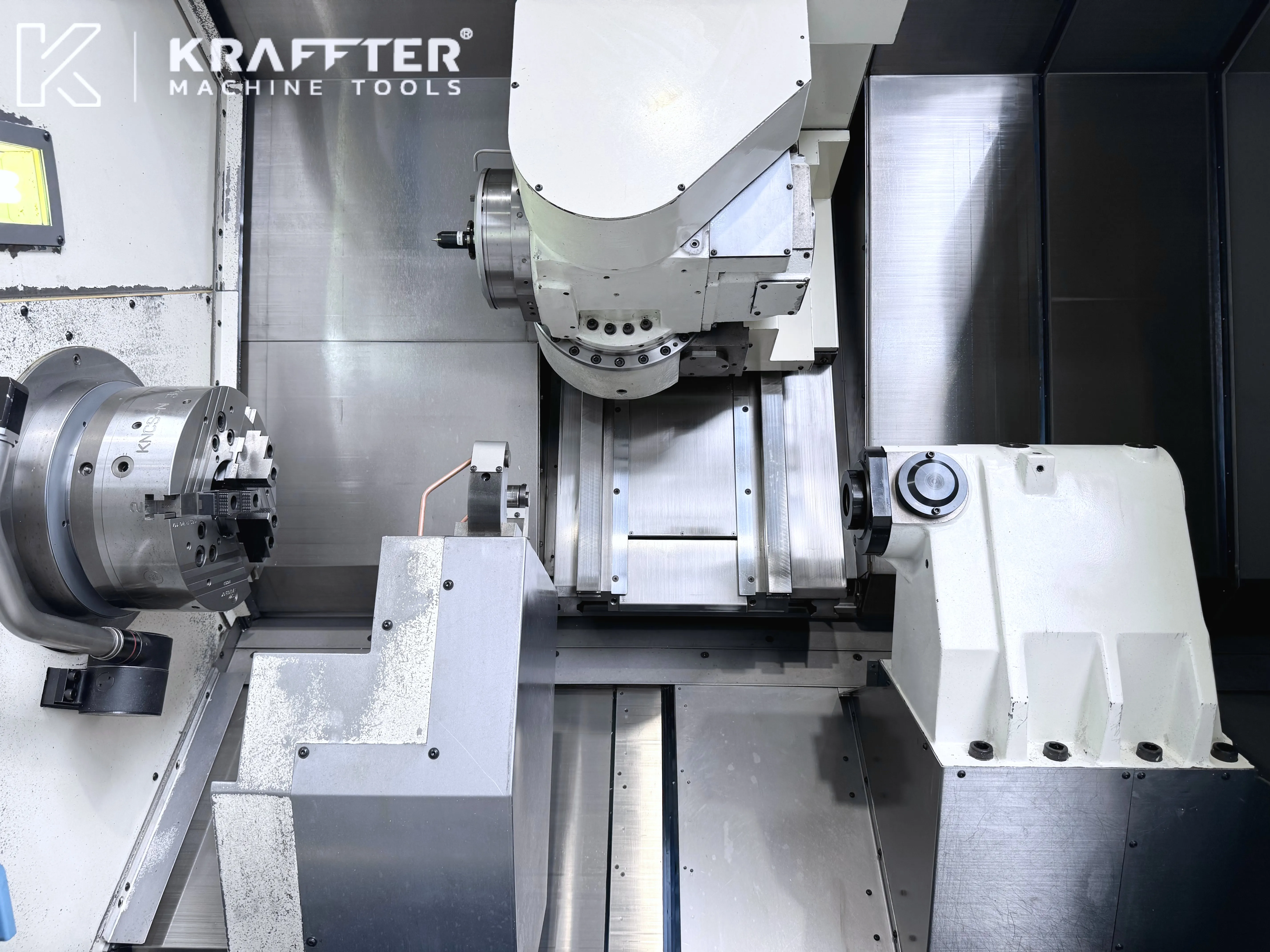

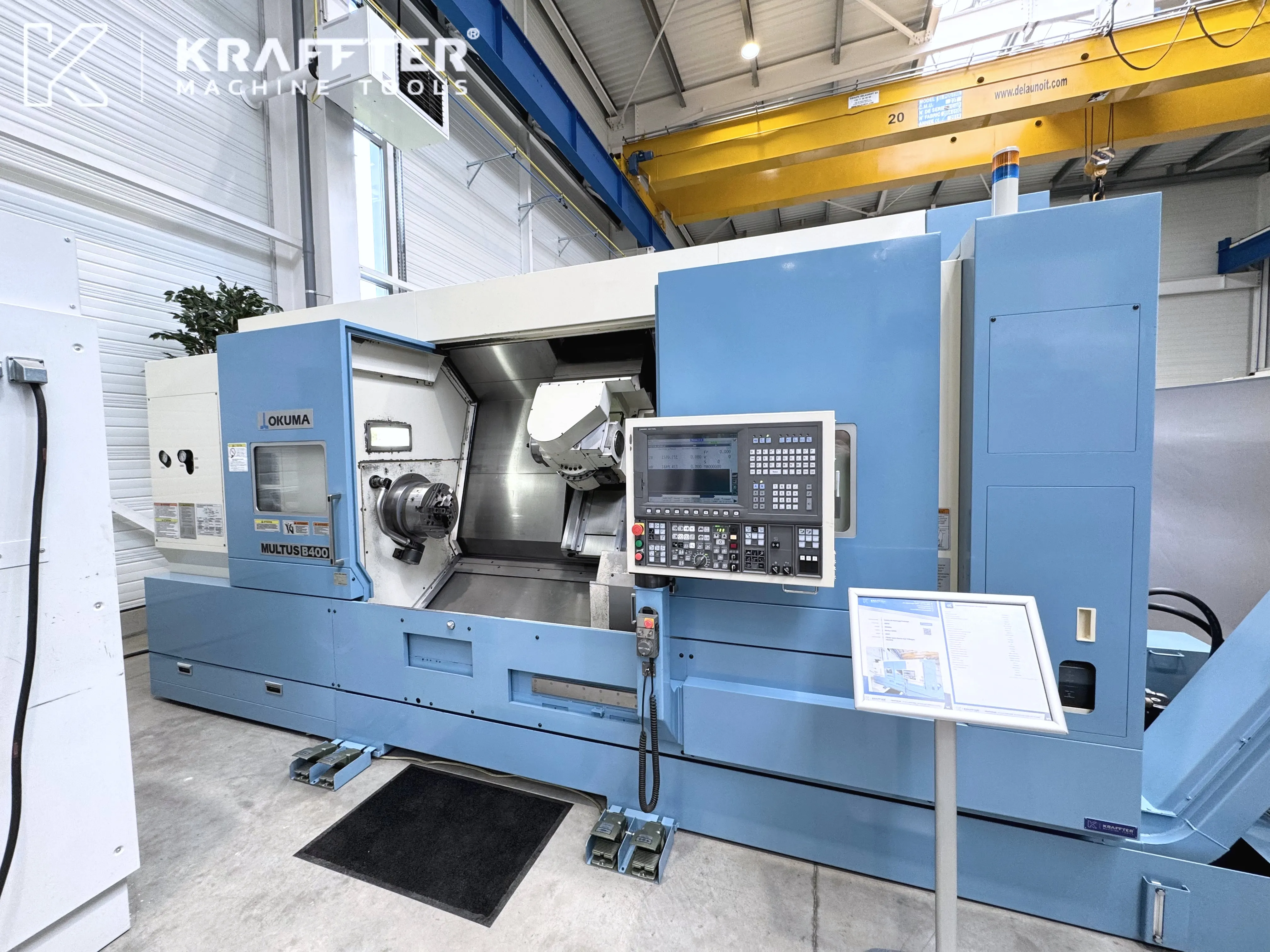

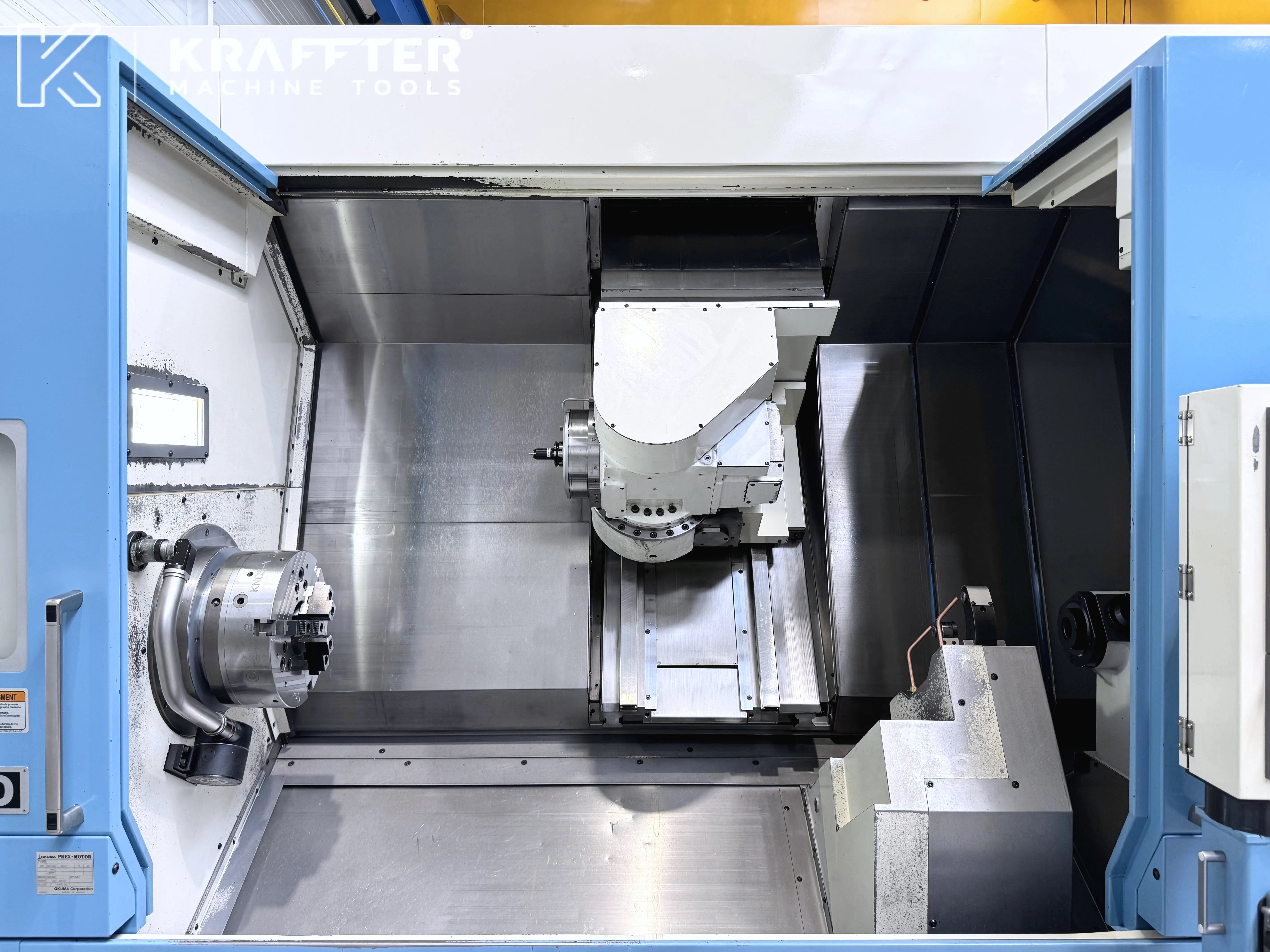

Turn mill center OKUMA Multus B400
TECHNICAL CHARACTERISTICS:

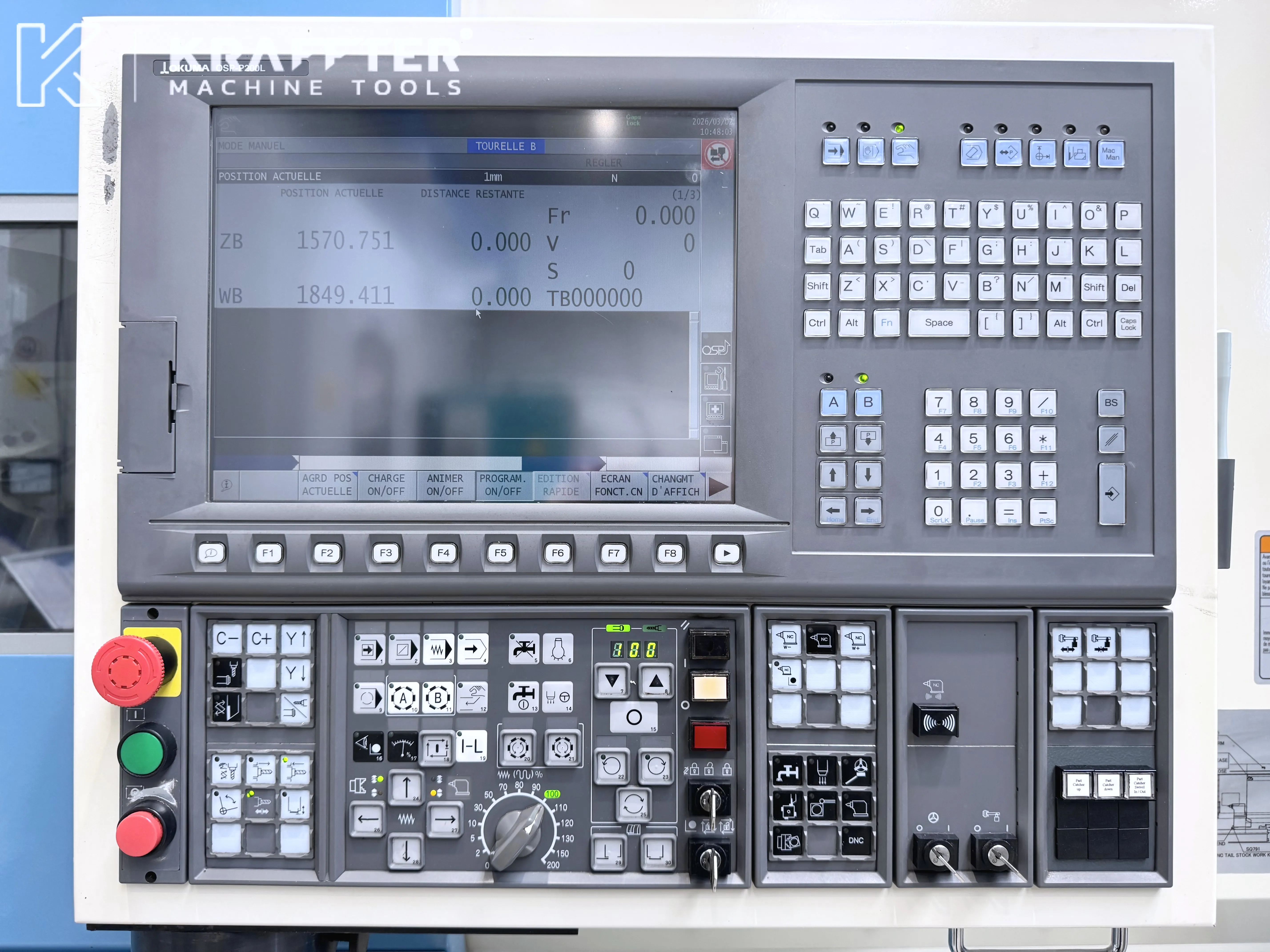

CNC control: OSP-P200L
Distance between centers: 1500 [mm]
Max. cutting diameter: 710 [mm]
Height of centers over cariage: 710 [mm]
Stroke X axis: 690 [mm]
Stroke Y axis: -115 / +115 [mm]
Stroke Z axis: 1545 [mm]
Stroke W axis: 1550 [mm]
B axis indexing precision: 0.001 [°]

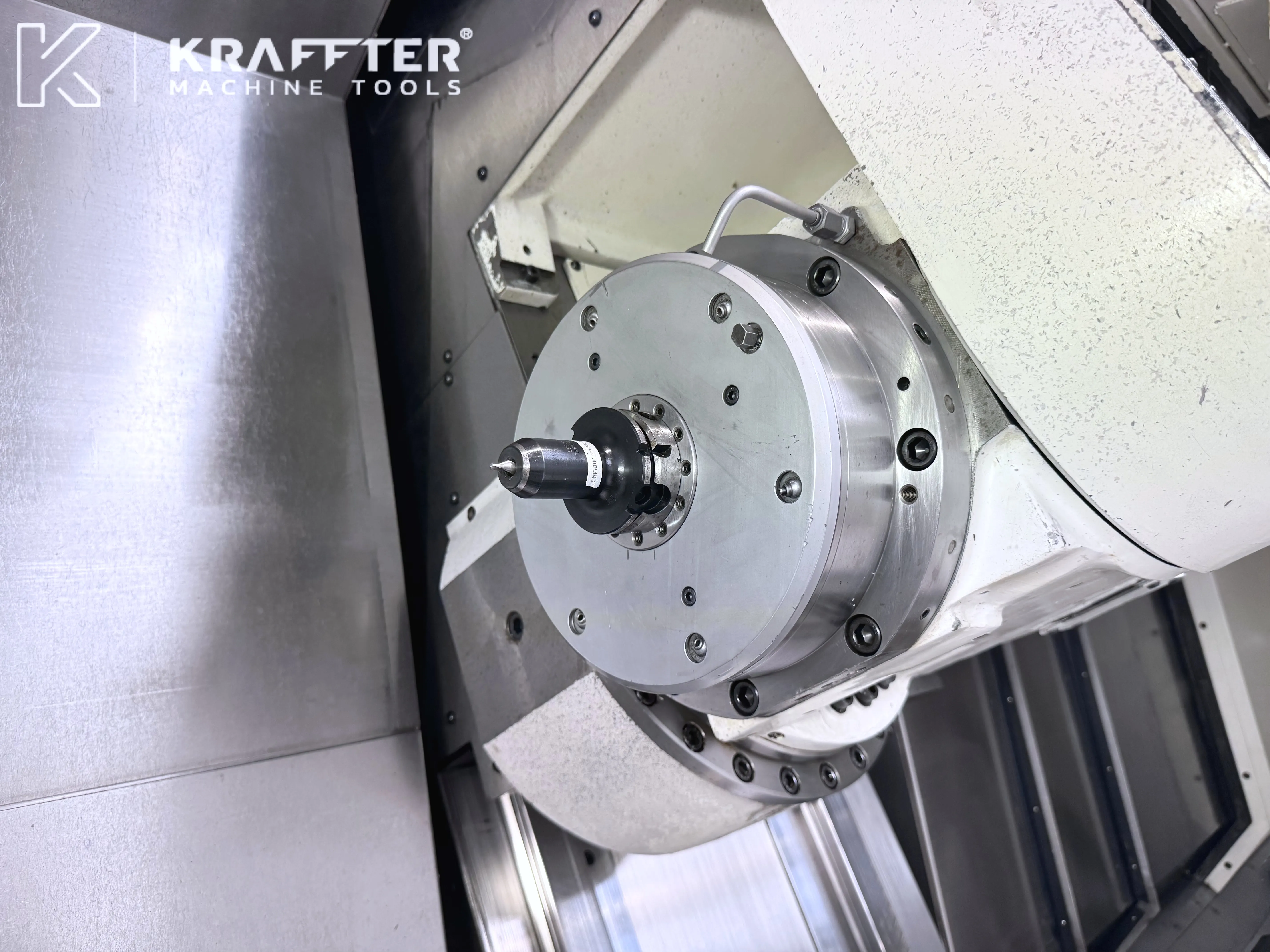

Milling head max. speed: 6000 [rpm]
Max. milling spindle power: 11 [kW]
Max. milling spindle torque: 65.7 [Nm]
Coolant milling head: HSK-A63
Tool magazine capacity: 40
Max. tool length: 300 [mm]
Max. tool diameter: 130 [mm]
Max. weight of single tool: 10 [Kg]
Rapid traverse rate X axis: 4000 [mm/min]
Rapid traverse rate Z axis: 40000 [mm/min]
Rapid traverse rate Y axis: 26000 [mm/min]
Rapid traverse rate W axis: 12000 [mm/min]
Spindle nose: JIS A2-8
Min. spindle speed: 38 [rpm]
Max. spindle speed: 3800 [rpm]
Increment C-axis: 0.001 [°]
Supply voltage: 400 [V]
Weight: 14000 [Kg]
INCLUDED EQUIPMENT:
1 × One-Touch IGF software option

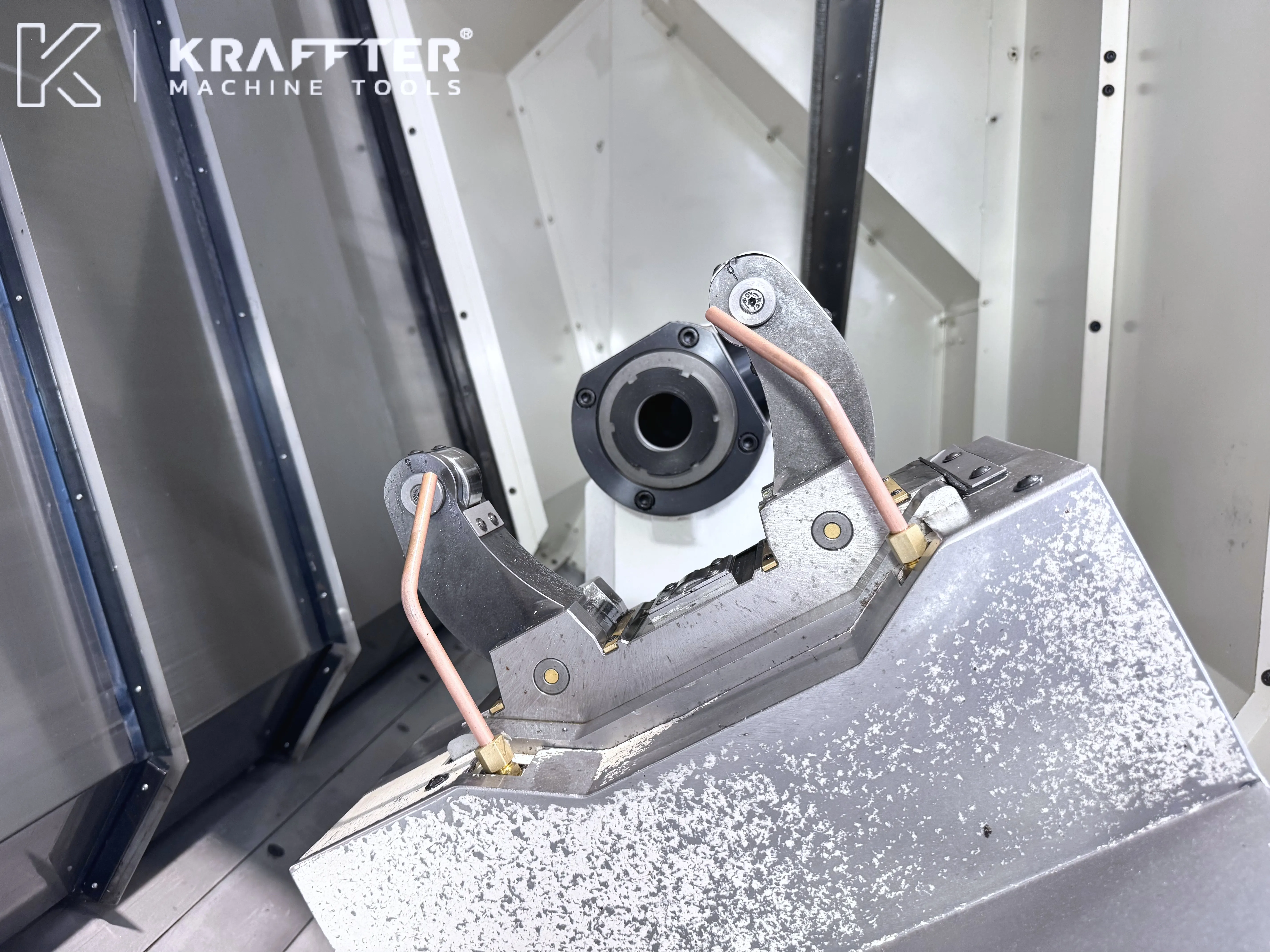

1 × ATLING 2-point steady rest, type AX8I-NAOS (Ø85–360 mm)

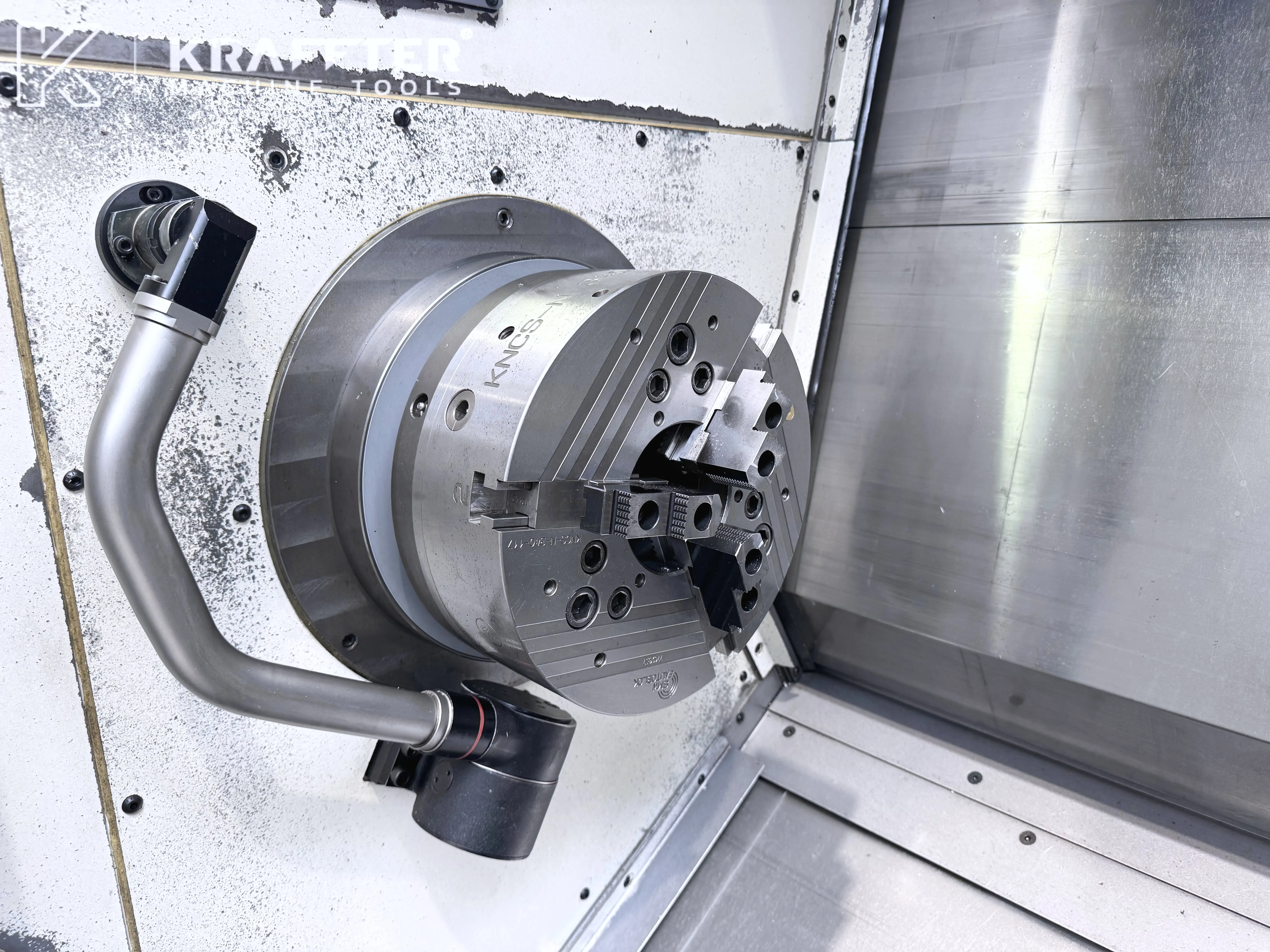

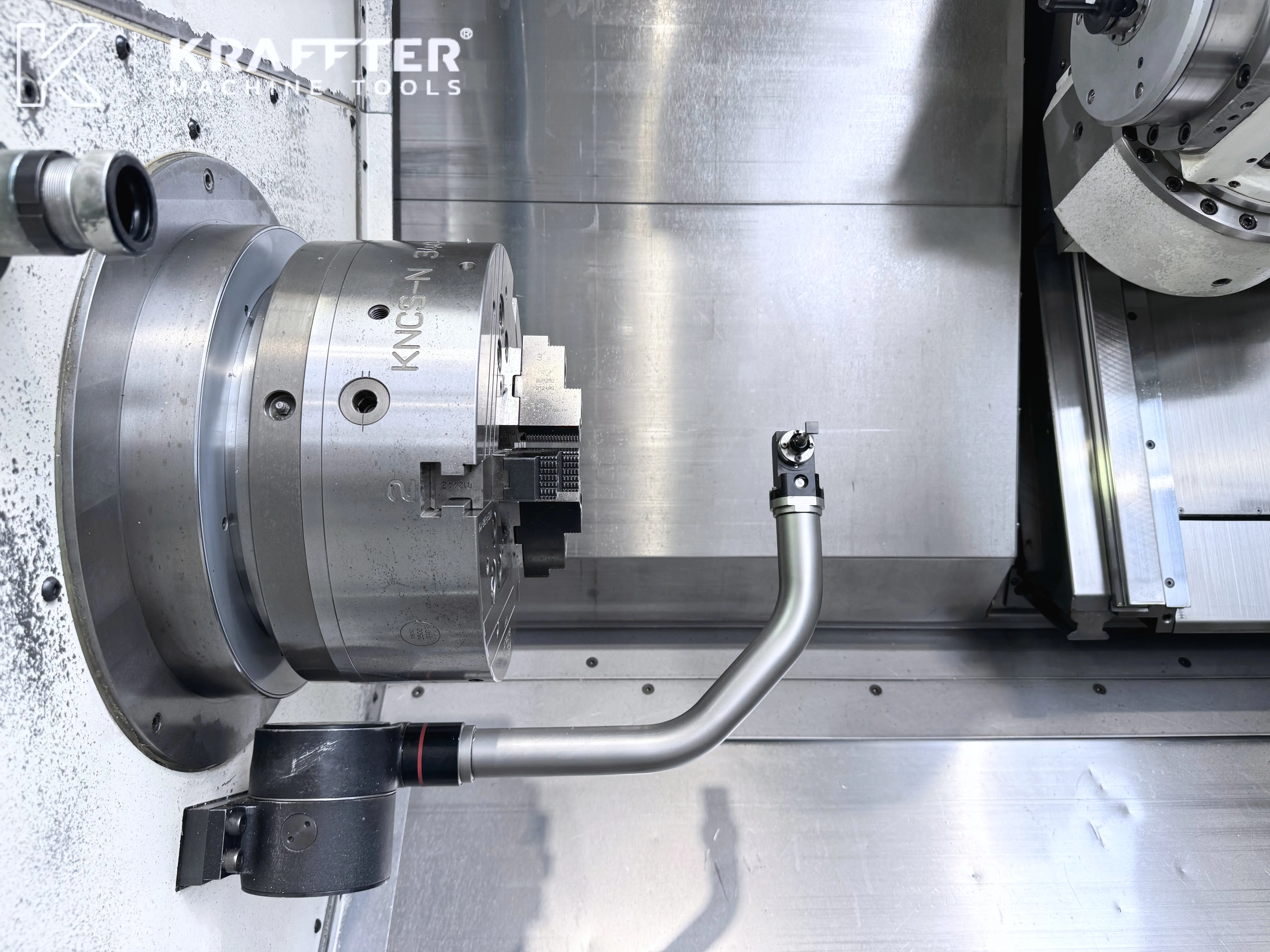

1 × SMW AUTOBLOK 3-jaw chuck Ø340 mm, type KNCS-N-340-117
1 × Chuck clamping pressure regulator
1 × Parts catcher

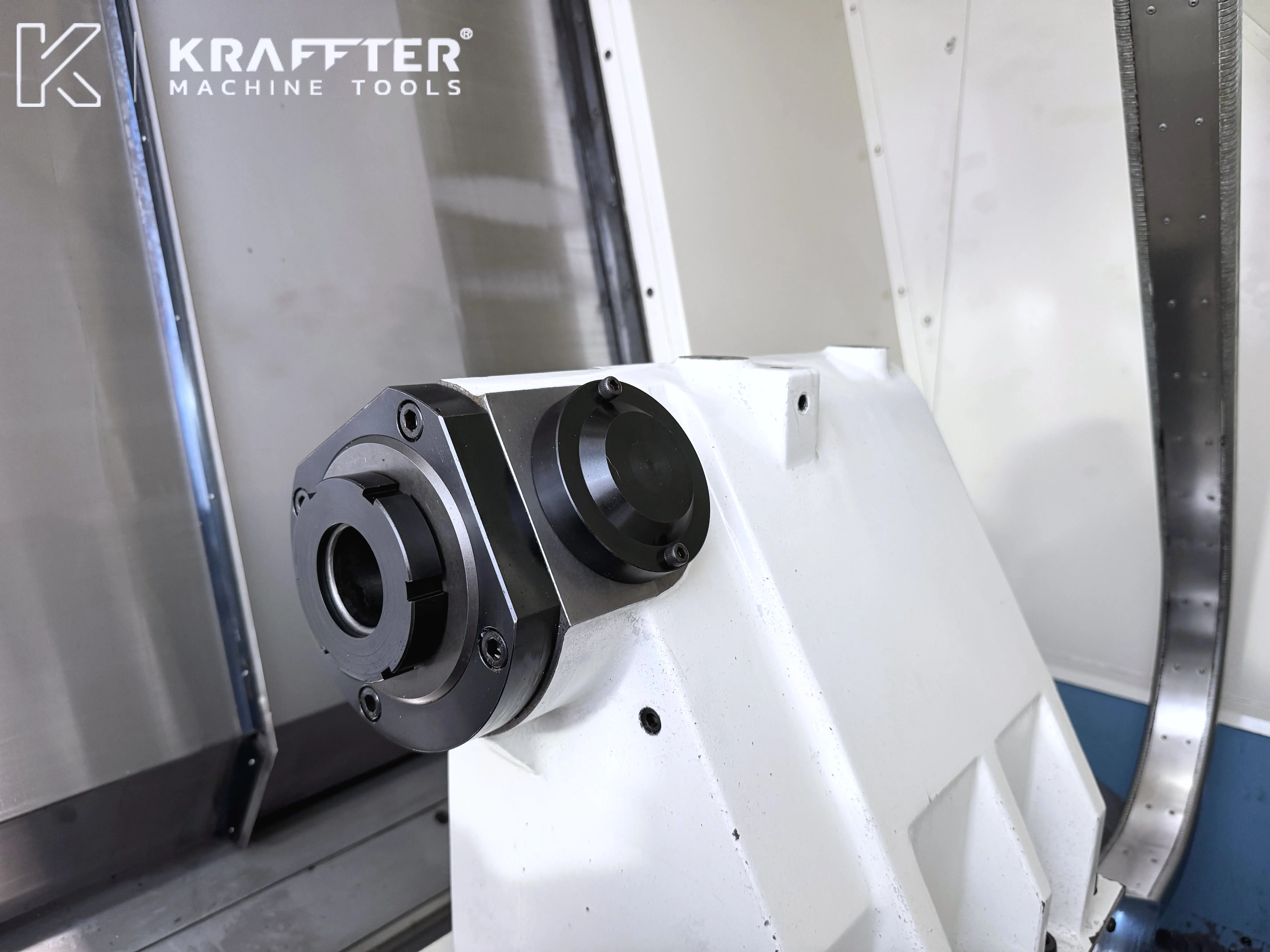

1 × NC tailstock
1 × MARPOSS T18 tool probe
1 × Remote electronic handwheel
40 × HSK-63 tool holders
1 × 2-color status signal lamp

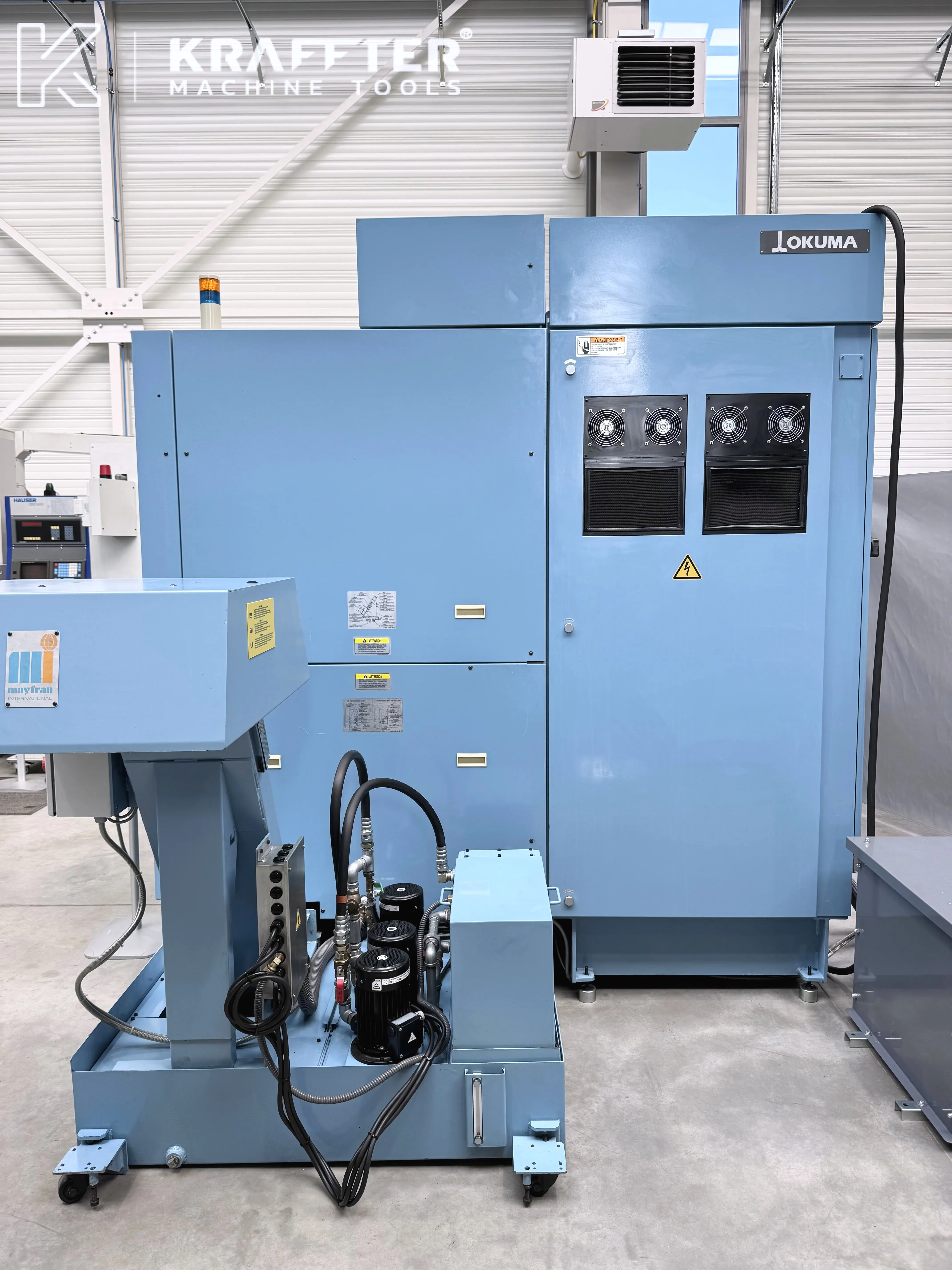

1 × Chip conveyor

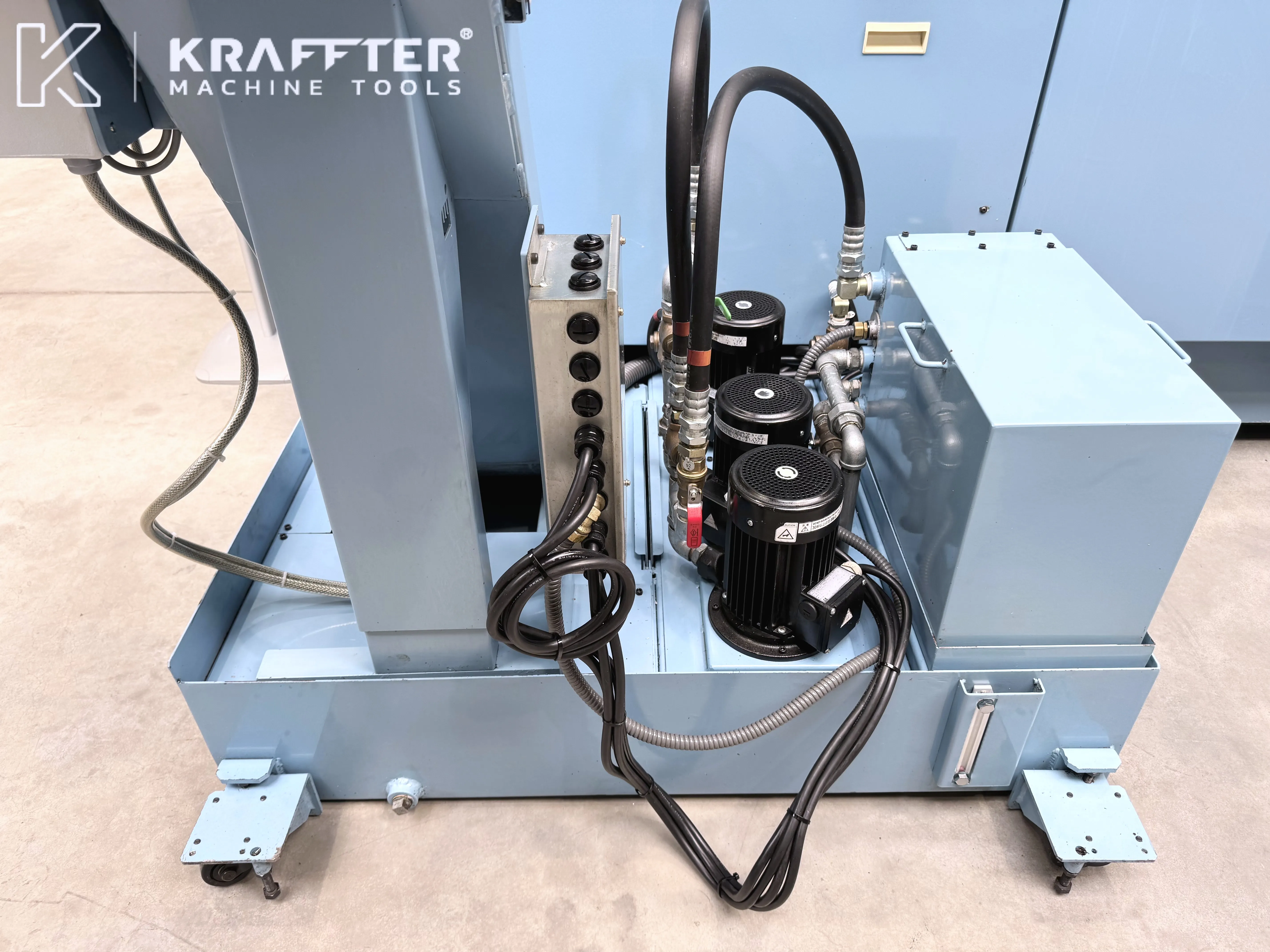

1 × Coolant tank
1 × Transformer
1 × Complete set of manuals + OKUMA CD
Machine visible under power in our premises by appointment.
Price on request, loading on truck included.
Possibility of shipping Worldwide.
