Bearbeitungszentren

MAZAK Variaxis C600 – Vertical Machining Center

TECHNICAL CHARACTERISTICS:

Number of simultaneous axes: 5

Stroke X axis: 650 [mm]

Stroke Y axis: 550 [mm]

Stroke Z axis: 530 [mm]

Feed rate on X, Y and Z axes: 42000 [mm/min]

Min. distance spindle nose / table: 50 [mm]

Max. distance spindle nose / table: 580 [mm]

Table dimensions: Ø600 x 500 [mm]

Max. load on table: 500 [Kg]

Stroke C axis : table revolution: 360 [°]

B axis swivelling stroke: -30 [°] / +120 [°]

Spindle type: BT40

Max. spindle speed: 12000 [rpm]

Spindle power: 11 [kW]

Tool changer magazin number of stations: 60

Max. tool length: 300 [mm]

Max. weight of single tool: 8 [Kg]

Max. tool diameter: 80 - 130 [mm]

Total power required: 46.7 [kVA]

Supply voltage : 400 [V]

Number of running hours: 916 [h]

Machine dimensions : 2350 x 2962 x 3039 [mm]

Layout dimensions : 5010 x 2470 [mm]

Weight: 10000 [Kg]

EQUIPMENT INCLUDED:

x1 RENISHAW part probe type RMP600

x1 RENISHAW tool probe type PRIMO LTS

x1 RENISHAW calibration sphere

x1 electronic handwheel

x1 chip conveyor

x1 high-pressure pump 15 [bar]

Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.

The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.

Machine similar to Mikron, Hermle, DMG Mori, Mazak, Hedelius, AXA, Chiron, Matec, Reiden, Lagun, Haas, Alzmetall, as well as milling machines, drill and tap machines, and CNC grinding machines.

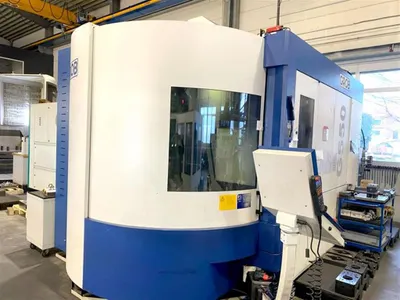

CNC Machining center GROB G350

TECHNICAL CHARACTERISTICS:

Year of manufacturing: 2018

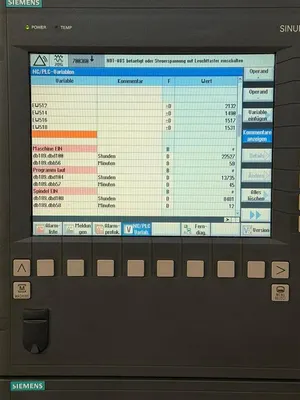

CNC control: SIEMENS 840D sl

Number of simultaneous axes: 5

Stroke X axis: 600 [mm]

Stroke Y axis: 855 [mm]

Stroke Z axis: 750 [mm]

Rapid traverse rate X axis: 70000 [mm/min]

Rapid traverse rate Y axis: 45000 [mm/min]

Rapid traverse rate Z axis: 90000 [mm/min]

Max. load on table: 400 [Kg]

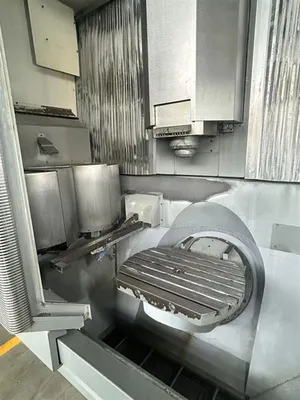

Stroke A axis : swiveling area of rotary table: -185 / +45 [°]

B axis swivelling stroke: 360 [°]

Table surface Ø: 570 [mm]

Spindle type: HSK-A63

Max. spindle speed: 21000 [rpm]

Spindle power: 39 [kW]

Tool changer magazin number of stations: 60

Max. tool length: 365 [mm]

Max. weight of single tool: 8 [Kg]

Max. tool diameter: 170 [mm]

Rated current: 61 [A]

Total power required: 42 [kVA]

Supply voltage: 400 [V]

Machine dimensions: 5680 x 3170 [mm]

Weight: 15300 [Kg]

EQUIPMENT INCLUDED:

x1 Renishaw OMP60 part probe

x1 High pressure coolant pump IKZ: 10–80 [bar]

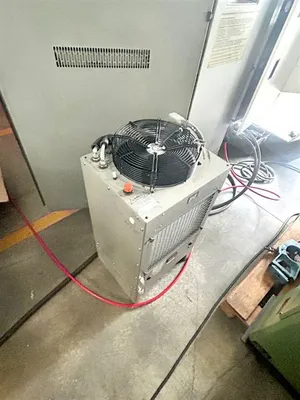

x1 Coolant chiller with air-cooled refrigeration unit: 13 [kW]

x1 GROB spindle diagnostics (GSD) software option

x1 Tool cleaning device

x1 Decentralized work area mist collecting system

x1 Automatic door setup

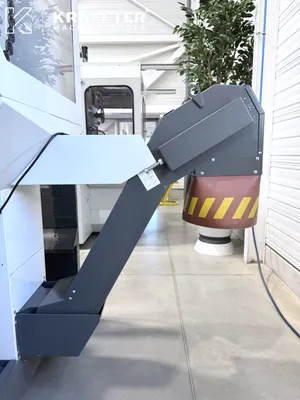

x1 Chip conveyor

x1 Interface for pallet changer

x1 Oil skimmer for waste oil collection

Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.

The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.



Machine similar to Mikron, Hermle, DMG Mori, Mazak, Hedelius, Axa, Chiron, Matec, Reiden, Lagun, Haas, Alzmetall, but also CNC milling, drilling and tapping machines, as well as CNC grinding machines.

Leistungsstarkes Vertikal-Bearbeitungszentrum für präzise Zerspanung

Das Hurco VMX 42 ist ein robustes und präzises CNC-Bearbeitungszentrum mit Ultimax-Steuerung. Dank seiner hohen Drehzahl, dem großen Arbeitsraum und umfangreichem Zubehör eignet es sich ideal für komplexe Fräs- und Bohrarbeiten im Werkzeug- und Formenbau.

Technische Daten:

– Baujahr: 2003

– Steuerung: Hurco Ultimax

– Werkzeugaufnahme: SK 40

– Tischgröße: 1.270 × 610 mm

– Verfahrwege: X = 1.060 mm, Y = 610 mm, Z = 610 mm

– Drehzahl: 10.000 U/min

– Werkzeugwechsler: 40-fach

– Innenkühlung (IKZ)

– Späneförderer

Zubehör im Lieferumfang:

– 2 hydraulische Maschinenschraubstöcke

– Diverse Werkzeugaufnahmen

Besonderheiten:

– Hohe Präzision und stabile Bauweise

– Leistungsfähige Ultimax-Steuerung

– Großzügiger Arbeitsraum

– Ideal für Serienfertigung und Präzisionsbearbeitung

– Sofort einsatzbereit

CNC-Bearbeitungszentrum für präzise Zerspanungsarbeiten

Das Hurco VMX 30 ist ein leistungsstarkes Vertikal-Bearbeitungszentrum mit Hurco Ultimax-Steuerung. Es bietet hohe Dynamik, Präzision und Zuverlässigkeit für vielseitige Anwendungen im Werkzeug-, Formen- und Maschinenbau.

Technische Daten:

– Baujahr: 2003

– Steuerung: Hurco Ultimax

– Werkzeugaufnahme: SK 40

– Tischgröße: 1.020 × 510 mm

– Verfahrwege: X = 760 mm, Y = 510 mm, Z = 610 mm

– Drehzahl: 10.000 U/min

– Werkzeugwechsler: 24-fach

– Innenkühlung (IKZ)

Zubehör im Lieferumfang:

– 2 hydraulische Maschinenschraubstöcke

– Diverse Werkzeugaufnahmen

Besonderheiten:

– Präzises CNC-Bearbeitungszentrum in kompakter Bauweise

– Robuste SK40-Spindel für stabile Bearbeitung

– Steuerung Hurco Ultimax für effiziente Bedienung

– Ideal für Kleinserien und Präzisionsfertigung

– Sofort einsatzbereit

Year of manufacture: 1989

Net weight: 12,000 kg

High-performance machining center from engine production line,

equipped with full 4th axis, IKZ, dual pallet changer,

Siemens 850 control.

A total of 3 of these machines are available from stock.

The package of 3 machines also includes approx. 200 tool holders with tools,

which will be allocated accordingly during individual machine purchase.

Machine type: Horizontal machining center

Control type: CNC

Location: Eislingen main warehouse

Country of origin: Germany

Delivery time: Immediate

Shipping terms: Ex Warehouse

X-axis travel: 630 mm

Y-axis travel: 500 mm

Z-axis travel: 630 mm

Control system: Siemens 850

Number of tools in magazine: 40 pieces

Tool holder: SK-45

Speed: 20 - 6000 rpm

Pallet size: 500 × 500 mm

Vertikal-Bearbeitungszentrum KIRA KN-30Vb

Baujahr 1999/2001

Technische Daten:

• Steuerung: Fanuc 21i-M
• Verfahrwege X/Y/Z = 340 / 290 / 320 mm
• Vorschubgeschwindigkeit: 1 – 12.000 mm/min
• Eilgang: 30.000 mm/min
• Drehzahlbereich: 200 – 8.000 U/min
• Fräseraufnahme: BT-30
• Werkzeugwechsler: 20 Stationen
• Palettenwechsler mit 2 Tischen
• Elektronisches Handrad
• Kühlmitteleinrichtung
• Maschinengewicht: 2.800 kg

Preis: € 8.800,-

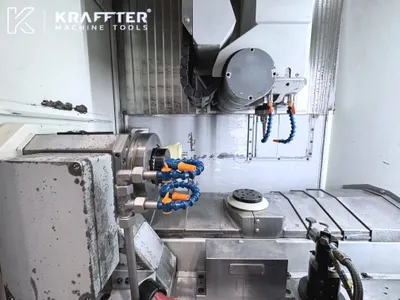

CNC Machining centre WILLEMIN MACODEL W408 MT

TECHNICAL CHARACTERISTICS :

Year : 2007

CNC control : FANUC 16i-MB

Number of axes : 5

Stroke X axis : 250 [mm]

Stroke Y axis : 200 [mm]

Stroke Z axis : 300 [mm]

Traversing feeds X, Y and Z axes : 30000 [mm/min]

Max. bar diameter in turning spindle : 32 [mm]

Main spindle max. speed : 6000 [rpm]

Main spindle max. power : 3.7 [kW]

Angular C axis stroke : 360 [°]

B axis swivelling stroke : 115 [°]

Spindle type : HSK-E40

Min. spindle speed : 500 [rpm]

Max. spindle speed : 30000 [rpm]

Spindle power : 10 [kW]

Tool changer magazin number of stations : 48

Max. tool lenght : 95 [mm]

Max. tool diameter : 63 [mm]

Lubrication tank capacity : 80 [l]

Collant pump flow rate : 40 [l/min]

Rated current : 25 [A]

Supply voltage : 400 [V]

Weight : 1700 [Kg]

EQUIPMENT INCLUDED :

x1 0-90° pivoting backworking unit (6th side machining)

x1 backworking vice

x1 RENISHAW TS27R tool probe

x1 RENISHAW NC4 TX laser system for tool setting and tool breakage detection

x68 type F35 turning collets

x9 HSK-40E milling/turning attachments

x1 IEMCA BOSS 332 E bar feeder

x1 spindle chiller

x1 cutting fluid chiller

x1 ELBARON mist extractor

x1 3-colour status lamp

x1 CO2 automatic fire extinguishing system (to be checked by the purchaser with a competent body)

x1 set of technical manuals

Price on request, loading on truck included.

Possibility of shipping Worldwide.

The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.

HERMLE , DMU , monoblock , variaxis , chiron

Steuerung                                                             FANUC 18-M

Werkzeugmagazin

Wechseltisch

Gewicht 12000 kg

Baujahr 2000

Year of manufacture: 2011

Net weight: 21,000 kg

Overall dimensions: 6.1 m × 6 m × 3.3 m

Horizontal 5-axis machining center,

equipped with full A- and B-axis,

IKZ high-pressure cooling through the spindle at 50 bar (Frascara),

120-tool magazine HSK-A 63,

chip conveyor,

tool break and length measurement,

Renishaw spindle probe.

Machine is in excellent condition with low operating hours.

Machine type: Universal machining center

Control type: CNC

Location: Germany

Country of origin: Japan

Delivery time: Immediate

Shipping terms: EXW (Incoterms 2010) free loaded truck

X-axis travel: 730 mm

Y-axis travel: 850 mm

Z-axis travel: 1100 mm

Control system: MSX 711 MAPPS IV

Spindle power: 22 / 18.5 kW

Spindle speed: 12,000 rpm

Tool magazine: 120 HSK-A 63

Max. tool diameter: 70 mm

Max. tool diameter with free magazine slots: 140 mm

Max. tool length: 480 mm

Max. tool weight: 12 kg

Rapid traverse x/y/z: 50,000 mm/min

A-axis (5th axis) swivel table: +30° to -120°

Rapid traverse B-axis (rotary table): 50 rpm

Rapid traverse A-axis (swivel axis): 20 rpm

Dual pallet changer: 2 × 500 × 500 mm

Max. workpiece weight: 500 kg

Workpiece installation height: 700 mm

Max. workpiece diameter on pallets: 700 mm

Total power requirement: 63 kVA

Number of coordinate systems: 300

MAPPS tool management system: GB

Storage capacity: 1 MB

Program registers: 1000

Internal coolant supply 50 bar with filter: Frascara

Year of manufacture: 1997

X-axis travel: 710 mm

Y-axis travel: 630 mm

Z-axis travel: 500 mm

Spindle turning speed range: 5 - 5000 rpm

Main spindle power: 11 kW

Tool taper: SK 40

Tool changer: 44 tools

Feed rate: 10 m/min

Table surface area: 1200 × 600 mm

Table load capacity: 0.5 t

Total power requirement: 15 kVA

Machine weight approx.: 4.24 t

Tool changer with 44 tools,

pendant handwheel for easy setup

Vertikal-Bearbeitungszentrum DMU 60T

Baujahr 1999, ca. 15.000 Betriebsstunden

Mainboard 2024 erneuert

Steuerung: Heidenhain TNC 426

Technische Daten:

• Verfahrwege X/Y/Z = 600 / 525 / 500 mm
• Tischgröße: 1000 x 543 mm
• Tischbelastung: 350 kg
• Drehzahlbereich: 20 – 6300 U/min
• Werkzeugmagazin für 25 Werkzeuge
• Werkzeugaufnahme: SK 40 DIN 69871 A
• Maschinengewicht: 4.200 kg
• Anschlusswert: 35 KVA
• Platzbedarf: 4800 x 5500 mm

Preis: € 18.400,-

Year of manufacture: 2008

Running hours: 21,345 m/h

Travel range (XYZ): 1100 × 700 × 300 mm

Table size: 1000 × 700 mm with 14 mm T-slots

Feed rate: 10,000 mm/min

Rapid traverse: 15 m/min

Spindle power: max. 6 kW

Spindle speed: 50,000 rpm

Spindle cooling: External

Tool holder: HSK 25-E

Tool changer: 20-position

Control: Heidenhain iTNC530

Operating hours (program run): 21,345 h

Extras

- Handwheel

- Blum probe/tool measurement (L)

- Blum Laser Nano (tool measurement R + L)

- Calibration mandrel

- Infrared probe system 40.00TX/RX (M&H)

- Minimal quantity lubrication MS2-D4 SD4 (2×, Menzel Chemie)

Year of manufacture: 2001

Quantity available: 6 pieces

Machine type: Horizontal machining center

Control type: Conventional

Location: BTT warehouse

Country of origin: Japan

Delivery time: Immediate

Shipping terms: EXW (Incoterms 2010) free loaded truck

Pallet size: 630 × 630 mm

Number of threaded holes / thread type: 25 M16

Drilling pattern: 125 × 125 mm

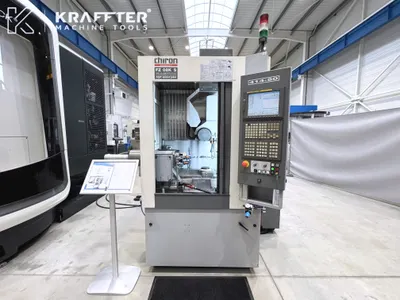

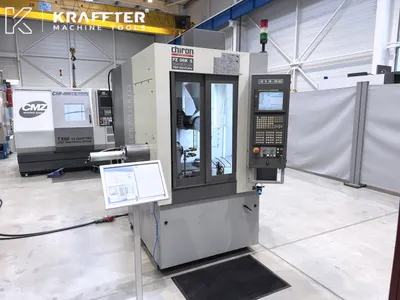

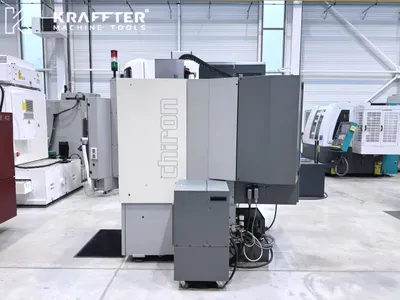

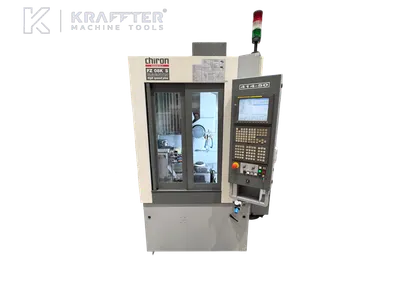

CNC machining center CHIRON FZ08 KS Magnum High Speed Plus (HSP)

TECHNICAL CHARACTERISTICS:

Year of manufacturing: 2006

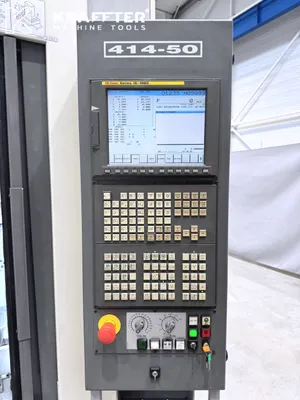

CNC control : FANUC 18i-MB5

Number of axes : 7

Stroke X axis : 450 [mm]

Stroke Y axis : 270 [mm]

Stroke Z axis : 310 [mm]

Traversing feeds X, Y and Z axes : 75000 [mm/min]

Max. bar diameter in turning spindle : 32 [mm]

Main spindle max. speed : 8000 [rpm]

Main spindle max. power : 12 [kW]

Angular A axis stroke : 360 [°]

A axis indexing precision : 0.001 [°]

B axis swivelling stroke : -20° / +115 [°]

B axis indexing precision : 0.001 [°]

Spindle type : HSK40

Max. spindle speed : 30000 [rpm]

Tool changer magazin number of stations : 40

Part turnaround by robot (6th side machining) : Yes

RS232 Interface : Yes

Total power required : 17 [kVA]

Supply voltage : 400 [V]

Number of running hours : 9911 [h]

Dimensions : 1500 x 2600 x 2300 [mm]

Weight : 3400 [Kg]

EQUIPMENT INCLUDED:

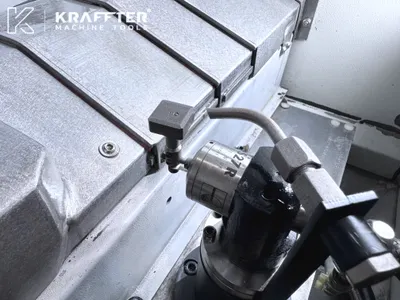

x1 RENISHAW TS27R tool probe

x1 spindle cooling unit

x1 parts catcher

x1 coolant tank

x1 unit for 6th face machining (gripping system not included)

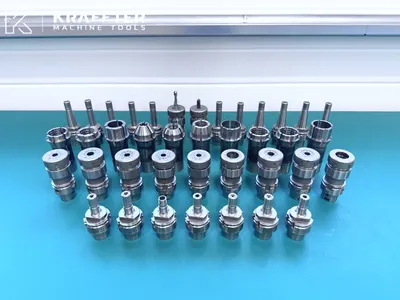

x29 tool holders type HSK40 BIG KAISER

x10 collets type F37 SCHAUBLIN

x1 washing gun

x1 3-color status light

x1 maintenance manual

x1 electrical diagrams manual

x1 operator's manual

x1 programming manual

Price on request, loading on truck included.

Possibility of shipping Worldwide.

The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed

Machine similar to brands such as Okamoto, ELB, GER, Tacchella, Karstens, Jones & Shipman, Jung, Favretto, Blohm. Internal and external grinding (ID/OD) also to be considered. Surface grinder, lathe, machining center, milling machine.

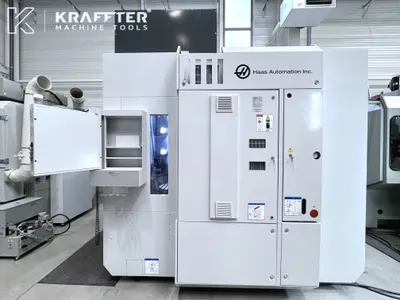

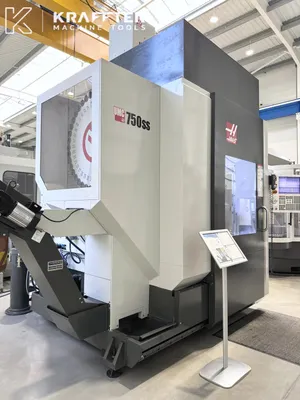

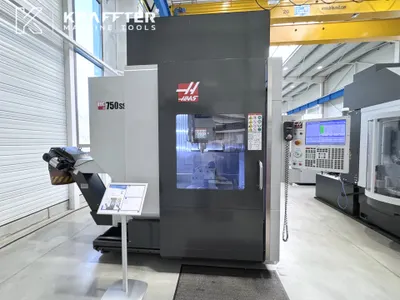

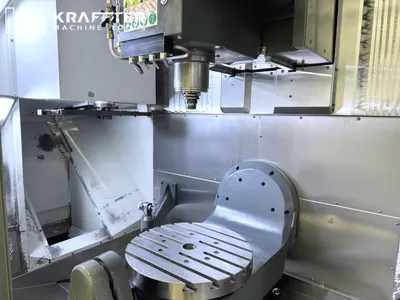

CNC Machining Centre HAAS UMC-750SS

TECHNICAL CHARACTERISTICS:

Year of manufacturing: 2019

Number of simultaneous axes: 5

Stroke X axis: 762 [mm]

Stroke Y axis: 508 [mm]

Stroke Z axis: 508 [mm]

Angular C axis stroke: 360 [°]

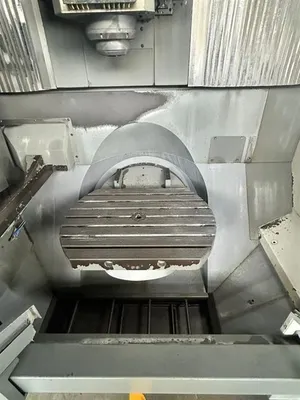

Table dimensions : Ø630 x 500 [mm]

Max. load on table: 300 [Kg]

B axis swivelling stroke: +110 [°] / 350 [°]

Spindle type: CT 40

Max. spindle speed: 15000 [rpm]

Spindle power: 22.4 [kW]

Tool changer magazin number of stations: 40

Lubrication tank capacity: 284 [l]

Number of running hours: 5277 [h]

Weight: 8500 [Kg]

EQUIPMENT INCLUDED:

x1 spindle 15000 [rpm]

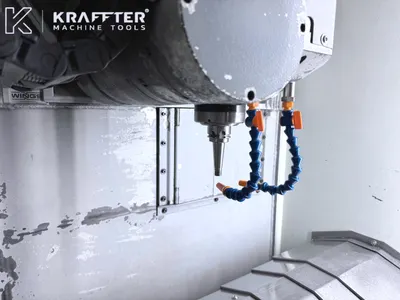

x1 through-spindle coolant

x1 high-pressure coolant pump 21 bar

x1 auxiliary coolant filter

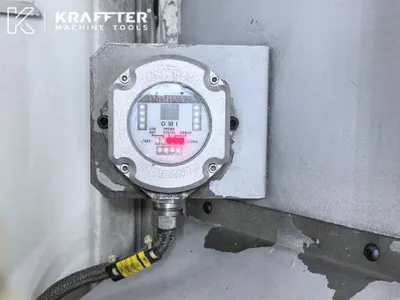

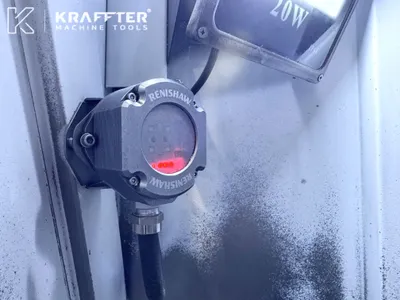

x1 RENISHAW wireless workpiece probe

x1 calibration sphere

x1 RENISHAW tool probe

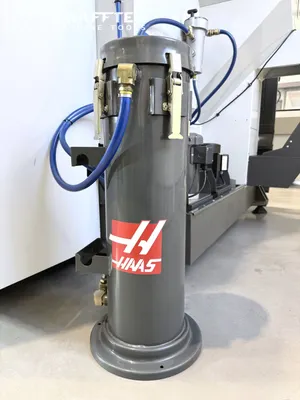

x1 HAAS oil mist extractor

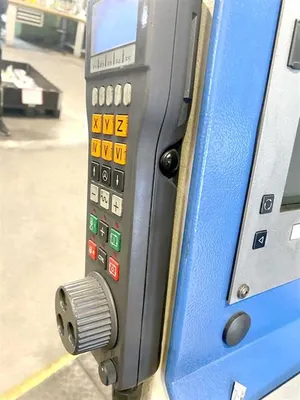

x1 HAAS remote handwheel

x1 HENNIG chip conveyor, type 101435

Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.

The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.

machine similar to Mikron, Hermle, DMG Mori, Mazak, Hedelius, AXA, Chiron, Matec, Reiden, Lagun, Haas, Alzmetall, as well as milling, drilling and tapping machines, and CNC grinding machines
