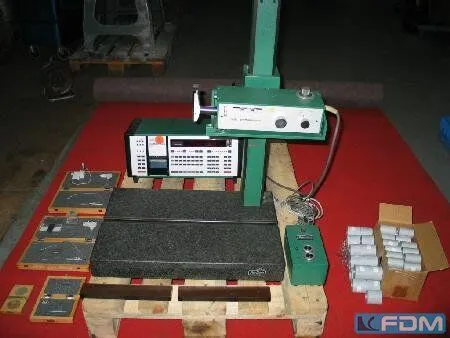

MAHR Perthometer S 6P other laboratory equipment

Net Weight: 124,000 kg

Overall Dimensions: 1 m × 0.7 m × 1.05 m

Condition: Used

Machine Type: Surface Measurement, Testing and Evaluation System

Control Type: Conventional

Location: Eislingen Main Warehouse

Country of Origin: Germany

Availability: Upon agreement

Shipping Terms: Ex Works

Travel X-Axis: 600 mm

Travel Y-Axis: Fixed

Travel Z-Axis: 650 mm

- Measurement stand and feed device included

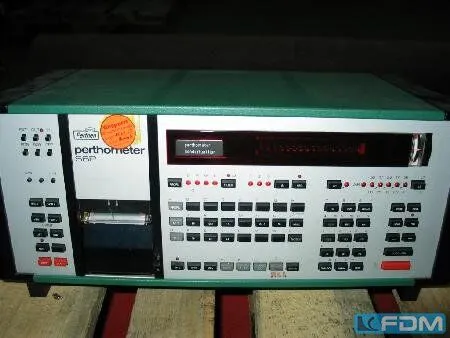

- Protocol recording device with profile memory and fully digital measurement processing

- Fully programmable with evaluation programs in a single measurement run

- Reference level measurement on misaligned, curved and inclined surfaces

- Automatic correction of height offset and tilt

- Permanently stored and quickly accessible measurement programs

- Clear controls

- Universally adaptable via plug-in program module for special functions

- Measurement stand PST-Se: large black granite base plate with 14 mm T-slot, table 650 × 450 mm

- Feed device PRK: adaptable precision long-range probe for roughness, waviness, and form measurement

- Probe stroke: 1.5 – 60 mm

- Guide accuracy: 2 µm

- Probe speed: 0.5 and 0.1 mm/s, automatically adjustable

- Return speed: 1.5 m/s

- Normal, interval, and end-contact operation

- Extensive accessories: exchange probes, probe height adjustments, probe holders, probes, etc.
