Net weight: 2,100 kg
Overall dimensions: 1.55 m × 1.6 m × 1.93 m
Condition: Used

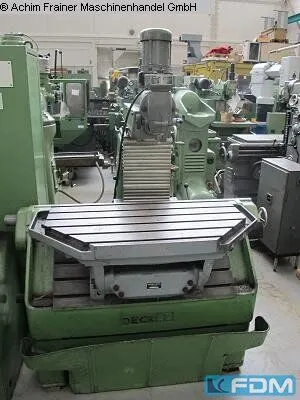

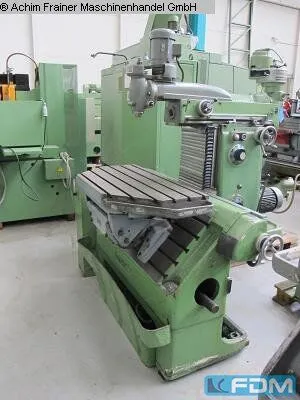

Universal tool milling machine in column bed design for machining heavy workpieces.
3-axis rotary and swiveling worktable,
feeds and rapid traverse in all 3 axes,
vertical and horizontal quills with rapid spindle head,
maximum spindle speeds via belt pulleys: 40 - 2000 rpm,
maximum speed up to 6000 rpm possible by belt change,
coolant pump,
universal clamping table with 6 T-slots (16 mm × 7 mm each),
separate control cabinet without main machine switch.
Machine type: Universal tool milling machine
Control type: Conventional
Location: Eislingen
Delivery time: Immediate
X-axis travel: 800 mm
Y-axis travel: 300 mm
Z-axis travel: 400 mm
Table size: 1000 × 520 mm
Number of spindle speed steps: 18
Feed range: 10 - 500 mm/min
Number of feed steps: 18
