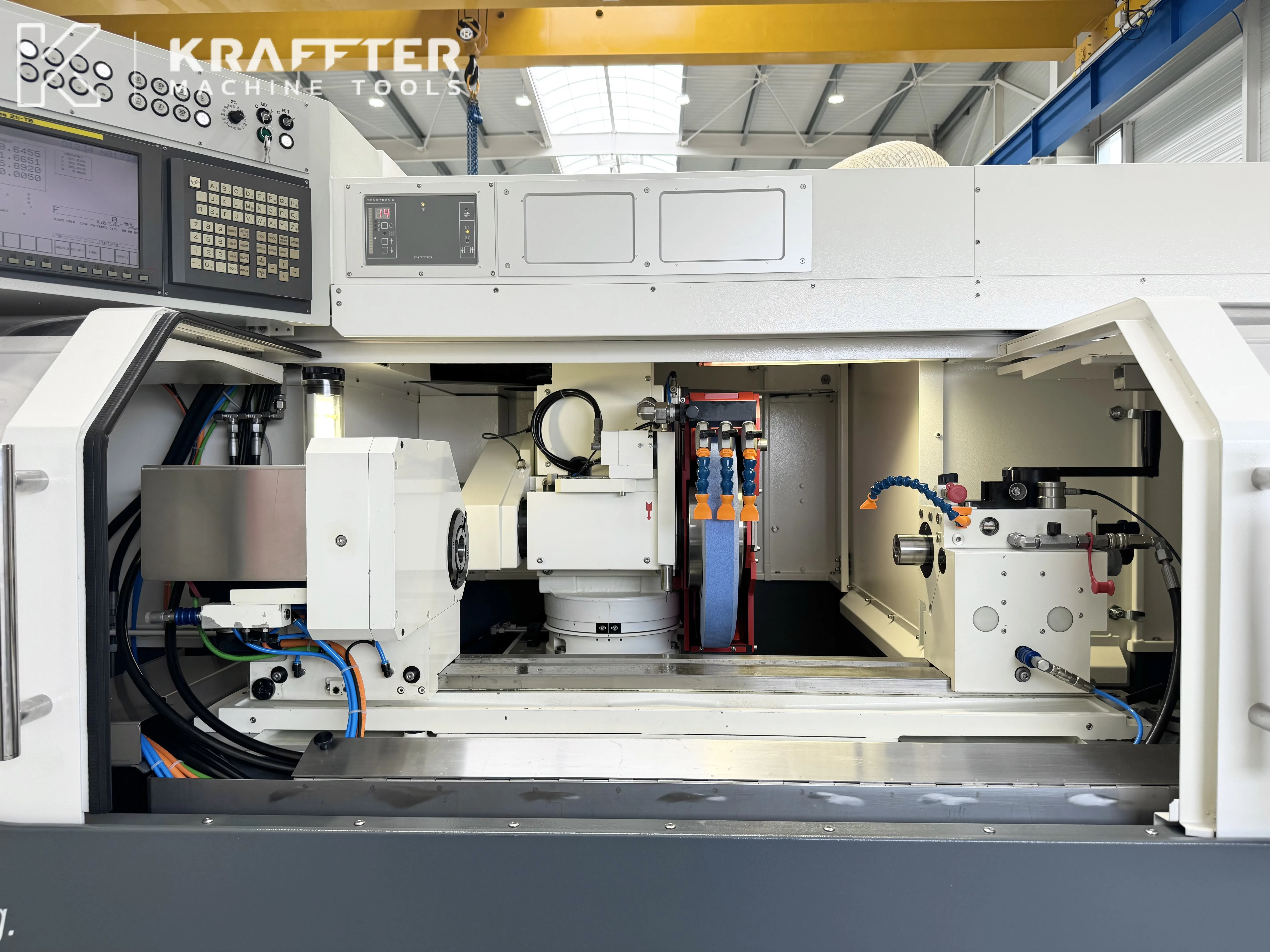

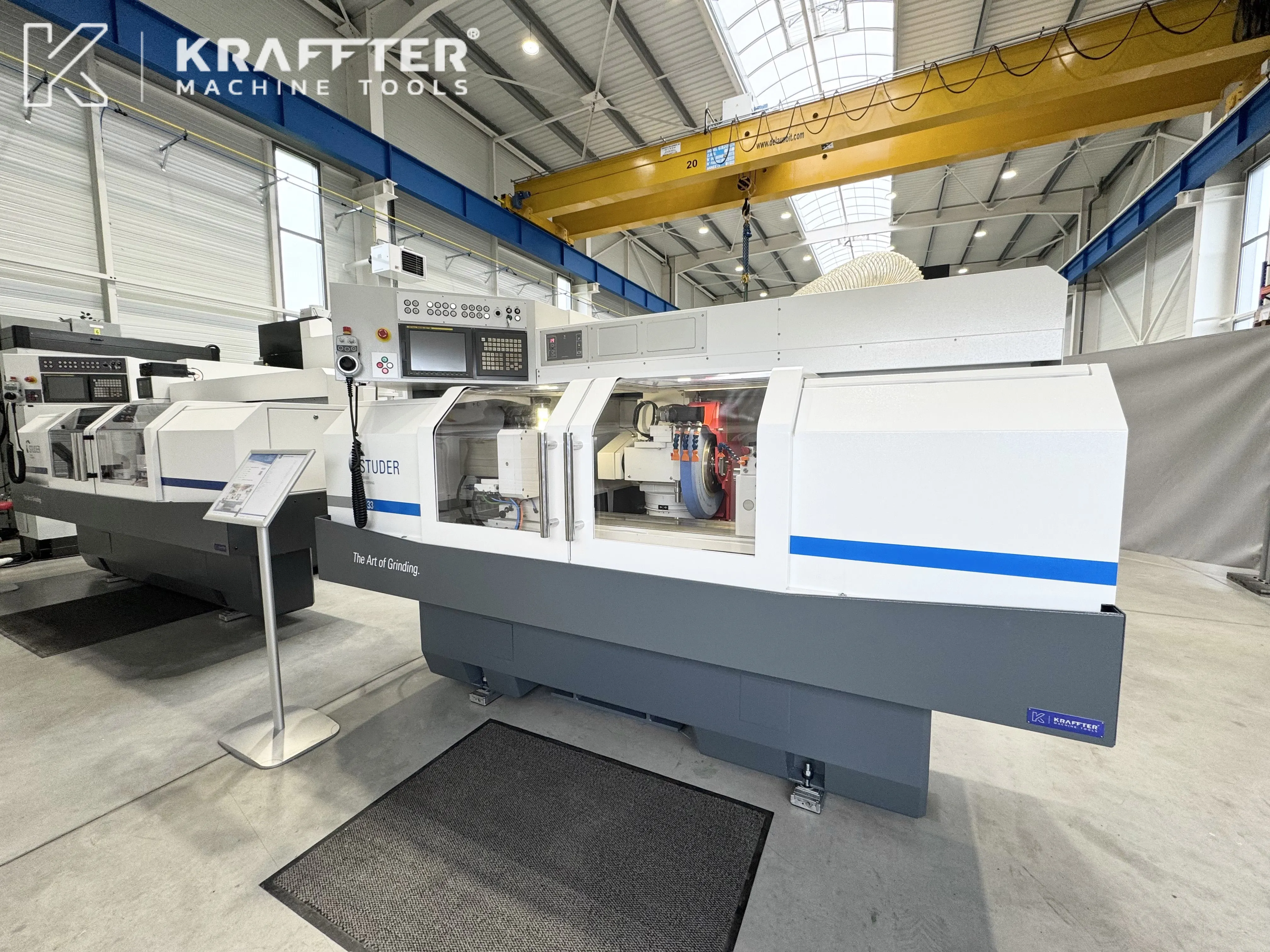

CNC Cylindrical grinder STUDER S33
TECHNICAL CHARACTERISTICS:
Year of manufacturing: 2008
CNC control: FANUC 21i-TB
Software installed: StuderGrind
Centre distance: 650 [mm]
Height of centers: 175
Stroke X axis: 285 [mm]
Min. Stroke speed X axis: 0.001 [mm/min]
Max. Stroke speed X axis: 5000 [mm/min]
Resolution X axis: 0.0001 [mm]
Stroke Z axis: 800 [mm]
Min. Stroke speed Z axis: 0.001 [mm/min]
Max. Stroke speed Z axis: 10000 [mm/min]
Resolution Z axis: 0.0001 [mm]
B axis swivelling stroke: -15 [°] / +195 [°]
B axis indexing precision: Hirth 1 [°]

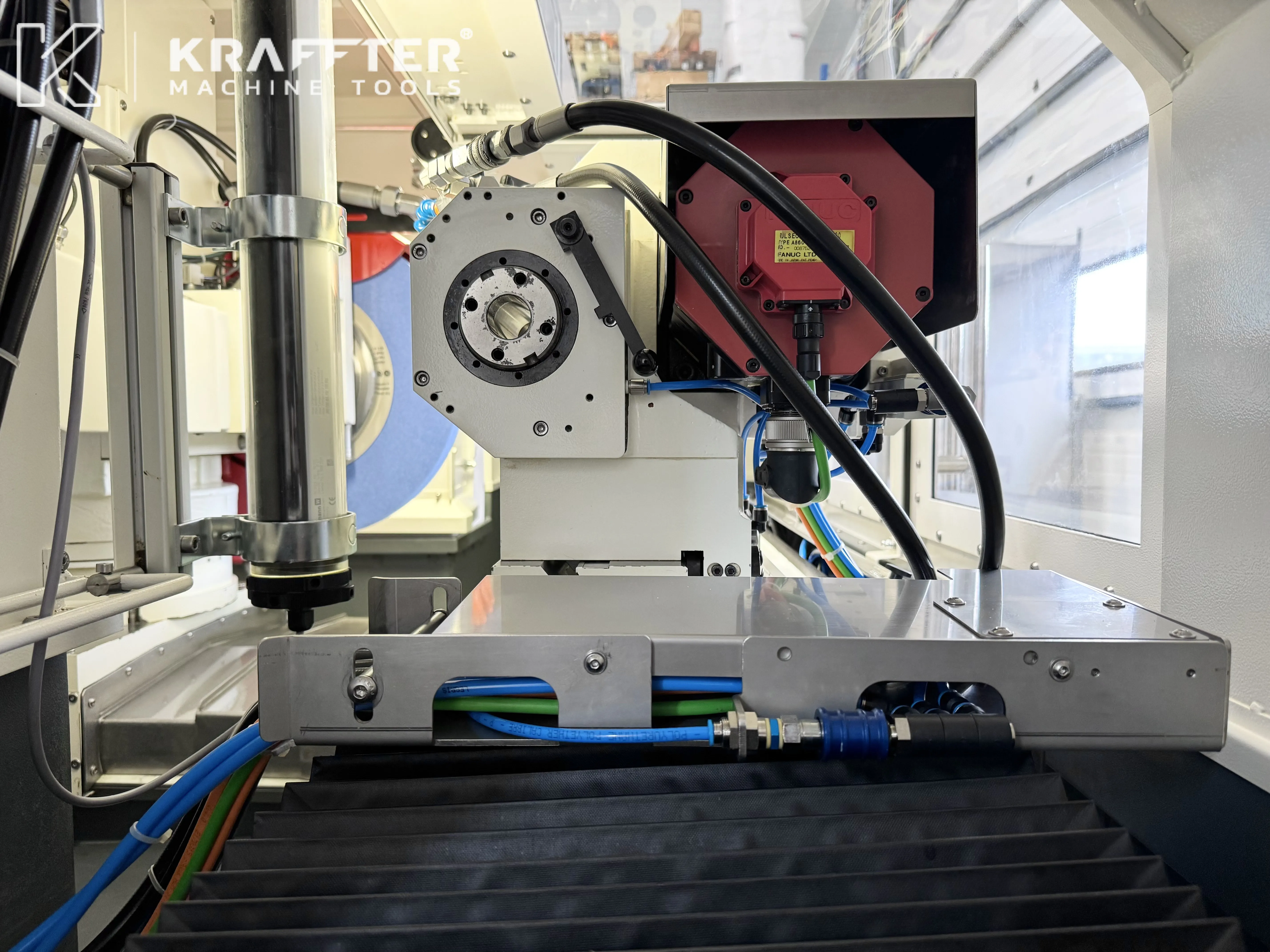

Workpiece spindle nose: MT5
Workpiece spindle min. speed: 1 [rpm]
Workpiece spindle max. speed: 1500 [rpm]
Max. part weight in part holder headstock between centres: 80 [Kg]

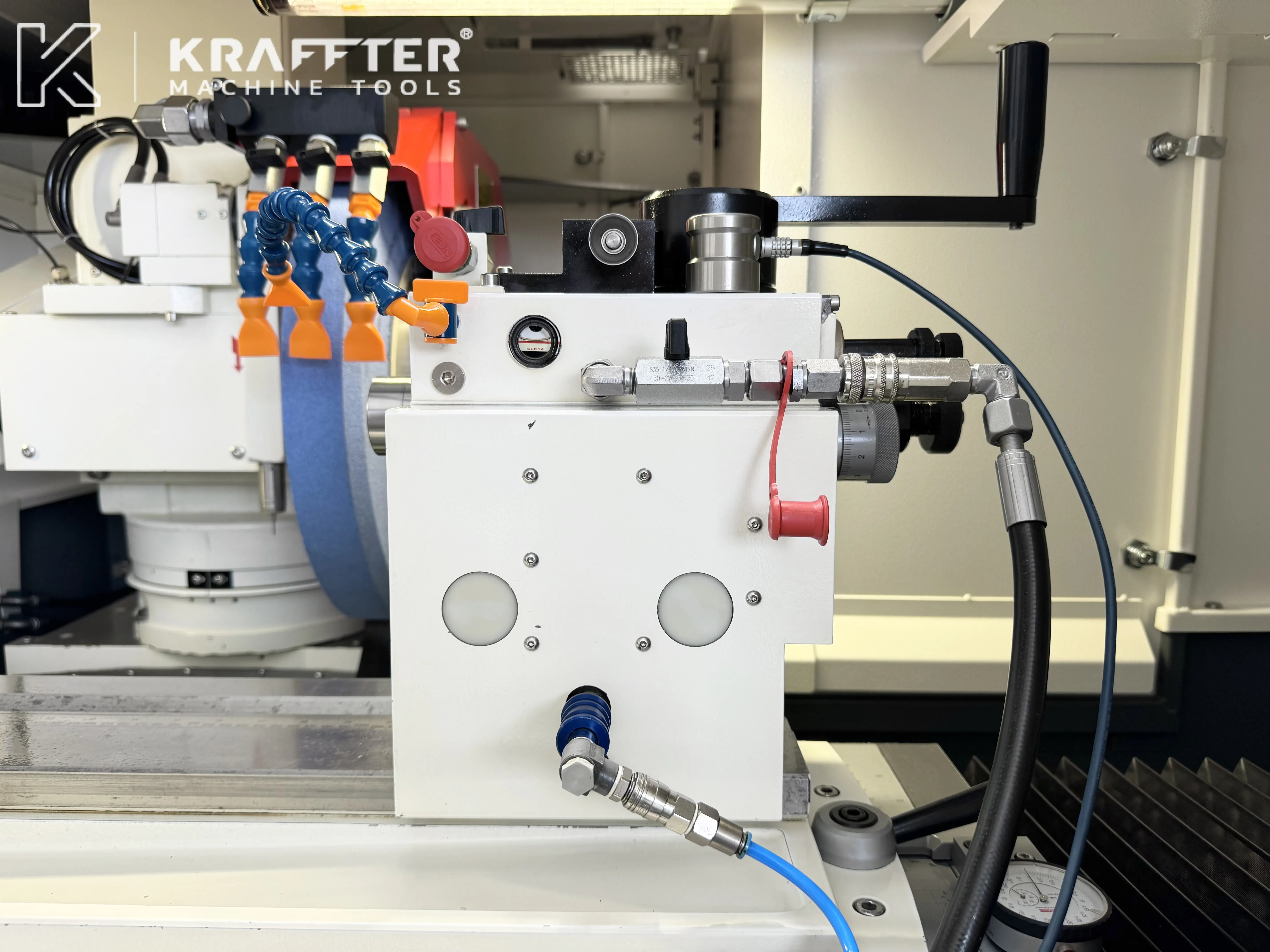

Type of attachment tailstock: MT3
Tailstock quill stroke: 35 [mm]
Tailstock quill diameter: 50 [mm]
Tailstock fine adjustment: +/- 40 [mm]
Working hours: 2452 [h]
Supply voltage: 400 [V]
Total power required: 20 [kVA]
Weight: 4000 [Kg]
INCLUDED EQUIPMENT:

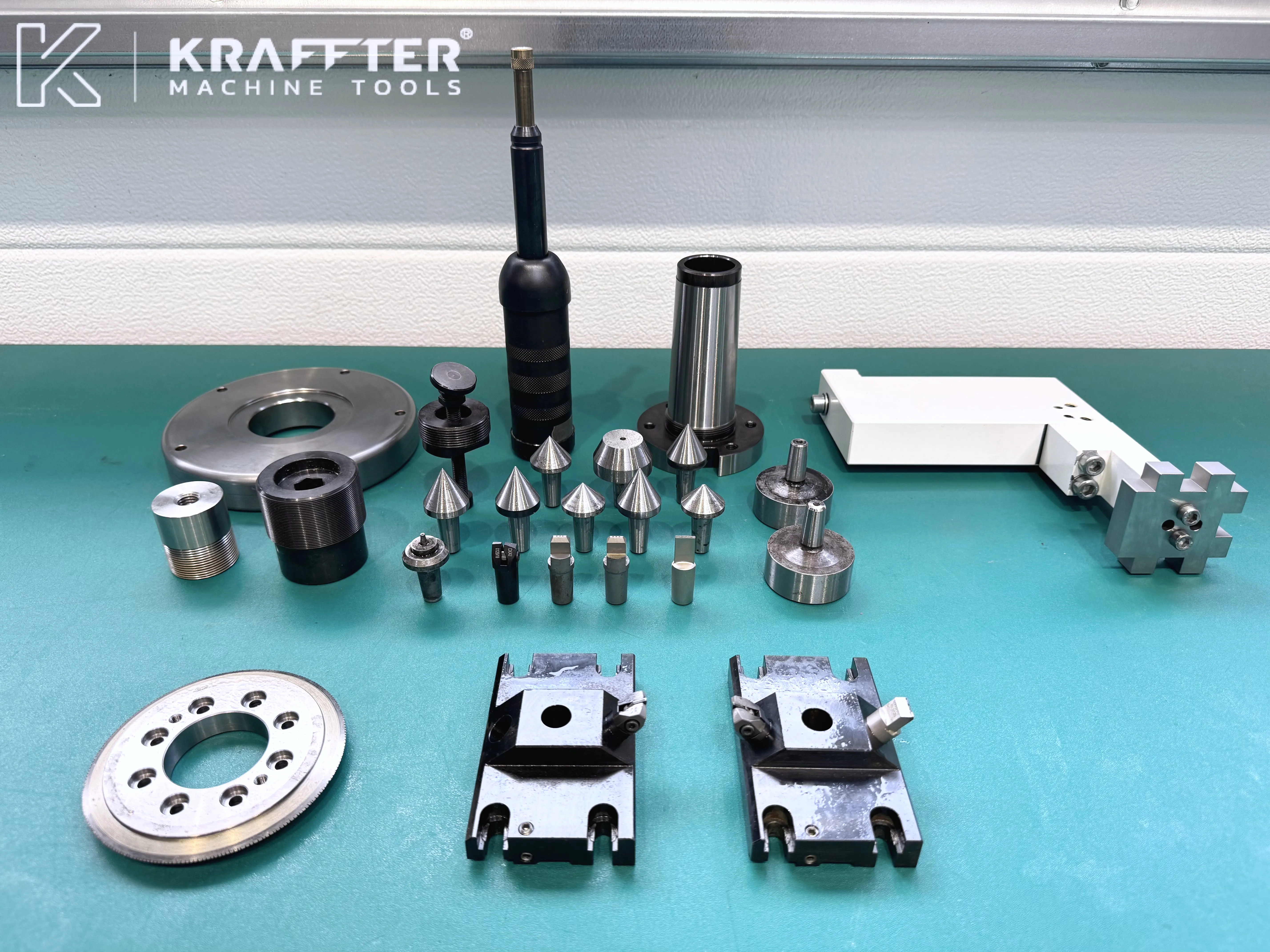

x1 internal grinding spindle type 102560B – speed: 60,000 [rpm]
x9 internal grinding wheel arbors

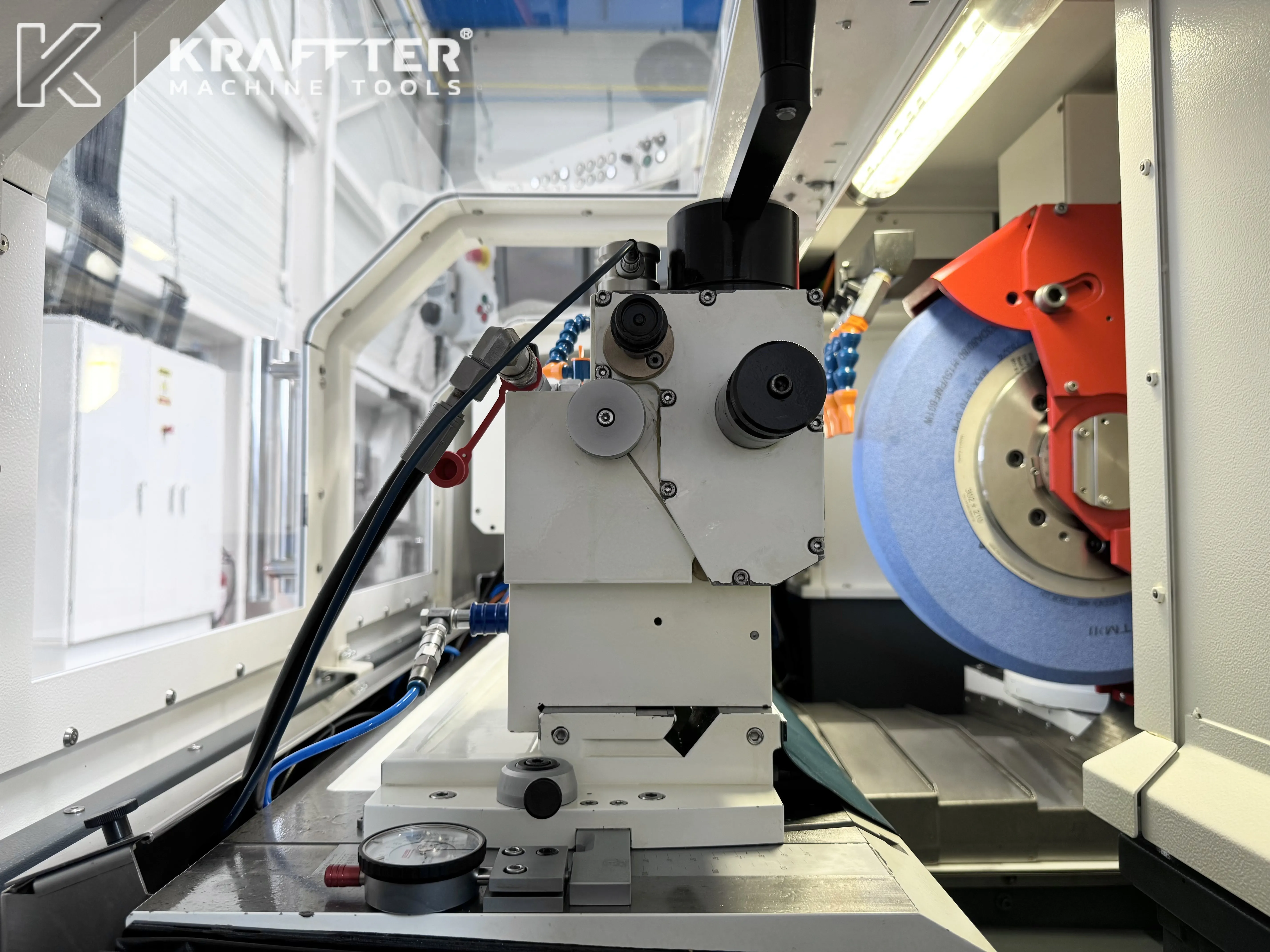

x1 hydraulic swiveling dressing attachment
x1 fixed dressing unit mounted on the table

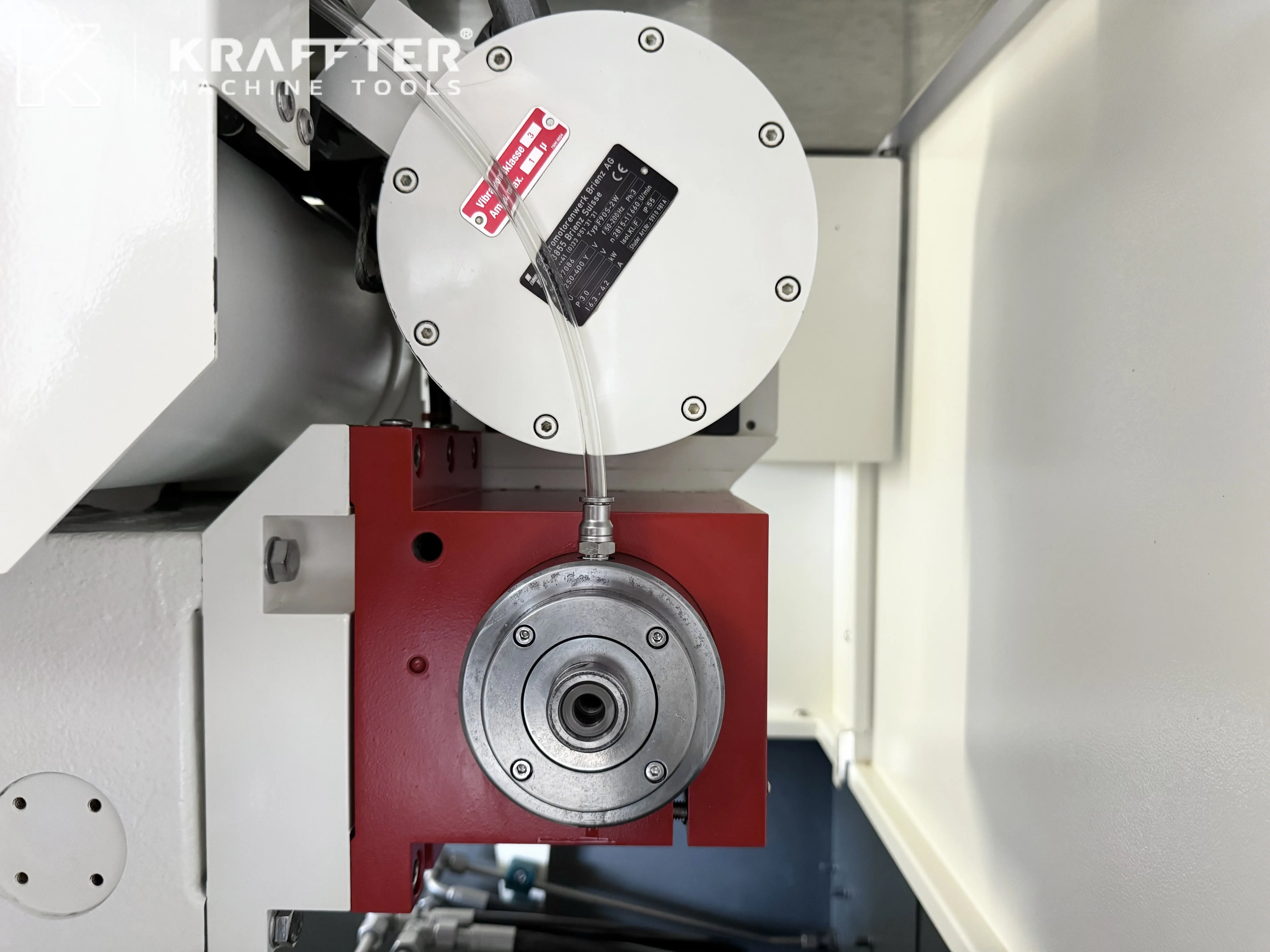

x1 rotating wheel dressing unit (electrical)

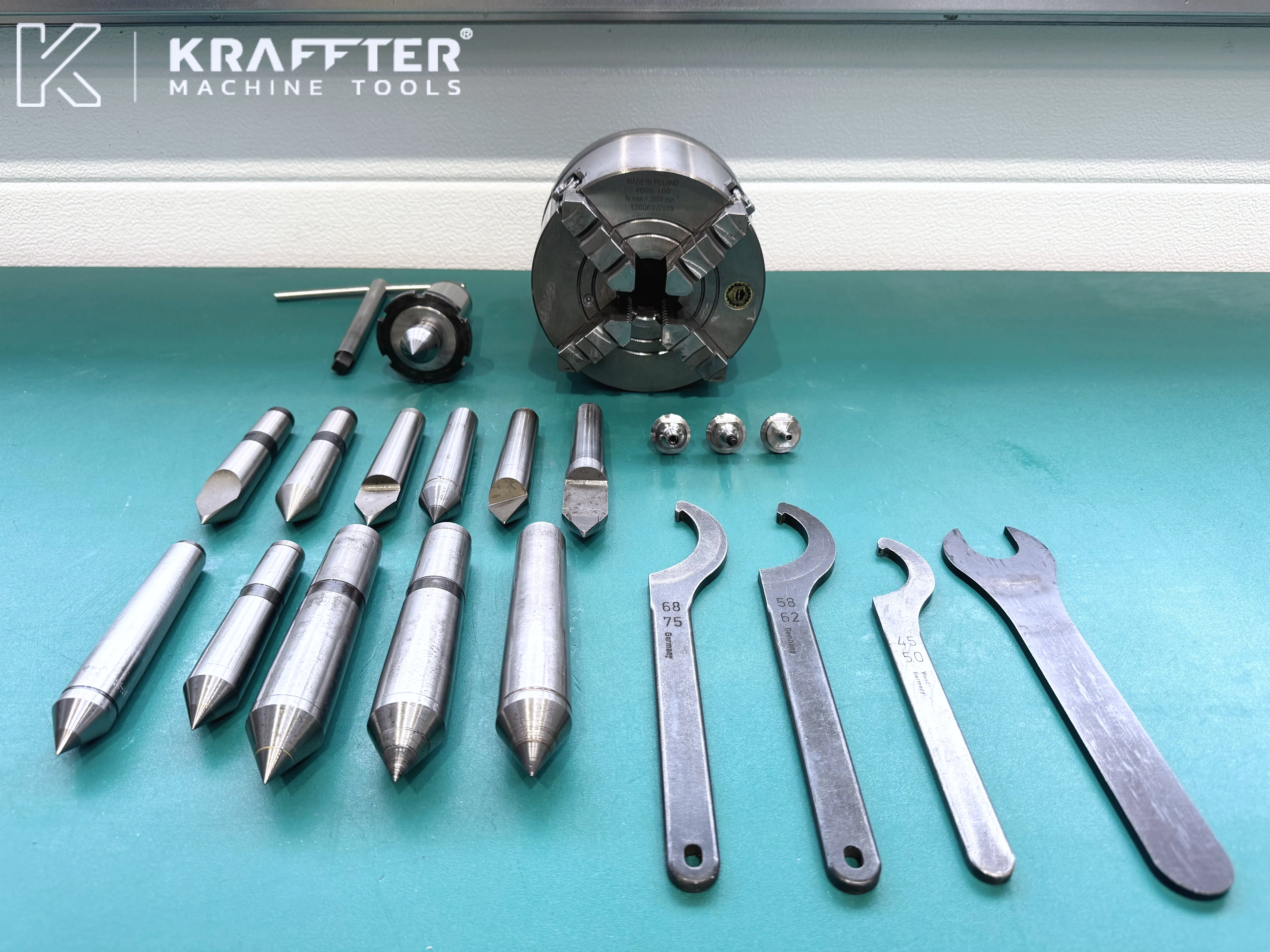

x1 4-jaw chuck Ø170 [mm] - MT5
x3 sets of hard jaws
x11 full centres
x4 half-centres
x1 RÖHM blunt centre
x1 2-point steady rest
x62 internal grinding wheels
x10 external grinding wheels
x7 service keys
x1 pneumatic tailstock lift
x1 pneumatic upper-table lift

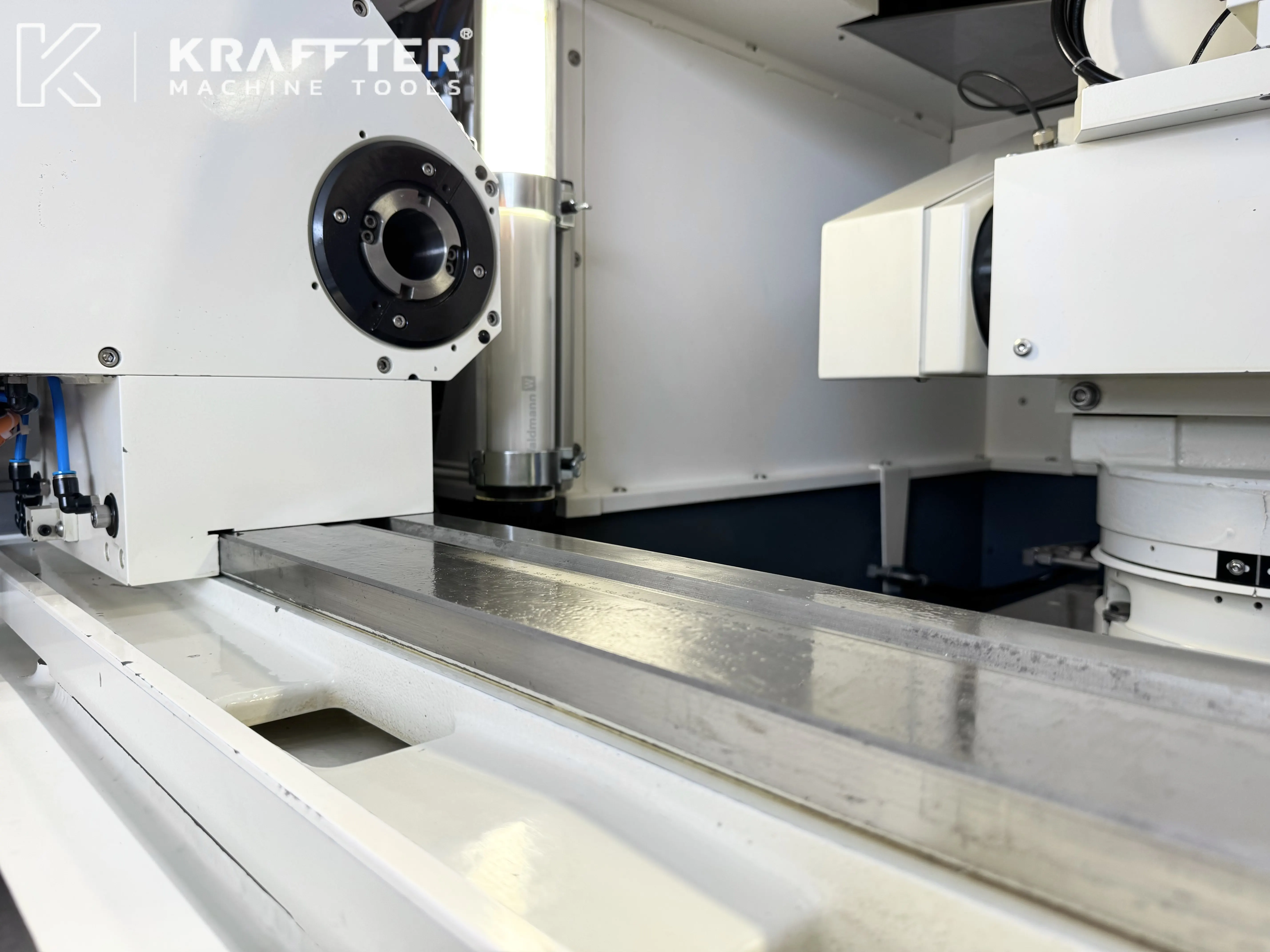

x1 longitudinal slide with rotary table - swiveling up to 8.5 [°]

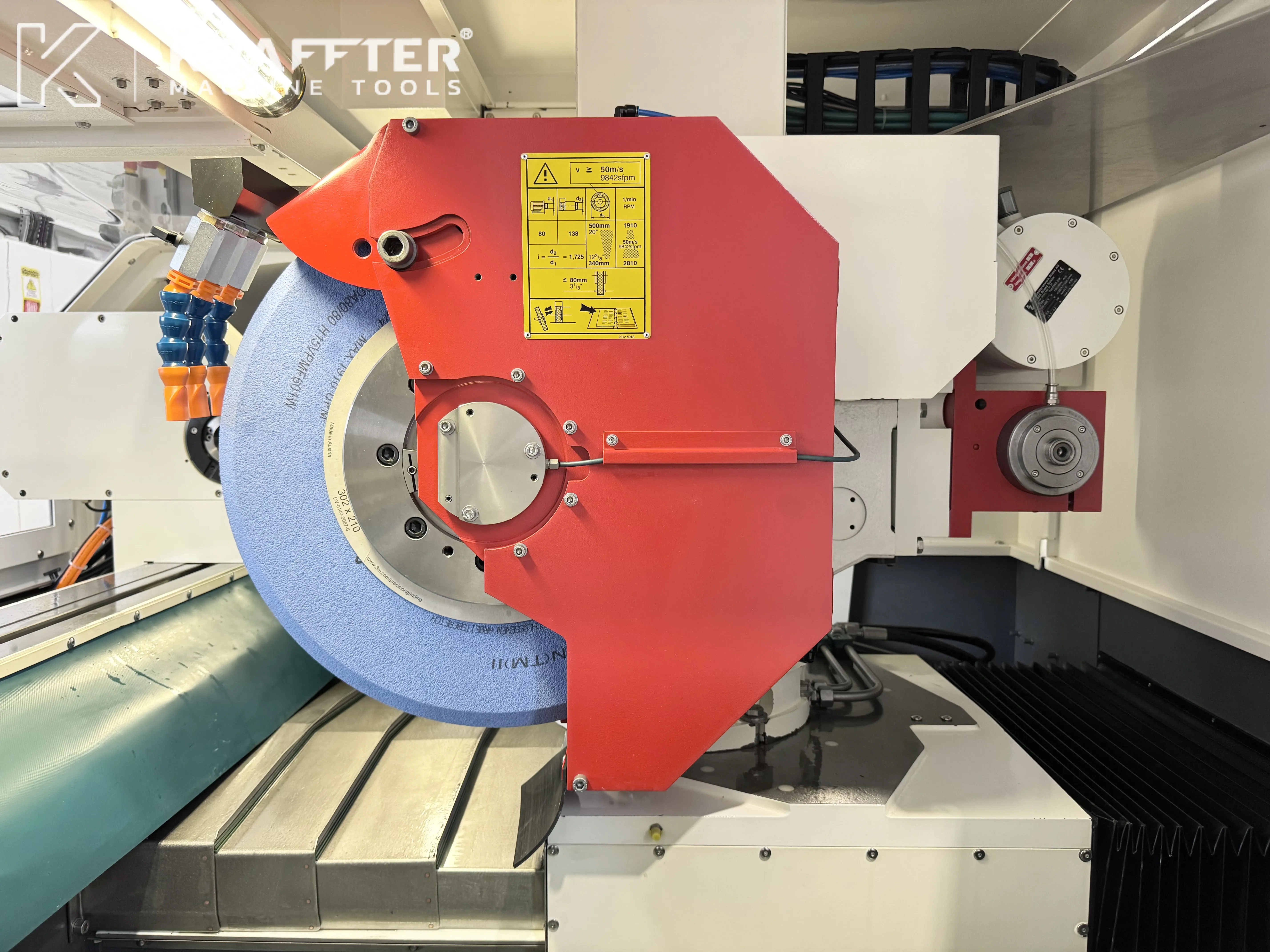

x1 automatic B-axis turret wheelhead – Hirth gearing 1 [°]
x1 C-axis for thread and form grinding

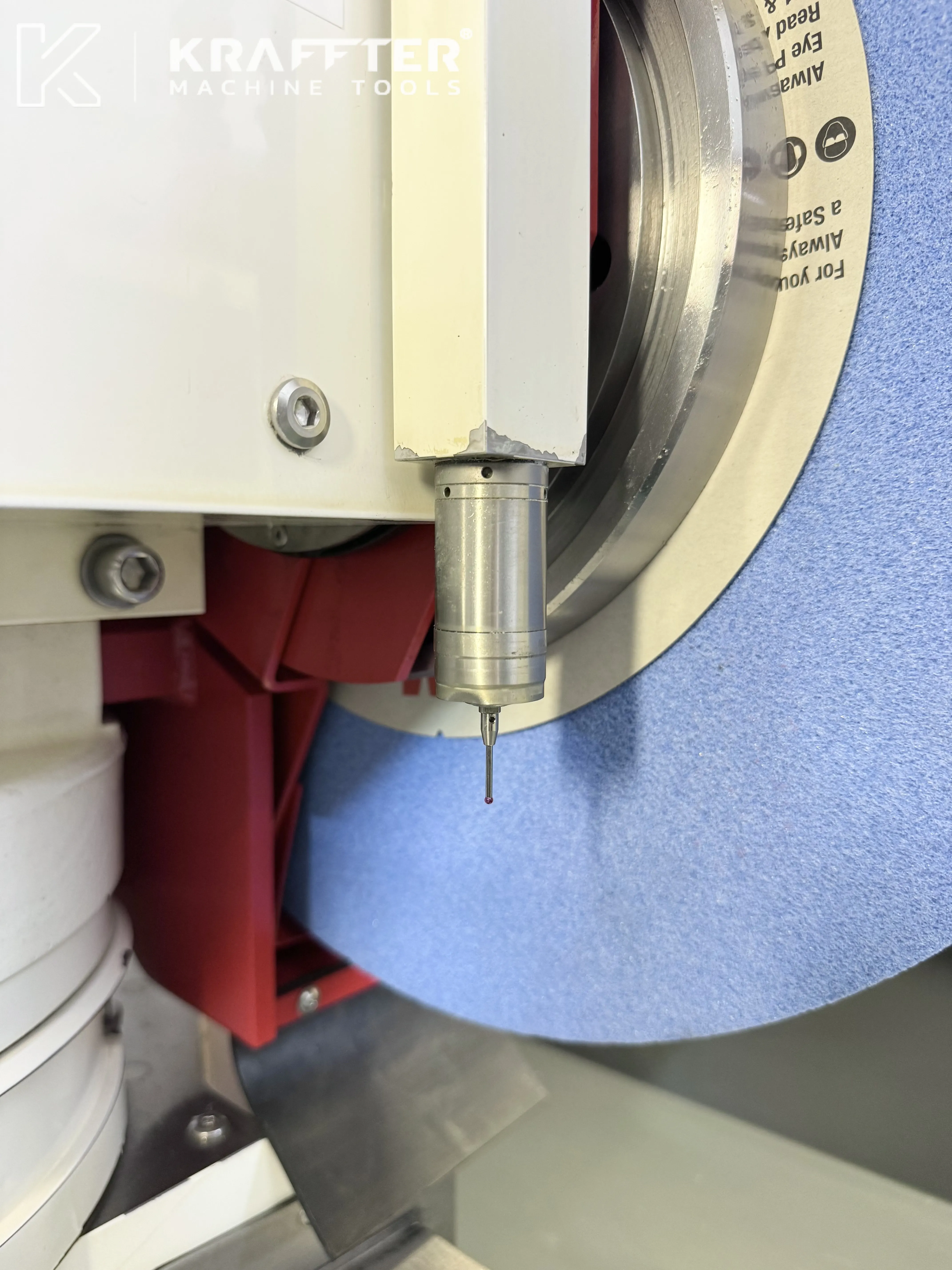

x1 workpiece probe MOVOMATIC C25
x1 contact control device DITTEL SENSITRON 6
x1 semi-automatic wheel balancing device MPM type BMT100M

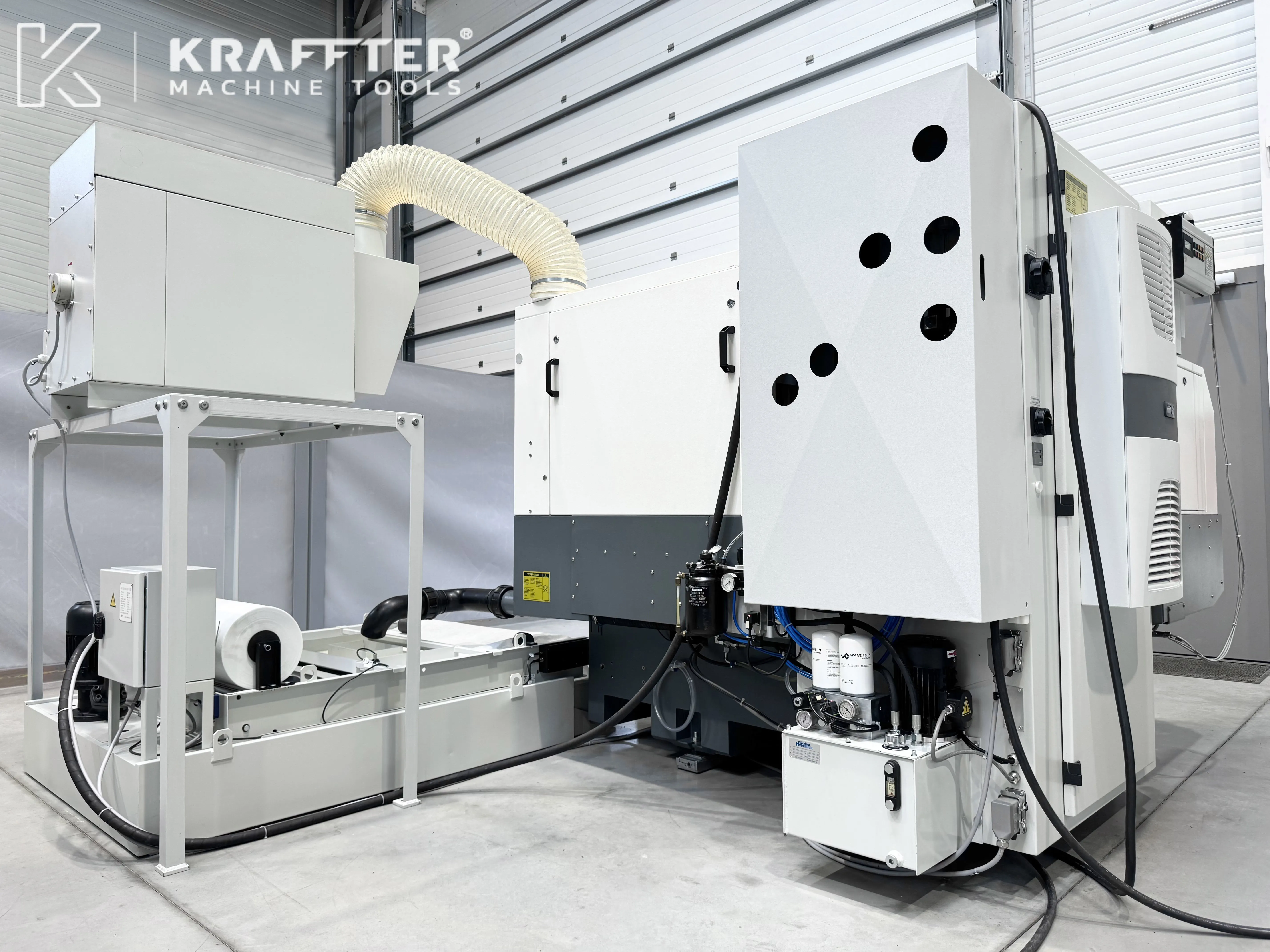

x1 paper filtration unit ARO TECHNOLOGIES type 5491.246A01
x1 mist extraction unit AIR-FRESH SERVICE type FMN-V12
x1 foot pedal

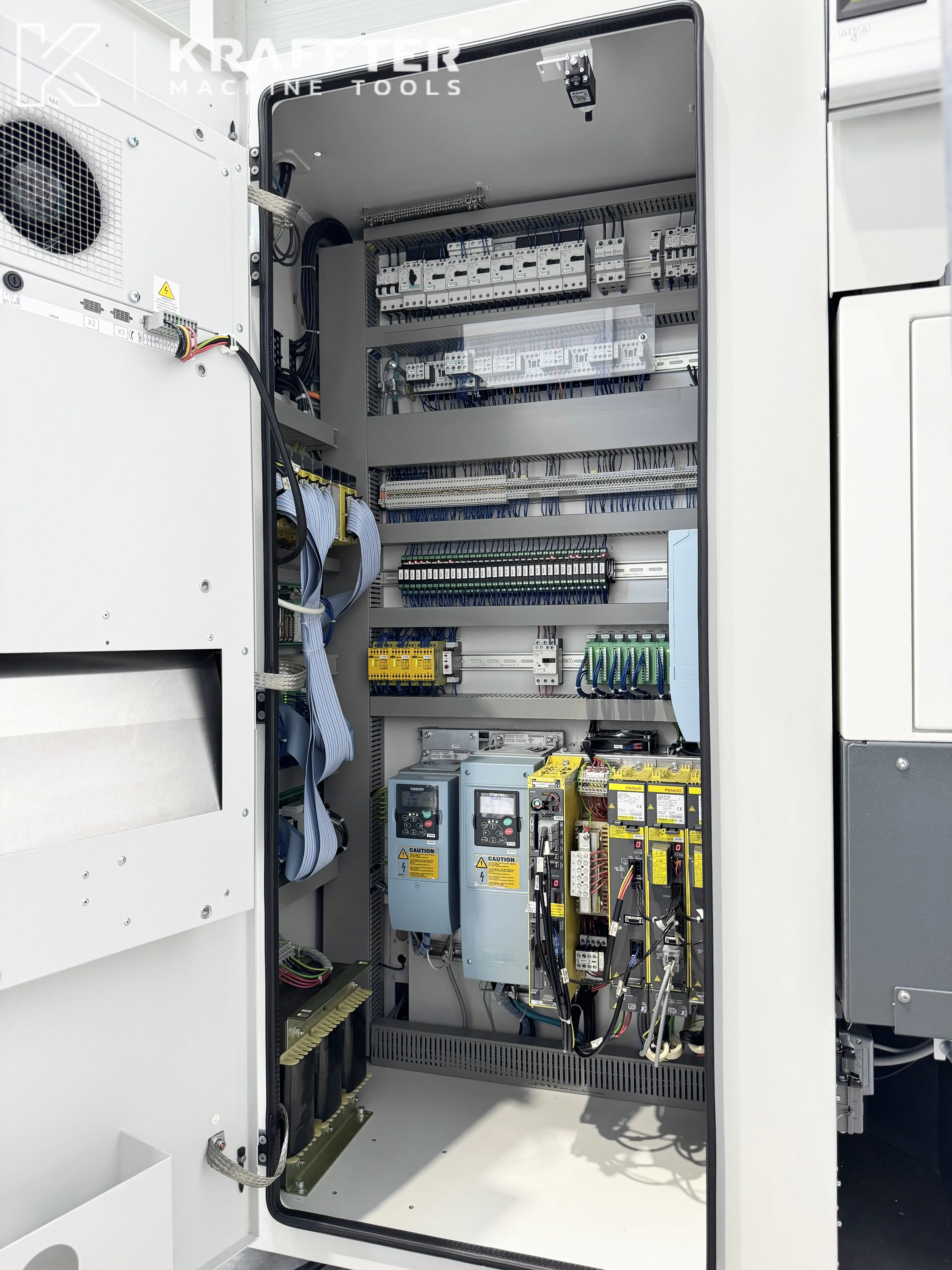

x1 electrical cabinet air conditioner
x4 external grinding wheel flanges
x1 set of lifting equipment
x1 axis bracket (for transportation of the machine)
x1 set of operating manuals (French, English, and German)
Machine visible under power in our premises by appointment.
Price on request, loading on truck included.
Possibility of shipping Worldwide.
