Poststraße 117, 73054 Eislingen/Fils, Deutschland

Net weight: 1,300 kg
Overall dimensions: 1.8 m × 1.8 m × 1.8 m
Condition: Used

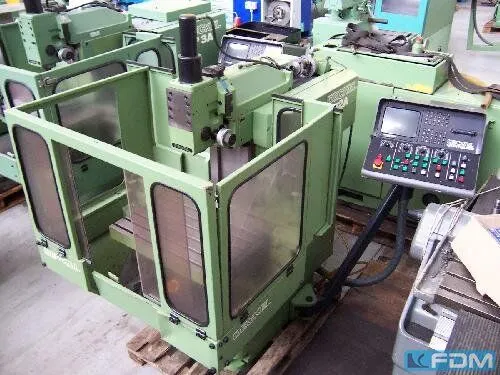

Universal milling machine from Deckel, proven for decades in mold, tool, and machine construction.
CNC-controlled tool milling machine with Contour 3 control,
vertical head rotatable ±90° with 60 mm quill stroke,
horizontal spindle,
feeds and rapid traverse in 3 axes,
hydraulic tool clamping,
automatic central lubrication,
coolant system,
safety emergency stop,
chip spray protection cabin with chip tray,

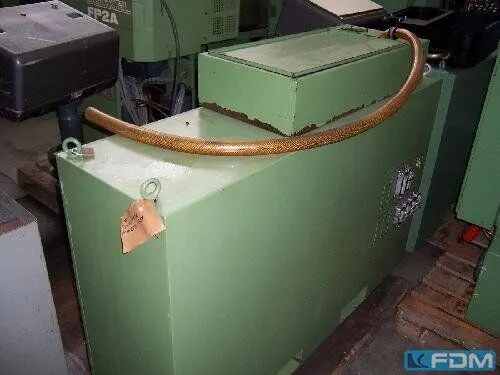

separate control cabinet.
Machine is in good condition.
Machine type: Universal tool milling machine
Control type: CNC
Location: Eislingen
Country of origin: Germany
Delivery time: Immediate
Shipping terms: Ex warehouse
X-axis travel: 300 mm
Y-axis travel: 300 mm
Z-axis travel: 400 mm (340 mm with apron)
Clamping surface: 390 × 620 mm / chip tray
Spindle speed: 40 - 2500 rpm
Feed range: 0.2 - 3600 mm/min
Rapid traverse: 4.0 m/min
Control: Contour 3 - 3D path control system
Spindle taper: SK40
Quill stroke: 60 mm
Head swivel angle: ±90°
Spindle drive motor: 2.0 kW
Total power requirement: 1.6 / 2.0 kW
